本人一直对计算机图像识别和机器学习以及人工神经网络有很浓厚的兴趣，看到了基于openCV（原文）的实现流程，就萌生了在假期时间使用MATLAB进行车牌识别的想法。
在CSDN中查阅了很多相关文章，写下这篇文章算是一个回馈，也是一个总结，顺便在路途中找点事情做。另外本人编程外行，水平有限，不足之处欢迎探讨，代码不规范之处请无视。

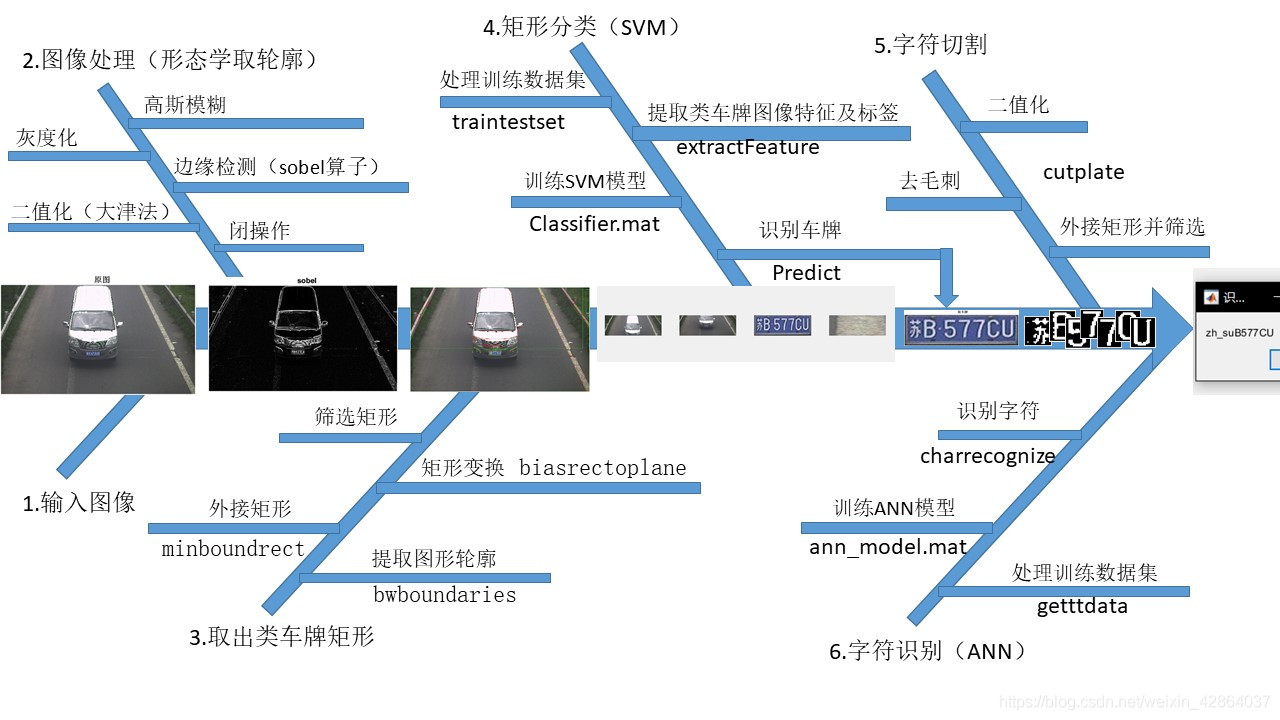

UI用的是MATLAB App，具体实现流程如下：
下面会贴上实现过程及源码：
global I
[filename, pathname]=uigetfile({'*.jpg';'*.bmp'}, 'File Selector');
I=imread([pathname '\' filename]);
imshow(I, 'Parent', app.UIAxes);%title('原图'); 这部分的重点是用sobel算子进行边缘检测以及用大津法对图像进行二值化处理，设置的参数可以进一步调优。难点是用minboundrect函数画出最小外接矩形，用biasrectoplane提取矩形并进行归一化处理（这里用MATLAB自带的函数不理想，是我自己设计的算法），最后对矩形图像进行初步筛选，得到类车牌矩形，为SVM分类做准备。
主函数
global I
global I_cell
G = fspecial('gaussian', [5 5], 2);
I_blur = imfilter(I,G,'same'); %高斯模糊
imshow(I_blur, 'Parent', app.UIAxes_2);
I_gray = rgb2gray(I_blur); %转化为灰度图
imshow(I_gray, 'Parent', app.UIAxes_3);
[high,width] = size(I_gray); % 获得图像的高度和宽度
F2 = double(I_gray);
U = double(I_gray);
uSobel = I_gray;
for i = 2:high - 1 %sobel边缘检测
for j = 2:width - 1
Gx = (U(i+1,j-1) + 2*U(i+1,j) + F2(i+1,j+1)) - (U(i-1,j-1) + 2*U(i-1,j) + F2(i-1,j+1));
Gy = (U(i-1,j+1) + 2*U(i,j+1) + F2(i+1,j+1)) - (U(i-1,j-1) + 2*U(i,j-1) + F2(i+1,j-1));
uSobel(i,j) = sqrt(Gx^2 + Gy^2);
end
end
I_sobel= im2uint8(uSobel);
imshow(I_sobel, 'Parent', app.UIAxes_4);%画出边缘检测后的图像
level = graythresh(I_sobel); %OTSU 大津法取阈值
I_OTSU=imbinarize(I_sobel,level);
imshow(I_OTSU, 'Parent', app.UIAxes_5);%画出二值化后的图像
se = strel('rectangle', [3 17]); %创建一个平坦的矩形结构，MN指定大小
I_close = imclose(I_OTSU,se); %闭操作
imshow(I_close, 'Parent', app.UIAxes_6);%画出闭操作后的图像
I_contour = bwperim(I_close); %轮廓提取
imshow(I_contour, 'Parent', app.UIAxes_7);%画出轮廓图像
I_fill= imfill(I_contour,'holes');
B = bwboundaries(I_fill, 'noholes'); % B为cell
figure(1)
imshow(I);
hold on;
I_cell = {};
for k = 1 : length(B)
thisBoundary = B{k};
[rectx,recty,area,perimeter]=minboundrect(thisBoundary(:, 2), thisBoundary(:, 1),'a');
rectx= floor(rectx);
recty= floor(recty);
[theta,I_crop] = biasrectoplane(rectx,recty,I);
if (~isnan(I_crop)) & (length(I_crop)>100)
I_crop=imresize(I_crop,[36 136]);
I_cell=[I_cell, I_crop];
end
plot(thisBoundary(:, 2), thisBoundary(:, 1), 'r', 'LineWidth', 0.5);
hold on;
line(rectx(:),recty(:),'color','g');
end
figure(2)
for m= 1:length(I_cell)
subplot(1,length(I_cell),m)
imshow(I_cell{1,m});
hold on
end minboundrect
function [rectx,recty,area,perimeter] = minboundrect(x,y,metric)
if (nargin<3) || isempty(metric)
metric = 'a';
elseif ~ischar(metric)
error 'metric must be a character flag if it is supplied.'
else
% check for 'a' or 'p'
metric = lower(metric(:)');
ind = strmatch(metric,{'area','perimeter'});
if isempty(ind)
error 'metric does not match either ''area'' or ''perimeter'''
end
% just keep the first letter.
metric = metric(1);
end
% preprocess data
x=x(:);
y=y(:);
% not many error checks to worry about
n = length(x);
if n~=length(y)
error 'x and y must be the same sizes'
end
if n>3
try
edges = convhull(x,y);
x = x(edges);
y = y(edges);
end
% probably fewer points now, unless the points are fully convex
nedges = length(x) - 1;
elseif n>1
% n must be 2 or 3
nedges = n;
x(end+1) = x(1);
y(end+1) = y(1);
else
% n must be 0 or 1
nedges = n;
end
switch nedges
case 0
% empty begets empty
rectx = [];
recty = [];
area = [];
perimeter = [];
return
case 1
% with one point, the rect is simple.
rectx = repmat(x,1,5);
recty = repmat(y,1,5);
area = 0;
perimeter = 0;
return
case 2
% only two points. also simple.
rectx = x([1 2 2 1 1]);
recty = y([1 2 2 1 1]);
area = 0;
perimeter = 2*sqrt(diff(x).^2 + diff(y).^2);
return
end
% 3 or more points.
% will need a 2x2 rotation matrix through an angle theta
Rmat = @(theta) [cos(theta) sin(theta);-sin(theta) cos(theta)];
% get the angle of each edge of the hull polygon.
ind = 1:(length(x)-1);
edgeangles = atan2(y(ind+1) - y(ind),x(ind+1) - x(ind));
% move the angle into the first quadrant.
edgeangles = unique(mod(edgeangles,pi/2));
% now just check each edge of the hull
nang = length(edgeangles);
area = inf;
perimeter = inf;
met = inf;
xy = [x,y];
for i = 1:nang
% rotate the data through -theta
rot = Rmat(-edgeangles(i));
xyr = xy*rot;
xymin = min(xyr,[],1);
xymax = max(xyr,[],1);
% The area is simple, as is the perimeter
A_i = prod(xymax - xymin);
P_i = 2*sum(xymax-xymin);
if metric=='a'
M_i = A_i;
else
M_i = P_i;
end
% new metric value for the current interval. Is it better?
if M_i<met
% keep this one
met = M_i;
area = A_i;
perimeter = P_i;
rect = [xymin;[xymax(1),xymin(2)];xymax;[xymin(1),xymax(2)];xymin];
rect = rect*rot';
rectx = rect(:,1);
recty = rect(:,2);
end
end
end
biasrectoplane
function [theta,I_crop] = biasrectoplane(x,y,I)
I_gray = rgb2gray(I);
[high,width] = size(I_gray);
A = width;
B = high;
if x(1) ~= x(4)
theta = atand((y(4)-y(1))/(x(1)-x(4)));
else
theta = 0;
end
if (theta<30) && ( theta~=0) % 顺时针旋转
xc=x(4);
yc=y(4);
a = sqrt((x(1) - x(4))^2 + (y(1) - y(4))^2);
b = sqrt((x(2) - x(1))^2 + (y(2) - y(1))^2);
if a>= b
ratiorect = a/b;
else
ratiorect = b/a;
end
if (atand(xc/yc)>= theta)&& (ratiorect>2) && (ratiorect<8) %planC
xbtp = B*sind(theta) + cosd(theta)*(xc-yc*tand(theta));
ybtp = yc/cosd(theta) + sind(theta)*(xc-yc*tand(theta));
Ib = imrotate(I,-theta);
I_crop=imcrop(Ib,[xbtp ybtp a b]);
elseif (atand(xc/yc)< theta)&& (ratiorect>2) && (ratiorect<8) %planD
xbtp = xc/cosd(theta) + sind(theta)*(B-yc-xc*tand(theta));
ybtp = xc/tand(theta) + cosd(theta)*(yc-xc/tand(theta));
Ib = imrotate(I,-theta);
I_crop=imcrop(Ib,[xbtp ybtp a b]);
else
I_crop=nan;
end
elseif (theta>60) && ( theta~=0) % 逆时针旋转
theta=90-theta;
xc=x(1);
yc=y(1);
a = sqrt((x(2) - x(1))^2 + (y(2) - y(1))^2);
b = sqrt((x(1) - x(4))^2 + (y(1) - y(4))^2);
if a>= b
ratiorect = a/b;
else
ratiorect = b/a;
end
if (atand(yc/xc)>= theta)&& (ratiorect>2) && (ratiorect<8) %planA
xbtp = xc/cosd(theta) + sind(theta)*(yc-xc*tand(theta));
ybtp = yc/cosd(theta) + sind(theta)*(A-xc-yc*tand(theta));
Ib = imrotate(I,(theta));
I_crop=imcrop(Ib,[xbtp ybtp a b]);
elseif (atand(yc/xc)< theta)&& (ratiorect>2) && (ratiorect<8) %planB
xbtp = yc/sind(theta) + cosd(theta)*(xc-yc/tand(theta));
ybtp = yc/cosd(theta) + sind(theta)*(A-xc-yc*tand(theta));
fprintf('xbtp = %f\n',xbtp);
fprintf('ybtp = %f\n',ybtp);
Ib = imrotate(I,(theta));
I_crop=imcrop(Ib,[xbtp ybtp a b]);
else
I_crop=nan;
end
elseif theta==0 % 不需要旋转
Ib = I;
a = x(2)-x(1);
b = y(4)-y(1);
if a>= b
ratiorect = a/b;
else
ratiorect = b/a;
end
xbtp = x(1);
ybtp = y(1);
if (ratiorect>2) && (ratiorect<8)
I_crop=imcrop(Ib,[xbtp ybtp a b]);
else
I_crop=nan;
end
else
I_crop=nan;
end
end 这部分使用到了机器学习算法的一种：支持向量机（SVM）。SVM的核心思想是用一个n+1维的超平面对n维数据进行分类，所谓的支撑向量即距离超平面最近的向量（数据），优点之一是可以忽略非支撑向量，提高计算效率。
SVM的实现过程大致可以分为五部分：1.整理训练/测试数据集；2.提取图像特征；3.训练分类模型；4.参数调优并得出最优模型；5.对输入图像进行分类。我用的是MATLAB自带的SVM函数，因为是二值分类，所以即使是用默认参数仍然取得了不错的效果。想深入研究的同学可以尝试使用svmlib库。
提取GLCM图像特征
function [features] = getGLCMFeatures(image)
features_all = [];
for i = 1:10
glcm = graycomatrix(image, 'Offset', [0,i]);
stats = graycoprops(glcm);
glcm45 = graycomatrix(image, 'Offset', [-i,i]);
stats45 = graycoprops(glcm45);
glcm90 = graycomatrix(image, 'Offset', [-i,0]);
stats90 = graycoprops(glcm90);
glcm135 = graycomatrix(image, 'Offset', [-i,-i]);
stats135 = graycoprops(glcm135);
stats7x4 = [stats.Contrast stats.Correlation stats.Energy stats.Homogeneity;
stats45.Contrast stats45.Correlation stats45.Energy stats45.Homogeneity;
stats90.Contrast stats90.Correlation stats90.Energy stats90.Homogeneity;
stats135.Contrast stats135.Correlation stats135.Energy stats135.Homogeneity];
features_all = [features_all mean(stats7x4,1) std(stats7x4,0,1)];
end
features = features_all;
提取HOG特征和图像标签
function [trainingFeatures,trainingLabels,testFeatures,testLabels]=extractFeature(trainingSet,testSet)
%% 确定特征向量尺寸
img = read(trainingSet(1), 1);
%转化为灰度图像
img=rgb2gray(img);
%转化为2值图像
lvl = graythresh(img);
img = im2bw(img, lvl);
img=imresize(img,[256 256]);
cellSize = [4 4];
[hog_feature, vis_hog] = extractHOGFeatures(img,'CellSize',cellSize);
glcm_feature = getGLCMFeatures(img);
SizeOfFeature = length(hog_feature)+ length(glcm_feature);
trainingFeatures = [];
trainingLabels = [];
for digit = 1:numel(trainingSet)
numImages = trainingSet(digit).Count;
features = zeros(numImages, SizeOfFeature, 'single');%初始化特征向量
% 遍历每张图片
for i = 1:numImages
img = read(trainingSet(digit), i);% 取出第i张图片
img=rgb2gray(img); % 转化为灰度图像
glcm_feature = getGLCMFeatures(img); % 提取GLCM特征
lvl = graythresh(img); % 阈值化
img = im2bw(img, lvl); % 转化为2值图像
img=imresize(img,[256 256]);
% 提取HOG特征
[hog_feature, vis_hog] = extractHOGFeatures(img,'CellSize',cellSize);
% 合并两个特征
features(i, :) = [hog_feature glcm_feature];
end
% 使用图像描述作为训练标签
labels = repmat(trainingSet(digit).Description, numImages, 1);
% 逐个添加每张训练图片的特征和标签
trainingFeatures = [trainingFeatures; features];
trainingLabels = [trainingLabels; labels];
end
testFeatures = [];
testLabels = [];
for digit = 1:numel(testSet)
numImages = testSet(digit).Count; %初始化特征向量
features = zeros(numImages, SizeOfFeature, 'single');
for i = 1:numImages
img = read(testSet(digit), i); %转化为灰度图像
img=rgb2gray(img);
glcm_feature = getGLCMFeatures(img); %转化为2值图像
lvl = graythresh(img);
img = im2bw(img, lvl);
img=imresize(img,[256 256]);
[hog_4x4, vis4x4] = extractHOGFeatures(img,'CellSize',cellSize);
features(i, :) = [hog_4x4 glcm_feature];
end
% 使用图像描述作为训练标签
labels = repmat(testSet(digit).Description, numImages, 1);
testFeatures = [testFeatures; features];
testLabels=[testLabels; labels];
end
end主函数，训练并测试
clear;
dir=('C:\Users\11606\Desktop\MLPR\SVM\train');
testdir=('C:\Users\11606\Desktop\MLPR\SVM\test');
trainingSet = imageSet(dir,'recursive');
testSet = imageSet(testdir,'recursive');
[trainingFeatures,trainingLabels,testFeatures,testLabels]=extractFeature(trainingSet,testSet);
classifier = fitcecoc(trainingFeatures, trainingLabels);
save classifier.mat classifier -v7.3;
predictedLabels = predict(classifier, testFeatures);
confMat=confusionmat(testLabels, predictedLabels)
accuracy=(confMat(1,1)/sum(confMat(1,:))+confMat(2,2)/sum(confMat(2,:)))/2对输入图像进行分类
close(figure(1))
close(figure(2))
global I_cell
global I_plate
load classifier.mat; % 加载训练好的SVM模型
I_plate = {};
for m= 1:length(I_cell)
img=rgb2gray(I_cell{1,m});
glcm_feature = getGLCMFeatures(img); %提取GLCM特征
lvl = graythresh(img);
img = im2bw(img, lvl);
img=imresize(img,[256 256]);
[hog_4x4, ~] = extractHOGFeatures(img,'CellSize',[4 4]); %提取HOG特征
testFeature = [hog_4x4 glcm_feature]; %合并特征
predictedLabel = predict(classifier, testFeature); %使用predict函数进行分类
if predictedLabel=='isplate'
I_plate=[I_plate, I_cell{1,m}];
end
end
imshow(I_plate{1,l}, 'Parent', app.UIAxes_8);
hold on
end因为车牌周围的轮廓和柳钉在图像处理过程中会产生很多干扰，中文汉字通常会在取轮廓中会断裂成两部分，如何解决这两点是这部分的重点。我用的方法是用像素跳变次数作为阈值去除干扰和柳钉，剔除中文汉字并单独识别。
global I_plate
for l= 1:length(I_plate)
P = I_plate{1,l};
P_gray = rgb2gray(P);
level = graythresh(P_gray); %OTSU 大津法取阈值
P_OTSU=imbinarize(P_gray,level);
[r,c]=size(P_OTSU);
collect=[];
for i=1:r %去柳钉
n = 0;
for j=1:c-1
m = P_OTSU(i,j);
if m ~= P_OTSU(i,j+1)
n = n+1;
end
end
if n<15
for l=1:c
P_OTSU(i,l)=P_OTSU(1,1);
end
end
end
figure(6)
imshow(P_OTSU)
hold on
B = bwboundaries(P_OTSU, 'noholes'); % B为cell
C_cell= {};
p=0;
chx=[];
chy=[];
for k = 1 : length(B)
thisBoundary = B{k};
[rectx,recty,area,perimeter]=minboundrect(thisBoundary(:, 2), thisBoundary(:, 1),'a');
fprintf('area= %d\n',area/(136*36) )
arearatio=area/(136*36);
if arearatio>0.04 & arearatio<0.1 & rectx>10 %按面积筛选,并去除汉字
rectxx=rectx;
rectyy=recty;
z=1; %适当扩大轮廓z像素
y=2;
rectxx(1)= rectxx(1)-y;
rectxx(2)= rectxx(2)+y;
rectxx(3)= rectxx(3)+y;
rectxx(4)= rectxx(4)-y;
rectxx(5)= rectxx(5)-y;
rectyy(1)= rectyy(1)-z;
rectyy(2)= rectyy(2)-z;
rectyy(3)= rectyy(3)+z;
rectyy(4)= rectyy(4)+z;
rectyy(5)= rectyy(5)-z;
p=p+1;
chx(p)=[rectxx(1)];
chy(p)=[rectyy(1)];
chw(p) = sqrt((rectxx(2) - rectxx(1))^2 + (rectyy(2) - rectyy(1))^2);
chl(p) = sqrt((rectxx(1) - rectxx(4))^2 + (rectyy(1) - rectyy(4))^2);
end
try
line(rectxx(:),rectyy(:),'color','g');
end
end
[chx,id] = sort(chx);
chy = chy(id);
wth = max(chw);
lgh = max(chl);
chx7=0;
chy7=chy(1);
wth7=chx(1)-1;
lgh7=lgh;
M1 = imcrop(P_OTSU,[chx7 chy7 wth7 lgh7]);
[ch]= charrecognize_cn(M1); %ANN识别英文和数字
collect=[collect ch];
fprintf('M1=%s\n',ch);
for j=1:p
CN = imcrop(P_OTSU,[chx(j) chy(j) wth lgh]);
C_cell={C_cell,CN};
[ch]= charrecognize(CN); %ANN识别中文汉字
collect=[collect ch];
fprintf('ch=%s\n',ch);
end
msgbox(collect,'识别结果');
end 这部分要使用到深度学习的基础：人工神经网络（ANN），ANN的大致思想是通过正向矩阵运算->预测结果与实际标签比对->反向优化各层网络间权值，输入是图像所有像素点，输出是需要分类的图像标签。
实现过程可以分为以下五部分：1.整理训练/测试数据集；2.提取像素和标签并进行归一化；3.设计网络并训练；4.调参得到最优模型；5.应用模型识别字符图像。因为中文字符和英文/数字差异较大，所以要分开训练以提高准确度，下面贴出中文字符的训练过程。
提取像素和标签
function[x_train,y_train,x_test,y_test]=getttdata()
dir=('C:\Users\11606\Desktop\MLPR\ANN\chinese_set\train');
testdir=('C:\Users\11606\Desktop\MLPR\ANN\chinese_set\test');
trainingSet = imageSet(dir,'recursive');
testSet = imageSet(testdir,'recursive');
x_train = [];
x_test = [];
y_train = [];
y_test = [];
label=zeros(31,1);
for digit = 1:numel(trainingSet)
numImages = trainingSet(digit).Count;
% 遍历每张图片
for i = 1:numImages
label=zeros(31,1);
img = read(trainingSet(digit), i);% 取出第i张图片
img = imbinarize(img);
img=imresize(img,[28 28]);
x=im2double(img);
x=reshape(x,784,1);
x_train=[x_train,x];
labels = trainingSet(digit).Description;
switch labels
case 'zh_cuan'
label(1,1) = 1;
case 'zh_e'
label(2,1) = 1;
case 'zh_gan'
label(3,1) = 1;
case 'zh_gan1'
label(4,1) = 1;
case 'zh_gui'
label(5,1) = 1;
case 'zh_gui1'
label(6,1) = 1;
case 'zh_hei'
label(7,1) = 1;
case 'zh_hu'
label(8,1) = 1;
case 'zh_ji'
label(9,1) = 1;
case 'zh_jin'
label(10,1) = 1;
case 'zh_jing'
label(11,1) = 1;
case 'zh_jl'
label(12,1) = 1;
case 'zh_liao'
label(13,1) = 1;
case 'zh_lu'
label(14,1) = 1;
case 'zh_meng'
label(15,1) = 1;
case 'zh_min'
label(16,1) = 1;
case 'zh_ning'
label(17,1) = 1;
case 'zh_qing'
label(18,1) = 1;
case 'zh_qiong'
label(19,1) = 1;
case 'zh_shan'
label(20,1) = 1;
case 'zh_su'
label(21,1) = 1;
case 'zh_sx'
label(22,1) = 1;
case 'zh_wan'
label(23,1) = 1;
case 'zh_xiang'
label(24,1) = 1;
case 'zh_xin'
label(25,1) = 1;
case 'zh_yu'
label(26,1) = 1;
case 'zh_yu1'
label(27,1) = 1;
case 'zh_yue'
label(28,1) = 1;
case 'zh_yun'
label(29,1) = 1;
case 'zh_zang'
label(30,1) = 1;
case 'zh_zhe'
label(31,1) = 1;
end
% 使用图像描述作为训练标签
y_train = [y_train label];
end
end
for digit = 1:numel(testSet)
numImages = testSet(digit).Count;
% 遍历每张图片
for i = 1:numImages
label=zeros(31,1);
img = read(testSet(digit), i);% 取出第i张图片
img = im2bw(img);
img=imresize(img,[28 28]);
x=im2double(img);
x=reshape(x,784,1);
x_test=[x_test,x];
labels = testSet(digit).Description;
switch labels
case 'zh_cuan'
label(1,1) = 1;
case 'zh_e'
label(2,1) = 1;
case 'zh_gan'
label(3,1) = 1;
case 'zh_gan1'
label(4,1) = 1;
case 'zh_gui'
label(5,1) = 1;
case 'zh_gui1'
label(6,1) = 1;
case 'zh_hei'
label(7,1) = 1;
case 'zh_hu'
label(8,1) = 1;
case 'zh_ji'
label(9,1) = 1;
case 'zh_jin'
label(10,1) = 1;
case 'zh_jing'
label(11,1) = 1;
case 'zh_jl'
label(12,1) = 1;
case 'zh_liao'
label(13,1) = 1;
case 'zh_lu'
label(14,1) = 1;
case 'zh_meng'
label(15,1) = 1;
case 'zh_min'
label(16,1) = 1;
case 'zh_ning'
label(17,1) = 1;
case 'zh_qing'
label(18,1) = 1;
case 'zh_qiong'
label(19,1) = 1;
case 'zh_shan'
label(20,1) = 1;
case 'zh_su'
label(21,1) = 1;
case 'zh_sx'
label(22,1) = 1;
case 'zh_wan'
label(23,1) = 1;
case 'zh_xiang'
label(24,1) = 1;
case 'zh_xin'
label(25,1) = 1;
case 'zh_yu'
label(26,1) = 1;
case 'zh_yu1'
label(27,1) = 1;
case 'zh_yue'
label(28,1) = 1;
case 'zh_yun'
label(29,1) = 1;
case 'zh_zang'
label(30,1) = 1;
case 'zh_zhe'
label(31,1) = 1;
end
end
end
训练函数
function [y] = layerout(w,b,x)
%output function
y = w*x + b;
n = length(y);
for i =1:n
y(i)=1.0/(1+exp(-y(i)));
end
y;
endfunction[w,b,w_h,b_h]=mytrain(x_train,y_train)
step=300;
a=0.3;
in = 784; %输入神经元个数
hid = 40;
out = 31; %输出层神经元个数
o =1;
w = randn(out,hid);
b = randn(out,1);
w_h =randn(hid,in);
b_h = randn(hid,1);
count_train=13642; %训练图片数量
for i=0:step
%打乱训练样本
r=randperm(count_train);
x_train = x_train(:,r);
y_train = y_train(:,r);
for j=1:count_train
x = x_train(:,j);
y = y_train(:,j);
hid_put = layerout(w_h,b_h,x);
out_put = layerout(w,b,hid_put);
%更新公式的实现
o_update = (y-out_put).*out_put.*(1-out_put);
h_update = ((w')*o_update).*hid_put.*(1-hid_put);
outw_update = a*(o_update*(hid_put'));
outb_update = a*o_update;
hidw_update = a*(h_update*(x'));
hidb_update = a*h_update;
w = w + outw_update;
b = b+ outb_update;
w_h = w_h +hidw_update;
b_h =b_h +hidb_update;
end
end
end测试函数
function[]= mytest(x_test,y_test,w,b,w_h,b_h)
count_test=2974; %测试图片数量
test = zeros(31,count_test);
for k=1:count_test
x = x_test(:,k);
hid = layerout(w_h,b_h,x);
test(:,k)=layerout(w,b,hid);
[t,t_index]=max(test);
[y,y_index]=max(y_test);
sum = 0;
for p=1:length(t_index)
if t_index(p)==y_index(p)
sum =sum+1;
end
end
end
fprintf('%d/2974\n',sum);
fprintf('%d\n',sum/count_test);
end训练＋测试主函数
[x_train,y_train,x_test,y_test]=getttdata();
%归一化
x_train = mapminmax(x_train,0,1);
x_test =mapminmax(x_test,0,1);
[w,b,w_h,b_h]=mytrain(x_train,y_train);
fprintf('mytrain正确率:\n');
mytest(x_test,y_test,w,b,w_h,b_h);
save('ann_model_cn','w','b','w_h','b_h')字符识别函数
function[ch]= charrecognize_cn(bwimg)
b=load('ann_model_cn','b');
b=b.b;
b_h=load('ann_model_cn','b_h');
b_h=b_h.b_h;
w=load('ann_model_cn','w');
w=w.w;
w_h=load('ann_model_cn','w_h');
w_h=w_h.w_h;
img=imresize(bwimg,[28 28]);
x=im2double(img);
x=reshape(x,784,1);
hid = layerout(w_h,b_h,x);
test=layerout(w,b,hid);
[t,t_index]=max(test);
switch t_index
case 1
ch = 'zh_cuan';
case 2
ch = 'zh_e';
case 3
ch = 'zh_gan';
case 4
ch = 'zh_gan1';
case 5
ch = 'zh_gui';
case 6
ch = 'zh_gui1';
case 7
ch = 'zh_hei';
case 8
ch = 'zh_hu';
case 9
ch = 'zh_ji';
case 10
ch = 'zh_jin';
case 11
ch = 'zh_jing';
case 12
ch = 'zh_jl';
case 13
ch = 'zh_liao';
case 14
ch = 'zh_lu';
case 15
ch = 'zh_meng';
case 16
ch = 'zh_min';
case 17
ch = 'zh_ning';
case 18
ch = 'zh_qing';
case 19
ch = 'zh_qiong';
case 20
ch = 'zh_shan';
case 21
ch = 'zh_su';
case 22
ch = 'zh_sx';
case 23
ch = 'zh_wan';
case 24
ch = 'zh_xiang';
case 25
ch = 'zh_xin';
case 26
ch = 'zh_yu';
case 27
ch = 'zh_yu1';
case 28
ch = 'zh_yue';
case 29
ch = 'zh_yun';
case 30
ch = 'zh_zang';
case 31
ch = 'zh_zhe';
end
end
本程序仅能识别特定场景图片，深入研究的同学可以从以下几个方面着手进行优化：
