参考文档
https://docs.docker.com/engine/install/rhel/
卸载旧版本
Uninstall old versions
Older versions of Docker were called docker or docker-engine. If these are installed, uninstall them, along with associated dependencies. Also uninstall Podman and the associated dependencies if installed already.
sudo yum remove docker \
docker-client \
docker-client-latest \
docker-common \
docker-latest \
docker-latest-logrotate \
docker-logrotate \
docker-engine \
podman \
runc
It’s OK if yum reports that none of these packages are installed.
The contents of /var/lib/docker/, including images, containers, volumes, and networks, are preserved. The Docker Engine package is now called docker-ce.
安装镜像地址
Install the yum-utils package (which provides the yum-config-manager utility) and set up the stable repository.
yum install -y yum-utils
yum-config-manager \
--add-repo \
#https://download.docker.com/linux/rhel/docker-ce.repo
#推荐使用国内的镜像地址
http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum makecache
#也可以直接下载对应的镜像仓库到yum文件夹内
cd /etc/yum.repos.d
wget -c http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum makecache
安装docker
Install the latest version of Docker Engine and containerd, or go to the next step to install a specific version:
#ce 社区版
yum install docker-ce docker-ce-cli containerd.io
To install a specific version of Docker Engine, list the available versions in the repo, then select and install:
a. List and sort the versions available in your repo. This example sorts results by version number, highest to lowest, and is truncated:
The list returned depends on which repositories are enabled, and is specific to your version of RHEL (indicated by the .el8 suffix in this example).
yum list docker-ce --showduplicates | sort -r
b. Install a specific version by its fully qualified package name, which is the package name (docker-ce) plus the version string (2nd column) starting at the first colon (:), up to the first hyphen, separated by a hyphen (-). For example, docker-ce-20.10.7.
This command installs Docker, but it doesn’t start Docker. It also creates a docker group, however, it doesn’t add any users to the group by default.
yum install docker-ce-<VERSION_STRING> docker-ce-cli-<VERSION_STRING> containerd.io
运行docker
docker --version
systemctl start docker
docker version
docker run hello-world
查看已下载的镜像
docker images
卸载docker
Uninstall the Docker Engine, CLI, and Containerd packages:
yum remove docker-ce docker-ce-cli containerd.io
Images, containers, volumes, or customized configuration files on your host are not automatically removed. To delete all images, containers, and volumes:
sudo rm -rf /var/lib/docker
sudo rm -rf /var/lib/containerd
You must delete any edited configuration files manually.
https://docs.docker.com/engine/reference/run/
#显示docker的版本信息
docker version
docker --version
#显示docker的系统信息，包括镜像和容器的数量
docker info
#显现具体指令的帮助
docker command --help
#查看本地主机的所有镜像
docker images
[root@VM-0-13-centos ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
ubuntu latest 825d55fb6340 2 weeks ago 72.8MB
hello-world latest feb5d9fea6a5 7 months ago 13.3kB
| Name, shorthand | Default | Description |
|---|---|---|
--all , -a | Show all images (default hides intermediate images) | |
--digests | Show digests | |
--filter , -f | Filter output based on conditions provided | |
--format | Pretty-print images using a Go template | |
--no-trunc | Don’t truncate output | |
--quiet , -q | Only show image IDs |
#docker search云仓库中的镜像
docker search mysql
#可选项，通过stars过滤，搜索stars数3000以上的镜像
docker search mysql -f=stars=3000
#docker pull下载镜像
docker pull mysql
[root@VM-0-13-centos ~]# docker pull mysql
#默认下载最新的镜像
Using default tag: latest
latest: Pulling from library/mysql
#分层下载
4be315f6562f: Pull complete
96e2eb237a1b: Pull complete
8aa3ac85066b: Pull complete
ac7e524f6c89: Pull complete
f6a88631064f: Pull complete
15bb3ec3ff50: Pull complete
ae65dc337dcb: Pull complete
654aa78d12d6: Pull complete
6dd1a07a253d: Pull complete
a32905dc9e58: Pull complete
152d41026e44: Pull complete
42e0f73ebe32: Pull complete
Digest: sha256:fc77d54cacef90ad3d75964837fad0f2a9a368b69e7d799665a3f4e90e600c2d
Status: Downloaded newer image for mysql:latest
#真实地址
#以下两个命令等价
#docker pull mysql
#docker pull docker.io/library/mysql:latest
docker.io/library/mysql:latest
#指定版本下载
docker pull mysql:5.7
[root@VM-0-13-centos ~]# docker pull mysql:5.7
5.7: Pulling from library/mysql

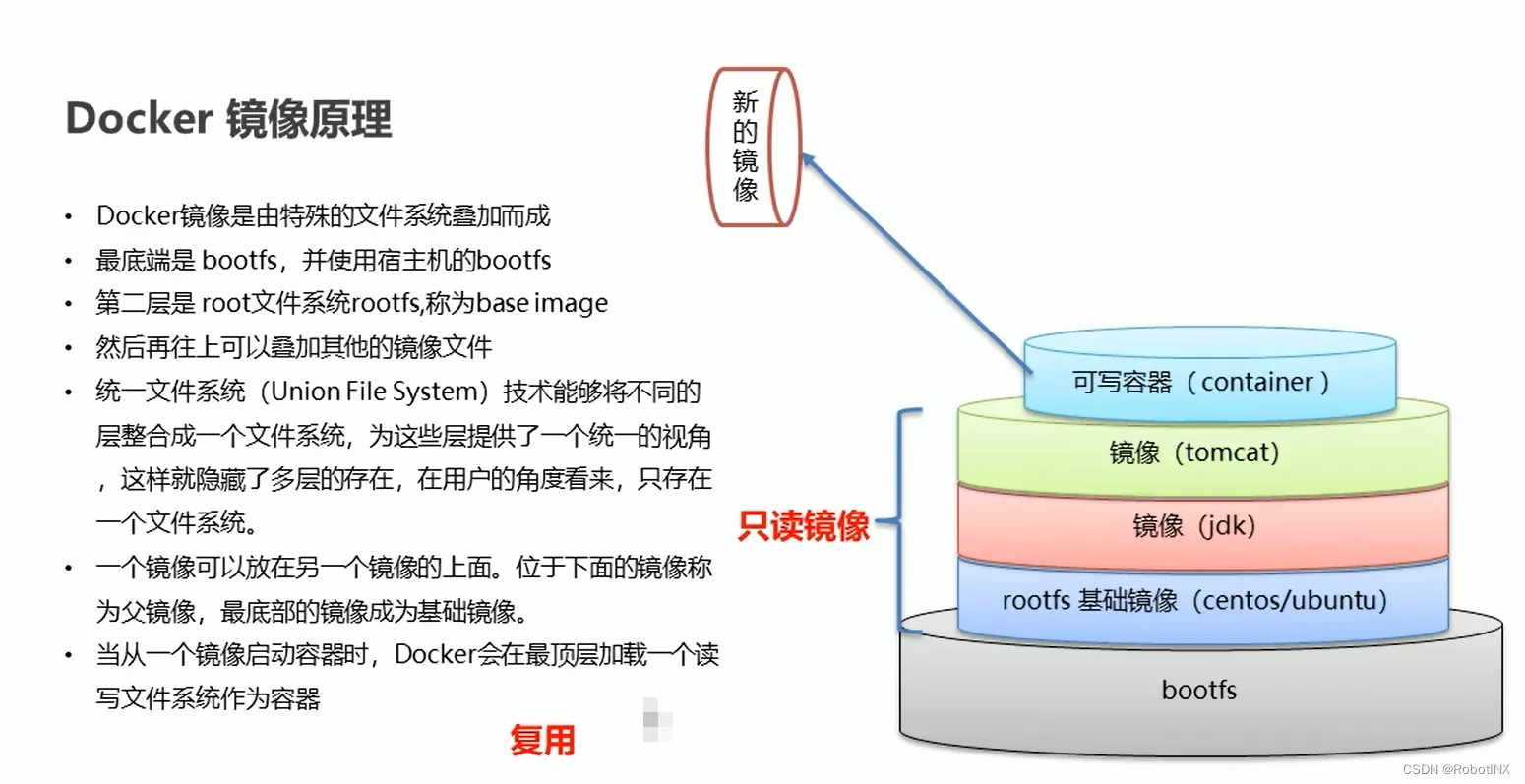

#通过分层下载大大减少了下载量和文件复用率
4be315f6562f: Already exists
96e2eb237a1b: Already exists
8aa3ac85066b: Already exists
ac7e524f6c89: Already exists
f6a88631064f: Already exists
15bb3ec3ff50: Already exists
ae65dc337dcb: Already exists
291c7612f7a8: Pull complete
ffdc84226e0b: Pull complete
81340df4a52c: Pull complete
f3ec63f52b87: Pull complete
Digest: sha256:151ecb87a07404f2c2588464e86381bdf74795c6d24090f9c50bc8e947a57797
Status: Downloaded newer image for mysql:5.7
docker.io/library/mysql:5.7
#通过镜像ID删除镜像
docker rmi 82d2d47667cf
[root@VM-0-13-centos ~]# docker rmi -f 82d2d47667cf
Untagged: mysql:5.7
Untagged: mysql@sha256:151ecb87a07404f2c2588464e86381bdf74795c6d24090f9c50bc8e947a57797
Deleted: sha256:82d2d47667cf062cc9e70c31b9322fafc527ed61806f32f48d8797a0e1488ac6
Deleted: sha256:738c94167bcba88b380640dcf3cd3f2b346d31aa45fd252ef7b3a133022097b7
Deleted: sha256:7daea859ebdee4608b42b29967a2e579219b506102a60dac4f3d09a88e004a24
Deleted: sha256:9769b9ac6c804c2741f620e368ac101a96058f983aad95eea2ea247ce8199181
Deleted: sha256:5225e8e0c4b170bb30d22a63f320ffb5eb580e6d4f293c76860e2be9c677232c
[root@VM-0-13-centos ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
mysql latest f2ad9f23df82 2 days ago 521MB
ubuntu latest 825d55fb6340 2 weeks ago 72.8MB
hello-world latest feb5d9fea6a5 7 months ago 13.3kB
#可以通过多个ID一次性删除多个镜像
docker rmi -f f2ad9f23df82 825d55fb6340
#通过变量删除所有镜像
docker rmi -f $(docker images -qa)
docker run {options} image
#参数说明
--name="Name" 容器名字，如tomcat01 tomcat02，用来区分容器
-d 后台方式运行，同linux中的nohup
-it 使用交互方式运行，进入容器查看内容
-p 指定容器的端口
-p ip：port：container_port 绑定指定IP主机的端口号和容器端口号绑定
-p port:container_port 指定主机端口号与容器端口号绑定
-p containcer_port 指定容器端口号
container_port 指定容器端口号
-P 随机指定端口
#后台启动容器
docker run -d centos
#这种方式启动的centos会自杀
#docker容器使用后台运行，必须要有一个前台进程，否则会自动停止
#nginx容器启动后，会发现自己没有提供服务，就会立刻停止
#创建并进入容器
docker run -it centos /bin/bash
#列出正在运行的容器
docker ps
#列出运行过的容器
docker ps -a
#显示最近创建的容器
docker ps
#n后面可以加数字表示最近创建的n个容器
#显示最近创建的四个容器
docker ps -n=4
#显示最近创建的容器，只显示编号
docker ps -q
#docker logs -f -t -tail count 7825a42fea77
#首先用容器运行命令
docker run -d centos /bin/sh -c "while true; do echo hello world; sleep 1; done"
#默认查看容器的所有日志，t：timestap，f：format
docker ps
docker logs -tf 977cb92394d3
#查看容器的前十条日志
docker logs -tfn 10 977cb92394d3
#查看docker运行的状态
#docker top container_id
docker top 977cb92394d3
docker inspect
[root@VM-0-13-centos ~]# docker inspect 977cb92394d3
[
{
"Id": "977cb92394d3d2084c5f2a413530614363d48fa7edf7214ebc16cb240701b7d4",
"Created": "2022-04-23T03:50:52.688989592Z",
"Path": "/bin/sh",
"Args": [
"-c",
"while true; do echo hello world; sleep 1; done"
],
"State": {
"Status": "running",
"Running": true,
"Paused": false,
"Restarting": false,
"OOMKilled": false,
"Dead": false,
"Pid": 20918,
"ExitCode": 0,
"Error": "",
"StartedAt": "2022-04-23T03:50:53.013592399Z",
"FinishedAt": "0001-01-01T00:00:00Z"
},
"Image": "sha256:5d0da3dc976460b72c77d94c8a1ad043720b0416bfc16c52c45d4847e53fadb6",
"ResolvConfPath": "/var/lib/docker/containers/977cb92394d3d2084c5f2a413530614363d48fa7edf7214ebc16cb240701b7d4/resolv.conf",
"HostnamePath": "/var/lib/docker/containers/977cb92394d3d2084c5f2a413530614363d48fa7edf7214ebc16cb240701b7d4/hostname",
"HostsPath": "/var/lib/docker/containers/977cb92394d3d2084c5f2a413530614363d48fa7edf7214ebc16cb240701b7d4/hosts",
"LogPath": "/var/lib/docker/containers/977cb92394d3d2084c5f2a413530614363d48fa7edf7214ebc16cb240701b7d4/977cb92394d3d2084c5f2a413530614363d48fa7edf7214ebc16cb240701b7d4-json.log",
"Name": "/determined_volhard",
"RestartCount": 0,
"Driver": "overlay2",
"Platform": "linux",
"MountLabel": "",
"ProcessLabel": "",
"AppArmorProfile": "",
"ExecIDs": null,
"HostConfig": {
"Binds": null,
"ContainerIDFile": "",
"LogConfig": {
"Type": "json-file",
"Config": {}
},
"NetworkMode": "default",
"PortBindings": {},
"RestartPolicy": {
"Name": "no",
"MaximumRetryCount": 0
},
"AutoRemove": false,
"VolumeDriver": "",
"VolumesFrom": null,
"CapAdd": null,
"CapDrop": null,
"CgroupnsMode": "host",
"Dns": [],
"DnsOptions": [],
"DnsSearch": [],
"ExtraHosts": null,
"GroupAdd": null,
"IpcMode": "private",
"Cgroup": "",
"Links": null,
"OomScoreAdj": 0,
"PidMode": "",
"Privileged": false,
"PublishAllPorts": false,
"ReadonlyRootfs": false,
"SecurityOpt": null,
"UTSMode": "",
"UsernsMode": "",
"ShmSize": 67108864,
"Runtime": "runc",
"ConsoleSize": [
0,
0
],
"Isolation": "",
"CpuShares": 0,
"Memory": 0,
"NanoCpus": 0,
"CgroupParent": "",
"BlkioWeight": 0,
"BlkioWeightDevice": [],
"BlkioDeviceReadBps": null,
"BlkioDeviceWriteBps": null,
"BlkioDeviceReadIOps": null,
"BlkioDeviceWriteIOps": null,
"CpuPeriod": 0,
"CpuQuota": 0,
"CpuRealtimePeriod": 0,
"CpuRealtimeRuntime": 0,
"CpusetCpus": "",
"CpusetMems": "",
"Devices": [],
"DeviceCgroupRules": null,
"DeviceRequests": null,
"KernelMemory": 0,
"KernelMemoryTCP": 0,
"MemoryReservation": 0,
"MemorySwap": 0,
"MemorySwappiness": null,
"OomKillDisable": false,
"PidsLimit": null,
"Ulimits": null,
"CpuCount": 0,
"CpuPercent": 0,
"IOMaximumIOps": 0,
"IOMaximumBandwidth": 0,
"MaskedPaths": [
"/proc/asound",
"/proc/acpi",
"/proc/kcore",
"/proc/keys",
"/proc/latency_stats",
"/proc/timer_list",
"/proc/timer_stats",
"/proc/sched_debug",
"/proc/scsi",
"/sys/firmware"
],
"ReadonlyPaths": [
"/proc/bus",
"/proc/fs",
"/proc/irq",
"/proc/sys",
"/proc/sysrq-trigger"
]
},
"GraphDriver": {
"Data": {
"LowerDir": "/var/lib/docker/overlay2/a1eccd6df24e9e3bb3940684d7f23bb56b3cac1aab2dc7733fc741d2f08bb7c6-init/diff:/var/lib/docker/overlay2/eed6607f3ba3cf5470bed74dfb9a246be0f81948e468a0e1a6298b7d3a7d34a6/diff",
"MergedDir": "/var/lib/docker/overlay2/a1eccd6df24e9e3bb3940684d7f23bb56b3cac1aab2dc7733fc741d2f08bb7c6/merged",
"UpperDir": "/var/lib/docker/overlay2/a1eccd6df24e9e3bb3940684d7f23bb56b3cac1aab2dc7733fc741d2f08bb7c6/diff",
"WorkDir": "/var/lib/docker/overlay2/a1eccd6df24e9e3bb3940684d7f23bb56b3cac1aab2dc7733fc741d2f08bb7c6/work"
},
"Name": "overlay2"
},
"Mounts": [],
"Config": {
"Hostname": "977cb92394d3",
"Domainname": "",
"User": "",
"AttachStdin": false,
"AttachStdout": false,
"AttachStderr": false,
"Tty": false,
"OpenStdin": false,
"StdinOnce": false,
"Env": [
"PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin"
],
"Cmd": [
"/bin/sh",
"-c",
"while true; do echo hello world; sleep 1; done"
],
"Image": "centos",
"Volumes": null,
"WorkingDir": "",
"Entrypoint": null,
"OnBuild": null,
"Labels": {
"org.label-schema.build-date": "20210915",
"org.label-schema.license": "GPLv2",
"org.label-schema.name": "CentOS Base Image",
"org.label-schema.schema-version": "1.0",
"org.label-schema.vendor": "CentOS"
}
},
"NetworkSettings": {
"Bridge": "",
"SandboxID": "0fe71300ae26d4cf9cec19ebc2718b2846adcdfe448d089a93d9c6ca0fb1bee1",
"HairpinMode": false,
"LinkLocalIPv6Address": "",
"LinkLocalIPv6PrefixLen": 0,
"Ports": {},
"SandboxKey": "/var/run/docker/netns/0fe71300ae26",
"SecondaryIPAddresses": null,
"SecondaryIPv6Addresses": null,
"EndpointID": "99aaf132f4e7e8b657eb719f415cad31a391eaded9c1f35ffd64b34fe7b72a66",
"Gateway": "172.18.0.1",
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"IPAddress": "172.18.0.3",
"IPPrefixLen": 16,
"IPv6Gateway": "",
"MacAddress": "02:42:ac:12:00:03",
"Networks": {
"bridge": {
"IPAMConfig": null,
"Links": null,
"Aliases": null,
"NetworkID": "736b3357a7cceaca5af2169c24487c5a8042f1fef63c3518cf3f619fb800f40a",
"EndpointID": "99aaf132f4e7e8b657eb719f415cad31a391eaded9c1f35ffd64b34fe7b72a66",
"Gateway": "172.18.0.1",
"IPAddress": "172.18.0.3",
"IPPrefixLen": 16,
"IPv6Gateway": "",
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"MacAddress": "02:42:ac:12:00:03",
"DriverOpts": null
}
}
}
}
]
#容器执行某条命令
docker exec -it 3247f7599fea ls
#可以通过前台执行bash进入容器中的centos
docker exec -it 3247f7599fea /bin/bash
#进入某个正在运行的容器
docker attach 3247f7599fea
#容器和主机之间的文件复制
docker cp 3247f7599fea:/home/test /home
#这是手动复制，后面可以使用 -v 卷技术实现文件同步，可以自动同步文件改动
docker start container_id
docker stop container_id
docker restart container_id
docker kill container_id
#退出并关闭容器
exit
#退出但不关闭容器：escape sequence
CTRL + Q + P
#删除指定容器，不能删除正在运行的容器
docker rm container_id
#可以通过-f强行删除正在运行的容器
docker rm -f 01904bac7216
#强行删除所有容器
docker rm -f $(docker ps -qa)
docker ps -qa | xargs docker rm -f
#查看docker运行的状态
docker stats
#由于原版的tomcat是没有webapps的，我们可以将修改之后的tomcat重新打包
#首先正常部署一个tomcat容器
docker run -d -p 4040:8080 --name tomcat01 tomcat
#然后将tomcat里面webapps.dist的内容复制到webapps
docker exec -it tomcat01 /bin/bash
cp -r webapps.dist/* webapps/
#退出之后关闭容器之后就可以打包
docker commit -a="Robotinx" -m="add webapps" tomcat01 tomcat_add_webapps
[root@VM-0-13-centos tomcat_docker]# docker commit --help
Usage: docker commit [OPTIONS] CONTAINER [REPOSITORY[:TAG]]
Create a new image from a container's changes
Options:
-a, --author string Author (e.g., "John Hannibal Smith <hannibal@a-team.com>")
-c, --change list Apply Dockerfile instruction to the created image
-m, --message string Commit message
-p, --pause Pause container during commit (default true)
#通过docker save 可以将现有的镜像输出成文件进行备份
#备份的镜像文件可以通过docker load 读取出来
docker save -o mytomcat mytomcat
[root@VM-0-13-centos tomcat_docker]# docker save --help
Usage: docker save [OPTIONS] IMAGE [IMAGE...]
Save one or more images to a tar archive (streamed to STDOUT by default)
Options:
-o, --output string Write to a file, instead of STDOUT
docker load -i mytomcat
[root@VM-0-13-centos tomcat_docker]# docker load --help
Usage: docker load [OPTIONS]
Load an image from a tar archive or STDIN
Options:
-i, --input string Read from tar archive file, instead of STDIN
-q, --quiet Suppress the load output
#搜索nginx镜像
docker search nginx
#下载nginx镜像
docker pull nginx
#后台启动nginx镜像，绑定端口号3344，指定容器名nginx01
docker run -d --name nginx01 -p 3344:80 nginx
#进入容器
docker exec -it nginx01 /bin/bash
#使用容器卷技术，将网页文件夹和配置文件夹双向同步到docker镜像中
#/usr/share/nginx/html/
#/etc/nginx/
docker run -it -p 9998:80 \
-v /usr/share/nginx/html/:/usr/share/nginx/html/ -v /etc/nginx/:/etc/nginx/ nginx
#直接创建tomcat容器，tomcat版本用9.0版本，端口映射3366:8080，容器名tomcat04
docker run -it -p 3366:8080 --name tomcat04 tomcat:9.0
#因为官方镜像默认是保证最小可运行的镜像，Linux命令不全，也没有webapps，所有不必要的功能都剔除掉了
#所以部署成功之后访问的网页是报错的
#但是在相关的网页在webapps.disk中还是有备份的
#我们把webapps.dist里的内容都复制一份到webapps中
cp -r webapps.dist/* webapps/
#es:elastic search
#es暴露的端口很多
#es十分耗内存
#es的数据一般需要放置到安全目录，挂载
#--net somnetwork 网络配置
#-e 环境配置修改
#首先启动elasticsearch容器
docker run -d --name elaticsearch01 -p 9200:9200 -p 9300:9300 -e "discovery.type=single-node" elasticsearch:7.6.2
#查看当前占用资源状态
docker stats container_id
#限制elastic search 的内存使用
docker run -d --name elaticsearch02 -p 9200:9200 -p 9300:9300 -e "discovery.type=single-node" -e ES_JAVA_OPTS="-Xms64m -Xmx512m" elasticsearch:7.6.2
#部署时需要将数据文件双向同步
docker run -d -p 3310:3306 \
-v /home/mysql/conf:/etc/mysql/conf.d \
-v /home/mysql/data:/var/lib/mysql \
-e MYSQL_ROOT_PASSWORD=Liang123 \
--name=mysql01 mysql
#安装
#-v 挂载
#--privileged 授权
docker run -d -p 8088:9000 \
--restart=always -v /var/run/docker.sock:/var/run/docker.sock --privileged=true portainer/portainer
容器之间的数据共享技术，使得Docker容器中产生的数据可以同步到本地
其实就是目录的挂载，将容器内的目录，挂载到 linux中的
目的是完成容器的持久化和同步操作
同时容器之间也是可以数据共享的
方式1：直接使用命令挂载 -v
docker run -it --names=centos01 -v /home:/home centos
#这种方式挂载的文件目录，会双向同步
#通过inspect命令可以查看mounts部分会有相应的挂载信息
docker inspect centos01
"Mounts": [
{
"Type": "bind",
#主机内的地址
"Source": "/home",
#docker容器内的地址
"Destination": "/home",
"Mode": "",
"RW": true,
"Propagation": "rprivate"
}
#引用实战部署nginx的内容
#/usr/share/nginx/html/
#/etc/nginx/
docker run -it -p 9998:80 \
-v /usr/share/nginx/html/:/usr/share/nginx/html/ -v /etc/nginx/:/etc/nginx/ nginx
#引用实战部署MySQL的内容
#部署时需要将数据文件双向同步
#/home/mysql/conf:/etc/mysql/conf.d
#/home/mysql/data:/var/lib/mysql
docker run -d -p 3310:3306 \
-v /home/mysql/conf:/etc/mysql/conf.d \
-v /home/mysql/data:/var/lib/mysql \
-e MYSQL_ROOT_PASSWORD=Liang123 \
--name=mysql01 mysql
匿名挂载
#匿名挂载
#将容器内指定的文件挂载到本地的docker文件夹内
#cd /var/lib/docker
#-v container_path
#这种挂载生成的挂载名字是随机的
#不推荐挂载方式
docker run -d -P --name=nginx01 -v /etc/nginx nginx
[root@VM-0-13-centos volumes]# ll /var/lib/docker/volumes/
total 36
drwx-----x 3 root root 4096 Apr 23 14:54 10783f0d4d85577e140d5626c3adfad6dddfc9322ada3df3ddbee478e3e9c06b
drwx-----x 3 root root 4096 Apr 23 15:03 80868c3985566ebd1017fcc1249a704b8e0421f0fd12dd34d8cd8db09cc690a5
brw------- 1 root root 253, 1 Apr 21 23:20 backingFsBlockDev
drwx-----x 3 root root 4096 Apr 23 14:51 f13cc3d8a03358c21b3b41f7ea24ae2e03559da3121fc353b5297d7519b4c16d
-rw------- 1 root root 32768 Apr 23 15:03 metadata.db
具名挂载
#具名挂载
#将容器内指定的文件挂载到本地的docker文件夹内
#cd /var/lib/docker
#-v volums_name:/etc/nginx
#这种挂载生成的挂载名字是指定的
#推荐挂载方式
docker run -d --name juming_nginx -v juming_nginx:/etc/nginx/ nginx
[root@VM-0-13-centos volumes]# ll /var/lib/docker/volumes/
total 40
drwx-----x 3 root root 4096 Apr 23 14:54 10783f0d4d85577e140d5626c3adfad6dddfc9322ada3df3ddbee478e3e9c06b
drwx-----x 3 root root 4096 Apr 23 15:03 80868c3985566ebd1017fcc1249a704b8e0421f0fd12dd34d8cd8db09cc690a5
brw------- 1 root root 253, 1 Apr 21 23:20 backingFsBlockDev
drwx-----x 3 root root 4096 Apr 23 14:51 f13cc3d8a03358c21b3b41f7ea24ae2e03559da3121fc353b5297d7519b4c16d
drwx-----x 3 root root 4096 Apr 23 19:32 juming_nginx
-rw------- 1 root root 32768 Apr 23 19:32 metadata.db
指定路径挂载
#指定路径挂载
#将本地的指定文件夹与docker镜像内的指定文件夹关联起来
#两边修改的文件都会互相同步
挂载内容
#挂载内容
#可以看到指定的文件夹内部的内容都已经挂载到了容器的_data文件夹里了
[root@VM-0-13-centos _data]# ll /var/lib/docker/volumes/juming_nginx/_data
total 28
drwxr-xr-x 2 root root 4096 Apr 23 19:32 conf.d
-rw-r--r-- 1 root root 1007 Jan 25 23:03 fastcgi_params
-rw-r--r-- 1 root root 5349 Jan 25 23:03 mime.types
lrwxrwxrwx 1 root root 22 Jan 25 23:13 modules -> /usr/lib/nginx/modules
-rw-r--r-- 1 root root 648 Jan 25 23:13 nginx.conf
-rw-r--r-- 1 root root 636 Jan 25 23:03 scgi_params
-rw-r--r-- 1 root root 664 Jan 25 23:03 uwsgi_params
docker volums
[root@VM-0-13-centos _data]# docker volume --help
Usage: docker volume COMMAND
Manage volumes
Commands:
create Create a volume
inspect Display detailed information on one or more volumes
ls List volumes
prune Remove all unused local volumes
rm Remove one or more volumes
Run 'docker volume COMMAND --help' for more information on a command.
#查看指定的具名挂载的卷信息
[root@VM-0-13-centos _data]# docker volume inspect juming_nginx
[
{
"CreatedAt": "2022-04-23T19:32:50+08:00",
"Driver": "local",
"Labels": null,
"Mountpoint": "/var/lib/docker/volumes/juming_nginx/_data",
"Name": "juming_nginx",
"Options": null,
"Scope": "local"
}
]
拓展
#通过 -v 容器内路径：ro rw 改变读写权限
#ro readonly只读权限，这个路径的内容是容器内部无法修改的，只能通过本地修改
#rw readwrite读写权限，默认权限
#一旦设置了这个容器权限，容器对我们挂载出来的内容就有限定权限了
docker run -d -P --name nginx_ro -v juming_nginx_ro:/etc/nginx:ro nginx
docker run -d -P --name nginx_rw -v juming_nginx_rw:/etc/nginx:rw nginx
方式二
#通过DockerFile文件生成镜像时，自动生成匿名挂载
#首先编写一个DockerFile
mkdir -p /home/docker/DockerFile
#DockerFile的文件名，推荐使用DockerFile即可
vim /home/docker/DockerFile/DockerFile01
#DockerFile中的指令都是大写的
#DockerFile中每一条就是镜像中的一层
FROM centos
#这里生成两个匿名挂载
VOLUME ["volume01", "volume02"]
CMD echo "-----end-----"
CMD /bin/bash
#通过DockerFile构建镜像
docker build -f /home/docker/DockerFile/DockerFile01 -t Robotinx/centos:1.0 .
#查看生成的镜像
[root@VM-0-13-centos DockerFile]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
robotinx/centos latest fbb58c90821a 6 seconds ago 231MB
#使用生成的镜像创建容器
docker run -it --name robotinx_centos robotinx/centos
#查看根目录可以看到生成的两个挂载文件夹
[root@9dcf6b653c2d /]# ls /
bin dev etc home lib lib64 lost+found media mnt opt proc root run sbin srv sys tmp usr var volume01 volume02
#往目录内随便写一个文件
echo hello centos in docker >> /volume01/test
#返回本地，查看容器的相关信息
docker inspect robotinx_centos
"Mounts": [
{
"Type": "volume",
"Name": "d97f297124a4f6cb4407fb1c456ae4dbb0e07070034c7b0ef151500f47675968",
"Source": "/var/lib/docker/volumes/d97f297124a4f6cb4407fb1c456ae4dbb0e07070034c7b0ef151500f47675968/_data",
"Destination": "volume01",
"Driver": "local",
"Mode": "",
"RW": true,
"Propagation": ""
},
{
"Type": "volume",
"Name": "ab1813ef96d990f2b92000da7edb18e9e9d6d45ef34f1f777b79d1b871b61bb5",
"Source": "/var/lib/docker/volumes/ab1813ef96d990f2b92000da7edb18e9e9d6d45ef34f1f777b79d1b871b61bb5/_data",
"Destination": "volume02",
"Driver": "local",
"Mode": "",
"RW": true,
"Propagation": ""
}
],
#可以看到指定的两个文件夹都已经匿名挂载到相应的随机目录中
cd /var/lib/docker/volumes/d97f297124a4f6cb4407fb1c456ae4dbb0e07070034c7b0ef151500f47675968/_data
cat hello
这种方式我们经常使用，因为通常我们会自己构建镜像
如果构建镜像时没有挂载卷，构建容器时就要时手动用 -v 卷名:容器内路径 来进行挂载
多容器共用数据卷
#首先通过镜像创建几个容器
docker run -it --name centos01 robotinx/centos
docekr run -it --name centos02 --volumes-from centos01 robotinx/centos
docker run -it --nmae centos03 --volumes-from centos01 robotinx/centos
#可以发现在三个容器之中的volumes01、volumes02的两个文件夹的内容是互相同步修改的
#同时，如果我们删除掉centos01，可以发现另外两个容器中的数据卷并不会被删除
通过数据卷容器可以实现多个容器之间的配置传递和文件修改传递
数据卷容器的生命周期一直持续到没有容器使用该数据卷为止
但是如果数据卷容器是挂载本地指定的文件夹的话
哪怕所有使用该数据卷容器的容器都删掉了
文件依然还是不会被删除
多个mysql实现数据共享
#docker run -d -p 3310:3306 \
# -v /home/mysql/conf:/etc/mysql/conf.d \
# -v /home/mysql/data:/var/lib/mysql \
# -e MYSQL_ROOT_PASSWORD=Liang123 \
# --name=mysql01 mysql
#生成第一个容器
docker run -d -p 3310:3306 \
-v /home/mysql/conf:/etc/mysql/conf.d \
-v /home/mysql/data:/var/lib/mysql \
-e MYSQL_ROOT_PASSWORD=Liang123 \
--name mysql01
#生成与第一个容器数据共享的第二个容器
docer run -d -p 3311:3306 \
--volumes-from mysql01 \
-e MYSQL_ROOT_PASSWORD=Liang123 \
--name mysql02

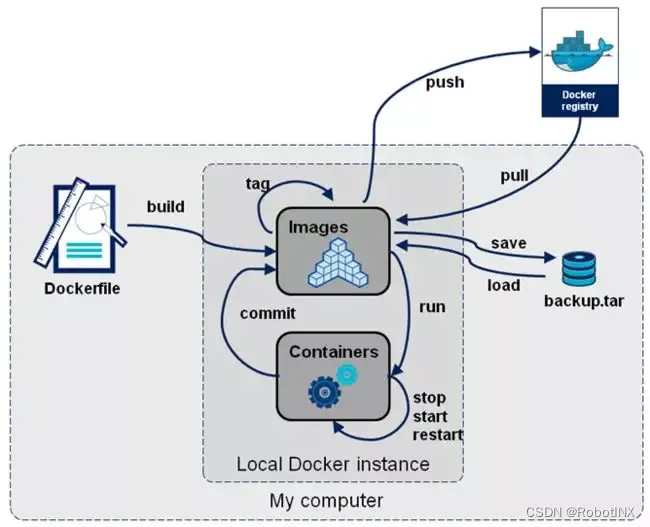

1、编写DockerFile文件
2、docker build 构建镜像
3、docker run 运行镜像
4、docker push 发布镜像
Centos官方镜像实例
#由此可以看出Centos官方的镜像都很基础
#并没有其他的附加命令和功能
FROM scratch
ADD centos-7-x86_64-docker.tar.xz /
LABEL \
org.label-schema.schema-version="1.0" \
org.label-schema.name="CentOS Base Image" \
org.label-schema.vendor="CentOS" \
org.label-schema.license="GPLv2" \
org.label-schema.build-date="20201113" \
org.opencontainers.image.title="CentOS Base Image" \
org.opencontainers.image.vendor="CentOS" \
org.opencontainers.image.licenses="GPL-2.0-only" \
org.opencontainers.image.created="2020-11-13 00:00:00+00:00"
CMD ["/bin/bash"]
nginx官方镜像实例
#NGINX官方镜像的DockerFile
#
# NOTE: THIS DOCKERFILE IS GENERATED VIA "update.sh"
#
# PLEASE DO NOT EDIT IT DIRECTLY.
#
FROM debian:bullseye-slim
LABEL maintainer="NGINX Docker Maintainers <docker-maint@nginx.com>"
ENV NGINX_VERSION 1.21.6
ENV NJS_VERSION 0.7.2
ENV PKG_RELEASE 1~bullseye
RUN set -x \
# create nginx user/group first, to be consistent throughout docker variants
&& addgroup --system --gid 101 nginx \
&& adduser --system --disabled-login --ingroup nginx --no-create-home --home /nonexistent --gecos "nginx user" --shell /bin/false --uid 101 nginx \
&& apt-get update \
&& apt-get install --no-install-recommends --no-install-suggests -y gnupg1 ca-certificates \
&& \
NGINX_GPGKEY=573BFD6B3D8FBC641079A6ABABF5BD827BD9BF62; \
found=''; \
for server in \
hkp://keyserver.ubuntu.com:80 \
pgp.mit.edu \
; do \
echo "Fetching GPG key $NGINX_GPGKEY from $server"; \
apt-key adv --keyserver "$server" --keyserver-options timeout=10 --recv-keys "$NGINX_GPGKEY" && found=yes && break; \
done; \
test -z "$found" && echo >&2 "error: failed to fetch GPG key $NGINX_GPGKEY" && exit 1; \
apt-get remove --purge --auto-remove -y gnupg1 && rm -rf /var/lib/apt/lists/* \
&& dpkgArch="$(dpkg --print-architecture)" \
&& nginxPackages=" \
nginx=${NGINX_VERSION}-${PKG_RELEASE} \
nginx-module-xslt=${NGINX_VERSION}-${PKG_RELEASE} \
nginx-module-geoip=${NGINX_VERSION}-${PKG_RELEASE} \
nginx-module-image-filter=${NGINX_VERSION}-${PKG_RELEASE} \
nginx-module-njs=${NGINX_VERSION}+${NJS_VERSION}-${PKG_RELEASE} \
" \
&& case "$dpkgArch" in \
amd64|arm64) \
# arches officialy built by upstream
echo "deb https://nginx.org/packages/mainline/debian/ bullseye nginx" >> /etc/apt/sources.list.d/nginx.list \
&& apt-get update \
;; \
*) \
# we're on an architecture upstream doesn't officially build for
# let's build binaries from the published source packages
echo "deb-src https://nginx.org/packages/mainline/debian/ bullseye nginx" >> /etc/apt/sources.list.d/nginx.list \
\
# new directory for storing sources and .deb files
&& tempDir="$(mktemp -d)" \
&& chmod 777 "$tempDir" \
# (777 to ensure APT's "_apt" user can access it too)
\
# save list of currently-installed packages so build dependencies can be cleanly removed later
&& savedAptMark="$(apt-mark showmanual)" \
\
# build .deb files from upstream's source packages (which are verified by apt-get)
&& apt-get update \
&& apt-get build-dep -y $nginxPackages \
&& ( \
cd "$tempDir" \
&& DEB_BUILD_OPTIONS="nocheck parallel=$(nproc)" \
apt-get source --compile $nginxPackages \
) \
# we don't remove APT lists here because they get re-downloaded and removed later
\
# reset apt-mark's "manual" list so that "purge --auto-remove" will remove all build dependencies
# (which is done after we install the built packages so we don't have to redownload any overlapping dependencies)
&& apt-mark showmanual | xargs apt-mark auto > /dev/null \
&& { [ -z "$savedAptMark" ] || apt-mark manual $savedAptMark; } \
\
# create a temporary local APT repo to install from (so that dependency resolution can be handled by APT, as it should be)
&& ls -lAFh "$tempDir" \
&& ( cd "$tempDir" && dpkg-scanpackages . > Packages ) \
&& grep '^Package: ' "$tempDir/Packages" \
&& echo "deb [ trusted=yes ] file://$tempDir ./" > /etc/apt/sources.list.d/temp.list \
# work around the following APT issue by using "Acquire::GzipIndexes=false" (overriding "/etc/apt/apt.conf.d/docker-gzip-indexes")
# Could not open file /var/lib/apt/lists/partial/_tmp_tmp.ODWljpQfkE_._Packages - open (13: Permission denied)
# ...
# E: Failed to fetch store:/var/lib/apt/lists/partial/_tmp_tmp.ODWljpQfkE_._Packages Could not open file /var/lib/apt/lists/partial/_tmp_tmp.ODWljpQfkE_._Packages - open (13: Permission denied)
&& apt-get -o Acquire::GzipIndexes=false update \
;; \
esac \
\
&& apt-get install --no-install-recommends --no-install-suggests -y \
$nginxPackages \
gettext-base \
curl \
&& apt-get remove --purge --auto-remove -y && rm -rf /var/lib/apt/lists/* /etc/apt/sources.list.d/nginx.list \
\
# if we have leftovers from building, let's purge them (including extra, unnecessary build deps)
&& if [ -n "$tempDir" ]; then \
apt-get purge -y --auto-remove \
&& rm -rf "$tempDir" /etc/apt/sources.list.d/temp.list; \
fi \
# forward request and error logs to docker log collector
&& ln -sf /dev/stdout /var/log/nginx/access.log \
&& ln -sf /dev/stderr /var/log/nginx/error.log \
# create a docker-entrypoint.d directory
&& mkdir /docker-entrypoint.d
COPY docker-entrypoint.sh /
COPY 10-listen-on-ipv6-by-default.sh /docker-entrypoint.d
COPY 20-envsubst-on-templates.sh /docker-entrypoint.d
COPY 30-tune-worker-processes.sh /docker-entrypoint.d
ENTRYPOINT ["/docker-entrypoint.sh"]
EXPOSE 80
STOPSIGNAL SIGQUIT
CMD ["nginx", "-g", "daemon off;"]
1、每个保留关键字（命令）都是大写
2、命令从上到下顺序执行
3、# 表示注释
4、每一个指令都会创建提交一个新的镜像层并提交
命令讲解
FROM # 基础镜像，当前新镜像是基于哪个镜像构建的
MAINTAINER # 镜像维护者的姓名和邮箱地址
RUN # 镜像构建的时候需要运行的命令
EXPOSE # 当前镜像对外暴露的端口，效果同docker run后的-p
WORKDIR # 指定在创建容器后，终端默认登录的工作目录位置
ENV # 用来构建镜像过程中设置环境变量，效果同docker run后的-e
ADD # 将本地目录下的文件拷贝到镜像，且ADD命令会自动处理URL和解压tar压缩包
COPY # 类似于ADD，拷贝文件和目录到镜像中
# 将从构建上下文目录中<src_dir>的文件或目录复制到新的一层的镜像内的<dst_dir>位置
VOLUME # 容器数据卷，挂载的目录，用于数据保存和持久化工作，效果同docker run后的-v
CMD # 指定容器启动时要运行的命令
# DockerFile 中可以有多个CMD命令，但只有最后一个生效，CMD会被docker run之后的参数替换
ENTRYPOINT # 指定容器启动时要运行的命令
# ENTRYPOINT 的目的和CMD一样，都是指定容器启动程序和参数，但是ENTRYPOINT不会被替换
ONBUILD # 当构建一个被继承的DockerFile时运行命令，父镜像在被子镜像继承后父镜像的onbuild会触发
编写DockerFile
# 基础镜像
FROM centos
#作者
MAINTAINER Robotinx<robotinx@qq.com>
ENV MYPATH /usr/local
WORKDIR $MYPATH
RUN yum -y install vim
RUN yum -y install net-tools
EXPOSE 80
CMD echo $MYPATH
CMD /bin/bash
构建镜像
[root@VM-0-13-centos DockerFile]# docker build -f myCentos.dockerfile -t mycentos .
查看镜像构建层次
[root@VM-0-13-centos DockerFile]# docker history nginx
IMAGE CREATED CREATED BY SIZE COMMENT
fa5269854a5e 4 days ago /bin/sh -c #(nop) CMD ["nginx" "-g" "daemon… 0B
<missing> 4 days ago /bin/sh -c #(nop) STOPSIGNAL SIGQUIT 0B
<missing> 4 days ago /bin/sh -c #(nop) EXPOSE 80 0B
<missing> 4 days ago /bin/sh -c #(nop) ENTRYPOINT ["/docker-entr… 0B
<missing> 4 days ago /bin/sh -c #(nop) COPY file:09a214a3e07c919a… 4.61kB
<missing> 4 days ago /bin/sh -c #(nop) COPY file:0fd5fca330dcd6a7… 1.04kB
<missing> 4 days ago /bin/sh -c #(nop) COPY file:0b866ff3fc1ef5b0… 1.96kB
<missing> 4 days ago /bin/sh -c #(nop) COPY file:65504f71f5855ca0… 1.2kB
<missing> 4 days ago /bin/sh -c set -x && addgroup --system -… 61.1MB
<missing> 4 days ago /bin/sh -c #(nop) ENV PKG_RELEASE=1~bullseye 0B
<missing> 4 days ago /bin/sh -c #(nop) ENV NJS_VERSION=0.7.2 0B
<missing> 4 days ago /bin/sh -c #(nop) ENV NGINX_VERSION=1.21.6 0B
<missing> 4 days ago /bin/sh -c #(nop) LABEL maintainer=NGINX Do… 0B
<missing> 5 days ago /bin/sh -c #(nop) CMD ["bash"] 0B
<missing> 5 days ago /bin/sh -c #(nop) ADD file:8b1e79f91081eb527… 80.4MB
相关环境变量
export JAVA_HOME=/usr/local/jdk1.8.0_311
export CLASSPATH=$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export CATALINA_HOME=/usr/local/apache-tomcat-10.0.20
export CATALINA_BASH=/usr/local/apache-tomcat-10.0.20
export PATH=$PATH:$JAVA_HOME/bin:CATALINA_HOME/lib:CATALINA_HOME/bin
手动搭建tomcat容器的步骤
#首先下载tomcat和jdk的安装包，并解压
tar -zxf jdk-8u311-linux-x64.tar.gz
tar -zxf apache-tomcat-10.0.20
ls /root/tomcat_docker/
apache-tomcat-10.0.20 jdk1.8.0_311
apache-tomcat-10.0.20.tar.gz jdk-8u311-linux-x64.tar.gz
#创建一个新的centos7.9镜像，做好端口映射和容器卷挂载
docker run -it --name tomcat_test \
-v /root/tomcat_docker/:/usr/local \
-p 3344:8080 centos:7.9.2009
#编辑环境变量
vi /etc/profile
export JAVA_HOME=/usr/local/jdk1.8.0_311
export CLASSPATH=$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export CATALINA_HOME=/usr/local/apache-tomcat-10.0.20
export CATALINA_BASH=/usr/local/apache-tomcat-10.0.20
export PATH=$PATH:$JAVA_HOME/bin:CATALINA_HOME/lib:CATALINA_HOME/bin
source /etc/profile
#现在已经可以运行tomcat了
cd /usr/local/apache-tomcat-10.0.20/bin
./startup.sh
#也可以在运行的同时输出运行的日志
./startup.sh && tail -F /usr/local/apache-tomcat-10.0.20/logs/catalina.out
Dockerfile自动构建tomcat镜像
#文件名为默认的Dockerfile
#指定工作路径
WORKDIR /usr/local
#将需要的包添加到镜像中
ADD jdk-8u311-linux-x64.tar.gz /usr/local/
ADD apache-tomcat-10.0.20.tar.gz /usr/local/
#暴露端口
EXPOSE 8080
#设置环境变量
ENV JAVA_HOME=/usr/local/jdk1.8.0_311
ENV CLASSPATH=$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
ENV CATALINA_HOME=/usr/local/apache-tomcat-10.0.20
ENV CATALINA_BASH=/usr/local/apache-tomcat-10.0.20
ENV PATH=$PATH:$JAVA_HOME/bin:CATALINA_HOME/lib:CATALINA_HOME/bin
#启动tomcat，并打印日志
#这里不推荐添加这一条命令
#添加之后可以自动启动tomcat，但是会一直卡在tomcat的日志打印命令
#官方镜像是添加了这一条命令的
#CMD ${CATALINA_HOME}/bin/startup.sh && tail -F ${CATALINA_HOME}/logs/catalina.out
#如果希望镜像自动启动tomcat，可以添加下面这一条命令
CMD ${CATALINA_HOME}/bin/startup.sh
#这时候通过编写好的Dockerfile构建镜像就可以了
docker build -t mytomcat .
发布到docker hub
#首先登录docker hub
docker login -u robot1nx
#需要先将镜像的名字修改成符合要求的格式
docker tag mytomcat:lastest robot1nx/mytomcat
docker push robot1inx/mytomcat
发布到腾讯云
#同样先登录腾讯云
docker login ccr.ccs.tencentyun.com --username=2507697169
#在腾讯云中建立命名空间和mytomcat镜像仓库之后，会有一个仓库地址，给镜像添加一个地址tag
docker tag mytomcat:latest ccr.ccs.tencentyun.com/docker_test_robotinx/mytomcat
#之后就可以直接推送到对应的仓库
docker push ccr.ccs.tencentyun.com/docker_test_robotinx/mytomcat
#同样的，从仓库中拉取镜像也是使用相应的仓库地址
docker pull ccr.ccs.tencentyun.com/docker_test_robotinx/mytomcat

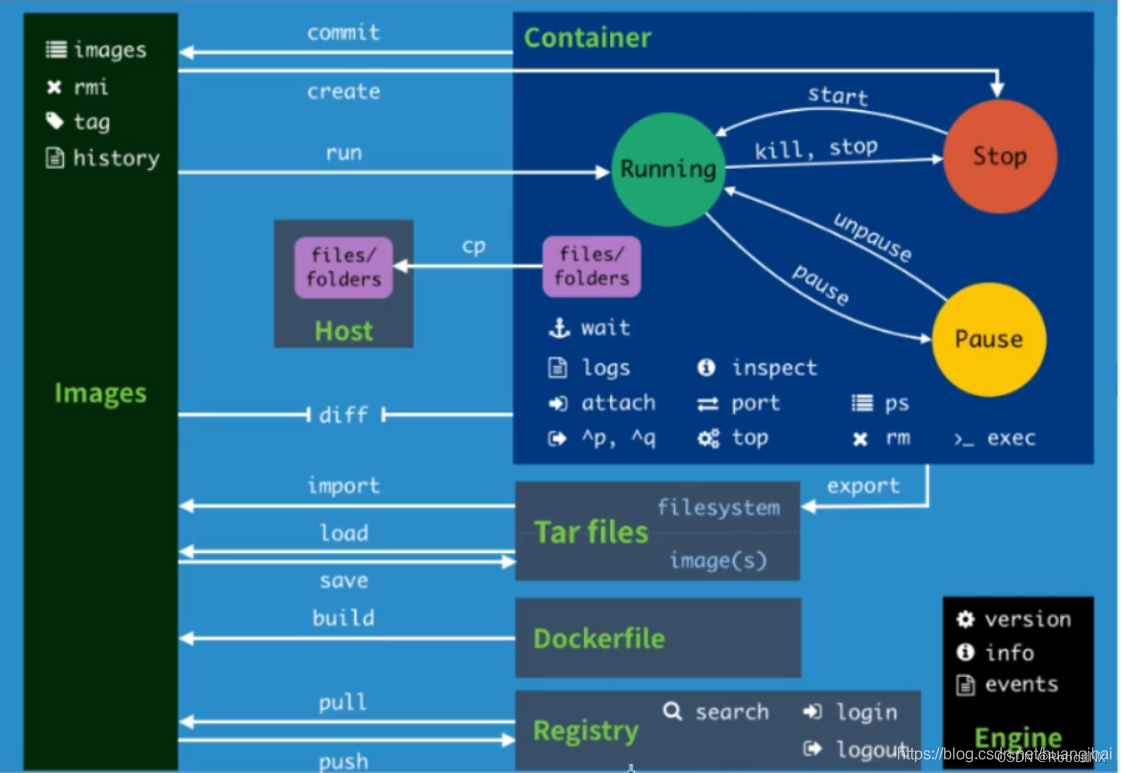

1、首先编写dockerfile文件
2、编写完成后可以通过build命令来构建镜像
3、构建完成后可以通过tag命令来修改镜像的标签
4、也可以通过push将镜像推送到镜像仓库
5、后续可以通过pull将镜像拉去到其他设备中
6、可以通过run使用现有的镜像构建容器
7、容器的启停命令有start/stop/restart
8、还可以使用commit命令打包现有的镜像来构建新的镜像
9、也可以通过save/load来对镜像进行备份
在没有容器的情况下查看本机ip地址，会发现有一个docker0的网卡
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:2c:67:e8:27 brd ff:ff:ff:ff:ff:ff
inet 172.18.0.1/16 brd 172.18.255.255 scope global docker0
valid_lft forever preferred_lft forever
inet6 fe80::42:2cff:fe67:e827/64 scope link
valid_lft forever preferred_lft forever
首先创建一个centos01，并查看他的IP地址
[root@VM-0-13-centos ~]# docker run -it -P --name centos01 centos
[root@daac89144d42 /]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
327: veth70d770c@if326: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
link/ether 92:6a:4f:b7:1b:a7 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet6 fe80::906a:4fff:feb7:1ba7/64 scope link
valid_lft forever preferred_lft forever
这时候在本地查看ip地址会发现除了docker0还会多一个网卡
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:2c:67:e8:27 brd ff:ff:ff:ff:ff:ff
inet 172.18.0.1/16 brd 172.18.255.255 scope global docker0
valid_lft forever preferred_lft forever
inet6 fe80::42:2cff:fe67:e827/64 scope link
valid_lft forever preferred_lft forever
327: veth70d770c@if326: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
link/ether 92:6a:4f:b7:1b:a7 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet6 fe80::906a:4fff:feb7:1ba7/64 scope link
valid_lft forever preferred_lft forever
再创建一个centos02
[root@VM-0-13-centos ~]# docker run --name centos02 -P -it centos
[root@2e1080262248 /]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
328: eth0@if329: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:12:00:03 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 172.18.0.3/16 brd 172.18.255.255 scope global eth0
valid_lft forever preferred_lft forever
再次查看网卡，发现又多了一个网卡
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:2c:67:e8:27 brd ff:ff:ff:ff:ff:ff
inet 172.18.0.1/16 brd 172.18.255.255 scope global docker0
valid_lft forever preferred_lft forever
inet6 fe80::42:2cff:fe67:e827/64 scope link
valid_lft forever preferred_lft forever
327: veth70d770c@if326: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
link/ether 92:6a:4f:b7:1b:a7 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet6 fe80::906a:4fff:feb7:1ba7/64 scope link
valid_lft forever preferred_lft forever
329: veth46507ae@if328: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
link/ether 8a:7a:7d:ca:e2:99 brd ff:ff:ff:ff:ff:ff link-netnsid 1
inet6 fe80::887a:7dff:feca:e299/64 scope link
valid_lft forever preferred_lft forever

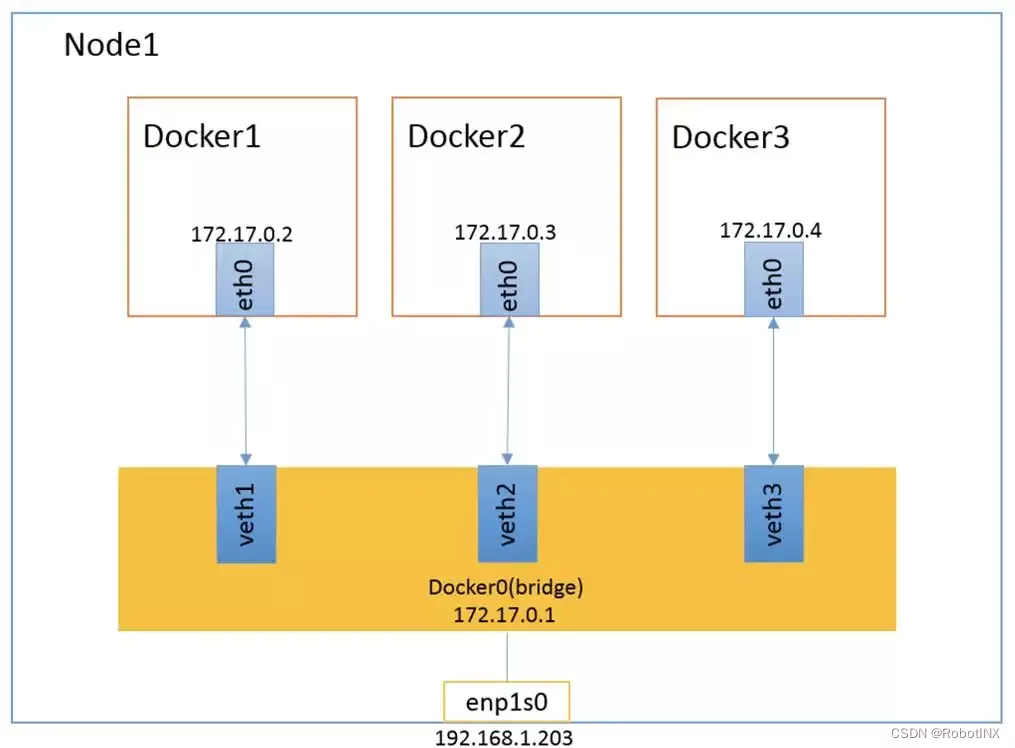

仔细查看会发现除了docker0，其他的两个本地网卡分别和容器内部的网卡是一一对应的
#在centos01中的网卡和本地的网卡的对应关系
322: eth0@if323: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:12:00:02 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 172.18.0.2/16 brd 172.18.255.255 scope global eth0
valid_lft forever preferred_lft forever
323: veth5a3b2d1@if322: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
link/ether 7a:5b:bd:54:64:88 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet6 fe80::785b:bdff:fe54:6488/64 scope link
valid_lft forever preferred_lft forever
#在centos02中的网卡和本地的网卡的对应关系
324: eth0@if325: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:12:00:03 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 172.18.0.3/16 brd 172.18.255.255 scope global eth0
valid_lft forever preferred_lft forever
325: vethaf7b3bf@if324: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
link/ether ae:a0:d1:95:67:ed brd ff:ff:ff:ff:ff:ff link-netnsid 1
inet6 fe80::aca0:d1ff:fe95:67ed/64 scope link
valid_lft forever preferred_lft forever
原理
docker0 使用了veth-pair技术，是成对出现的虚拟设备接口
1、只要我们安装了docker，就会有一个虚拟的网卡docker0
2、docker0 相当与一个网关
3、我们每启动一个容器，docker就会给容器分配一个ip
4、每一次容器重新启动，这个IP都会变动
5、容器删除或关闭之后，对应的网卡都会消失
6、启动中的容器和主机之间都是能互通
通过docker network 可以查看网络的相关配置
docker network --help
Usage: docker network COMMAND
Manage networks
Commands:
connect Connect a container to a network
create Create a network
disconnect Disconnect a container from a network
inspect Display detailed information on one or more networks
ls List networks
prune Remove all unused networks
rm Remove one or more networks
Run 'docker network COMMAND --help' for more information on a command.
我们看一下docker0的网络配置
[root@VM-0-13-centos ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
9b4873778c95 bridge bridge local
59fdb2170ace host host local
760f93db25b8 none null local
[root@VM-0-13-centos ~]# docker network inspect 9b4873778c95
[
{
"Name": "bridge",
"Id": "9b4873778c95a5796209b1d4acafa5d4563cdfd2413a26aa0d06497bde906204",
"Created": "2022-04-25T16:02:08.636683876+08:00",
"Scope": "local",
"Driver": "bridge",
"EnableIPv6": false,
"IPAM": {
"Driver": "default",
"Options": null,
"Config": [
{
"Subnet": "172.18.0.0/16",
"Gateway": "172.18.0.1"
}
]
},
"Internal": false,
"Attachable": false,
"Ingress": false,
"ConfigFrom": {
"Network": ""
},
"ConfigOnly": false,
"Containers": {
"2f41dd2a4bd6a1c2ba690c7170a7d3c7df1cdcc975e8fcfdc7e0d0d21b5c3663": {
"Name": "centos01",
"EndpointID": "033e850175059e856af3afd8db54d33d6a0ecf0a5716d7acc220fd32f248ba7c",
"MacAddress": "02:42:ac:12:00:02",
"IPv4Address": "172.18.0.2/16",
"IPv6Address": ""
},
"807d74ee030159e9064155e95c7ea98ce0e1cd15b476603b550fab7c69e9fe53": {
"Name": "centos02",
"EndpointID": "c6c23fa80e3691cc8e647bc65136d3aa4256b579f59e9c5c513167a2f6f27cde",
"MacAddress": "02:42:ac:12:00:03",
"IPv4Address": "172.18.0.3/16",
"IPv6Address": ""
},
"b71f2bd1e484dfc926fc608df09d282814b4334a3c5b770be0c1a4627724ffc9": {
"Name": "centos03",
"EndpointID": "32b7b310229e7b327a652cc0c740bdb867001bd544d964a0fcfc6c94e54274c1",
"MacAddress": "02:42:ac:12:00:04",
"IPv4Address": "172.18.0.4/16",
"IPv6Address": ""
}
},
"Options": {
"com.docker.network.bridge.default_bridge": "true",
"com.docker.network.bridge.enable_icc": "true",
"com.docker.network.bridge.enable_ip_masquerade": "true",
"com.docker.network.bridge.host_binding_ipv4": "0.0.0.0",
"com.docker.network.bridge.name": "docker0",
"com.docker.network.driver.mtu": "1500"
},
"Labels": {}
}
]
可以看到docker0这个网卡被定义成了一个类似网桥/网关的设备
同时还创建了一个子网，并且网关就是docker0
"Subnet": "172.18.0.0/16", "Gateway": "172.18.0.1"其他创建的容器都在这个子网内有分配的ip地址
由于docker容器每一次重启都会导致IP变动，通过固定IP访问的服务就需要换一种访问方式
#通过--link创建的容器可以直接用容器名访问指定的容器
#创建一个与centos01相连的centos03
docker run -it -P --name centos03 --link centos01 centos
#这时候centos03就可以通过容器名ping通centos01了
[root@VM-0-13-centos ~]# docker exec centos03 ping centos01
PING centos01 (172.18.0.2) 56(84) bytes of data.
64 bytes from centos01 (172.18.0.2): icmp_seq=1 ttl=64 time=0.120 ms
64 bytes from centos01 (172.18.0.2): icmp_seq=2 ttl=64 time=0.067 ms
#但是centos01因为不是指定与centos03相连的，所以还是无法通过容器名ping通centos03
[root@VM-0-13-centos ~]# docker exec centos01 ping centos03
ping: centos03: Name or service not known
实际上是通过往hosts文件中添加了相应的dns
[root@VM-0-13-centos ~]# docker exec centos03 cat /etc/hosts
127.0.0.1 localhost
::1 localhost ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
#添加了一条指定host名为centos01和centos01 的容器ID的记录
172.18.0.2 centos01 2f41dd2a4bd6
#这条记录添加了centos03 自己的容器ID记录
172.18.0.4 b71f2bd1e484
同时我们还可以通过 docker inspect centos03来查看相关的记录
#多了一条这样的记录
"Links": [
"/centos01:/centos03/centos01"
],
网络模式
#查看所有的网络
[root@VM-0-13-centos ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
9b4873778c95 bridge bridge local
59fdb2170ace host host local
760f93db25b8 none null local
这里有三种网络连接模式，还有一种额外的模式
1、bridge 桥接模式（默认网络连接）
2、host 主机模式（一般自定义配置）
3、null 不配置网络（不推荐，自己固定IP）
4、container 容器网络连通（用得少，局限大）
测试
#实际上下面两条指令是等价的
docker run -it -P --name centos01 cnetos:7.9.2009
docker run -it p_ --name centos01 --net bridge centos:7.9.2009
#docker0特点：默认，域名默认无法访问，可以通过--link连通
#首先创建一个子网
docker network create --gateway 192.168.1.1 --subnet 192.168.1.0/24 mynet
#这时候可以查看子网的相关信息
docker network inspect mynet
#也可以通过子网创建新的虚拟机
docker run -P -it --name cnetos01 --net mynet centos:7.9.2009
docker run -P -it --name cnetos02 --net mynet centos:7.9.2009
#这时候我们再查看子网的相关信息会发现多了一些信息
docker network inspect mynet
"Containers": {
"15e46ecd488292c3025f525ff7cff7b7e6dada6d4c3c2309bcbdbf2439e3c3a8": {
"Name": "centos02",
"EndpointID": "f48b22be77085d2fbbd8aa32e5a4b164176ea642b3e0bc9efacd4d87c2caf69e",
"MacAddress": "02:42:c0:a8:01:03",
"IPv4Address": "192.168.1.3/24",
"IPv6Address": ""
},
"a0df9d10a1fe611b487d23acaf5faaf5324eabdbe8ade44e4f9f6ee7e1c385ae": {
"Name": "centos01",
"EndpointID": "ddf917c17f51d8b163902d470e07101afec1b83add0094310cbd8e4748bf01b0",
"MacAddress": "02:42:c0:a8:01:02",
"IPv4Address": "192.168.1.2/24",
"IPv6Address": ""
}
},
#同时，通过域名来ping彼此也是互通的
[root@VM-0-13-centos ~]# docker exec centos01 ping centos02
PING centos02 (192.168.1.3) 56(84) bytes of data.
64 bytes from centos02.mynet (192.168.1.3): icmp_seq=1 ttl=64 time=0.058 ms
64 bytes from centos02.mynet (192.168.1.3): icmp_seq=2 ttl=64 time=0.067 ms
64 bytes from centos02.mynet (192.168.1.3): icmp_seq=3 ttl=64 time=0.070 ms
#这时候我们再查看本地的ip信息，可以发现又多了三个网络
332: br-752dae1ac4fc: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:64:98:88:85 brd ff:ff:ff:ff:ff:ff
inet 192.168.1.1/24 brd 192.168.1.255 scope global br-752dae1ac4fc
valid_lft forever preferred_lft forever
inet6 fe80::42:64ff:fe98:8885/64 scope link
valid_lft forever preferred_lft forever
342: veth8a21fcf@if341: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master br-752dae1ac4fc state UP group default
link/ether c6:83:50:26:ed:77 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet6 fe80::c483:50ff:fe26:ed77/64 scope link
valid_lft forever preferred_lft forever
344: veth02489a4@if343: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master br-752dae1ac4fc state UP group default
link/ether 22:b1:8d:22:2e:ac brd ff:ff:ff:ff:ff:ff link-netnsid 1
inet6 fe80::20b1:8dff:fe22:2eac/64 scope link
valid_lft forever preferred_lft forever
这种做法的好处是不同的集群使用不同的网络，保证了集群之间是互通的
但是有一点需要注意的是，通过这种方法分配的容器的IP，也是会变动的
容器关闭之后再重启，IP就会改变
#这个时候我们有四个不同容器
[root@VM-0-13-centos ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
ab318d8cc387 centos:7.9.2009 "/bin/bash" 9 seconds ago Up 8 seconds centos02
3c672037d852 centos:7.9.2009 "/bin/bash" 27 seconds ago Up 26 seconds centos01
1c94f9565448 centos:7.9.2009 "/bin/bash" 49 seconds ago Up 48 seconds centos_mynet_02
350ccd043887 centos:7.9.2009 "/bin/bash" About a minute ago Up About a minute centos_mynet_01
#他们分别属于两个不同的子网
#我们可以把其中一个添加到另一个的子网中去
docker network connect mynet centos01
#之后centos01就可以与mynet子网下的所有容器互通
[root@VM-0-13-centos ~]# docker exec centos01 ping centos_mynet_01
PING centos_mynet_01 (192.168.1.2) 56(84) bytes of data.
64 bytes from centos_mynet_01.mynet (192.168.1.2): icmp_seq=1 ttl=64 time=0.076 ms
64 bytes from centos_mynet_01.mynet (192.168.1.2): icmp_seq=2 ttl=64 time=0.071 ms
[root@VM-0-13-centos ~]# docker exec centos01 ping centos_mynet_02
PING centos_mynet_02 (192.168.1.3) 56(84) bytes of data.
64 bytes from centos_mynet_02.mynet (192.168.1.3): icmp_seq=1 ttl=64 time=0.139 ms
64 bytes from centos_mynet_02.mynet (192.168.1.3): icmp_seq=2 ttl=64 time=0.077 ms
#查看centos01 的配置信息之后发现是把centos01也加到了mynet的网络中，并且分配了一个专属的IP
#所以本质就是给指定的容器加多了一个网卡，并且连接到了指定的子网当中
docker inspect centos01
"Networks": {
"bridge": {
"IPAMConfig": null,
"Links": null,
"Aliases": null,
"NetworkID": "9b4873778c95a5796209b1d4acafa5d4563cdfd2413a26aa0d06497bde906204",
"EndpointID": "4affaca7f787a1c50e3165e1fae54531ea201c9efe78efc83dd7d6d2cf7fc9d0",
"Gateway": "172.18.0.1",
"IPAddress": "172.18.0.2",
"IPPrefixLen": 16,
"IPv6Gateway": "",
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"MacAddress": "02:42:ac:12:00:02",
"DriverOpts": null
},
"mynet": {
"IPAMConfig": {},
"Links": null,
"Aliases": [
"3c672037d852"
],
"NetworkID": "752dae1ac4fc9e2e53154d183f954dd715de6445c9aa85aadb732f48298ac345",
"EndpointID": "2e22a1628533846cae6eddef37045fae93233f3f1cc73891bab6f6f06f370f34",
"Gateway": "192.168.1.1",
"IPAddress": "192.168.1.4",
"IPPrefixLen": 24,
"IPv6Gateway": "",
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"MacAddress": "02:42:c0:a8:01:04",
"DriverOpts": {}
}
}
编写redis配置生成脚本
#!/bin/bash
for num in {1..6};do
#echo $num
mkdir -p /root/redis/node-${num}/conf
touch /root/redis/node-${num}/conf/redis.conf
# 批量输入文本内容，> 为覆盖重定向到文本，>> 为追加重定向到文本
# <<EOF 标识符，当遇到EOF时停止输入内容到文本
cat > /root/redis/node-${num}/conf/redis.conf <<EOF
#redis的配置
port 6379
bind 0.0.0.0
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000
cluster-announce-ip 192.168.1.1${num}
cluster-announce-port 6379
cluster-announce-bus-port 16379
appendonly yes
#重定向结束
EOF
done
# 生成后的文件夹
[root@VM-0-13-centos ~]# tree /root/redis/
/root/redis/
|-- docker.sh
|-- node-1
| |-- conf
| | `-- redis.conf
| `-- data
| |-- appendonly.aof
| |-- dump.rdb
| `-- nodes.conf
|-- node-2
| |-- conf
| | `-- redis.conf
| `-- data
| |-- appendonly.aof
| |-- dump.rdb
| `-- nodes.conf
|-- node-3
| |-- conf
| | `-- redis.conf
| `-- data
| |-- appendonly.aof
| |-- dump.rdb
| `-- nodes.conf
|-- node-4
| |-- conf
| | `-- redis.conf
| `-- data
| |-- appendonly.aof
| |-- dump.rdb
| `-- nodes.conf
|-- node-5
| |-- conf
| | `-- redis.conf
| `-- data
| |-- appendonly.aof
| |-- dump.rdb
| `-- nodes.conf
|-- node-6
| |-- conf
| | `-- redis.conf
| `-- data
| |-- appendonly.aof
| |-- dump.rdb
| `-- nodes.conf
`-- redis.sh
编写生成docker容器的脚本
#!/bin/bash
for num in {1..6};do
docker run -p 637${num}:6379 -p 1637${num}:16379 --name redis-${num} \
-v /root/redis/node-${num}/data:/data \
-v /root/redis/node-${num}/conf/redis.conf:/etc/redis/redis.conf \
-d --net redis --ip 192.168.1.1${num} redis redis-server /etc/redis/redis.conf
done
# 以下是redis-1节点的容器生成指令
# 块注释
:<<EOF
docker run -p 6371:6379 -p 16371:16379 --name redis-1 \
-v /root/redis/node-1/data:/data \
-v /root/redis/node-1/conf/redis.conf:/etc/redis/redis.conf \
-d --net redis --ip 192.168.1.11 redis redis-server /etc/redis/redis.conf
EOF
#创建后的容器列表
[root@VM-0-13-centos ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
adf634167caf redis "docker-entrypoint.s…" 12 minutes ago Up 12 minutes 0.0.0.0:6376->6379/tcp, :::6376->6379/tcp, 0.0.0.0:16376->16379/tcp, :::16376->16379/tcp redis-6
54ea1500d23c redis "docker-entrypoint.s…" 12 minutes ago Up 12 minutes 0.0.0.0:6375->6379/tcp, :::6375->6379/tcp, 0.0.0.0:16375->16379/tcp, :::16375->16379/tcp redis-5
fcd42b8fbd49 redis "docker-entrypoint.s…" 12 minutes ago Up 12 minutes 0.0.0.0:6374->6379/tcp, :::6374->6379/tcp, 0.0.0.0:16374->16379/tcp, :::16374->16379/tcp redis-4
7088e74db436 redis "docker-entrypoint.s…" 12 minutes ago Up 12 minutes 0.0.0.0:6373->6379/tcp, :::6373->6379/tcp, 0.0.0.0:16373->16379/tcp, :::16373->16379/tcp redis-3
854f3b9645b1 redis "docker-entrypoint.s…" 12 minutes ago Up 12 minutes 0.0.0.0:6372->6379/tcp, :::6372->6379/tcp, 0.0.0.0:16372->16379/tcp, :::16372->16379/tcp redis-2
1f2d1b2540f9 redis "docker-entrypoint.s…" 12 minutes ago Up 12 minutes 0.0.0.0:6371->6379/tcp, :::6371->6379/tcp, 0.0.0.0:16371->16379/tcp, :::16371->16379/tcp redis-1
进入redis中连接节点创建集群
docker exec -it redis-1 /bin/sh
redis-cli --cluster create 192.168.1.11:6379 192.168.1.12:6379 192.168.1.13:6379 \
192.168.1.14:6379 192.168.1.15:6379 192.168.1.16:6379 \
--cluster-replicas 1
# 创建集群成功后的集群信息
127.0.0.1:6379> cluster info
cluster_state:ok
cluster_slots_assigned:16384
cluster_slots_ok:16384
cluster_slots_pfail:0
cluster_slots_fail:0
cluster_known_nodes:6
cluster_size:3
cluster_current_epoch:6
cluster_my_epoch:1
cluster_stats_messages_ping_sent:391
cluster_stats_messages_pong_sent:388
cluster_stats_messages_sent:779
cluster_stats_messages_ping_received:383
cluster_stats_messages_pong_received:391
cluster_stats_messages_meet_received:5
cluster_stats_messages_received:779
# 创建集群成功后的节点状态
127.0.0.1:6379> cluster nodes
d7ebd111f110244092dafb348d2092593c84ee2a 192.168.1.14:6379@16379 slave 0cad009726d17ca7ef53a0d12eb4a2da95a28b58 0 1650914152525 3 connected
46a41b647fdd54796aada765a869bfe281af1da1 192.168.1.12:6379@16379 master - 0 1650914153127 2 connected 5461-10922
5a0626ee8e705a1c147fbb0be98a2f0cbbcf14bd 192.168.1.16:6379@16379 slave 46a41b647fdd54796aada765a869bfe281af1da1 0 1650914152124 2 connected
7124136c94464fe121a7b217dfdbd91c44b0970c 192.168.1.11:6379@16379 myself,master - 0 1650914151000 1 connected 0-5460
67d402fdf403a700a369ff52e7f60ddd5966a58d 192.168.1.15:6379@16379 slave 7124136c94464fe121a7b217dfdbd91c44b0970c 0 1650914153629 1 connected
0cad009726d17ca7ef53a0d12eb4a2da95a28b58 192.168.1.13:6379@16379 master - 0 1650914153027 3 connected 10923-16383
检查是否部署成功
# 往集群中保存一个值
# redis-cli -c
127.0.0.1:6379> set x y
# 值被保存到了ip为14的节点上，这个节点是redis-4的容器
-> Redirected to slot [16287] located at 192.168.1.14:6379
OK
# 把redis-4容器停掉
docker stop redis-4
# 查询x的值看是否还能查询到
# redis-cli -c
127.0.0.1:6379> get x
-> Redirected to slot [16287] located at 192.168.1.13:6379
"y"
#可以看到x仍然是可以查询到的
#但是是从备机13也就是redis-3中查询到的
#这说明在主机down掉之后，启用了备机
再次查看集群的节点状态
#可以看到节点14也就是redis-4是连接失败了的
127.0.0.1:6379> cluster nodes
d7ebd111f110244092dafb348d2092593c84ee2a 192.168.1.14:6379@16379 master,fail - 1650914787784 1650914785273 7 connected
46a41b647fdd54796aada765a869bfe281af1da1 192.168.1.12:6379@16379 master - 0 1650914997003 2 connected 5461-10922
5a0626ee8e705a1c147fbb0be98a2f0cbbcf14bd 192.168.1.16:6379@16379 slave 46a41b647fdd54796aada765a869bfe281af1da1 0 1650914998006 2 connected
7124136c94464fe121a7b217dfdbd91c44b0970c 192.168.1.11:6379@16379 myself,master - 0 1650914997000 1 connected 0-5460
67d402fdf403a700a369ff52e7f60ddd5966a58d 192.168.1.15:6379@16379 slave 7124136c94464fe121a7b217dfdbd91c44b0970c 0 1650914998509 1 connected
0cad009726d17ca7ef53a0d12eb4a2da95a28b58 192.168.1.13:6379@16379 master - 0 1650914998000 8 connected 10923-16383
重启redis-4，并查看状态
docker start redis-4
#这时候可以看到，redis-4又重新连接上来了
#不过这次redis-4是作为redis-3的备机
127.0.0.1:6379> cluster nodes
d7ebd111f110244092dafb348d2092593c84ee2a 192.168.1.14:6379@16379 slave 0cad009726d17ca7ef53a0d12eb4a2da95a28b58 0 1650915071160 8 connected
46a41b647fdd54796aada765a869bfe281af1da1 192.168.1.12:6379@16379 master - 0 1650915071261 2 connected 5461-10922
5a0626ee8e705a1c147fbb0be98a2f0cbbcf14bd 192.168.1.16:6379@16379 slave 46a41b647fdd54796aada765a869bfe281af1da1 0 1650915072264 2 connected
7124136c94464fe121a7b217dfdbd91c44b0970c 192.168.1.11:6379@16379 myself,master - 0 1650915071000 1 connected 0-5460
67d402fdf403a700a369ff52e7f60ddd5966a58d 192.168.1.15:6379@16379 slave 7124136c94464fe121a7b217dfdbd91c44b0970c 0 1650915073267 1 connected
0cad009726d17ca7ef53a0d12eb4a2da95a28b58 192.168.1.13:6379@16379 master - 0 1650915071000 8 connected 10923-16383
