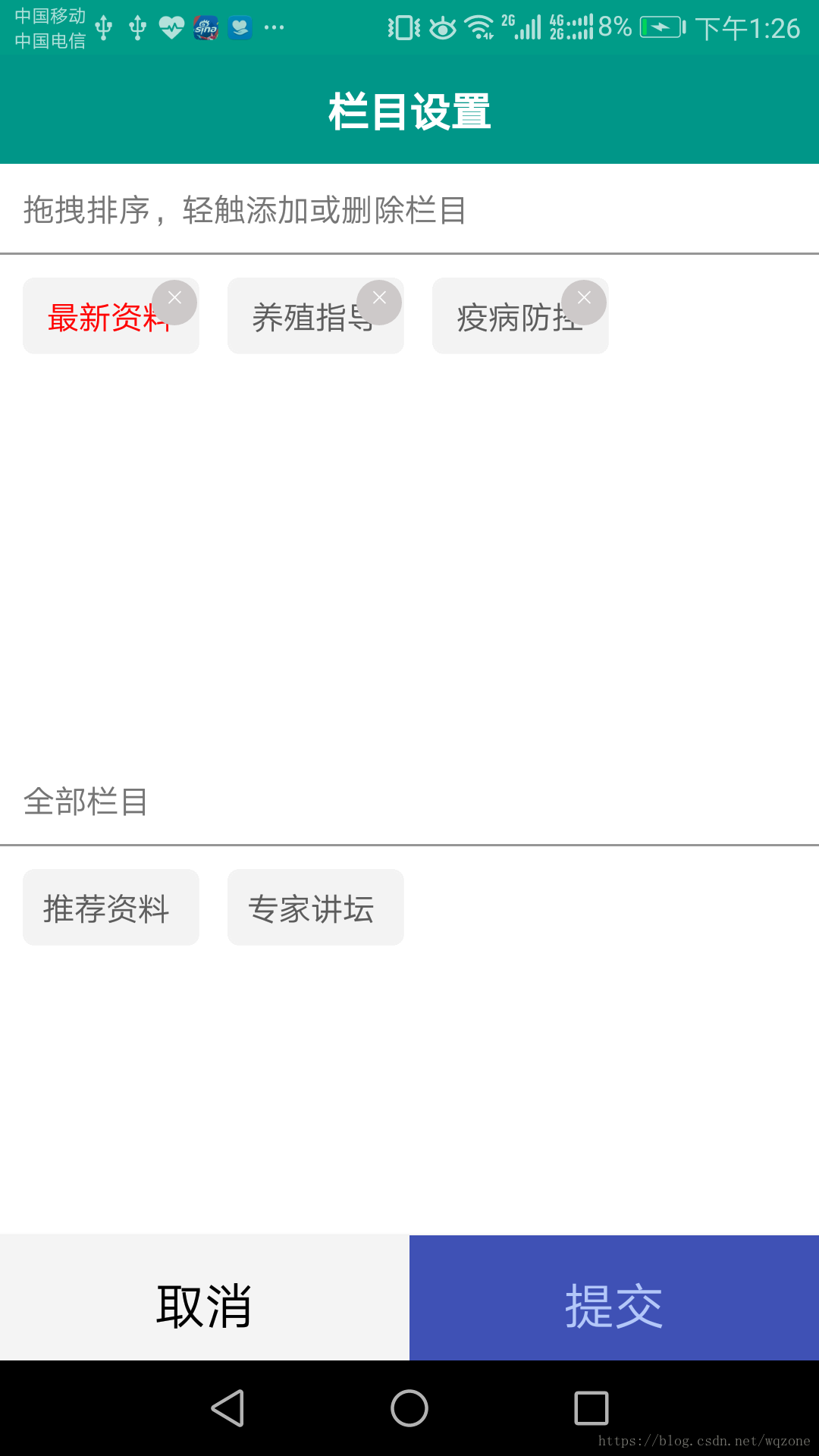

先上效果图，意思意思。其实原理很简单，没有想的那么难。
大家在改造的时候，请注意 this.offset 的值，因为它关系到查找目标box的index（原理：手势释放时，所在的坐标值来推算出目标box的Index），本文代码可读性还需要改造，代码写的有点乱。
借鉴了：
https://blog.csdn.net/nfq6612/article/details/78675515（
原文中有几处bug，运行不出来他说的效果）
'use strict';
import React, { Component } from 'react';
import {
Image,
StyleSheet,
LayoutAnimation,
Text,
TouchableHighlight,
TouchableOpacity,
TouchableWithoutFeedback,
Dimensions,
PanResponder,
View,
Alert,
NativeModules,
YellowBox
} from 'react-native';
import tools from "../../common/tools";
import {Icon} from 'native-base';
//获取屏幕宽高
let { width, height } = Dimensions.get('window');
let boxWidth = (width - 10) / 4 - 10;
let boxHeight = (width - 10) / 8 - 10;
const { UIManager } = NativeModules;
UIManager.setLayoutAnimationEnabledExperimental && UIManager.setLayoutAnimationEnabledExperimental(true);
YellowBox.ignoreWarnings(['Warning: isMounted(...) is deprecated', 'Module RCTImageLoader']);
export default class CustomTab extends Component {
static navigationOptions = ({navigation})=>({
headerTitle: '栏目设置',
gesturesEnabled:false,
headerRight: <View />
});
constructor(props) {
super(props);
let {items,sourceItems} = this.props;
this._width = width / 4;
this.topIndex = 0;
this.leftIndex = 0;
this.index = 0;
this.finalTopIndex = 0;
this.finalLeftIndex = 0;
this.finalIndex = 0;
this.prev_left = 0;
this.prev_top = 0;
this.left = 0;
this.top = 0;
this.barHeight=40;//qzwang
this._marginTop=10;//qzwang
this._borderTopWidth=1;//qzwang
this.offset = this.barHeight + this._marginTop + this._borderTopWidth; //偏移
//this.boxsPlanHeight = (this._width / 2) + boxHeight;
this.items = [{
id: 0,
name: '首页',
ordernum: 0
},{
id: 1,
name: '成交价',
ordernum: 0
},{
id: 2,
name: '库存',
ordernum: 0
},{
id: 3,
name: '快讯',
ordernum: 0
},{
id: 4,
name: '分析',
ordernum: 0
},{
id: 5,
name: '视频',
ordernum: 0
},{
id: 6,
name: '钢厂',
ordernum: 0
}
];
this.sourceItems=[{
id: 7,
name: '期货',
ordernum: 0
},{
id: 8,
name: '设置',
ordernum: 0
},{
id: 9,
name: '内容',
ordernum: 0
}
];
this.state = {};
}
componentWillReceiveProps(nextProps){
}
componentWillMount() {
this._panResponder = PanResponder.create({
onStartShouldSetPanResponder: (evt, gestureState) => {
return gestureState.dx !== 0 || gestureState.dy !== 0;
},
onMoveShouldSetPanResponder: (evt, gestureState) => true,
onPanResponderGrant: (evt, gestureState) => {
const { pageX, pageY } = evt.nativeEvent;
this.topIndex = Math.floor((pageY - this.offset) / (this._width / 2)) - 1;//qzwang 这里应该减法减1
this.leftIndex = Math.floor(pageX / this._width);
this.index = this.topIndex * 4 + this.leftIndex;
this.prev_left = this._width * this.leftIndex;
this.prev_top = this._width / 2 * this.topIndex;
},
onPanResponderMove: (evt, gestureState) => {
if (this.index >= 0 && this.index < this.items.length ) {
this.left = this.prev_left + gestureState.dx;
this.top = this.prev_top + gestureState.dy;
let box = this.refs[this.items[this.index].id];
box.setNativeProps({
style: { top: this.top, left: this.left }
});
}
},
onPanResponderTerminationRequest: (evt, gestureState) => true,
onPanResponderRelease: (evt, gestureState) => {
if(this.index <0 || this.index >= this.items.length){
this.forceUpdate();
return;
}
const { pageX, pageY } = evt.nativeEvent;
this.finalTopIndex = Math.floor((pageY - this.offset) / (this._width / 2)) -1;
this.finalLeftIndex = Math.floor(pageX / this._width);
let index = this.finalTopIndex * 4 + this.finalLeftIndex;
this.prev_left = this._width * this.finalTopIndex;
this.prev_top = this._width / 2 * this.finalTopIndex;
if (index >= 0 && index < this.items.length && this.items[index]) {
if (index > this.index) {
this.moveBack(this.index,index);
} else if (index < this.index) {
this.moveForward(this.index,index);
}else{
this.delteBox(index);//删除
}
} else {
//移出范围，则重新回到原始位置
let box1 = this.refs[this.items[this.index].id];
let top1 = Math.floor(this.index / 4) * (this._width / 2);
let left1 = (this.index % 4) * this._width;
LayoutAnimation.linear();
box1.setNativeProps({
style: {
top: top1,
left: left1,
zIndex:9999
}
});
LayoutAnimation.configureNext(LayoutAnimation.Presets.spring); //系统自带
}
},
onShouldBlockNativeResponder: (event, gestureState) => true
});
}
moveForward = function(sourceIndex,targetIndex){
//往前移动
for (let i = sourceIndex; i > targetIndex; i--) {
let box2 = this.refs[this.items[i - 1].id];
let top2 = Math.floor(i / 4) * (this._width / 2);
let left2 = (i % 4) * this._width;
//LayoutAnimation.linear();
LayoutAnimation.configureNext(
LayoutAnimation.create(
200,
LayoutAnimation.Types.linear,
LayoutAnimation.Properties.scaleXY
)
);
box2.setNativeProps({
style: {
top: top2,
left: left2
}
});
}
let box1 = this.refs[this.items[sourceIndex].id];
let top1 = Math.floor(targetIndex / 4) * (this._width / 2);
let left1 = (targetIndex % 4) * this._width;
box1.setNativeProps({
style: {
top: top1,
left: left1
}
});
let temp = this.items[sourceIndex];
for (let i = sourceIndex; i > targetIndex; i--) {
this.items[i] = this.items[i - 1];
}
this.items[targetIndex] = temp;
}
moveBack = function(sourceIndex,targetIndex){
for (let i = sourceIndex; i < targetIndex; i++) {
let box2 = this.refs[this.items[i + 1].id];
let top2 = Math.floor(i / 4) * (this._width / 2);
let left2 = (i % 4) * this._width;
//LayoutAnimation.linear();
LayoutAnimation.configureNext(
LayoutAnimation.create(
200,
LayoutAnimation.Types.linear,
LayoutAnimation.Properties.scaleXY
)
);
box2.setNativeProps({
style: {
top: top2,
left: left2
}
});
}
let box1 = this.refs[this.items[sourceIndex].id];
let top1 = Math.floor(targetIndex / 4) * (this._width / 2);
let left1 = (targetIndex % 4) * this._width;
box1.setNativeProps({
style: {
top: top1,
left: left1
}
});
let temp = this.items[sourceIndex];
for (let i = sourceIndex; i < targetIndex; i++) {
this.items[i] = this.items[i + 1];
}
this.items[targetIndex] = temp;
}
delteBox = function(index){
if(this.items.length==1)
{
tools.showToast("必须保留至少一个栏目");
return;
}
if( index <0 || index >= this.items.length ){
tools.showToast("应用出错");
return;
}
//1、移除
let item = this.items[index];
this.items.removeItem(o=>o.id==item.id);
//2、增加
this.sourceItems.removeItem(o=>o.id==item.id);
this.sourceItems.push(item);
//3、重新刷新
this.forceUpdate();
}
onAddTab=function(item){
this.items.push(item);
this.sourceItems.removeItem(o=>o.id==item.id);
this.forceUpdate();
}
renderSource=function(){
return this.sourceItems.map((item, index) => {
let top = Math.floor(index / 4) * (this._width / 2);
let left = (index % 4) * this._width;
return (
<TouchableOpacity
onPress={()=>{ this.onAddTab(item) }}
key={'' + item.id}
style={[componentStyles.touchBox, { top, left }]}
>
<View
style={{
alignItems: 'center',
justifyContent: 'center',
width: (width - 10) / 4 - 10,
height: (width - 10) / 8 - 10,
backgroundColor: '#f3f3f3',
borderWidth: 1,
borderRadius: 5,
borderColor: '#f3f3f3'}}>
<Text style={{color: '#5c5c5c'}}>{item.name}</Text>
</View>
</TouchableOpacity>
);
});
}
renderBoxs=function(){
return this.items.map((item, index) => {
let top = Math.floor(index / 4) * (this._width / 2);
let left = (index % 4) * this._width;
return (
<View
ref={'' + item.id}
{...this._panResponder.panHandlers}
key={'' + item.id}
style={[componentStyles.touchBox, { top, left }]}
>
<TouchableOpacity onPress={()=>{ this.delteBox(item.id) }} style={componentStyles.closeButton} underlayColor={'#f9f3f9'}>
<Icon name='ios-close' style={{ color:'#ffffff',textAlign:'center', fontSize:15 }} />
</TouchableOpacity>
<View
style={{
alignItems: 'center',
justifyContent: 'center',
width: (width - 10) / 4 - 10,
height: (width - 10) / 8 - 10,
backgroundColor: '#f3f3f3',
borderWidth: 1,
borderRadius: 5,
borderColor: '#f3f3f3'}}>
<Text style={{ color: index > 0 ? '#5c5c5c' : '#ff0000' }}>{item.name}</Text>
</View>
</View>
);
});
}
render() {
const boxes = this.renderBoxs();
const sourceBoxs = this.renderSource();
let {style,ref,...props} = this.props;
if(!style){
style={};
}
if(!(style instanceof Array)){
style=[style];
}
return (
<View style={[componentStyles.container,...style]}>
<View style={[componentStyles.crossBar,{height: this.barHeight,borderBottomWidth:this._borderTopWidth}]}>
<Text>拖拽排序，轻触添加或删除栏目</Text>
</View>
<View style={[componentStyles.plan,{marginTop: this._marginTop}]}>
{boxes}
</View>
<View style={componentStyles.sourcePlan}>
<View style={[componentStyles.crossBar,{height: this.barHeight,borderBottomWidth:this._borderTopWidth}]}>
<Text>全部栏目</Text>
</View>
<View style={[componentStyles.sourceBoxs,{marginTop: this._marginTop}]}>
{sourceBoxs}
</View>
</View>
</View>
);
}
}
const componentStyles = StyleSheet.create({
touchBox: {
width: boxWidth,
height: boxHeight,
backgroundColor: '#fff',
position: 'absolute',
left: 0,
top: 0,
zIndex:888
},
container:{
flex: 1,
flexDirection: 'column',
backgroundColor: '#fff'
},
crossBar:{
flexDirection: 'row',
backgroundColor: '#fff',
paddingLeft:10,
alignItems:'center',
borderBottomColor:'#969696'
},
plan:{
width: width,
marginLeft: 10,
marginBottom: 10,
marginRight: 10
},
sourcePlan:{
flex:1,
top: 200,
},
sourceBoxs:{
flexDirection: 'column',
width: width,
marginLeft: 10,
marginBottom: 10,
marginRight: 10,
flex:1
},
closeButton:{
height:20,
width:20,
backgroundColor:'#CDC9C9',
borderRadius:10,
position:'absolute',
top:1,
right:1,
zIndex:9999999,
},
bottomBar:{
height:50
}
});
