转自：https://blog.csdn.net/chan1116/article/details/44200405
目前在做项目时候有这样的需求：布局文件的控件类型大致相同，例如某布局文件由GridView、ScrollView、TextView、Button四个控件组成，但是控件的摆放位置不同。因为摆放的方式很多，不可能把所有摆放方式都写一个布局文件，因为这样不利于迭代开发。这时候就想出能不能把布局文件放在服务器上，当需要某布局的时候，从服务器下载布局文件保存到存储卡上，然后读取存储卡上的布局文件。
思路大致清除了，那么现在开始进行可行性分析。
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
}上面的代码太熟悉不过了，创建一个新Android工程，这玩意就已经写好了！通过setContentView()方法，我们可以设置布局文件，但是这里的参数是R文件的布局ID，如果是布局文件的路径就好了，这样就可以直接读取SD卡的XML布局文件了！按住Ctrl+鼠标左键，点击setContentView()进入：
/**
* Set the activity content from a layout resource. The resource will be
* inflated, adding all top-level views to the activity.
*
* @param layoutResID Resource ID to be inflated.
*
* @see #setContentView(android.view.View)
* @see #setContentView(android.view.View, android.view.ViewGroup.LayoutParams)
*/
public void setContentView(int layoutResID) {
getWindow().setContentView(layoutResID);
initActionBar();
}从这里我们可以看到，setContentView()方法调用了Window类里的setContentView()方法，调来调去啊！继续按住Ctrl+鼠标左键，点击setContentView()进入：
/**
* Convenience for
* {@link #setContentView(View, android.view.ViewGroup.LayoutParams)}
* to set the screen content from a layout resource. The resource will be
* inflated, adding all top-level views to the screen.
*
* @param layoutResID Resource ID to be inflated.
* @see #setContentView(View, android.view.ViewGroup.LayoutParams)
*/
public abstract void setContentView(int layoutResID);花擦，这里变成了抽象函数，在哪里实现啊！不要惊慌，通过源码可以得知，Window类是一个抽象类，那么它的实现应该是在子类中。那么Window类有哪些子类？
/**
* Abstract base class for a top-level window look and behavior policy. An
* instance of this class should be used as the top-level view added to the
* window manager. It provides standard UI policies such as a background, title
* area, default key processing, etc.
*
* <p>The only existing implementation of this abstract class is
* android.policy.PhoneWindow, which you should instantiate when needing a
* Window. Eventually that class will be refactored and a factory method
* added for creating Window instances without knowing about a particular
* implementation.
*/这是Window类源码的开头说明，从中可以立马看到PhoneWindow，对！没错就是它！在PhoneWindow中终于找到了它的具体实现！
@Override
public void setContentView(int layoutResID) {
if (mContentParent == null) {
installDecor();
} else {
mContentParent.removeAllViews();
}
mLayoutInflater.inflate(layoutResID, mContentParent);
final Callback cb = getCallback();
if (cb != null && !isDestroyed()) {
cb.onContentChanged();
}
}从标红的代码，我们可以看到，布局的ID是用在了该段代码，看到了inflate方法，我想大家应该不陌生，在BaseAdpter中经常会用到，用来填充布局的！继续按住Ctrl+鼠标左键，点击inflate(....)进入：
/**
* Inflate a new view hierarchy from the specified xml resource. Throws
* {@link InflateException} if there is an error.
*
* @param resource ID for an XML layout resource to load (e.g.,
* <code>R.layout.main_page</code>)
* @param root Optional view to be the parent of the generated hierarchy.
* @return The root View of the inflated hierarchy. If root was supplied,
* this is the root View; otherwise it is the root of the inflated
* XML file.
*/
public View inflate(int resource, ViewGroup root) {
return inflate(resource, root, root != null);
}
继续按住Ctrl+鼠标左键，点击return中的inflate(....)进入：
/**
* Inflate a new view hierarchy from the specified xml resource. Throws
* {@link InflateException} if there is an error.
*
* @param resource ID for an XML layout resource to load (e.g.,
* <code>R.layout.main_page</code>)
* @param root Optional view to be the parent of the generated hierarchy (if
* <em>attachToRoot</em> is true), or else simply an object that
* provides a set of LayoutParams values for root of the returned
* hierarchy (if <em>attachToRoot</em> is false.)
* @param attachToRoot Whether the inflated hierarchy should be attached to
* the root parameter? If false, root is only used to create the
* correct subclass of LayoutParams for the root view in the XML.
* @return The root View of the inflated hierarchy. If root was supplied and
* attachToRoot is true, this is root; otherwise it is the root of
* the inflated XML file.
*/
public View inflate(int resource, ViewGroup root, boolean attachToRoot) {
if (DEBUG) System.out.println("INFLATING from resource: " + resource);
XmlResourceParser parser = getContext().getResources().getLayout(resource);
try {
return inflate(parser, root, attachToRoot);
} finally {
parser.close();
}
}重点来了，看到标红代码，我们可以看到布局ID被getLayout方法作为参数使用，最后返回了XmlResourceParser这玩意，那么它是啥？点击它进去看看：
/**
* The XML parsing interface returned for an XML resource. This is a standard
* XmlPullParser interface, as well as an extended AttributeSet interface and
* an additional close() method on this interface for the client to indicate
* when it is done reading the resource.
*/
public interface XmlResourceParser extends XmlPullParser, AttributeSet, AutoCloseable {
/**
* Close this interface to the resource. Calls on the interface are no
* longer value after this call.
*/
public void close();
}
wow，它是一个接口，而且是继承自XmlPullParser，那么XmlPullParser是什么？查看它的源码，这里就不贴出源码的英文介绍，因为巴拉巴拉太长了！这里只要知道，它是解析XML文件要使用到的。到这里，我想大概有思路了，因为Android是支持解析Xml文件的，例如游戏的配置文件可以用XML文件完成。如果我们能够将SD卡上的布局文件转成XmlPullParser的话就应该可以完成这种需求！
最后来看看inflate方法的最终实现代码：
/**
* Inflate a new view hierarchy from the specified XML node. Throws
* {@link InflateException} if there is an error.
* <p>
* <em><strong>Important</strong></em> For performance
* reasons, view inflation relies heavily on pre-processing of XML files
* that is done at build time. Therefore, it is not currently possible to
* use LayoutInflater with an XmlPullParser over a plain XML file at runtime.
*
* @param parser XML dom node containing the description of the view
* hierarchy.
* @param root Optional view to be the parent of the generated hierarchy (if
* <em>attachToRoot</em> is true), or else simply an object that
* provides a set of LayoutParams values for root of the returned
* hierarchy (if <em>attachToRoot</em> is false.)
* @param attachToRoot Whether the inflated hierarchy should be attached to
* the root parameter? If false, root is only used to create the
* correct subclass of LayoutParams for the root view in the XML.
* @return The root View of the inflated hierarchy. If root was supplied and
* attachToRoot is true, this is root; otherwise it is the root of
* the inflated XML file.
*/
public View inflate(XmlPullParser parser, ViewGroup root, boolean attachToRoot) {
synchronized (mConstructorArgs) {
final AttributeSet attrs = Xml.asAttributeSet(parser);
Context lastContext = (Context)mConstructorArgs[0];
mConstructorArgs[0] = mContext;
View result = root;
try {
// Look for the root node.
int type;
while ((type = parser.next()) != XmlPullParser.START_TAG &&
type != XmlPullParser.END_DOCUMENT) {
// Empty
}
if (type != XmlPullParser.START_TAG) {
throw new InflateException(parser.getPositionDescription()
+ ": No start tag found!");
}
final String name = parser.getName();
if (DEBUG) {
System.out.println("**************************");
System.out.println("Creating root view: "
+ name);
System.out.println("**************************");
}
if (TAG_MERGE.equals(name)) {
if (root == null || !attachToRoot) {
throw new InflateException("<merge /> can be used only with a valid "
+ "ViewGroup root and attachToRoot=true");
}
rInflate(parser, root, attrs, false);
} else {
// Temp is the root view that was found in the xml
View temp;
if (TAG_1995.equals(name)) {
temp = new BlinkLayout(mContext, attrs);
} else {
temp = createViewFromTag(root, name, attrs);
}
ViewGroup.LayoutParams params = null;
if (root != null) {
if (DEBUG) {
System.out.println("Creating params from root: " +
root);
}
// Create layout params that match root, if supplied
params = root.generateLayoutParams(attrs);
if (!attachToRoot) {
// Set the layout params for temp if we are not
// attaching. (If we are, we use addView, below)
temp.setLayoutParams(params);
}
}
if (DEBUG) {
System.out.println("-----> start inflating children");
}
// Inflate all children under temp
rInflate(parser, temp, attrs, true);
if (DEBUG) {
System.out.println("-----> done inflating children");
}
// We are supposed to attach all the views we found (int temp)
// to root. Do that now.
if (root != null && attachToRoot) {
root.addView(temp, params);
}
// Decide whether to return the root that was passed in or the
// top view found in xml.
if (root == null || !attachToRoot) {
result = temp;
}
}
} catch (XmlPullParserException e) {
InflateException ex = new InflateException(e.getMessage());
ex.initCause(e);
throw ex;
} catch (IOException e) {
InflateException ex = new InflateException(
parser.getPositionDescription()
+ ": " + e.getMessage());
ex.initCause(e);
throw ex;
} finally {
// Don't retain static reference on context.
mConstructorArgs[0] = lastContext;
mConstructorArgs[1] = null;
}
return result;
}
}最后通过该方法，就可以返回一个View，该View相当于整个布局（因为布局也是View）。通过返回的View，就可以进行findViewById的操作了！
关于从SD卡读取XML文件的网上例子有很多，下面项目中用到的方法，用来得到XmlPullParser。
public XmlPullParser getXmlPullParser(String resource) {
XmlPullParser parser = Xml.newPullParser();
try {
FileInputStream is = new FileInputStream(resource);
parser.setInput(is, "utf-8");
} catch (Exception e) {
e.printStackTrace();
}
return parser;
}这里传入的就是XML在SD卡中的路径，通过相关操作就可以得到XmlPullParser对象。答题思路清晰明了，接下来说说如何做？

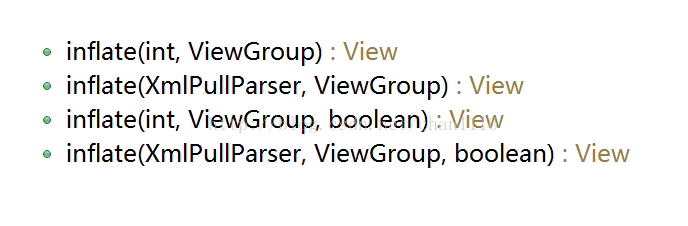

首先我们要把Android中的LayoutInflate类拷贝一份到自己工程中，接下来的工作就是照葫芦画瓢了！看下图：
从上图，可以看到LayoutInflate中的所有inflate方法，可惜就是没有以String 作为参数的方法，那么这里我们就按照源码中inflate方法进行增加，如下：
public View inflate(String resource, ViewGroup root) {
return inflate(resource, root, root != null);
}接下来还有
public View inflate(String resource, ViewGroup root, boolean attachToRoot) {
XmlPullParser parser = getXmlPullParser(resource);
return inflate(parser, root, attachToRoot);
}
最后就可以调到系统原有的以XmlPullPaser作为参数的inflate方法。那么这里就完成了吗？其实没有，这里做的操作仅仅只是读取布局文件操作。里面的控件如何识别，控件的属性怎么操作，都需要继续研究。XML文件里面有布局，也有控件，若SD卡上的XML文件有某控件，那么我们就要重写该控件。因为这里读取布局的逻辑是我们自己写的，那么相应的View的操作也要自己重写。具体原因将在后续的某期博客中进行分析。例如XML文件中有Button控件：
<Button
android:id="@+id/btn_back"
android:layout_width="@dimen/mine_back_btn_width"
android:layout_height="@dimen/mine_back_btn_height"
android:layout_gravity="center_vertical"
android:background="@drawable/mine_btn_back" />例如id，layout_width，layout_height等属性，如果我们不重写Button，那么这些属性都是无用的。因为我们没有进行相应的操作，大家通过阅读Button源码就可以了解AttributeSet的相关知识，有时间在后续博客我也将进行分析。
public class VAButton extends android.widget.Button {
public VAButton(Context context, AttributeSet attrs) {
super(context);
setAttributeSet(attrs);
}
@SuppressWarnings("deprecation")
public void setAttributeSet(AttributeSet attrs) {
HashMap<String, ParamValue> map = YDResource.getInstance().getViewMap();
int count = attrs.getAttributeCount();
for (int i = 0; i < count; i++) {
ParamValue key = map.get(attrs.getAttributeName(i));
if (key == null) {
continue;
}
switch (key) {
case id:
this.setTag(attrs.getAttributeValue(i));
break;
case text:
String value = YDResource.getInstance().getString(
attrs.getAttributeValue(i));
this.setText(value);
break;
case ellipsize:
if (attrs.getAttributeBooleanValue(i, false)) {
this.setFocusable(true);
this.setFocusableInTouchMode(true);
this.setSingleLine(true);
this.setEllipsize(TruncateAt.MARQUEE);
this.setMarqueeRepeatLimit(1000);
this.setSingleLine();
this.setHorizontallyScrolling(true);
this.requestFocus();
}
break;
case fadingEdge:
this.setHorizontalFadingEdgeEnabled(attrs
.getAttributeBooleanValue(i, false));
break;
case scrollHorizontally:
this.setHorizontallyScrolling(attrs.getAttributeBooleanValue(i,
false));
break;
case textColor:
this.setTextColor(YDResource.getInstance().getIntColor(
attrs.getAttributeValue(i)));
break;
case textSize:
String val1 = attrs.getAttributeValue(i);
if (!TextUtils.isEmpty(val1)) {
this.setTextSize(YDResource.getInstance()
.calculateRealSize(val1));
}
break;
case visibility:
String val2 = attrs.getAttributeValue(i);
if (!TextUtils.isEmpty(val2)) {
if (val2.equals("invisible")) {
this.setVisibility(View.INVISIBLE);
} else if (val2.equalsIgnoreCase("gone")) {
this.setVisibility(View.GONE);
}
}
break;
case background:
String backgroundString = attrs.getAttributeValue(i);
if (backgroundString.startsWith("#")) {
this.setBackgroundColor(YDResource.getInstance()
.getIntColor(attrs.getAttributeValue(i)));
} else {
if (backgroundString.startsWith("@drawable/")) {
backgroundString = backgroundString.substring(10);
}
String rootpath = getContext().getFilesDir().toString();
StringBuilder sb = new StringBuilder();
sb.append(rootpath).append("/").append(backgroundString)
.append(".png");
Bitmap bm = BitmapFactory.decodeFile(sb.toString());
setBackgroundDrawable(new BitmapDrawable(bm));
}
break;
case textStyle:
if ("bold".equalsIgnoreCase(attrs.getAttributeValue(i)))
this.setTypeface(Typeface.defaultFromStyle(Typeface.BOLD));
break;
case style:
String style = attrs.getAttributeValue(i);
style = style.substring(style.indexOf("/") + 1);
Log.i("button", "设置属性值");
int id = YDResource.getInstance().getIdentifier(
"R.style." + style);
this.setTextAppearance(getContext(), id);
break;
case src:
break;
case contentDescription:
String content = attrs.getAttributeValue(i);
this.setContentDescription(content);
break;
case gravity:
this.setGravity(Gravity.CENTER_HORIZONTAL);
break;
default:
break;
}
}
}
}通过上面代码，我们可以知道，这里的操作都是对各种属性标签利用代码来进行设置。如果有些复杂的属性不想写了，其实最后还是可以通过代码来完成的。这里就是你的布局需要多少控件属性，就要在代码中完成多少属性的设置。布局控件的代码，以FrameLayout为例：
public class VAFrameLayout extends android.widget.FrameLayout {
public VAFrameLayout(Context context, AttributeSet attrs) {
super(context);
setLayoutParams(generateLayoutParams(attrs));
}
@SuppressWarnings({ "unchecked", "deprecation" })
@Override
public LayoutParams generateLayoutParams(AttributeSet attrs) {
// TODO Auto-generated method stub
LayoutParams params = this.generateDefaultLayoutParams();
HashMap<String, ParamValue> map = YDResource.getInstance()
.getLayoutMap();
params.width = -2;
params.height = -2;
int count = attrs.getAttributeCount();
for (int i = 0; i < count; i++) {
String name = attrs.getAttributeName(i);
ParamValue key = map.get(name);
if (key == null) {
continue;
}
switch (key) {
case layout_width:
String width = attrs.getAttributeValue(i);
if (width.startsWith("f") || width.startsWith("m")) {
params.width = LayoutParams.MATCH_PARENT;
break;
}
if (width.startsWith("w")) {
params.width = LayoutParams.WRAP_CONTENT;
break;
}
params.width = YDResource.getInstance()
.calculateRealSize(width);
break;
case layout_height:
String height = attrs.getAttributeValue(i);
if (height.startsWith("f") || height.startsWith("m")) {
params.width = -1;
break;
}
if (height.startsWith("w")) {
params.width = -2;
break;
}
params.height = YDResource.getInstance().calculateRealSize(
height);
break;
case layout_gravity:
params.gravity = YDResource.getInstance().getGravity(
attrs.getAttributeValue(i));
break;
case layout_marginLeft:
params.leftMargin = YDResource.getInstance().calculateRealSize(
attrs.getAttributeValue(i));
break;
case layout_margin:
int tm = YDResource.getInstance().calculateRealSize(
attrs.getAttributeValue(i));
params.setMargins(tm, tm, tm, tm);
break;
default:
break;
}
}
return params;
}
}
好了，今天的分析就到这里！
..................................................................................................................................
