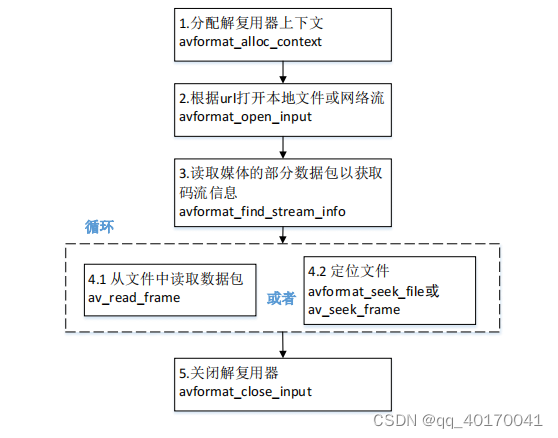

1、解封装流程
2、打开文件或媒体,获取文件或媒体的媒体信息AVFormatContext
//AVFormatContext是描述一个媒体文件或媒体流的构成和基本信息的结构体
AVFormatContext *ifmt_ctx = NULL;
// 输入文件的信息,其中包含了打开的输入文件的很多信息,为后面解封装使用
// url: 媒体文件的路径/名字
// nb_streams: 媒体流数量
// bps: 媒体文件的码率,单位为bps
// duration: 媒体文件时长,单位微妙
// streams: 音频流或视频流,字母流,很重要,后面要对这个里面的流进行分析
AVFormatContext *ifmt_ctx = NULL;
// 打开文件,主要是探测协议类型,如果是网络文件则创建网络链接
int ret = avformat_open_input(&ifmt_ctx, in_filename, NULL, NULL);
if (ret < 0) //如果打开媒体文件失败,打印失败原因
{
char buf[1024] = { 0 };
av_strerror(ret, buf, sizeof(buf) - 1);
printf("open %s failed:%s\n", in_filename, buf);
goto failed;
}
使用avformat_open_input
打开文件或者打开网络流,这样AVFormatContext
就会保存有文件或网络流的基本信息:比如有几个流,媒体的总时长等,后面就可以根据流的数量,单独分析音频流和视频流
3、流信息AVStream
AVStream *in_stream = ifmt_ctx->streams[i];// 音频流、视频流、字幕流
// 从上面的文件信息结构体获取出各个流的信息
//in_stream->codecpar->codec_type: 流判断,AVMEDIA_TYPE_AUDIO,AVMEDIA_TYPE_VIDEO
//in_stream->codecpar->sample_rate:音频采样率(8K,44.1K,48K)
//in_stream->codecpar->format: 音频采样格式(AV_SAMPLE_FMT_FLTP,AV_SAMPLE_FMT_S16P)
//in_stream->codecpar->channels:音频信道数目
//in_stream->codecpar->codec_id:音频压缩编码格式(AAC,MP3)
// AV_CODEC_ID_MP3 AV_CODEC_ID_AAC
//in_stream->avg_frame_rate: 视频帧率,单位为fps,表示每秒出现多少帧
//in_stream->codecpar->codec_id:视频压缩编码格式(AV_CODEC_ID_MPEG4,AV_CODEC_ID_H264)
//in_stream->codecpar->width:视频帧宽度
//in_stream->codecpar->height:视频帧高度
通过判断AVFormatContext
中有几个流,来获取AVStream
,这样就可以获取文件中的视频流和音频流,以及可能存在的字母流,并且可以从这些AVStream
中获取出很多信息,后面可以根据这些信息查找编解码器,进行解码播放
for (uint32_t i = 0; i < ifmt_ctx->nb_streams; i++)
{
AVStream *in_stream = ifmt_ctx->streams[i];// 音频流、视频流、字幕流
//如果是音频流,则打印音频的信息
if (AVMEDIA_TYPE_AUDIO == in_stream->codecpar->codec_type)
{
printf("----- Audio info:\n");
//下面可以通过in_stream获取音频的各种属性
}
else if (AVMEDIA_TYPE_VIDEO == in_stream->codecpar->codec_type) //如果是视频流,则打印视频的信息
{
printf("----- Video info:\n");
//下面可以通过in_stream获取视频的各种属性
}
}
4、解封装的代码
解封装MP4文件,将音频流和视频流从中读取出来,
#include <stdio.h>
#include <libavformat/avformat.h>
int main(int argc, char **argv)
{
//打开网络流。这里如果只需要读取本地媒体文件,不需要用到网络功能,可以不用加上这一句
//avformat_network_init();
const char *default_filename = "believe.mp4";
char *in_filename = NULL;
if(argv[1] == NULL)
{
in_filename = default_filename;
}
else
{
in_filename = argv[1];
}
printf("in_filename = %s\n", in_filename);
//AVFormatContext是描述一个媒体文件或媒体流的构成和基本信息的结构体
AVFormatContext *ifmt_ctx = NULL; // 输入文件的demux
int videoindex = -1; // 视频索引
int audioindex = -1; // 音频索引
// 打开文件,主要是探测协议类型,如果是网络文件则创建网络链接
int ret = avformat_open_input(&ifmt_ctx, in_filename, NULL, NULL);
if (ret < 0) //如果打开媒体文件失败,打印失败原因
{
char buf[1024] = { 0 };
av_strerror(ret, buf, sizeof(buf) - 1);
printf("open %s failed:%s\n", in_filename, buf);
goto failed;
}
ret = avformat_find_stream_info(ifmt_ctx, NULL);
if (ret < 0) //如果打开媒体文件失败,打印失败原因
{
char buf[1024] = { 0 };
av_strerror(ret, buf, sizeof(buf) - 1);
printf("avformat_find_stream_info %s failed:%s\n", in_filename, buf);
goto failed;
}
//打开媒体文件成功
printf_s("\n==== av_dump_format in_filename:%s ===\n", in_filename);
av_dump_format(ifmt_ctx, 0, in_filename, 0);
printf_s("\n==== av_dump_format finish =======\n\n");
// url: 调用avformat_open_input读取到的媒体文件的路径/名字
printf("media name:%s\n", ifmt_ctx->url);
// nb_streams: nb_streams媒体流数量
printf("stream number:%d\n", ifmt_ctx->nb_streams);
// bit_rate: 媒体文件的码率,单位为bps
printf("media average ratio:%lldkbps\n",(int64_t)(ifmt_ctx->bit_rate/1024));
// 时间
int total_seconds, hour, minute, second;
// duration: 媒体文件时长,单位微妙
total_seconds = (ifmt_ctx->duration) / AV_TIME_BASE; // 1000us = 1ms, 1000ms = 1秒
hour = total_seconds / 3600;
minute = (total_seconds % 3600) / 60;
second = (total_seconds % 60);
//通过上述运算,可以得到媒体文件的总时长
printf("total duration: %02d:%02d:%02d\n", hour, minute, second);
printf("\n");
/*
* 老版本通过遍历的方式读取媒体文件视频和音频的信息
* 新版本的FFmpeg新增加了函数av_find_best_stream,也可以取得同样的效果
*/
for (uint32_t i = 0; i < ifmt_ctx->nb_streams; i++)
{
AVStream *in_stream = ifmt_ctx->streams[i];// 音频流、视频流、字幕流
//如果是音频流,则打印音频的信息
if (AVMEDIA_TYPE_AUDIO == in_stream->codecpar->codec_type)
{
printf("----- Audio info:\n");
// index: 每个流成分在ffmpeg解复用分析后都有唯一的index作为标识
printf("index:%d\n", in_stream->index);
// sample_rate: 音频编解码器的采样率,单位为Hz
printf("samplerate:%dHz\n", in_stream->codecpar->sample_rate);
// codecpar->format: 音频采样格式
if (AV_SAMPLE_FMT_FLTP == in_stream->codecpar->format)
{
printf("sampleformat:AV_SAMPLE_FMT_FLTP\n");
}
else if (AV_SAMPLE_FMT_S16P == in_stream->codecpar->format)
{
printf("sampleformat:AV_SAMPLE_FMT_S16P\n");
}
// channels: 音频信道数目
printf("channel number:%d\n", in_stream->codecpar->channels);
// codec_id: 音频压缩编码格式
if (AV_CODEC_ID_AAC == in_stream->codecpar->codec_id)
{
printf("audio codec:AAC\n");
}
else if (AV_CODEC_ID_MP3 == in_stream->codecpar->codec_id)
{
printf("audio codec:MP3\n");
}
else
{
printf("audio codec_id:%d\n", in_stream->codecpar->codec_id);
}
// 音频总时长,单位为秒。注意如果把单位放大为毫秒或者微妙,音频总时长跟视频总时长不一定相等的
if(in_stream->duration != AV_NOPTS_VALUE)
{
int duration_audio = (in_stream->duration) * av_q2d(in_stream->time_base);//采样点的个数乘上每个采样点的时长
//将音频总时长转换为时分秒的格式打印到控制台上
printf("audio duration: %02d:%02d:%02d\n",
duration_audio / 3600, (duration_audio % 3600) / 60, (duration_audio % 60));
}
else
{
printf("audio duration unknown");
}
printf("\n");
audioindex = i; // 获取音频的索引
}
else if (AVMEDIA_TYPE_VIDEO == in_stream->codecpar->codec_type) //如果是视频流,则打印视频的信息
{
printf("----- Video info:\n");
printf("index:%d\n", in_stream->index);
// avg_frame_rate: 视频帧率,单位为fps,表示每秒出现多少帧
printf("fps:%lffps\n", av_q2d(in_stream->avg_frame_rate));
if (AV_CODEC_ID_MPEG4 == in_stream->codecpar->codec_id) //视频压缩编码格式
{
printf("video codec:MPEG4\n");
}
else if (AV_CODEC_ID_H264 == in_stream->codecpar->codec_id) //视频压缩编码格式
{
printf("video codec:H264\n");
}
else
{
printf("video codec_id:%d\n", in_stream->codecpar->codec_id);
}
// 视频帧宽度和帧高度
printf("width:%d height:%d\n", in_stream->codecpar->width,
in_stream->codecpar->height);
//视频总时长,单位为秒。注意如果把单位放大为毫秒或者微妙,音频总时长跟视频总时长不一定相等的
if(in_stream->duration != AV_NOPTS_VALUE)
{
int duration_video = (in_stream->duration) * av_q2d(in_stream->time_base);
printf("video duration: %02d:%02d:%02d\n",
duration_video / 3600,
(duration_video % 3600) / 60,
(duration_video % 60)); //将视频总时长转换为时分秒的格式打印到控制台上
}
else
{
printf("video duration unknown");
}
printf("\n");
videoindex = i;
}
}
/****************分离音视频流*********************/
AVPacket *pkt = av_packet_alloc();
int pkt_count = 0;
int print_max_count = 10;
printf("\n-----av_read_frame start\n");
while (1)
{
ret = av_read_frame(ifmt_ctx, pkt);//每次都会分配一个包,拷贝到buffer中,所以每次都要在最后调用av_packet_unref(pkt)释放
if (ret < 0)
{
printf("av_read_frame end\n");
break;
}
if(pkt_count++ < print_max_count)
{
if (pkt->stream_index == audioindex)
{
printf("audio pts: %lld\n", pkt->pts);
printf("audio dts: %lld\n", pkt->dts);
printf("audio size: %d\n", pkt->size);
printf("audio pos: %lld\n", pkt->pos);
printf("audio duration: %lf\n\n",
pkt->duration * av_q2d(ifmt_ctx->streams[audioindex]->time_base));
//这里就是1024*(1/48000)=0.02133333ms(数值只是这个包的,不代表所有,根据采样率不同48K或者其他)
}
else if (pkt->stream_index == videoindex)
{
printf("video pts: %lld\n", pkt->pts);
printf("video dts: %lld\n", pkt->dts);
printf("video size: %d\n", pkt->size);
printf("video pos: %lld\n", pkt->pos);
printf("video duration: %lf\n\n",
pkt->duration * av_q2d(ifmt_ctx->streams[videoindex]->time_base));
}
else
{
printf("unknown stream_index:\n", pkt->stream_index);
}
}
av_packet_unref(pkt);
}
if(pkt)
av_packet_free(&pkt);
failed:
if(ifmt_ctx)
avformat_close_input(&ifmt_ctx);
getchar(); //加上这一句,防止程序打印完信息马上退出
return 0;
}
5、重点
1、avformat_open_input和avformat_find_stream_info分别用于打开一个流和分析流信息。
2、在初始信息不足的情况下(比如FLV和H264文件),avformat_find_stream_info接口需要在内部调用read_frame_internal接口读取流数据(音视频帧),然后再分析后,设置核心数据结构AVFormatContext。
3、由于需要读取数据包,avformat_find_stream_info接口会带来很大的延迟。
