- 最近公司做的大屏用到了transform的scale属性来对大屏网页,进行缩放。
- 缺点:需要给项目大屏,设定固定的宽高,当使用的屏幕分辨率和项目不一致时,会出现左右或者上下的留白。如果设计稿是1920*1080的尺寸,项目中用px来写宽高的话,如果把尺寸改成小于1920的话宽度是超出的,所以项目中还是需要使用%来配合scale属性的缩放。
- 优点:在任何屏幕中项目都会等比例缩放
- 以下是基于vue项目的
- public/index.html
#app {
/* user-select: none; */
overflow: hidden;
position: relative;
width: 100%;
height: 100vh
}
- 新建组件ScaleBox
- 这个组件里面的代码是最核心的
<template>
<div
class="ScaleBox"
ref="ScaleBox"
:style="{
width: width + 'px',
height: height + 'px'
}"
>
<slot></slot>
</div>
</template>
<script>
export default {
name: 'ScaleBox',
props: {},
data () {
return {
scale: 0,
width: 2560,
height: 1080
}
},
mounted () {
this.setScale()
window.addEventListener('resize', this.debounce(this.setScale))
},
methods: {
getScale () {
const { width, height } = this
const wh = window.innerHeight / height
const ww = window.innerWidth / width
console.log(ww < wh ? ww : wh)
return ww < wh ? ww : wh
},
setScale () {
// if (window.innerHeight == 1080) {
// this.height = 1080
// } else {
// this.height = 937
// }
this.scale = this.getScale()
if (this.$refs.ScaleBox) {
this.$refs.ScaleBox.style.setProperty('--scale', this.scale)
}
},
debounce (fn, delay) {
const delays = delay || 500
let timer
return function () {
const th = this
const args = arguments
if (timer) {
clearTimeout(timer)
}
timer = setTimeout(function () {
timer = null
fn.apply(th, args)
}, delays)
}
}
}
}
</script>
<style lang="scss">
#ScaleBox {
--scale: 1;
}
.ScaleBox {
position: absolute;
transform: scale(var(--scale)) translate(-50%, -50%);
display: flex;
flex-direction: column;
transform-origin: 0 0;
left: 50%;
top: 50%;
transition: 0.3s;
z-index: 999;
background: rgba(255, 0, 0, 0.3);
}
</style>
- 组件我已经进行了全局注册,这里就不在赘述
- 组件引用 Home.vue
- 一定是scale-box组件要包裹页面的所有的内容才可以达到缩放
- 现在我给ScaleBox组件设置的是宽2560高1080
- 此时的效果是全部充满的

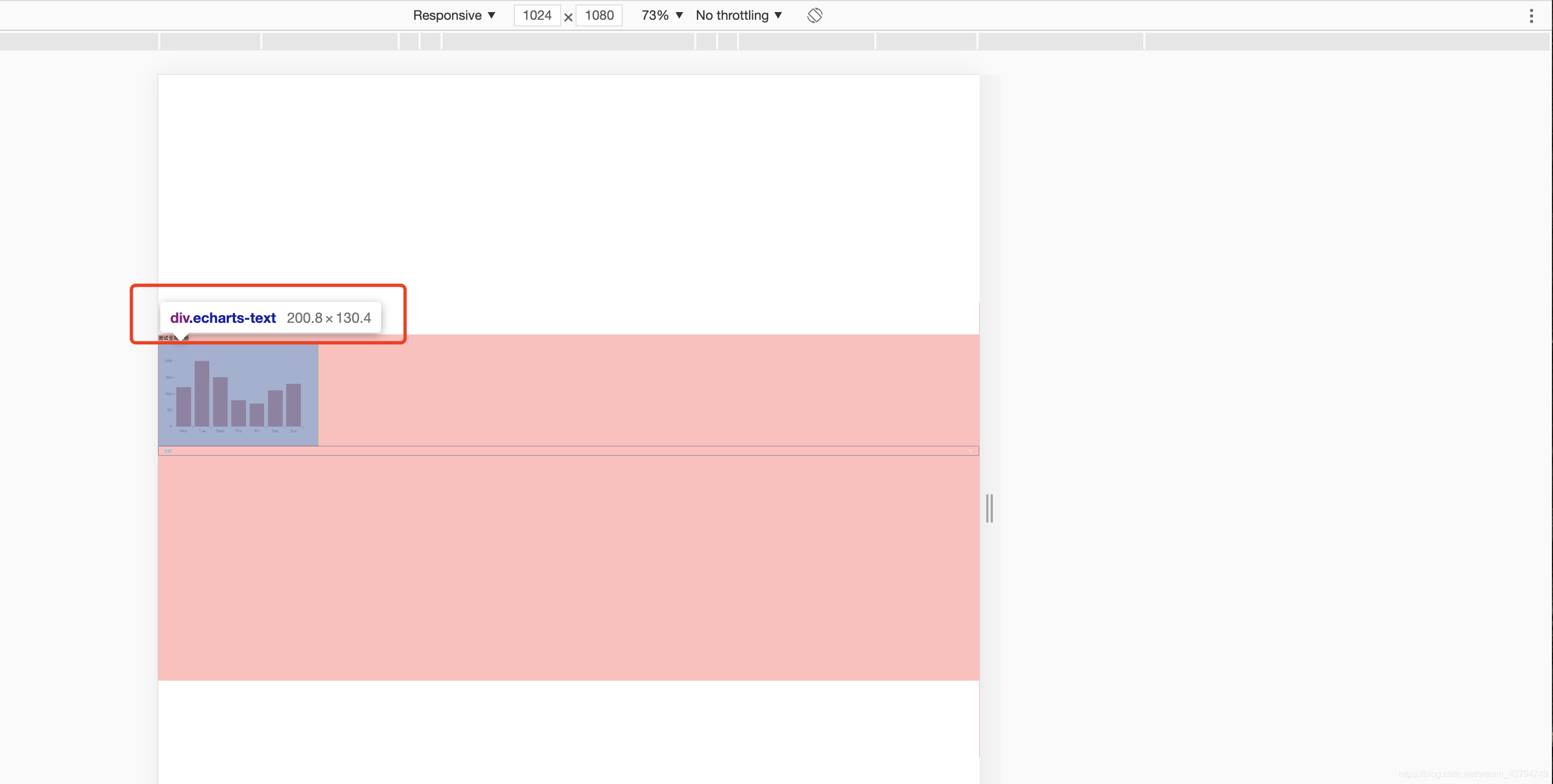

- 此时是有上下留白的,但整体的网页是缩小的还是可以看到的
- 不同分辨率下div盒子的宽度也是不一样的,echarts的div盒子我项目中设置的是500px
- scale 也可以对网页进行缩放,但是需要注意的是项目中宽和高的尽量用%。
- 更推荐使用rem布局vue中PC端,移动端,H5使用lib-flexible(rem)做适配
- 以上是自己的见解,如有错误欢迎指正。
