基于JDK1.8 的ArrayList源码分析

基于JDK1.8 的ArrayList源码分析，代码注释。

JDK版本：jdk1.8.0_181

package java.util;

import java.util.function.Consumer;
import java.util.function.Predicate;
import java.util.function.UnaryOperator;
import sun.misc.SharedSecrets;

/**
 * Resizable-array implementation of the <tt>List</tt> interface.  Implements
 * all optional list operations, and permits all elements, including
 * <tt>null</tt>.  In addition to implementing the <tt>List</tt> interface,
 * this class provides methods to manipulate the size of the array that is
 * used internally to store the list.  (This class is roughly equivalent to
 * <tt>Vector</tt>, except that it is unsynchronized.)
 *
 * <p>The <tt>size</tt>, <tt>isEmpty</tt>, <tt>get</tt>, <tt>set</tt>,
 * <tt>iterator</tt>, and <tt>listIterator</tt> operations run in constant
 * time.  The <tt>add</tt> operation runs in <i>amortized constant time</i>,
 * that is, adding n elements requires O(n) time.  All of the other operations
 * run in linear time (roughly speaking).  The constant factor is low compared
 * to that for the <tt>LinkedList</tt> implementation.
 *
 * <p>Each <tt>ArrayList</tt> instance has a <i>capacity</i>.  The capacity is
 * the size of the array used to store the elements in the list.  It is always
 * at least as large as the list size.  As elements are added to an ArrayList,
 * its capacity grows automatically.  The details of the growth policy are not
 * specified beyond the fact that adding an element has constant amortized
 * time cost.
 *
 * <p>An application can increase the capacity of an <tt>ArrayList</tt> instance
 * before adding a large number of elements using the <tt>ensureCapacity</tt>
 * operation.  This may reduce the amount of incremental reallocation.
 *
 * <p><strong>Note that this implementation is not synchronized.</strong>
 * If multiple threads access an <tt>ArrayList</tt> instance concurrently,
 * and at least one of the threads modifies the list structurally, it
 * <i>must</i> be synchronized externally.  (A structural modification is
 * any operation that adds or deletes one or more elements, or explicitly
 * resizes the backing array; merely setting the value of an element is not
 * a structural modification.)  This is typically accomplished by
 * synchronizing on some object that naturally encapsulates the list.
 *
 * If no such object exists, the list should be "wrapped" using the
 * {@link Collections#synchronizedList Collections.synchronizedList}
 * method.  This is best done at creation time, to prevent accidental
 * unsynchronized access to the list:<pre>
 *   List list = Collections.synchronizedList(new ArrayList(...));</pre>
 *
 * <p><a name="fail-fast">
 * The iterators returned by this class's {@link #iterator() iterator} and
 * {@link #listIterator(int) listIterator} methods are <em>fail-fast</em>:</a>
 * if the list is structurally modified at any time after the iterator is
 * created, in any way except through the iterator's own
 * {@link ListIterator#remove() remove} or
 * {@link ListIterator#add(Object) add} methods, the iterator will throw a
 * {@link ConcurrentModificationException}.  Thus, in the face of
 * concurrent modification, the iterator fails quickly and cleanly, rather
 * than risking arbitrary, non-deterministic behavior at an undetermined
 * time in the future.
 *
 * <p>Note that the fail-fast behavior of an iterator cannot be guaranteed
 * as it is, generally speaking, impossible to make any hard guarantees in the
 * presence of unsynchronized concurrent modification.  Fail-fast iterators
 * throw {@code ConcurrentModificationException} on a best-effort basis.
 * Therefore, it would be wrong to write a program that depended on this
 * exception for its correctness:  <i>the fail-fast behavior of iterators
 * should be used only to detect bugs.</i>
 *
 * <p>This class is a member of the
 * <a href="{@docRoot}/../technotes/guides/collections/index.html">
 * Java Collections Framework</a>.
 *
 * @author  Josh Bloch
 * @author  Neal Gafter
 * @see     Collection
 * @see     List
 * @see     LinkedList
 * @see     Vector
 * @since   1.2
 */

public class ArrayList<E> extends AbstractList<E>
        implements List<E>, RandomAccess, Cloneable, java.io.Serializable
{
    private static final long serialVersionUID = 8683452581122892189L;

    /**
     * Default initial capacity.
     * 默认初始容量大小为10。
     */
    private static final int DEFAULT_CAPACITY = 10;

    /**
     * Shared empty array instance used for empty instances.
     * 共享空数组实例，用于创建空的ArrayList实例。
     */
    private static final Object[] EMPTY_ELEMENTDATA = {};

    /**
     * Shared empty array instance used for default sized empty instances. We
     * distinguish this from EMPTY_ELEMENTDATA to know how much to inflate when
     * first element is added.
     *
     * 共享空数组实例，用于默认大小的空实例。
     * 我们将其与“EMPTY_ELEMENTDATA”区分开来，以便知道在添加第一个元素时数组需要扩容多大。
     */
    private static final Object[] DEFAULTCAPACITY_EMPTY_ELEMENTDATA = {};

    /**
     * 存储ArrayList元素的数组。
     * The array buffer into which the elements of the ArrayList are stored.
     * The capacity of the ArrayList is the length of this array buffer. Any
     * empty ArrayList with elementData == DEFAULTCAPACITY_EMPTY_ELEMENTDATA
     * will be expanded to DEFAULT_CAPACITY when the first element is added.
     *
     * 数组缓冲区，存储ArrayList元素的数组。
     * ArrayList的容量是这个数组缓冲区的长度。
     * 当第一个元素被添加时，空的ArrayList（元素数据elementData == DEFAULTCAPACITY_EMPTY_ELEMENTDATA时）大小，
     * 将被扩容为DEFAULT_CAPACITY大小，ArrayList大小将被扩容为10。
     */
    transient Object[] elementData; // non-private to simplify nested class access

    /**
     * The size of the ArrayList (the number of elements it contains).
     * ArrayList的大小（包含元素的数量）
     * @serial
     */
    private int size;

    /**
     * Constructs an empty list with the specified initial capacity.
     * 根据指定的初始容量initialCapacity大小，创建空的ArrayList。
     * @param  initialCapacity  the initial capacity of the list    指定初始容量大小参数，ArrayList列表的初始容量大小。
     * @throws IllegalArgumentException if the specified initial capacity
     *         is negative  如果指定的初始容量大小为负数，抛出IllegalArgumentException异常。
     */
    public ArrayList(int initialCapacity) {
        //初始容量大于0。
        if (initialCapacity > 0) {
            //创建初始容量大小的数组。
            this.elementData = new Object[initialCapacity];
        } else if (initialCapacity == 0) {//初始容量等于0。
            //创建空数组。
            this.elementData = EMPTY_ELEMENTDATA;
        } else {
            //初始容量小于0，抛出异常。
            throw new IllegalArgumentException("Illegal Capacity: "+
                                               initialCapacity);
        }
    }

    /**
     * Constructs an empty list with an initial capacity of ten.
     * 构造一个空的ArrayList，第1个元素添加时，ArrayList容量大小将变为10。
     */
    public ArrayList() {
        this.elementData = DEFAULTCAPACITY_EMPTY_ELEMENTDATA;
    }

    /**
     * 根据指定的集合参数c，创建ArrayList列表。
     * Constructs a list containing the elements of the specified
     * collection, in the order they are returned by the collection's
     * iterator.
     * 构造包含指定集合元素的列表，按照集合迭代器返回的顺序。
     * @param c the collection whose elements are to be placed into this list
     *          要将其元素放入该列表的集合，指定集合的参数c。
     * @throws NullPointerException if the specified collection is null
     *          如果指定的集合为空，抛出异常。
     */
    public ArrayList(Collection<? extends E> c) {
        //将指定集合元素的参数c赋值elementData
        elementData = c.toArray();
        if ((size = elementData.length) != 0) {
            // c.toArray might (incorrectly) not return Object[] (see 6260652)
            //c.toArray可能(不正确地)不返回Object[](参见JDK 6260652编号bug)
            // 《JDK1.6集合框架bug》 https://blog.csdn.net/aitangyong/article/details/30274749
            //比较object的运行时类，字节码文件。
            if (elementData.getClass() != Object[].class)
                //用来创建1个Object[]数组，这样数组中就可以存放任意对象了。
                elementData = Arrays.copyOf(elementData, size, Object[].class);
        } else {
            // replace with empty array.
            // 指定集合元素的参数c大小为0，创建空的ArrayList。
            this.elementData = EMPTY_ELEMENTDATA;
        }
    }

    /**
     * 调整ArrayList的容量大小。将此ArrayList实例的容量修剪为列表的当前大小。
     * Trims the capacity of this <tt>ArrayList</tt> instance to be the
     * list's current size.  An application can use this operation to minimize
     * the storage of an <tt>ArrayList</tt> instance.
     *
     * 将ArrayList实例的容量调整为列表的当前大小。
     * 应用程序可以使用该操作来最小化ArrayList实例的存储空间。
     */
    public void trimToSize() {
        //TODO modCount
        modCount++;
        if (size < elementData.length) {
            elementData = (size == 0)
              ? EMPTY_ELEMENTDATA
              : Arrays.copyOf(elementData, size);
        }
    }

    /**
     * 确保最小容量。
     * 在add大量元素之前使用ensureCapacity方法，以减少增量重新分配内存的次数。
     * Increases the capacity of this <tt>ArrayList</tt> instance, if
     * necessary, to ensure that it can hold at least the number of elements
     * specified by the minimum capacity argument.
     * 增加ArrayList实例的容量，如果有必要，确保它至少可以容纳最小容量参数minCapacity指定的元素数量。
     * @param   minCapacity   the desired minimum capacity 所需的最小容量。
     */
    public void ensureCapacity(int minCapacity) {
        int minExpand = (elementData != DEFAULTCAPACITY_EMPTY_ELEMENTDATA)
            // any size if not default element table  如果数组大小不是默认的空元素列表。
            ? 0
            // larger than default for default empty table. It's already
            // supposed to be at default size.
            : DEFAULT_CAPACITY;

        if (minCapacity > minExpand) {
            ensureExplicitCapacity(minCapacity);
        }
    }

    /**
     * 计算需要扩容的容量大小，得到最小扩容量。
     * @param elementData elementData存储ArrayList元素的数组。
     * @param minCapacity 最小扩容量。
     * @return
     */
    private static int calculateCapacity(Object[] elementData, int minCapacity) {
        if (elementData == DEFAULTCAPACITY_EMPTY_ELEMENTDATA) {
            //指定扩容大小参数minCapacity与默认为10的DEFAULT_CAPACITY中，取一个最大值。
            //当要add进第1个元素时，minCapacity为1，在Math.max()方法比较后，minCapacity为10。
            return Math.max(DEFAULT_CAPACITY, minCapacity);
        }
        return minCapacity;
    }

    //确保内部容量大小。
    private void ensureCapacityInternal(int minCapacity) {
        ensureExplicitCapacity(calculateCapacity(elementData, minCapacity));
    }

    //判断是否需要扩容。
    private void ensureExplicitCapacity(int minCapacity) {
        modCount++;

        // overflow-conscious code 考虑了溢出情况的代码
        //《overflow-conscious code》 https://blog.csdn.net/lijianqingfeng/article/details/107912190
        //存储ArrayList元素的数组
        if (minCapacity - elementData.length > 0)
            //调用grow方法进行扩容。
            grow(minCapacity);
    }

    /**
     * 要分配的数组的最大大小。
     * The maximum size of array to allocate.
     * Some VMs reserve some header words in an array.
     * Attempts to allocate larger arrays may result in
     * OutOfMemoryError: Requested array size exceeds VM limit
     * 要分配的数组的最大大小。
     * 有些虚拟机在数组中预留保存一些header头部数据。（所以int最大值减8，8位用来保存header头部数据）
     * 尝试分配更大的数组可能会导致OutOfMemoryError内存错误：请求的数组大小超过虚拟机限制。
     */
    private static final int MAX_ARRAY_SIZE = Integer.MAX_VALUE - 8;

    /**

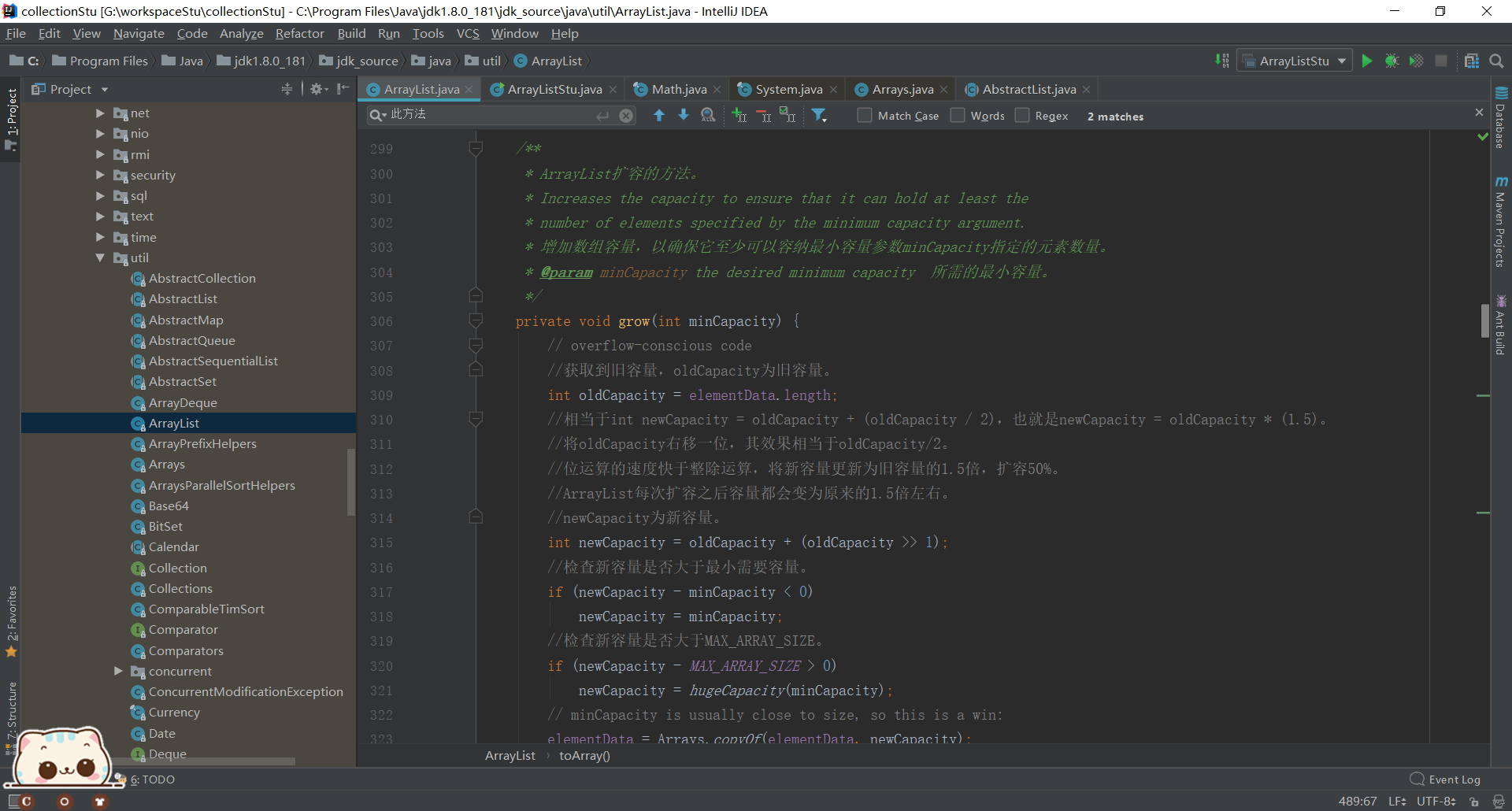

     * ArrayList扩容的方法。
     * Increases the capacity to ensure that it can hold at least the
     * number of elements specified by the minimum capacity argument.
     * 增加数组容量，以确保它至少可以容纳最小容量参数minCapacity指定的元素数量。
     * @param minCapacity the desired minimum capacity  所需的最小容量。
     */
    private void grow(int minCapacity) {
        // overflow-conscious code
        //获取到旧容量，oldCapacity为旧容量。
        int oldCapacity = elementData.length;
        //相当于int newCapacity = oldCapacity + (oldCapacity / 2)，也就是newCapacity = oldCapacity * (1.5)。
        //将oldCapacity右移一位，其效果相当于oldCapacity/2。
        //位运算的速度快于整除运算，将新容量更新为旧容量的1.5倍，扩容50%。
        //ArrayList每次扩容之后容量都会变为原来的1.5倍左右。
        //newCapacity为新容量。
        int newCapacity = oldCapacity + (oldCapacity >> 1);
        //检查新容量是否大于最小需要容量。
        if (newCapacity - minCapacity < 0)
            newCapacity = minCapacity;
        //检查新容量是否大于MAX_ARRAY_SIZE。
        if (newCapacity - MAX_ARRAY_SIZE > 0)
            newCapacity = hugeCapacity(minCapacity);
        // minCapacity is usually close to size, so this is a win:
        elementData = Arrays.copyOf(elementData, newCapacity);
    }

    //极大的容量，最大容量为Integer.MAX_VALUE。
    private static int hugeCapacity(int minCapacity) {
        if (minCapacity < 0) // overflow
            throw new OutOfMemoryError();
        return (minCapacity > MAX_ARRAY_SIZE) ?
            Integer.MAX_VALUE :
            MAX_ARRAY_SIZE;
    }

    /**
     * Returns the number of elements in this list.
     * 返回此ArrayList列表中的元素个数。
     * @return the number of elements in this list  返回此ArrayList列表中的元素个数。
     */
    public int size() {
        return size;
    }

    /**
     * Returns <tt>true</tt> if this list contains no elements.
     * 如果ArrayList列表不包含元素，则返回true。
     * @return <tt>true</tt> if this list contains no elements  如果ArrayList列表不包含元素，则返回true。
     */
    public boolean isEmpty() {
        return size == 0;
    }

    /**
     * Returns <tt>true</tt> if this list contains the specified element.
     * More formally, returns <tt>true</tt> if and only if this list contains
     * at least one element <tt>e</tt> such that
     * <tt>(o==null&nbsp;?&nbsp;e==null&nbsp;:&nbsp;o.equals(e))</tt>.
     *
     * 如果该列表包含指定的元素，则返回true。
     * 更正式的说法是，当且仅当该列表包含至少一个元素e且<tt>(o==null&nbsp;?&nbsp;e==null&nbsp;:&nbsp;o.equals(e))</tt>时，返回true。
     * @param o element whose presence in this list is to be tested 验证o元素在列表中是否存在。
     * @return <tt>true</tt> if this list contains the specified element    如果此列表包含指定的元素返回true。
     */
    public boolean contains(Object o) {
        return indexOf(o) >= 0;
    }

    /**
     * 返回此列表中第一次出现的指定元素的索引，如果此列表不包含该元素，则返回-1。
     *
     * Returns the index of the first occurrence of the specified element
     * in this list, or -1 if this list does not contain the element.
     * More formally, returns the lowest index <tt>i</tt> such that
     * <tt>(o==null&nbsp;?&nbsp;get(i)==null&nbsp;:&nbsp;o.equals(get(i)))</tt>,
     * or -1 if there is no such index.
     *
     * 返回列表中指定元素的第一个匹配项的索引，如果列表中不包含该元素，返回-1。
     * 更确切说，返回匹配元素的最小的索引i，(o==null ? get(i)==null : o.equals(get(i)))
     * 如果没有这样的下标，则返回-1。
     */
    public int indexOf(Object o) {
        if (o == null) {
            for (int i = 0; i < size; i++)
                if (elementData[i]==null)
                    return i;
        } else {
            for (int i = 0; i < size; i++)
                if (o.equals(elementData[i]))
                    return i;
        }
        return -1;
    }

    /**
     * 返回此列表中指定元素最后一次出现的索引，如果此列表不包含该元素，则返回-1。
     *
     * Returns the index of the last occurrence of the specified element
     * in this list, or -1 if this list does not contain the element.
     * More formally, returns the highest index <tt>i</tt> such that
     * <tt>(o==null&nbsp;?&nbsp;get(i)==null&nbsp;:&nbsp;o.equals(get(i)))</tt>,
     * or -1 if there is no such index.
     *
     * 返回指定元素在列表中的最后一个匹配项的索引，如果列表中不包含该元素，则返回-1。
     * 更确切地说，返回匹配元素的最高的索引i，(o==null ? get(i)==null o.equals(get(i)))
     * 如果没有这样的下标，则返回-1。
     */
    public int lastIndexOf(Object o) {
        if (o == null) {
            for (int i = size-1; i >= 0; i--)
                if (elementData[i]==null)
                    return i;
        } else {
            for (int i = size-1; i >= 0; i--)
                if (o.equals(elementData[i]))
                    return i;
        }
        return -1;
    }

    /**
     * Returns a shallow copy of this <tt>ArrayList</tt> instance.  (The
     * elements themselves are not copied.)
     *
     * 返回此数组列表实例的浅拷贝。(元素本身不会被复制。)
     *
     * @return a clone of this <tt>ArrayList</tt> instance  返回这个ArrayList实例的克隆。
     */
    public Object clone() {
        try {
            ArrayList<?> v = (ArrayList<?>) super.clone();
            v.elementData = Arrays.copyOf(elementData, size);
            v.modCount = 0;
            return v;
        } catch (CloneNotSupportedException e) {
            // this shouldn't happen, since we are Cloneable    这是不应该发生的，因为我们是可克隆的。
            throw new InternalError(e);
        }
    }

    /**
     * 以适当的顺序（从第一个元素到最后一个元素）返回包含此列表中所有元素的数组。
     *
     * Returns an array containing all of the elements in this list
     * in proper sequence (from first to last element).
     *
     * 返回一个数组，该数组以正确的顺序(从第一个元素到最后一个元素)包含该列表中的所有元素。
     *
     * <p>The returned array will be "safe" in that no references to it are
     * maintained by this list.  (In other words, this method must allocate
     * a new array).  The caller is thus free to modify the returned array.
     *
     * 返回的数组将是“安全的”，因为这个列表不维护对它的引用。(换句话说，这个方法必须分配一个新数组)。因此，调用者可以自由地修改返回的数组。
     * <p>This method acts as bridge between array-based and collection-based
     * APIs.
     * 此方法充当了基于array数组和基于collection集合的api之间的桥梁。
     *
     * @return an array containing all of the elements in this list in
     *         proper sequence
     *         以适当的顺序包含列表中所有元素的数组。
     */
    public Object[] toArray() {
        return Arrays.copyOf(elementData, size);
    }

    /**
     * 以适当的顺序（从第一个元素到最后一个元素）返回包含此列表中所有元素的数组; 返回数组的运行时类型是指定数组的运行时类型。
     *
     * Returns an array containing all of the elements in this list in proper
     * sequence (from first to last element); the runtime type of the returned
     * array is that of the specified array.  If the list fits in the
     * specified array, it is returned therein.  Otherwise, a new array is
     * allocated with the runtime type of the specified array and the size of
     * this list.
     *
     * <p>If the list fits in the specified array with room to spare
     * (i.e., the array has more elements than the list), the element in
     * the array immediately following the end of the collection is set to
     * <tt>null</tt>.  (This is useful in determining the length of the
     * list <i>only</i> if the caller knows that the list does not contain
     * any null elements.)
     *
     * @param a the array into which the elements of the list are to
     *          be stored, if it is big enough; otherwise, a new array of the
     *          same runtime type is allocated for this purpose.
     * @return an array containing the elements of the list
     * @throws ArrayStoreException if the runtime type of the specified array
     *         is not a supertype of the runtime type of every element in
     *         this list
     * @throws NullPointerException if the specified array is null
     */
    @SuppressWarnings("unchecked")
    public <T> T[] toArray(T[] a) {
        if (a.length < size)
            // Make a new array of a's runtime type, but my contents:
            return (T[]) Arrays.copyOf(elementData, size, a.getClass());
        System.arraycopy(elementData, 0, a, 0, size);
        if (a.length > size)
            a[size] = null;
        return a;
    }

    // Positional Access Operations 访问指定位置的元素。

    @SuppressWarnings("unchecked")
    E elementData(int index) {
        return (E) elementData[index];
    }

    /**
     * Returns the element at the specified position in this list.
     * 返回列表中指定位置的元素。
     *
     * @param  index index of the element to return  index是要返回的元素的索引。
     * @return the element at the specified position in this list  返回位于列表中指定位置的元素。
     * @throws IndexOutOfBoundsException {@inheritDoc}
     */
    public E get(int index) {
        rangeCheck(index);

        return elementData(index);
    }

    /**
     * 替换指定位置的元素。
     * Replaces the element at the specified position in this list with
     * the specified element.
     * 将此列表中指定位置的元素替换为指定的元素。
     *
     * @param index index of the element to replace  Index是要替换的元素的索引。
     * @param element element to be stored at the specified position  element元素被存储在指定的位置。
     * @return the element previously at the specified position  返回先前位于指定位置的旧元素。
     * @throws IndexOutOfBoundsException {@inheritDoc}
     */
    public E set(int index, E element) {
        rangeCheck(index);

        E oldValue = elementData(index);
        elementData[index] = element;
        return oldValue;
    }

    /**
     * 将指定的元素追加到list列表的末尾。
     * Appends the specified element to the end of this list.
     * 将指定的元素追加到此ArrayList列表的末尾。
     *
     * @param e element to be appended to this list 元素添加到此列表。
     * @return <tt>true</tt> (as specified by {@link Collection#add})
     */
    public boolean add(E e) {
        //
        ensureCapacityInternal(size + 1);  // Increments modCount!!
        //通过为数组赋值的方式为ArrayList列表添加元素。
        elementData[size++] = e;
        return true;
    }

    /**
     * 在列表中的指定位置插入指定的元素。
     * Inserts the specified element at the specified position in this
     * list. Shifts the element currently at that position (if any) and
     * any subsequent elements to the right (adds one to their indices).
     * 将指定的元素插入到此列表中的指定位置。
     * 将当前位置的元素（如果有的话）和随后的元素向右移动（索引下标增加1）。
     *
     * @param index index at which the specified element is to be inserted  要在其中插入指定元素的索引位置。
     * @param element element to be inserted    要插入的元素。
     * @throws IndexOutOfBoundsException {@inheritDoc}
     */
    public void add(int index, E element) {
        rangeCheckForAdd(index);

        ensureCapacityInternal(size + 1);  // Increments modCount!!
        System.arraycopy(elementData, index, elementData, index + 1,
                         size - index);
        elementData[index] = element;
        size++;
    }

    /**
     * 根据索引位置移除元素。
     * Removes the element at the specified position in this list.
     * Shifts any subsequent elements to the left (subtracts one from their
     * indices).
     * 移除列表中指定索引位置的元素。
     * 将后面的所有元素向左移动（索引下标减去1）。
     *
     * @param index the index of the element to be removed  要删除的元素的索引。
     * @return the element that was removed from the list   返回从列表中删除的元素。
     * @throws IndexOutOfBoundsException {@inheritDoc}
     */
    public E remove(int index) {
        rangeCheck(index);

        modCount++;
        //获取到需要移除的元素。
        E oldValue = elementData(index);
        //计算出需要向左移动多少位。
        int numMoved = size - index - 1;
        if (numMoved > 0)
            System.arraycopy(elementData, index+1, elementData, index,
                             numMoved);
        elementData[--size] = null; // clear to let GC do its work  清除让GC工作。

        return oldValue;
    }

    /**
     * 删除指定元素的第一个匹配项。
     * Removes the first occurrence of the specified element from this list,
     * if it is present.  If the list does not contain the element, it is
     * unchanged.  More formally, removes the element with the lowest index
     * <tt>i</tt> such that
     * <tt>(o==null&nbsp;?&nbsp;get(i)==null&nbsp;:&nbsp;o.equals(get(i)))</tt>
     * (if such an element exists).  Returns <tt>true</tt> if this list
     * contained the specified element (or equivalently, if this list
     * changed as a result of the call).
     *
     * 如果指定的元素存在列表中，从该列表中删除指定元素的第一个匹配项。
     * 如果列表中不包含指定的元素，则列表元素不变化。
     * 更确切的讲，如果存在匹配的元素，删除索引最小的匹配项元素， (o==null ? get(i)==null : o.equals(get(i))) 。
     * 如果该列表包含指定的元素，则返回true（或者，如果该列表因调用而发生更改，则返回true）。
     *
     * @param o element to be removed from this list, if present    如果存在o元素，从列表中删除。
     * @return <tt>true</tt> if this list contained the specified element   如果此列表包含指定的元素o，返回true。
     */
    public boolean remove(Object o) {
        if (o == null) {
            for (int index = 0; index < size; index++)
                if (elementData[index] == null) {
                    fastRemove(index);
                    return true;
                }
        } else {
            for (int index = 0; index < size; index++)
                if (o.equals(elementData[index])) {
                    fastRemove(index);
                    return true;
                }
        }
        return false;
    }

    /*
     * 快速删除第index个元素。
     * Private remove method that skips bounds checking and does not
     * return the value removed.
     * 跳过边界检查且不返回已删除值的私有remove方法。
     */
    private void fastRemove(int index) {
        modCount++;
        //计算出需要向左移动多少位。
        int numMoved = size - index - 1;
        //从index+1开始，用后面的元素替换前面的元素。
        if (numMoved > 0)
            System.arraycopy(elementData, index+1, elementData, index,
                             numMoved);
        //将最后一个元素设为null。
        elementData[--size] = null; // clear to let GC do its work
    }

    /**
     * 清空ArrayList，将全部的元素设为null。
     * Removes all of the elements from this list.  The list will
     * be empty after this call returns.
     *
     * 从ArrayList列表中移除所有元素。
     * 在调用此方法返回之后，ArrayList列表将变为空。
     */
    public void clear() {
        modCount++;

        // clear to let GC do its work
        for (int i = 0; i < size; i++)
            elementData[i] = null;

        size = 0;
    }

    /**
     * 将指定集合中的元素追加到列表的末尾。
     * Appends all of the elements in the specified collection to the end of
     * this list, in the order that they are returned by the
     * specified collection's Iterator.  The behavior of this operation is
     * undefined if the specified collection is modified while the operation
     * is in progress.  (This implies that the behavior of this call is
     * undefined if the specified collection is this list, and this
     * list is nonempty.)
     *
     * 将指定集合中的所有元素追加到此列表的末尾，按照指定集合的迭代器返回的顺序。
     * 如果在操作进行时修改了指定的集合，则此操作的行为是未定义的。
     * （这意味着如果指定的集合是这个列表，并且这个列表是非空的，那么这个调用的行为是未定义的。）
     *
     * @param c collection containing elements to be added to this list 包含要添加到此列表中的C元素集合
     * @return <tt>true</tt> if this list changed as a result of the call   如果该列表因调用而改变，返回true。
     * @throws NullPointerException if the specified collection is null 如果指定的集合为空，抛出NullPointerException异常。
     */
    public boolean addAll(Collection<? extends E> c) {
        Object[] a = c.toArray();
        int numNew = a.length;
        ensureCapacityInternal(size + numNew);  // Increments modCount
        System.arraycopy(a, 0, elementData, size, numNew);
        size += numNew;
        return numNew != 0;
    }

    /**
     * 从指定位置开始将指定集合中的所有元素插入list列表。
     *
     * Inserts all of the elements in the specified collection into this
     * list, starting at the specified position.  Shifts the element
     * currently at that position (if any) and any subsequent elements to
     * the right (increases their indices).  The new elements will appear
     * in the list in the order that they are returned by the
     * specified collection's iterator.
     *
     * @param index index at which to insert the first element from the
     *              specified collection
     * @param c collection containing elements to be added to this list
     * @return <tt>true</tt> if this list changed as a result of the call
     * @throws IndexOutOfBoundsException {@inheritDoc}
     * @throws NullPointerException if the specified collection is null
     */
    public boolean addAll(int index, Collection<? extends E> c) {
        rangeCheckForAdd(index);

        Object[] a = c.toArray();
        int numNew = a.length;
        ensureCapacityInternal(size + numNew);  // Increments modCount

        int numMoved = size - index;
        if (numMoved > 0)
            System.arraycopy(elementData, index, elementData, index + numNew,
                             numMoved);

        System.arraycopy(a, 0, elementData, index, numNew);
        size += numNew;
        return numNew != 0;
    }

    /**
     * 从list列表中删除索引在fromIndex（包含）和toIndex（不包括）之间的所有元素。
     *
     * Removes from this list all of the elements whose index is between
     * {@code fromIndex}, inclusive, and {@code toIndex}, exclusive.
     * Shifts any succeeding elements to the left (reduces their index).
     * This call shortens the list by {@code (toIndex - fromIndex)} elements.
     * (If {@code toIndex==fromIndex}, this operation has no effect.)
     *
     * @throws IndexOutOfBoundsException if {@code fromIndex} or
     *         {@code toIndex} is out of range
     *         ({@code fromIndex < 0 ||
     *          fromIndex >= size() ||
     *          toIndex > size() ||
     *          toIndex < fromIndex})
     */
    protected void removeRange(int fromIndex, int toIndex) {
        modCount++;
        //要复制的数组元素的数量。把后面的元素移动到前面。
        int numMoved = size - toIndex;
        System.arraycopy(elementData, toIndex, elementData, fromIndex,
                         numMoved);

        // clear to let GC do its work
        int newSize = size - (toIndex-fromIndex);
        for (int i = newSize; i < size; i++) {
            elementData[i] = null;
        }
        size = newSize;
    }

    /**
     * 检查索引界限。
     * Checks if the given index is in range.  If not, throws an appropriate
     * runtime exception.  This method does *not* check if the index is
     * negative: It is always used immediately prior to an array access,
     * which throws an ArrayIndexOutOfBoundsException if index is negative.
     *
     * 检查给定的索引是否在范围内。如果索引不在范围内，则抛出的运行时异常。
     * 这个方法不会检查索引是否为负数：总是在访问数组之前使用。
     * 如果index为负数，则抛出ArrayIndexOutOfBoundsException异常。
     */
    private void rangeCheck(int index) {
        if (index >= size)
            throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
    }

    /**
     * 检查索引界限。
     * A version of rangeCheck used by add and addAll.
     * 用于add和addAll时，检查索引范围。
     */
    private void rangeCheckForAdd(int index) {
        if (index > size || index < 0)
            throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
    }

    /**
     * Constructs an IndexOutOfBoundsException detail message.
     * Of the many possible refactorings of the error handling code,
     * this "outlining" performs best with both server and client VMs.
     *
     * 构造一个IndexOutOfBoundsException详细信息消息。
     * 在许多可能的错误处理代码重构中，这种“概述”在服务器和客户端虚拟机中都表现得最好。
     */
    private String outOfBoundsMsg(int index) {
        return "Index: "+index+", Size: "+size;
    }

    /**
     * 删除指定Collection集合中包含的所有元素。
     *
     * Removes from this list all of its elements that are contained in the
     * specified collection.
     *
     * @param c collection containing elements to be removed from this list
     * @return {@code true} if this list changed as a result of the call
     * @throws ClassCastException if the class of an element of this list
     *         is incompatible with the specified collection
     * (<a href="Collection.html#optional-restrictions">optional</a>)
     * @throws NullPointerException if this list contains a null element and the
     *         specified collection does not permit null elements
     * (<a href="Collection.html#optional-restrictions">optional</a>),
     *         or if the specified collection is null
     * @see Collection#contains(Object)
     */
    public boolean removeAll(Collection<?> c) {
        Objects.requireNonNull(c);
        return batchRemove(c, false);
    }

    /**
     * 用于仅保留此list列表中包含在指定Collection集合中的元素。
     * 换句话说，从此list列表中删除未包含在指定Collection集合中的所有元素。
     *
     * Retains only the elements in this list that are contained in the
     * specified collection.  In other words, removes from this list all
     * of its elements that are not contained in the specified collection.
     *
     * @param c collection containing elements to be retained in this list
     * @return {@code true} if this list changed as a result of the call
     * @throws ClassCastException if the class of an element of this list
     *         is incompatible with the specified collection
     * (<a href="Collection.html#optional-restrictions">optional</a>)
     * @throws NullPointerException if this list contains a null element and the
     *         specified collection does not permit null elements
     * (<a href="Collection.html#optional-restrictions">optional</a>),
     *         or if the specified collection is null
     * @see Collection#contains(Object)
     */
    public boolean retainAll(Collection<?> c) {
        Objects.requireNonNull(c);
        return batchRemove(c, true);
    }

    private boolean batchRemove(Collection<?> c, boolean complement) {
        final Object[] elementData = this.elementData;
        int r = 0, w = 0;
        boolean modified = false;
        try {
            for (; r < size; r++)
                if (c.contains(elementData[r]) == complement)
                    elementData[w++] = elementData[r];
        } finally {
            // Preserve behavioral compatibility with AbstractCollection,
            // even if c.contains() throws.
            if (r != size) {
                System.arraycopy(elementData, r,
                                 elementData, w,
                                 size - r);
                w += size - r;
            }
            if (w != size) {
                // clear to let GC do its work
                for (int i = w; i < size; i++)
                    elementData[i] = null;
                modCount += size - w;
                size = w;
                modified = true;
            }
        }
        return modified;
    }

    /**
     * Save the state of the <tt>ArrayList</tt> instance to a stream (that
     * is, serialize it).
     *
     * @serialData The length of the array backing the <tt>ArrayList</tt>
     *             instance is emitted (int), followed by all of its elements
     *             (each an <tt>Object</tt>) in the proper order.
     */
    private void writeObject(java.io.ObjectOutputStream s)
        throws java.io.IOException{
        // Write out element count, and any hidden stuff
        int expectedModCount = modCount;
        s.defaultWriteObject();

        // Write out size as capacity for behavioural compatibility with clone()
        s.writeInt(size);

        // Write out all elements in the proper order.
        for (int i=0; i<size; i++) {
            s.writeObject(elementData[i]);
        }

        if (modCount != expectedModCount) {
            throw new ConcurrentModificationException();
        }
    }

    /**
     * Reconstitute the <tt>ArrayList</tt> instance from a stream (that is,
     * deserialize it).
     */
    private void readObject(java.io.ObjectInputStream s)
        throws java.io.IOException, ClassNotFoundException {
        elementData = EMPTY_ELEMENTDATA;

        // Read in size, and any hidden stuff
        s.defaultReadObject();

        // Read in capacity
        s.readInt(); // ignored

        if (size > 0) {
            // be like clone(), allocate array based upon size not capacity
            int capacity = calculateCapacity(elementData, size);
            SharedSecrets.getJavaOISAccess().checkArray(s, Object[].class, capacity);
            ensureCapacityInternal(size);

            Object[] a = elementData;
            // Read in all elements in the proper order.
            for (int i=0; i<size; i++) {
                a[i] = s.readObject();
            }
        }
    }

    /**
     * Returns a list iterator over the elements in this list (in proper
     * sequence), starting at the specified position in the list.
     * The specified index indicates the first element that would be
     * returned by an initial call to {@link ListIterator#next next}.
     * An initial call to {@link ListIterator#previous previous} would
     * return the element with the specified index minus one.
     *
     * <p>The returned list iterator is <a href="#fail-fast"><i>fail-fast</i></a>.
     *
     * @throws IndexOutOfBoundsException {@inheritDoc}
     */
    public ListIterator<E> listIterator(int index) {
        if (index < 0 || index > size)
            throw new IndexOutOfBoundsException("Index: "+index);
        return new ListItr(index);
    }

    /**
     * Returns a list iterator over the elements in this list (in proper
     * sequence).
     *
     * <p>The returned list iterator is <a href="#fail-fast"><i>fail-fast</i></a>.
     *
     * @see #listIterator(int)
     */
    public ListIterator<E> listIterator() {
        return new ListItr(0);
    }

    /**
     * Returns an iterator over the elements in this list in proper sequence.
     *
     * <p>The returned iterator is <a href="#fail-fast"><i>fail-fast</i></a>.
     *
     * @return an iterator over the elements in this list in proper sequence
     */
    public Iterator<E> iterator() {
        return new Itr();
    }

    /**
     * An optimized version of AbstractList.Itr
     */
    private class Itr implements Iterator<E> {
        int cursor;       // index of next element to return
        int lastRet = -1; // index of last element returned; -1 if no such
        int expectedModCount = modCount;

        Itr() {}

        public boolean hasNext() {
            return cursor != size;
        }

        @SuppressWarnings("unchecked")
        public E next() {
            checkForComodification();
            int i = cursor;
            if (i >= size)
                throw new NoSuchElementException();
            Object[] elementData = ArrayList.this.elementData;
            if (i >= elementData.length)
                throw new ConcurrentModificationException();
            cursor = i + 1;
            return (E) elementData[lastRet = i];
        }

        public void remove() {
            if (lastRet < 0)
                throw new IllegalStateException();
            checkForComodification();

            try {
                ArrayList.this.remove(lastRet);
                cursor = lastRet;
                lastRet = -1;
                expectedModCount = modCount;
            } catch (IndexOutOfBoundsException ex) {
                throw new ConcurrentModificationException();
            }
        }

        @Override
        @SuppressWarnings("unchecked")
        public void forEachRemaining(Consumer<? super E> consumer) {
            Objects.requireNonNull(consumer);
            final int size = ArrayList.this.size;
            int i = cursor;
            if (i >= size) {
                return;
            }
            final Object[] elementData = ArrayList.this.elementData;
            if (i >= elementData.length) {
                throw new ConcurrentModificationException();
            }
            while (i != size && modCount == expectedModCount) {
                consumer.accept((E) elementData[i++]);
            }
            // update once at end of iteration to reduce heap write traffic
            cursor = i;
            lastRet = i - 1;
            checkForComodification();
        }

        final void checkForComodification() {
            if (modCount != expectedModCount)
                throw new ConcurrentModificationException();
        }
    }

    /**
     * An optimized version of AbstractList.ListItr
     */
    private class ListItr extends Itr implements ListIterator<E> {
        ListItr(int index) {
            super();
            cursor = index;
        }

        public boolean hasPrevious() {
            return cursor != 0;
        }

        public int nextIndex() {
            return cursor;
        }

        public int previousIndex() {
            return cursor - 1;
        }

        @SuppressWarnings("unchecked")
        public E previous() {
            checkForComodification();
            int i = cursor - 1;
            if (i < 0)
                throw new NoSuchElementException();
            Object[] elementData = ArrayList.this.elementData;
            if (i >= elementData.length)
                throw new ConcurrentModificationException();
            cursor = i;
            return (E) elementData[lastRet = i];
        }

        public void set(E e) {
            if (lastRet < 0)
                throw new IllegalStateException();
            checkForComodification();

            try {
                ArrayList.this.set(lastRet, e);
            } catch (IndexOutOfBoundsException ex) {
                throw new ConcurrentModificationException();
            }
        }

        public void add(E e) {
            checkForComodification();

            try {
                int i = cursor;
                ArrayList.this.add(i, e);
                cursor = i + 1;
                lastRet = -1;
                expectedModCount = modCount;
            } catch (IndexOutOfBoundsException ex) {
                throw new ConcurrentModificationException();
            }
        }
    }

    /**
     * Returns a view of the portion of this list between the specified
     * {@code fromIndex}, inclusive, and {@code toIndex}, exclusive.  (If
     * {@code fromIndex} and {@code toIndex} are equal, the returned list is
     * empty.)  The returned list is backed by this list, so non-structural
     * changes in the returned list are reflected in this list, and vice-versa.
     * The returned list supports all of the optional list operations.
     *
     * <p>This method eliminates the need for explicit range operations (of
     * the sort that commonly exist for arrays).  Any operation that expects
     * a list can be used as a range operation by passing a subList view
     * instead of a whole list.  For example, the following idiom
     * removes a range of elements from a list:
     * <pre>
     *      list.subList(from, to).clear();
     * </pre>
     * Similar idioms may be constructed for {@link #indexOf(Object)} and
     * {@link #lastIndexOf(Object)}, and all of the algorithms in the
     * {@link Collections} class can be applied to a subList.
     *
     * <p>The semantics of the list returned by this method become undefined if
     * the backing list (i.e., this list) is <i>structurally modified</i> in
     * any way other than via the returned list.  (Structural modifications are
     * those that change the size of this list, or otherwise perturb it in such
     * a fashion that iterations in progress may yield incorrect results.)
     *
     * @throws IndexOutOfBoundsException {@inheritDoc}
     * @throws IllegalArgumentException {@inheritDoc}
     */
    public List<E> subList(int fromIndex, int toIndex) {
        subListRangeCheck(fromIndex, toIndex, size);
        return new SubList(this, 0, fromIndex, toIndex);
    }

    static void subListRangeCheck(int fromIndex, int toIndex, int size) {
        if (fromIndex < 0)
            throw new IndexOutOfBoundsException("fromIndex = " + fromIndex);
        if (toIndex > size)
            throw new IndexOutOfBoundsException("toIndex = " + toIndex);
        if (fromIndex > toIndex)
            throw new IllegalArgumentException("fromIndex(" + fromIndex +
                                               ") > toIndex(" + toIndex + ")");
    }

    private class SubList extends AbstractList<E> implements RandomAccess {
        private final AbstractList<E> parent;
        private final int parentOffset;
        private final int offset;
        int size;

        SubList(AbstractList<E> parent,
                int offset, int fromIndex, int toIndex) {
            this.parent = parent;
            this.parentOffset = fromIndex;
            this.offset = offset + fromIndex;
            this.size = toIndex - fromIndex;
            this.modCount = ArrayList.this.modCount;
        }

        public E set(int index, E e) {
            rangeCheck(index);
            checkForComodification();
            E oldValue = ArrayList.this.elementData(offset + index);
            ArrayList.this.elementData[offset + index] = e;
            return oldValue;
        }

        public E get(int index) {
            rangeCheck(index);
            checkForComodification();
            return ArrayList.this.elementData(offset + index);
        }

        public int size() {
            checkForComodification();
            return this.size;
        }

        public void add(int index, E e) {
            rangeCheckForAdd(index);
            checkForComodification();
            parent.add(parentOffset + index, e);
            this.modCount = parent.modCount;
            this.size++;
        }

        public E remove(int index) {
            rangeCheck(index);
            checkForComodification();
            E result = parent.remove(parentOffset + index);
            this.modCount = parent.modCount;
            this.size--;
            return result;
        }

        protected void removeRange(int fromIndex, int toIndex) {
            checkForComodification();
            parent.removeRange(parentOffset + fromIndex,
                               parentOffset + toIndex);
            this.modCount = parent.modCount;
            this.size -= toIndex - fromIndex;
        }

        public boolean addAll(Collection<? extends E> c) {
            return addAll(this.size, c);
        }

        public boolean addAll(int index, Collection<? extends E> c) {
            rangeCheckForAdd(index);
            int cSize = c.size();
            if (cSize==0)
                return false;

            checkForComodification();
            parent.addAll(parentOffset + index, c);
            this.modCount = parent.modCount;
            this.size += cSize;
            return true;
        }

        public Iterator<E> iterator() {
            return listIterator();
        }

        public ListIterator<E> listIterator(final int index) {
            checkForComodification();
            rangeCheckForAdd(index);
            final int offset = this.offset;

            return new ListIterator<E>() {
                int cursor = index;
                int lastRet = -1;
                int expectedModCount = ArrayList.this.modCount;

                public boolean hasNext() {
                    return cursor != SubList.this.size;
                }

                @SuppressWarnings("unchecked")
                public E next() {
                    checkForComodification();
                    int i = cursor;
                    if (i >= SubList.this.size)
                        throw new NoSuchElementException();
                    Object[] elementData = ArrayList.this.elementData;
                    if (offset + i >= elementData.length)
                        throw new ConcurrentModificationException();
                    cursor = i + 1;
                    return (E) elementData[offset + (lastRet = i)];
                }

                public boolean hasPrevious() {
                    return cursor != 0;
                }

                @SuppressWarnings("unchecked")
                public E previous() {
                    checkForComodification();
                    int i = cursor - 1;
                    if (i < 0)
                        throw new NoSuchElementException();
                    Object[] elementData = ArrayList.this.elementData;
                    if (offset + i >= elementData.length)
                        throw new ConcurrentModificationException();
                    cursor = i;
                    return (E) elementData[offset + (lastRet = i)];
                }

                @SuppressWarnings("unchecked")
                public void forEachRemaining(Consumer<? super E> consumer) {
                    Objects.requireNonNull(consumer);
                    final int size = SubList.this.size;
                    int i = cursor;
                    if (i >= size) {
                        return;
                    }
                    final Object[] elementData = ArrayList.this.elementData;
                    if (offset + i >= elementData.length) {
                        throw new ConcurrentModificationException();
                    }
                    while (i != size && modCount == expectedModCount) {
                        consumer.accept((E) elementData[offset + (i++)]);
                    }
                    // update once at end of iteration to reduce heap write traffic
                    lastRet = cursor = i;
                    checkForComodification();
                }

                public int nextIndex() {
                    return cursor;
                }

                public int previousIndex() {
                    return cursor - 1;
                }

                public void remove() {
                    if (lastRet < 0)
                        throw new IllegalStateException();
                    checkForComodification();

                    try {
                        SubList.this.remove(lastRet);
                        cursor = lastRet;
                        lastRet = -1;
                        expectedModCount = ArrayList.this.modCount;
                    } catch (IndexOutOfBoundsException ex) {
                        throw new ConcurrentModificationException();
                    }
                }

                public void set(E e) {
                    if (lastRet < 0)
                        throw new IllegalStateException();
                    checkForComodification();

                    try {
                        ArrayList.this.set(offset + lastRet, e);
                    } catch (IndexOutOfBoundsException ex) {
                        throw new ConcurrentModificationException();
                    }
                }

                public void add(E e) {
                    checkForComodification();

                    try {
                        int i = cursor;
                        SubList.this.add(i, e);
                        cursor = i + 1;
                        lastRet = -1;
                        expectedModCount = ArrayList.this.modCount;
                    } catch (IndexOutOfBoundsException ex) {
                        throw new ConcurrentModificationException();
                    }
                }

                final void checkForComodification() {
                    if (expectedModCount != ArrayList.this.modCount)
                        throw new ConcurrentModificationException();
                }
            };
        }

        public List<E> subList(int fromIndex, int toIndex) {
            subListRangeCheck(fromIndex, toIndex, size);
            return new SubList(this, offset, fromIndex, toIndex);
        }

        private void rangeCheck(int index) {
            if (index < 0 || index >= this.size)
                throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
        }

        private void rangeCheckForAdd(int index) {
            if (index < 0 || index > this.size)
                throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
        }

        private String outOfBoundsMsg(int index) {
            return "Index: "+index+", Size: "+this.size;
        }

        private void checkForComodification() {
            if (ArrayList.this.modCount != this.modCount)
                throw new ConcurrentModificationException();
        }

        public Spliterator<E> spliterator() {
            checkForComodification();
            return new ArrayListSpliterator<E>(ArrayList.this, offset,
                                               offset + this.size, this.modCount);
        }
    }

    @Override
    public void forEach(Consumer<? super E> action) {
        Objects.requireNonNull(action);
        final int expectedModCount = modCount;
        @SuppressWarnings("unchecked")
        final E[] elementData = (E[]) this.elementData;
        final int size = this.size;
        for (int i=0; modCount == expectedModCount && i < size; i++) {
            action.accept(elementData[i]);
        }
        if (modCount != expectedModCount) {
            throw new ConcurrentModificationException();
        }
    }

    /**
     * Creates a <em><a href="Spliterator.html#binding">late-binding</a></em>
     * and <em>fail-fast</em> {@link Spliterator} over the elements in this
     * list.
     *
     * <p>The {@code Spliterator} reports {@link Spliterator#SIZED},
     * {@link Spliterator#SUBSIZED}, and {@link Spliterator#ORDERED}.
     * Overriding implementations should document the reporting of additional
     * characteristic values.
     *
     * @return a {@code Spliterator} over the elements in this list
     * @since 1.8
     */
    @Override
    public Spliterator<E> spliterator() {
        return new ArrayListSpliterator<>(this, 0, -1, 0);
    }

    /** Index-based split-by-two, lazily initialized Spliterator */
    static final class ArrayListSpliterator<E> implements Spliterator<E> {

        /*
         * If ArrayLists were immutable, or structurally immutable (no
         * adds, removes, etc), we could implement their spliterators
         * with Arrays.spliterator. Instead we detect as much
         * interference during traversal as practical without
         * sacrificing much performance. We rely primarily on
         * modCounts. These are not guaranteed to detect concurrency
         * violations, and are sometimes overly conservative about
         * within-thread interference, but detect enough problems to
         * be worthwhile in practice. To carry this out, we (1) lazily
         * initialize fence and expectedModCount until the latest
         * point that we need to commit to the state we are checking
         * against; thus improving precision.  (This doesn't apply to
         * SubLists, that create spliterators with current non-lazy
         * values).  (2) We perform only a single
         * ConcurrentModificationException check at the end of forEach
         * (the most performance-sensitive method). When using forEach
         * (as opposed to iterators), we can normally only detect
         * interference after actions, not before. Further
         * CME-triggering checks apply to all other possible
         * violations of assumptions for example null or too-small
         * elementData array given its size(), that could only have
         * occurred due to interference.  This allows the inner loop
         * of forEach to run without any further checks, and
         * simplifies lambda-resolution. While this does entail a
         * number of checks, note that in the common case of
         * list.stream().forEach(a), no checks or other computation
         * occur anywhere other than inside forEach itself.  The other
         * less-often-used methods cannot take advantage of most of
         * these streamlinings.
         */

        private final ArrayList<E> list;
        private int index; // current index, modified on advance/split
        private int fence; // -1 until used; then one past last index
        private int expectedModCount; // initialized when fence set

        /** Create new spliterator covering the given  range */
        ArrayListSpliterator(ArrayList<E> list, int origin, int fence,
                             int expectedModCount) {
            this.list = list; // OK if null unless traversed
            this.index = origin;
            this.fence = fence;
            this.expectedModCount = expectedModCount;
        }

        private int getFence() { // initialize fence to size on first use
            int hi; // (a specialized variant appears in method forEach)
            ArrayList<E> lst;
            if ((hi = fence) < 0) {
                if ((lst = list) == null)
                    hi = fence = 0;
                else {
                    expectedModCount = lst.modCount;
                    hi = fence = lst.size;
                }
            }
            return hi;
        }

        public ArrayListSpliterator<E> trySplit() {
            int hi = getFence(), lo = index, mid = (lo + hi) >>> 1;
            return (lo >= mid) ? null : // divide range in half unless too small
                new ArrayListSpliterator<E>(list, lo, index = mid,
                                            expectedModCount);
        }

        public boolean tryAdvance(Consumer<? super E> action) {
            if (action == null)
                throw new NullPointerException();
            int hi = getFence(), i = index;
            if (i < hi) {
                index = i + 1;
                @SuppressWarnings("unchecked") E e = (E)list.elementData[i];
                action.accept(e);
                if (list.modCount != expectedModCount)
                    throw new ConcurrentModificationException();
                return true;
            }
            return false;
        }

        public void forEachRemaining(Consumer<? super E> action) {
            int i, hi, mc; // hoist accesses and checks from loop
            ArrayList<E> lst; Object[] a;
            if (action == null)
                throw new NullPointerException();
            if ((lst = list) != null && (a = lst.elementData) != null) {
                if ((hi = fence) < 0) {
                    mc = lst.modCount;
                    hi = lst.size;
                }
                else
                    mc = expectedModCount;
                if ((i = index) >= 0 && (index = hi) <= a.length) {
                    for (; i < hi; ++i) {
                        @SuppressWarnings("unchecked") E e = (E) a[i];
                        action.accept(e);
                    }
                    if (lst.modCount == mc)
                        return;
                }
            }
            throw new ConcurrentModificationException();
        }

        public long estimateSize() {
            return (long) (getFence() - index);
        }

        public int characteristics() {
            return Spliterator.ORDERED | Spliterator.SIZED | Spliterator.SUBSIZED;
        }
    }

    @Override
    public boolean removeIf(Predicate<? super E> filter) {
        Objects.requireNonNull(filter);
        // figure out which elements are to be removed
        // any exception thrown from the filter predicate at this stage
        // will leave the collection unmodified
        int removeCount = 0;
        final BitSet removeSet = new BitSet(size);
        final int expectedModCount = modCount;
        final int size = this.size;
        for (int i=0; modCount == expectedModCount && i < size; i++) {
            @SuppressWarnings("unchecked")
            final E element = (E) elementData[i];
            if (filter.test(element)) {
                removeSet.set(i);
                removeCount++;
            }
        }
        if (modCount != expectedModCount) {
            throw new ConcurrentModificationException();
        }

        // shift surviving elements left over the spaces left by removed elements
        final boolean anyToRemove = removeCount > 0;
        if (anyToRemove) {
            final int newSize = size - removeCount;
            for (int i=0, j=0; (i < size) && (j < newSize); i++, j++) {
                i = removeSet.nextClearBit(i);
                elementData[j] = elementData[i];
            }
            for (int k=newSize; k < size; k++) {
                elementData[k] = null;  // Let gc do its work
            }
            this.size = newSize;
            if (modCount != expectedModCount) {
                throw new ConcurrentModificationException();
            }
            modCount++;
        }

        return anyToRemove;
    }

    @Override
    @SuppressWarnings("unchecked")
    public void replaceAll(UnaryOperator<E> operator) {
        Objects.requireNonNull(operator);
        final int expectedModCount = modCount;
        final int size = this.size;
        for (int i=0; modCount == expectedModCount && i < size; i++) {
            elementData[i] = operator.apply((E) elementData[i]);
        }
        if (modCount != expectedModCount) {
            throw new ConcurrentModificationException();
        }
        modCount++;
    }

    @Override
    @SuppressWarnings("unchecked")
    public void sort(Comparator<? super E> c) {
        final int expectedModCount = modCount;
        Arrays.sort((E[]) elementData, 0, size, c);
        if (modCount != expectedModCount) {
            throw new ConcurrentModificationException();
        }
        modCount++;
    }
}
