Hi all
Here is a quick tutorial for implementing a Kalman Filter. I originally wrote this for a Society Of Robot article several years ago. I have revised this a bit to be clearer and fixed some errors in the initial post.
Enjoy!
Introduction
Kalman filtering is used for many applications including filtering noisy signals, generating non-observable states, and predicting future states. Filtering noisy signals is essential since many sensors have an output that is to noisy too be used directly, and Kalman filtering lets you account for the uncertainty in the signal/state. One important use of generating non-observable states is for estimating velocity. It is common to have position sensors (encoders) on different joints; however, simply differentiating the position to get velocity produces noisy results. To fix this Kalman filtering can be used to estimate the velocity. Another nice feature of the Kalman filter is that it can be used to predict future states. This is useful when you have large time delays in your sensor feedback as this can cause instability in a motor control system.
Kalman filters produce the optimal estimate for a linear system. As such, a sensor or system must have (or be close to) a linear response in order to apply a Kalman filter. Techniques for working with non-linear systems will be discussed in later sections. Another benefit of the Kalman filter is that knowledge of a long state history is not necessary since the filter only relies on the immediate last state and a covariance matrix that defines the probability of the state being correct.
Remember that a covariance is just a measure of how two variables correlate with each other (i.e. change in relation to each other) (the values are often not intuitive), and a covariance matrix just tells you for a given row and column value what the covariance is.
The Filter
Before delving into how the filter works it is useful to have a discussion about terminology to ensure that everyone has the same baseline. States refers to the position/velocity/value associated with the system. Action’s or inputs are the items that you can change that will affect the system. An example of this is increasing the voltage of a motor (to increase the output speed).
(I got a question about why I list position and velocity. The simple answer is if you think of a quadcopter it can be pointed in one direction while flying/moving in another direction.)

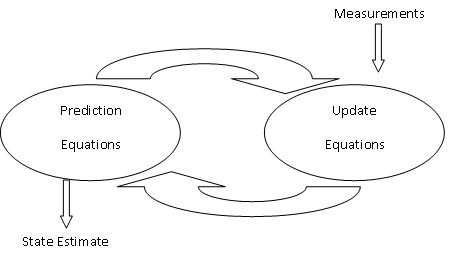

There are two types of equations for the Kalman filter. The first are the prediction equations. These equations predict what the current state is based on the previous state and the commanded action. The second set of equations known as the update equations look at your input sensors, how much you trust each sensor, and how much you trust your overall state estimate. This filter works by predicting the current state using the prediction equations followed by checking how good of a job it did predicting by using the update equations. This process is repeated continuously to update the current state.
PREDICTION EQUATIONS
UPDATE EQUATIONS
These equations can look scary as there are many variables so we will now clarify what each variable is.
x,X = These variables represent your state (ie. the things you care about and/or trying to filter). For example, if you are controlling a robotic arm with three joints your state can be:
This should be initialized at whatever state you want to start at. If you are treating your start location as the origin than it can be initialized to:
While we like to model and know all states in a system, you should only include states that you need to know. Adding more states can slow the filter and increase uncertainty in the overall state.
u = what ever the action is for the three joint robotic arm the actions can be:
P,p = These numbers represent how confident the filter is with the solution. The best way to do this is to initialize it as a diagonal matrix when the filter runs it will become populated. After running the filter you can look at how the values converge and use them to initialize the filter the next time. The reason it should be initialized as a diagonal is that each entry directly corresponds to the variance of the state in that row so for the above robotic arm with six states the covariance matrix can be initialized as:
where variance is the square of the standard deviation of the error.
Q= Is the covariance of the process (i.e. action) noise. It is formed similar to the above except that it is a matrix that you determine and does not get updated by the filter. This matrix tells the Kalman filter how much error is in each action from the time you issue the commanded voltage until it actually happens.
K= This matrix gets updates as part of the measurement update stage.
H= Is a model of the sensors, but is hard to determine. An easy approach is to initialize it as a diagonal identity matrix and tweak it to improve the final filter results.
R = Similar to Q except this defines the confidence in each of the sensors. This is the key matrix for conducting sensor fusion
z= These are the measurements that are returned from the sensors at each location. The Kalman filter is usually used to clean the noise from these signals or to estimate these parameters when there is no sensor.
I= an Identity matrix (also diagonal)
The next variables we need to determine are A and B. These matrices are the model that represents how your system changes from one state to the next.
Since the Kalman filter is for linear systems we can assume that if you start at the beginning (t=0) and run your system to the next state(t=1), and run it again(t=2), the amount of change will be the same so we can use that change no matter where (t=wherever) in the system we actually are.
The easiest way to find the A and B matrices is if you are able to collect data from your system by doing experiments before creating the filter with an unforced system (the inputs must be 0). The newState and lastState are both matrices whose columns are the input and output states measured during the experiments. In order for this to work you need to be able to measure the full state, which is often not possible if you are using the Kalman filter as a state estimator (which is a common usage). This allows you to solve for A and B numerically. You need to repeat the experiment n times where n is the dimension of the A matrix.
Since:
then we can rewrite it as:
Following this logic, once you have A you can find B
Knowing the current state, what the last state was, A, and the action that caused the state change you can solve for B.
Note: On systems where you are just filtering or fusing inputs (i.e. sensors) than you might not be capable of having any actions so the B*action term cancels and all you need to know is your A term.
When you do not have any prior data then we need a more formal way to determine the A and B matrices. This approach can be difficult and involve a lot of math. The general idea is to start somewhere and perturb your system and record the states, perturb again, record again, etc.
The B matrix can be made in the same way except that instead of perturbing the state we perturb the actions and record the states.
So in pseudocode this would be:
X0 = State you are linearizing about;
U0 = Voltages required to produce (inverse dynamics);
delta = small number;
//Finding the A matrix
for ii=1 thru #ofStates{
X=X0;
X(ii)=X(ii)+delta; //perturb state x(i) by delta
X1 = f(X,U0); //f() is the model of system
A(:,ii) = (X1-X0)/delta;
}
//Finding the B matrix
for ii=1 thru #ofInputs {
U=U0;
U(ii)=U(ii)+delta; //perturb action U(i) by delta
X1 = f(X0,U); //f() is the model of system
B(:,ii) = (X1-X0)/delta;
}
The f(X0,U) is your model. This model can take a state and an action and determine what the next state will be. This step involves the kinematics and dynamics of the rover. Remember that if your model is not predicting what happens in real life then your model is wrong and you need to fix it!
Now that we know what all of the variables are I want to repeat the algorithm with words. We start with our current state xk-1, your current covariance matrix Pk-1 , and your current input uk-1 to get your predicted state X and predicted covariance matrix p. Then you can get your measurement yk and use the update equations to correct your predictions in order to get you new state matrix xk and the new covariance Pk. Once you do all of that you just keep iterating those steps where you make a prediction and then update the prediction based on some known information.
Advanced Filter Methods
For non-linear system there are two main approaches. The first is to develop an Extended Kalman Filter (EKF). For the EKF you need to linearize your model and then form your A and B matrices. This approach involves a bit of math and something called a Jacobean, which lets you scale different values differently. The second and easier approach is to use piece-wise approximation. For this you break down the data into regions that are close to linear and form different A and B matrices for each region. This allows you can check the data and use the appropriate A and B matrices in the filter to accurately predict what the state transition will be.
Sample Code
Here is the c++ code for a Kalman filter designed for a PUMA 3DOF robotic arm. This code is being used for velocity estimation as this is much more accurate than just differentiating position.
I made bad assumptions for my noise and sensor models to simplify the implementation. I also initialize my covariance as an identity matrix. In my real code I let it converge and save it to a text file that I can read every time I start the filter.
#include
#include
#include
#include
#include
#include
//my matrix library, you can use your own favorite matrix library
#include “matrixClass.h”
#define TIMESTEP 0.05
using namespace std;
float timeIndex,m_a1,m_a2,m_a3,c_a1,c_a2,c_a3,tau1,tau2,tau3;
float a1,a2,a3,a1d,a2d,a3d,a1dd,a2dd,a3dd;
float new_a1d, new_a2d, new_a3d;
float TIME=0;
matrix A(6,6);
matrix B(6,3);
matrix C=matrix::eye(6); //initialize them as 6×6 identity matrices
matrix Q=matrix::eye(6);
matrix R=matrix::eye(6);
matrix y(6,1);
matrix K(6,6);
matrix x(6,1);
matrix state(6,1);
matrix action(3,1);
matrix lastState(6,1);
matrix P=matrix::eye(6);
matrix p=matrix::eye(6);
matrix measurement(6,1);
void initKalman(){
float a[6][6]={
{1.004, 0.0001, 0.001, 0.0014, 0.0000, -0.0003 },
{0.000, 1.000, -0.00, 0.0000, 0.0019, 0 },
{0.0004, 0.0002, 1.002, 0.0003, 0.0001, 0.0015 },
{0.2028, 0.0481, 0.0433, 0.7114, -0.0166, -0.1458 },
{0.0080, 0.0021, -0.0020, -0.0224, 0.9289, 0.005 },
{0.1895, 0.1009, 0.1101, -0.1602, 0.0621, 0.7404 }
};
float b[6][3] = {
{0.0000, 0.0000 , 0.0000 },
{0.0000, 0.0000, -0.0000 },
{0.0000, -0.0000, 0.0000 },
{0.007, -0.0000, 0.0005 },
{0.0001, 0.0000, -0.0000 },
{0.0003, -0.0000, 0.0008 }
};
for (int i = 0; i < 6; i++){
for (int j = 0; j < 6; j++){
A[i][j]=a[i][j];
}
}
for (int i = 0; i < 6; i++){
for (int j = 0; j < 3; j++){
B[i][j]=b[i][j];
}
}
state[0][0]=0.1;
state[1][0]=0.1;
state[2][0]=0.1;
state[3][0]=0.1;
state[4][0]=0.1;
state[5][0]=0.1;
lastState=state;
}
void kalman(){
lastState=state;
state[0][0]=c_a1;
state[1][0]=c_a2;
state[2][0]=c_a3;
state[3][0]=a1d;
state[4][0]=a2d;
state[5][0]=a3d;
measurement[0][0]=m_a1;
measurement[1][0]=m_a2;
measurement[2][0]=m_a3;
measurement[3][0]=a1d;
measurement[4][0]=a2d;
measurement[5][0]=a3d;
action[0][0]=tau1;
action[1][0]=tau2;
action[2][0]=tau3;
matrix temp1(6,6);
matrix temp2(6,6);
matrix temp3(6,6);
matrix temp4(6,1);
x = A*lastState + B*action;
p = A*P*A’ + Q;
K = p*C*pinv(C*p*C’+R);
y=C*state;
state = x + K*(y-C*lastState);
P = (eye(6) – K*C)*p;
a1=state[0][0];
a2=state[1][0];
a3=state[2][0];
a1d=state[3][0];
a2d=state[4][0];
a3d=state[5][0];
}
void integrate(){
new_a1d = a1d + a1dd*TIMESTEP;
a1 += (new_a1d + a1d)*TIMESTEP/2;
a1d = new_a1d;
new_a2d = a2d + a2dd*TIMESTEP;
a2 += (new_a2d + a2d)*TIMESTEP/2;
a2d = new_a2d;
new_a3d = a3d + a3dd*TIMESTEP;
a3 += (new_a3d + a3d)*TIMESTEP/2;
a3d = new_a3d;
TIME+=TIMESTEP;
}
void differentiation(){
a1d=(state[0][0]-lastState[0][0])/TIMESTEP;
a2d=(state[1][0]-lastState[1][0])/TIMESTEP;
a3d=(state[2][0]-lastState[2][0])/TIMESTEP;
TIME+=TIMESTEP;
}
int main () {
initKalman();
char buffer[500];
ifstream readFile (“DATA.txt”); // this is where I read my data since I am proccessing it all offline
while (!readFile.eof()){
readFile.getline (buffer,500);
sscanf(buffer, “%f %f %f %f %f %f %f %f %f %f “,&timeIndex,&m_a1,&m_a2,&m_a3,&c_a1,&c_a2,&c_a3,&tau1,&tau2,&tau3);
kalman();
differentiation();
//integrate();
FILE *file=fopen(“filterOutput.txt”, “a”);
fprintf(file,”%f %f %f %f %f %f %f %f %f %f \n”,TIME,a1,a2,a3,a1d,a2d,a3d,tau1,tau2,tau3);
fprintf(stderr,”%f %f %f %f %f %f %f %f %f %f \n”,TIME,a1,a2,a3,a1d,a2d,a3d,tau1,tau2,tau3);
fclose(file);
}
return 1;
}
Conclusion
This post has focused on implementing a Kalman filter. Hopefully you will be able to take this information to improve and refine your robotic projects. For more information I recommend Greg Welch and Gary Bishops Introduction to Kalman Filteringhttp://www.cs.unc.edu/~welch/kalman/ and a post from TKJ Electronics.
The Making Embedded Systems podcast has a great discussion on inertial sensors and Kalman filtering that you can listen to.
References
[1] – Maybeck, Peter S. 1979. Stochastic Models, Estimation, and Control, Volume 1, Academic Press, Inc.
[2] – Welsh, Greg. Bishop, Gary. The Kalman Filter. http://www.cs.unc.edu/~welch/kalman/
