微信小程序 顶部自定义导航 “navigationStyle”: “custom”
要实现这种效果图
1、在哪个页面上实现自定义导航栏就在哪个页面的 .json 文件中写上: “navigationStyle”: “custom” ,如果在app.json写那就是所有的页面都会变成通栏
{
"component": true,
"navigationStyle": "custom"
}
2、页面的.wxml代码:
<view class="navbar" style="height:{{navHeight}}px">
<!-- 左上角 返回按钮 和 home按钮 wx:if="{{showNav}}" 是控制左上角按钮的显示隐藏,首页不显示 -->
<view class="navbar_left"
style="top:{{navTop}}px;height:{{jnheight}}px;width:{{jnwidth}}px"
wx:if="{{showNav}}">
<!-- 控制返回按钮的显示 -->
<view bindtap="navBack">
<image src="/pages/images/re_goodslist.png" mode="widthFix" style="width:40%"></image>
</view>
<!-- home按钮 wx:if="{{showHome}}" 是控制左上角 home按钮的显示隐藏-->
<view class="nav_line" bindtap="navHome" wx:if="{{showHome}}">
<image src="/pages/images/re_index.png" mode="widthFix" style="width:40%"></image>
</view>
</view>
<!-- 中间标题 -->
<view class="navbar_title" style="top:{{navTop}}px;">{{pageName}}</view>
3、页面的.js代码:
const App = getApp();
Component({
// 组件的属性列表
properties: {
pageName: String, //中间的title
showNav: { //判断是否显示左上角的按钮
type: Boolean,
value: true
},
showHome: { //判断是否显示左上角的home按钮
type: Boolean,
value: true
}
},
// 组件的初始数据
data: {
showNav: true, //判断是否显示左上角的home按钮
showHome: true, //判断是否显示左上角的按钮
},
lifetimes: {
// 生命周期函数,可以为函数,或一个在methods段中定义的方法名
attached: function() {
this.setData({
navHeight: App.globalData.navHeight, //导航栏高度
navTop: App.globalData.navTop, //胶囊按钮与顶部的距离
jnheight: App.globalData.jnheight, //胶囊高度
jnwidth: App.globalData.jnwidth //胶囊宽度
})
}
},
// 组件的方法列表
methods: {
//回退
navBack: function() {
wx.switchTab({
url: '/pages/goods/goods'
})
},
//回主页
navHome: function() {
wx.switchTab({
url: '/pages/index/index'
})
},
}
})
4、页面的.wxss代码:
.navbar {
width: 100%;
overflow: hidden;
position: fixed;
top: 0;
left: 0;
z-index: 1;
flex-shrink: 0;
height: 0;
}
.navbar_left {
display: -webkit-flex;
display: flex;
-webkit-box-align: center;
-ms-flex-align: center;
-webkit-align-items: center;
align-items: center;
position: fixed;
left: 10px;
z-index: 999;
line-height: 1;
border: 1rpx solid rgba(255, 255, 255, .1);
border-radius: 40rpx;
overflow: hidden;
background: rgba(0, 0, 0, 0.2);
}
.navbar_left view {
width: 50%;
display: flex;
align-items: center;
justify-content: center;
z-index: 999;
}
.nav_line {
border-left: 1rpx solid rgba(255, 255, 255, .9);
}
.navbar_title {
width: 100%;
box-sizing: border-box;
padding-left: 115px;
padding-right: 115px;
height: 32px;
line-height: 32px;
text-align: center;
position: absolute;
left: 0;
z-index: 10;
color: #333;
font-size: 16px;
font-weight: bold;
text-overflow: ellipsis;
overflow: hidden;
white-space: nowrap;
}
6、app.js代码:
App({
//设置全局对象
globalData: {
navHeight: 0,
navTop: 0,
jnheight: 0,
jnwidth: 0,
},
onLaunch: function () {
//设置导航栏
//获取菜单按钮的布局位置信息
let menuButtonObject = wx.getMenuButtonBoundingClientRect();
//获取系统信息
wx.getSystemInfo({
success: res => {
//状态栏的高度
let statusBarHeight = res.statusBarHeight,
//胶囊按钮与顶部的距离
navTop = menuButtonObject.top,
navHeight = statusBarHeight + menuButtonObject.height + (menuButtonObject.top - statusBarHeight) * 2;
this.globalData.navHeight = navHeight;//导航栏高度
this.globalData.navTop = navTop;//胶囊按钮与顶部的距离
this.globalData.jnheight = menuButtonObject.height;//胶囊的高度
this.globalData.jnwidth = menuButtonObject.width;//胶囊的宽度
},
fail(err) {
console.log(err);
}
});
}
}
上面就是完整的代码 以下说过我踩的一个坑

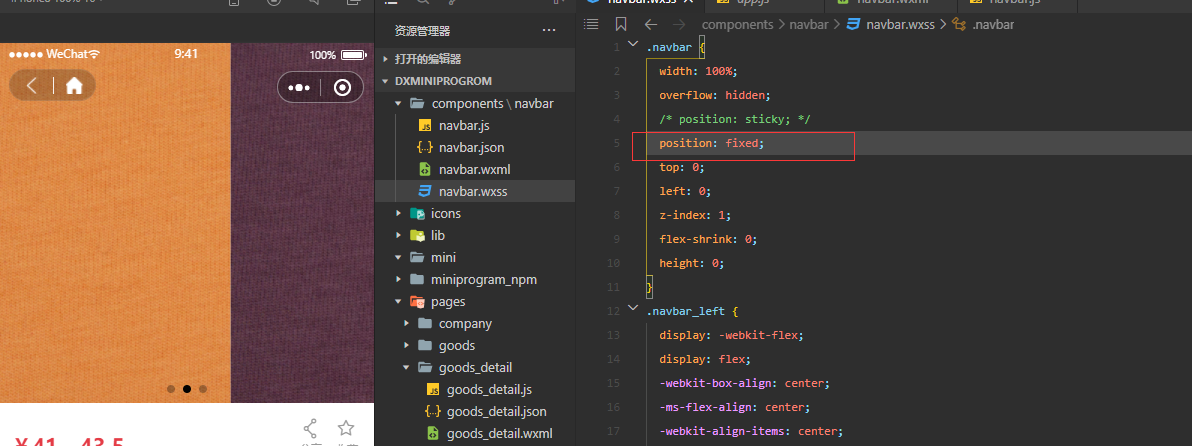

顶部给粘性定位时这块背景图就默认白色 我一开始给的粘性定位
我就把高度去掉 这时候可以变成通栏效果 在调试器上各种型号手机都没问题 但在真机iphone6/7/8上左边自定义的胶囊按钮就不显示了 不把高度去掉又做不成通栏效果 然后各种百度还是无果
然后第二天我看见了这个粘性定位 就试着把它改成固定定位试试
然后就解决了 害 我整了快一下午
