spring-security--基础--02--核心组件

2023-11-01

spring-security–基础–02–核心组件


1、SecurityContextHolder

  1. 最基本的对象
  2. 它负责存储当前安全上下文信息。
    1. 保存着当前用户是什么,是否已经通过认证,拥有哪些权限.
  3. 默认使用ThreadLocal策略来存储认证信息,这是一种与线程绑定的策略。
    1. 在Web场景下的使用Spring Security,在用户登录时自动绑定认证信息到当前线程,在用户退出时,自动清除当前线程的认证信息。

1.1、获取有关当前用户的信息

Object principal = SecurityContextHolder.getContext().getAuthentication().getPrincipal();

2、Authentication

package org.springframework.security.core;

public interface Authentication extends Principal, Serializable {
	Collection<? extends GrantedAuthority> getAuthorities();

	Object getCredentials();

	Object getDetails();

	Object getPrincipal();

	boolean isAuthenticated();

	void setAuthenticated(boolean var1)throws IllegalArgumentException;
}
  1. 是Spring Security中最高级别的认证。
  2. getAuthorities:获取权限列表
  3. getCredentials:获取密码信息,由用户输入的密码凭证,认证之后会移出,来保证安全性;
  4. getDetails:细节信息,web应用中的实现接口通常为WebAuthenticationDetails,它记录了访问者的ip地址和sessionId的值。
  5. getPrincipal:获取身份信息,一般返回UserDetails的实现类;

3、UserDetails


public interface UserDetails extends Serializable {

   Collection<? extends GrantedAuthority> getAuthorities();

   String getPassword();

   String getUsername();

   boolean isAccountNonExpired();

   boolean isAccountNonLocked();

   boolean isCredentialsNonExpired();

   boolean isEnabled();
}
  1. 代表了最详细的用户信息
  2. 这个接口涵盖了一些必要的用户信息字段

3.1、和Authentication区别

  1. Authentication中的getCredentials来源于用户提交的密码凭证,而UserDetails中的getPassword取到是用户正确的密码信息。
  2. Authentication中的getAuthorities是认证用户名和密码成功之后,由UserDetails中的getAuthorities传递而来。而Authentication中的getDetails信息是经过了AuthenticationProvider认证之后填充的。

4、UserDetailsService

public interface UserDetailsService {
   UserDetails loadUserByUsername(String username)throws UsernameNotFoundException;
}
  1. loadUserByUsername:就是从特定的地方(一般是从数据库中)加载用户信息。
    1. 常用的实现类
      1. JdbcDaoImpl:从数据库中加载用户
      2. InMemoryUserDetailsManager:从内存中加载用户
    2. 可以自己实现UserDetailsService

5、AuthenticationManager

public interface AuthenticationManager {
	Authentication authenticate(Authentication authentication)throws AuthenticationException;

}
  1. authenticate:
    1. 用于认证
    2. 认证相关的核心接口
    3. 发起认证的出发点
    4. Spring推荐通过实现AuthenticationManager接口来自定义自己的认证方式
    5. 默认的实现:ProviderManager
  2. 保留了关键认证部分的 ProviderManager 源码:
public class ProviderManager implements AuthenticationManager, MessageSourceAware,
		InitializingBean {

	// 维护一个 AuthenticationProvider 列表
	private List<AuthenticationProvider> providers = Collections.emptyList();

	public Authentication authenticate(Authentication authentication)
		  throws AuthenticationException {
	   Class<? extends Authentication> toTest = authentication.getClass();
	   AuthenticationException lastException = null;
	   Authentication result = null;

	   // 依次认证
	   for(AuthenticationProvider provider : getProviders()){
		  if(!provider.supports(toTest)){
			 continue;
		  }
		  try {
			 result = provider.authenticate(authentication);

			 if(result != null){
				copyDetails(authentication, result);
				break;
			 }
		  }
		  ...
		  catch(AuthenticationException e){
			 lastException = e;
		  }
	   }
	   // 如果有 Authentication 信息,则直接返回
	   if(result != null){
			if(eraseCredentialsAfterAuthentication
					&&(result instanceof CredentialsContainer)){
				 // 移除密码
			((CredentialsContainer)result).eraseCredentials();
			}
			 // 发布登录成功事件
			eventPublisher.publishAuthenticationSuccess(result);
			return result;
	   }
	   ...
	   // 执行到此,说明没有认证成功,包装异常信息
	   if(lastException == null){
		  lastException = new ProviderNotFoundException(messages.getMessage(
				"ProviderManager.providerNotFound",
				new Object[] { toTest.getName()},
				"No AuthenticationProvider found for {0}"));
	   }
	   prepareException(lastException, authentication);
	   throw lastException;
	}
}

ProviderManager中的List,会依照次序去认证,认证成功则立即返回,若认证失败则返回null,下一个AuthenticationProvider会继续尝试认证,如果所有认证器都无法认证成功,则ProviderManager会抛出一个ProviderNotFoundException异常。

到这里,如果不纠结于AuthenticationProvider的实现细节以及安全相关的过滤器,认证相关的核心类其实都已经介绍完毕了:身份信息的存放容器SecurityContextHolder,身份信息的抽象Authentication,身份认证器AuthenticationManager及其认证流程。姑且在这里做一个分隔线。

6、AuthenticationProvider

public interface AuthenticationProvider {

	Authentication authenticate(Authentication authentication)
			throws AuthenticationException;


	boolean supports(Class<?> authentication);
}
  1. authenticate():认证方法
    1. 定义了认证的实现过程,它的参数Authentication里面包含了登录用户所提交的用户、密码等。返回值也是一个Authentication,这个Authentication则是在认证成功后,将用户的权限及其他信息重新组装后生成。
  2. SpringSecurity中维护着一个List列表,存放多种认证方式,不同的认证方式使用不同的AuthenticationProvider。如使用用户名密码登录时,使用AuthenticationProvider1,短信登录时使用AuthenticationProvider2等等这样的例子很多。
  3. supports():满足什么样的身份信息才进行如上认证
    1. 每个AuthenticationProvider需要实现supports()方法来表明自己支持的认证方式,如我们使用表单方式认证,在提交请求时SpringSecurity会生成UsernamePasswordAuthenticationToken,它是一个Authentication,里面封装着用户提交的用户名、密码信息。
  4. 可以自己实现AuthenticationProvider接口来自定义认证

6.1、实现类

  1. DaoAuthenticationProvider:从数据库中读取用户信息验证身份
  2. AnonymousAuthenticationProvider:匿名用户身份认证
  3. RememberMeAuthenticationProvider:已存cookie中的用户信息身份认证
  4. AuthByAdapterProvider:使用容器的适配器验证身份
  5. CasAuthenticationProvider:根据Yale中心认证服务验证身份,用于实现单点登陆
  6. JaasAuthenticationProvider:从JASS登陆配置中获取用户信息验证身份
  7. RemoteAuthenticationProvider:根据远程服务验证用户身份
  8. RunAsImplAuthenticationProvider:对身份已被管理器替换的用户进行验证
  9. X509AuthenticationProvider:从X509认证中获取用户信息验证身份
  10. TestingAuthenticationProvider:单元测试时使用

6.2、DaoAuthenticationProvider源码

public class DaoAuthenticationProvider extends AbstractUserDetailsAuthenticationProvider {
	//密码加解密算法
	private PasswordEncoder passwordEncoder;
	//用户信息dao
	private UserDetailsService userDetailsService;

	//检查用户名和密码是否匹配
	protected void additionalAuthenticationChecks(UserDetails userDetails,
			UsernamePasswordAuthenticationToken authentication)
			throws AuthenticationException {
		if(authentication.getCredentials()== null){
			throw new BadCredentialsException(messages.getMessage(
					"AbstractUserDetailsAuthenticationProvider.badCredentials",
					"Bad credentials"));
		}
		//用户提交的密码凭证
		String presentedPassword = authentication.getCredentials().toString();
		//比较两个密码
		if(!passwordEncoder.matches(presentedPassword, userDetails.getPassword())){
				throw new BadCredentialsException(messages.getMessage(
					"AbstractUserDetailsAuthenticationProvider.badCredentials",
					"Bad credentials"));
		}
	}


	//获取用户信息
	protected final UserDetails retrieveUser(String username,
			UsernamePasswordAuthenticationToken authentication)
			throws AuthenticationException {
			UserDetails loadedUser = this.getUserDetailsService().loadUserByUsername(username);
	}
}

7、SecurityContext

public interface SecurityContext extends Serializable {
	Authentication getAuthentication();

	void setAuthentication(Authentication var1);
}
  1. 安全上下文
  2. getAuthentication():获取上下文

8、总结

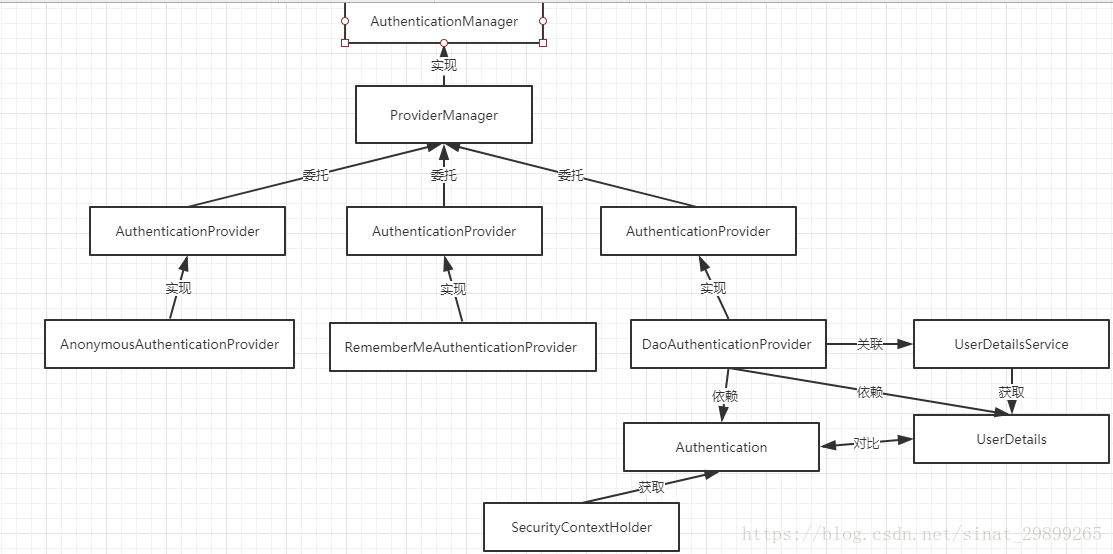

8.1、uml图

在这里插入图片描述

8.2、整个认证过程

在这里插入图片描述
