根据淘宝2016年的数据分析，淘宝卖家已经达到900多万，有上十亿的商品。每一个商品有包括大量的图片和文字(平均：15k)，粗略估计下，数据所占的存储空间在1PB 以上，如果使用单块容量为1T容量的磁盘来保存数据，那么也需要1024 x 1024 块磁盘来保存.
思考？ 这么大的数据量，应该怎么保存呢？就保存在普通的单个文件中或单台服务器中吗？显然是不可行的。
淘宝针对海量非结构化数据存储设计出了的一款分布式系统,叫TFS,它构筑在普通的Linux机器集群上,可为外部提供高可靠和高并发的存储访问。
以block文件的形式存放数据文件(一般64M一个block),以下简称为“块”，每个块都有唯一的一个整数编号，块在使用之前所用到的存储空间都会预先分配和初始化。

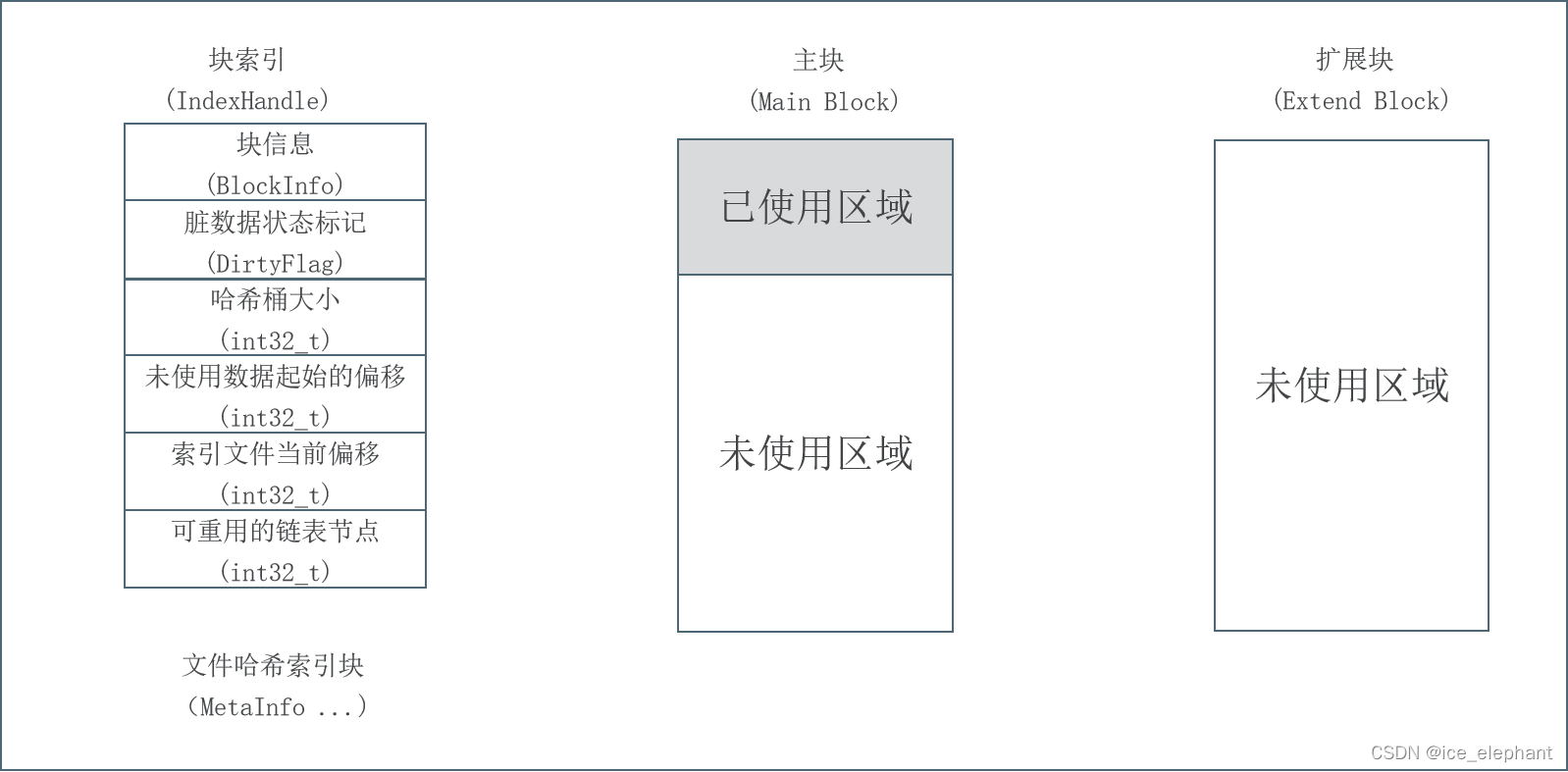

每一个块由一个索引文件、一个主块文件和若干个扩展块组成，“小文件”主要存放在主块中，扩展块主要用来存放溢出的数据。
每个索引文件存放对应的块信息和“小文件”索引信息，索引文件会在服务启动是映射（mmap）到内存，以便极大的提高文件检索速度。“小文件”索引信息采用在索引文件中的数据结构哈希链表来实现。
每个文件有对应的文件编号，文件编号从1开始编号，依次递增，同时作为哈希查找算法的Key 来定位“小文件”在主块和扩展块中的偏移量。文件编号+块编号按某种算法可得到“小文件”对应的文件名。

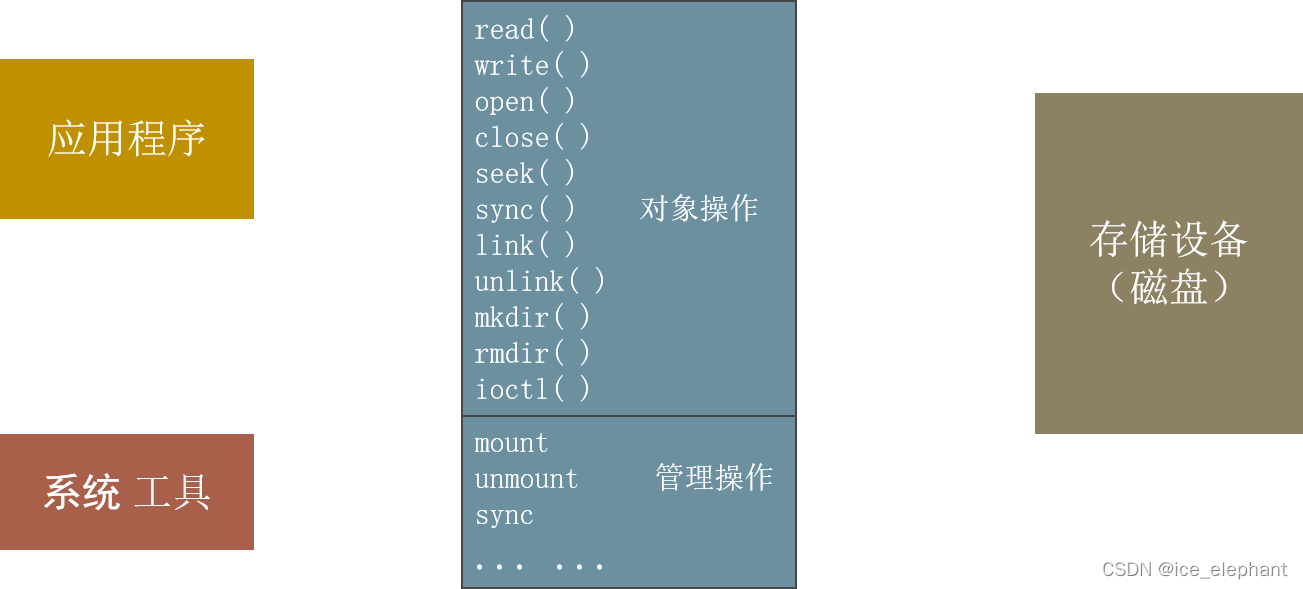

文件系统是一种把数据组织成文件和目录方式，提供基于文件的存取接口，并通过权限控制。

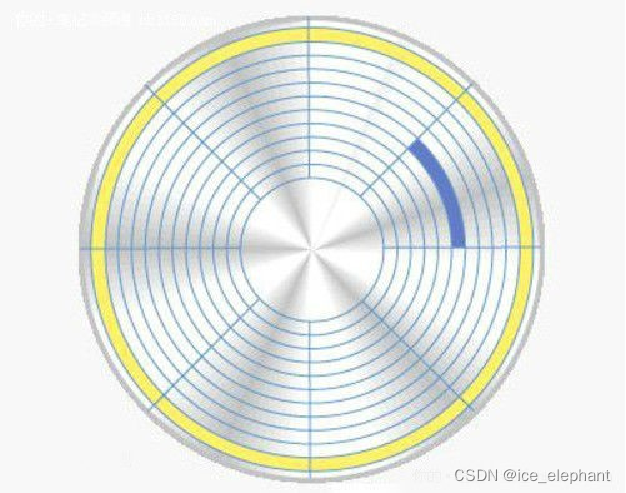

磁盘读写的最小单位就是扇区，一般每个扇区是 512 字节(相当于0.5KB);

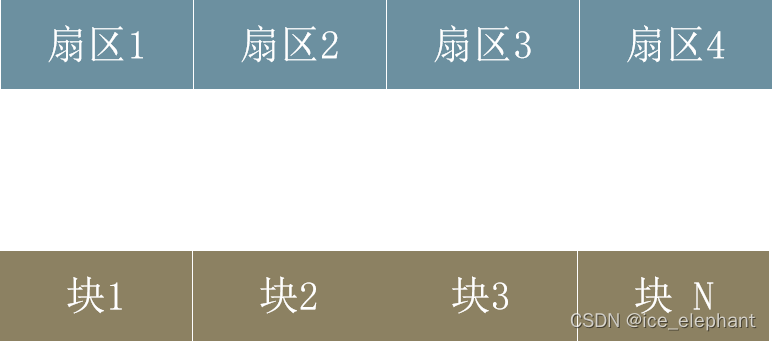

文件的基本单位块 － 文件存取的最小单位。"块"的大小，最常见的是4KB，即连续八个 sector组成一个 block。
在 Linux 系统中可以用 stat 查看文件相关信息

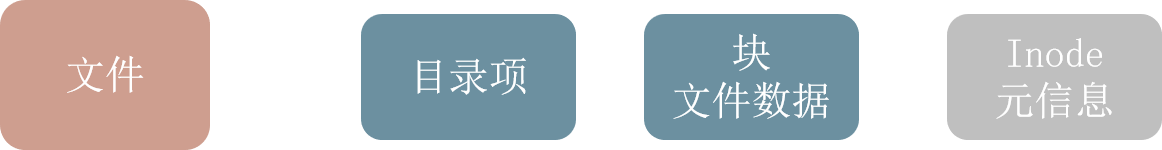

目录项区:存放目录下文件的列表信息
文件数据: 存放文件数据
inode区:（inode table） - 存放inode所包含的信息
inode - “索引节点”,储存文件的元信息，比如文件的创建者、文件的创建日期、文件的大小等等。每个inode都有一个号码，操作系统用inode号码来识别不同的文件。ls -i 查看inode 号
inode节点大小 - 一般是128字节或256字节。inode节点的总数，格式化时就给定，一般是每1KB或每2KB就设置一个inode。一块1GB的硬盘中，每1KB就设置一个inode，那么inode table的大小就会达到128MB，占整块硬盘的12.8%。
以block文件的形式存放数据文件(一般64M一个block),以下简称为“块”，每个块都有唯一的一个整数编号，块在使用之前所用到的存储空间都会预先分配和初始化。
每一个块由一个索引文件、一个主块文件和若干个扩展块组成，“小文件”主要存放在主块中，扩展块主要用来存放溢出的数据。
每个索引文件存放对应的块信息和“小文件”索引信息，索引文件会在服务启动是映射（mmap）到内存，以便极大的提高文件检索速度。“小文件”索引信息采用在索引文件中的数据结构哈希链表来实现。
每个文件有对应的文件编号，文件编号从1开始编号，依次递增，同时作为哈希查找算法的Key 来定位“小文件”在主块和扩展块中的偏移量。文件编号+块编号按某种算法可得到“小文件”对应的文件名。
文件映射类
#ifndef MY_LARGE_FILE_H
#define MY_LARGE_FILE_H
#include "Common.h"
#define DEBUG 1
//代码组织有层次
namespace xiaozhu {
namespace largefile {
struct MMapOption
{
int32_t max_mmap_size_; //最大内存
int32_t first_mmap_size_; //第一次分配的内存
int32_t per_mmap_size_; //每次每块分配的内存
};
class MMapfile {
public:
MMapfile();
explicit MMapfile(const int fd); //必须显示构造
MMapfile(const MMapOption & mmap_option, const int fd);
~MMapfile();
//同步文件，调用这个立即将内存同步到磁盘
bool sync_file();//同步
bool map_file(const bool write = false);//文件映射到内存同时设置访问权限
void* get_data() const; //获取映射到内存的首地址
int32_t get_size()const; //映射内容
bool munmap_file(); //解除映射
bool remap_file(); //重新映射
private:
bool ensure_file_size(const int32_t size); // 扩容
private:
int32_t size_;
int fd_;
void* data_;
struct MMapOption mmap_file_option_;
};
}
}
#endif
#include "mmap_file.h"
#include <sys/mman.h>
#include <memory>
#include <errno.h>
#include <string.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <unistd.h>
namespace xiaozhu {
namespace largefile {
MMapfile::MMapfile():size_(0),data_(nullptr),fd_(0){
}
MMapfile::MMapfile(const int fd) : fd_(fd),data_(nullptr),size_(0) {
}
MMapfile::MMapfile(const struct MMapOption& mmap_option, const int fd):fd_(fd),data_(nullptr),size_(0) {
mmap_file_option_.first_mmap_size_ = mmap_option.first_mmap_size_;
mmap_file_option_.max_mmap_size_ = mmap_option.max_mmap_size_;
mmap_file_option_.per_mmap_size_ = mmap_option.per_mmap_size_;
}
MMapfile::~MMapfile() {
if (data_) {
if (DEBUG) printf("mmap file desruct,fd: %d,mmap_size:%d,data:%p\n", fd_, size_, data_);
//同步
msync(data_, size_, MS_SYNC); //属性三设置为同步
munmap(data_, size_);
size_ = 0;
data_ = nullptr;
fd_ = -1;
memset(&mmap_file_option_,'0',sizeof(mmap_file_option_));
}
}
bool MMapfile::sync_file() {
if (!data_ && size_ > 0) return msync(data_, size_, MS_ASYNC) == 0; // 使用异步
//没有同步直接返回
return true;
}
bool MMapfile::map_file(const bool write) {//执行映射
int flags = PROT_READ;
if (write) {
flags |= PROT_WRITE;
}
if (fd_ < 0) {
return false;
}
if (0 == mmap_file_option_.max_mmap_size_) {
return false;
}
if (size_ < mmap_file_option_.max_mmap_size_) {
size_ = mmap_file_option_.first_mmap_size_;
}else {
size_ = mmap_file_option_.max_mmap_size_;
}
if (!ensure_file_size(size_)) {
fprintf(stderr, "ensure file size failed in mmap_file,size :%d\n", size_);
return false;
}
data_ = mmap(0, size_, flags, MAP_SHARED, fd_, 0);
if (data_ == MAP_FAILED) {
fprintf(stderr, "mmap file failed :%s\n",strerror(errno));
size_ = 0;
fd_ = -1;
data_ = nullptr;
return false;
}
if (DEBUG) printf("mmap file successful,fd :%d mmaped size:%d data_:%p\n", fd_, size_, data_);
return true;
}
void* MMapfile::get_data()const {
return data_;
}
int32_t MMapfile::get_size() const{
return size_;
}
bool MMapfile::munmap_file() {
if (munmap(data_, size_) == 0) {
return true;
}
else {
return false;
}
}
//文件扩容
bool MMapfile::ensure_file_size(const int32_t size) {
//扩容
struct stat s;
if (fstat(fd_, &s) < 0) {
fprintf(stderr, "fstat error,error desc :%s\n", strerror(errno));
return false;
}
if (s.st_size < size) { //小于 指定的大小
if (ftruncate(fd_, size) < 0) {
fprintf(stderr, "fruncate error, size:%d,error desc:%s\n",size_,strerror(errno));
return false;
}
}
return true;
}
bool MMapfile::remap_file() {//重新映射
//什么时候要重新映射 当改变这个文件装载的大小的时候肯定要重新映射一次
//增加的内存还是
if (fd_ == 0 || !data_) {
fprintf(stderr, "mmremap not mapped yet\n");
return false;
}
if (size_ == mmap_file_option_.max_mmap_size_) {
fprintf(stderr, "hava been remap max_size :%d\n",size_);
return false;
}
int32_t new_size = mmap_file_option_.per_mmap_size_ + size_;
if (new_size > mmap_file_option_.max_mmap_size_) {
fprintf(stderr,"new size is so length\n");
return false;
}
if (!ensure_file_size(new_size)) {
fprintf(stderr, "mremap failed becase ensure_file_size\n");
return false;
}
if (DEBUG) printf("mremap start fd:%d ,now size_ :%d,new_size:%d data:%p\n", fd_, size_, new_size, data_);
//重新映射
void* m_remap = mremap(data_, size_, new_size, MREMAP_MAYMOVE);
if(m_remap == MAP_FAILED) {
fprintf(stderr, "mremap failed\n", strerror(errno));
return false;
}
if (DEBUG) printf("mremap success fd:%d ,now size_ :%d,new_size:%d data:%p\n", fd_, size_, new_size, data_);
// mmap_file_option_.per_mmap_size_ = size_;
data_ = m_remap;
size_ = new_size;
return true;
}
}
}
文件操作类
#ifndef FILE_OP_H
#define FILE_OP_H
#include "Common.h"
namespace xiaozhu {
namespace largefile {
class FileOperation {
public:
FileOperation(const std::string &file_Name,const int open_flags = O_RDWR |O_LARGEFILE);
~FileOperation();
int open_file();
void close_file();
int flush_file();//文件立即写入到磁盘 1行代码引起的血案
//带精细化的读写
int pread_file(char* buf, const int32_t nbytes,int64_t offset);
int pwrite_file(char* buf, const int32_t nbytes, int64_t offset);
int write_file(char* buf, const int32_t nbytes);
//int read_file(char* buf, const int32_t nbytes);
int64_t get_file_size();
int unlink_file();//删除文件
int ftruncate_file(const int64_t length);
int seek_file(const int64_t offset);
int get_fd() { return fd_; }
protected:
int fd_;
char* filename_;
int open_flags_;
protected:
static const mode_t OPEN_MODE = 0644;
static const int MAX_DISK_TIMES = 5;//磁盘最大读取次数
protected:
int check_file();
};
}
}
#endif
#include "file_op.h"
namespace xiaozhu {
namespace largefile {
FileOperation::FileOperation(const std::string& file_Name, const int open_flags):fd_(-1), open_flags_(open_flags)
{
filename_ = strdup(file_Name.c_str());//字符串复制
}
FileOperation::~FileOperation()
{
if (fd_ > 0) {
::close(fd_);
}
if (!filename_) free(filename_); filename_ = nullptr;
}
int FileOperation::open_file() {
if (fd_ > 0) {
close(fd_);
fd_ = -1;
}
fd_ = ::open(filename_, open_flags_, OPEN_MODE);
return fd_;
}
void FileOperation::close_file() {
if (fd_ < 0) {
return;
}
close(fd_);
fd_ = -1;
}
int FileOperation::check_file()
{
if (fd_ < 0) {
fd_ = open_file();
}
return fd_;
}
int64_t FileOperation::get_file_size() {
int fd = check_file();
struct stat statbuf;
if (!fstat(fd,&statbuf) != 0) {
return -1;
}
return statbuf.st_size();
}
int FileOperation::ftruncate_file(const int64_t length) {
int fd = check_file();
if (fd < 0) {
return fd;
}
return ftruncate(fd, length);
}
int FileOperation::seek_file(const int64_t offset) {
int fd = check_file();
if (fd < 0) {
return fd;
}
return lseek(fd, offset,SEEK_SET);
}
int FileOperation::flush_file() {
if (open_flags_ & O_SYNC) {
//如果是同步操作的话直接返回就不用主动映射了
return 0;
}
int fd = check_file();
if (fd < 0) {
return fd;
}
return fsync(fd); //缓冲区写入磁盘
}
//读数据
int FileOperation::pread_file(char* buf, const int32_t nbytes, int64_t offset)
{
//从 offset 开始读写nbytes个字节
if (nbytes < 0) return 0;
//int total_read = 0;
int need_read = nbytes;
int cur_offset = offset;
char* tmp_buf = buf;
int i = 0;
while (need_read > 0) {
if (i >= MAX_DISK_TIMES) {
break;
}
if (check_file() < 0) {
return -errno;
}
int readlen = pread64(fd_, tmp_buf, need_read, cur_offset);
if (readlen < 0) {
readlen = errno;
if (-readlen == EINTR || -readlen == EAGAIN) {
continue;
}
else if (EBADF == -readlen) {
fd_ = -1;
continue;
}
else {
continue;
}
}
else if (readlen == 0) {
break;
}
else {
need_read -= readlen; //还需要读这么多
//total_read += readlen; //总共读了这么多
tmp_buf += readlen;
cur_offset += readlen; //当前读写的情况
}
//还有什么情况呢 ?
}
if (need_read != 0 ) {
return xiaozhu::largefile::EXIT_DISK_OPER_INCOMPLETE;
}
return xiaozhu::largefile::TFS_SUCCESS;
}
int FileOperation::pwrite_file(char *buf,const int32_t nbytes,int64_t offset) {
//从 offset 开始读写nbytes个字节
if (nbytes < 0) return 0;
//int total_read = 0;
int need_write = nbytes; //需要读这么多个字节 friends ok is well none of us
int cur_offset = offset;
char* tmp_buf = buf;
int i = 0;
while (need_write > 0) {
if (i >= MAX_DISK_TIMES) {
break;
}
if (check_file() < 0) {
return -errno;
}
int writelen = ::pwrite64(fd_, tmp_buf, need_write, cur_offset);
if (writelen < 0) {
writelen = errno;
if (-writelen == EINTR || -writelen == EAGAIN) {
continue;
}
else if (EBADF == -writelen) {
fd_ = -1;
continue;
}
else {
continue;
}
}
else if (writelen == 0) {
break;
}
else {
need_write -= writelen; //还需要读这么多
tmp_buf += writelen; //总共读了这么多
cur_offset += writelen; //当前读写的情况
}
//还有什么情况呢 ?
}
if (need_write != 0) {
return xiaozhu::largefile::EXIT_DISK_OPER_INCOMPLETE;
}
return xiaozhu::largefile::TFS_SUCCESS;
}
//写文件
int FileOperation::write_file(char* buf, const int32_t nbytes)
{
return 0; //不指定偏移来写
int needwrite = nbytes;
char* tmp_buf = buf;
int i = 0;
while (needwrite > 0) {
if (i >= MAX_DISK_TIMES) {
break;
}
++i;
if (check_file() < 0) {
return -errno;
}
int write_len = ::write(fd_, tmp_buf, needwrite);
if (write_len < 0) {
write_len = -errno;
if (-write_len == EINTR || -write_len == EAGAIN) {
continue;
}
else if (EBADF == -write_len) {
fd_ = -1;
return write_len;
}
else {
continue;
}
//快速实现
}
needwrite -= write_len;
tmp_buf += write_len; //bug 指针的移动
}
if (needwrite != 0) {
return xiaozhu::largefile::EXIT_DISK_OPER_INCOMPLETE;
}
return xiaozhu::largefile::TFS_SUCCESS;
}
int FileOperation::unlink_file() {
close_file();
return unlink(filename_);
}
}
}

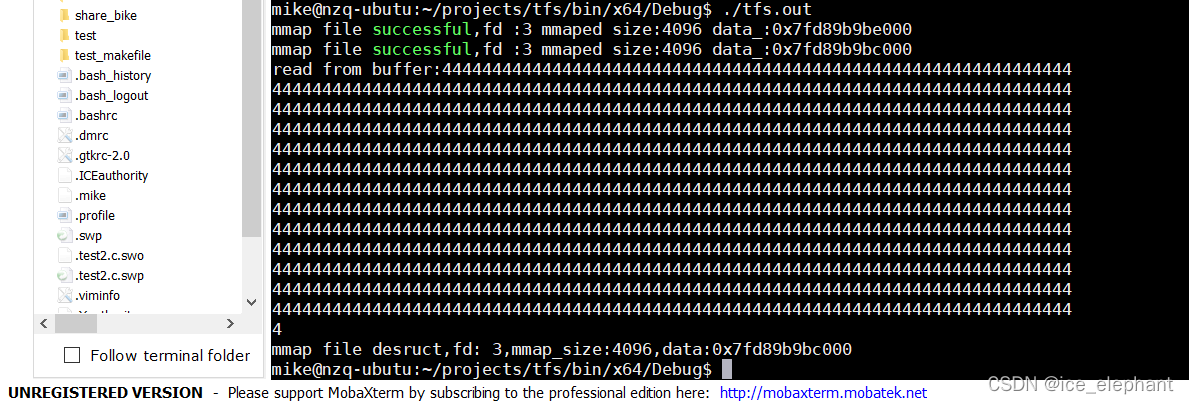

单元测试
#include "mmap_file_op.h"
using namespace xiaozhu;
using namespace largefile;
largefile::MMapOption map_option = { 1024 * 1000,4096,4096 };
int main(void) {
const char* file_Name = "./test.txt";
char write_buffer[1024 + 1];
char read_buffer[1024 + 1];
MMapFileOperation* mpt = new MMapFileOperation(file_Name);
int ret = mpt->mmap_file(map_option);
int fd = mpt->open_file();
if (fd < 0) {
fprintf(stderr, "file is not open !\n");
exit(-1);
}
write_buffer[1024] = '\0';
if (ret == largefile::TFS_EEROR) {
fprintf(stderr, "largefile::TFS_ERROR mmap_file failed\n");
exit(-1);
}
memset(write_buffer, '4', 1024);
//写进去
ret = mpt->pwrite_file(write_buffer, 1024, 0);
if (ret == largefile::TFS_EEROR) {
fprintf(stderr, "largefile::TFS_EEROR pwrite_file failed\n");
exit(-1);
}
ret = mpt->pread_file(read_buffer, 1024, 0);
if (ret == largefile::TFS_EEROR) {
fprintf(stderr, "largefile::failed pread_file failed\n");
exit(-1);
}
read_buffer[1024] = '\0';
printf("read from buffer:%s\n", read_buffer);
ret = mpt->flush_file();
if (ret == largefile::TFS_EEROR) {
fprintf(stderr, "largefile::TFS_ERROR flush_file failed\n");
exit(-1);
}
ret = mpt->mumap_file();
mpt->close_file();
return 0;
}

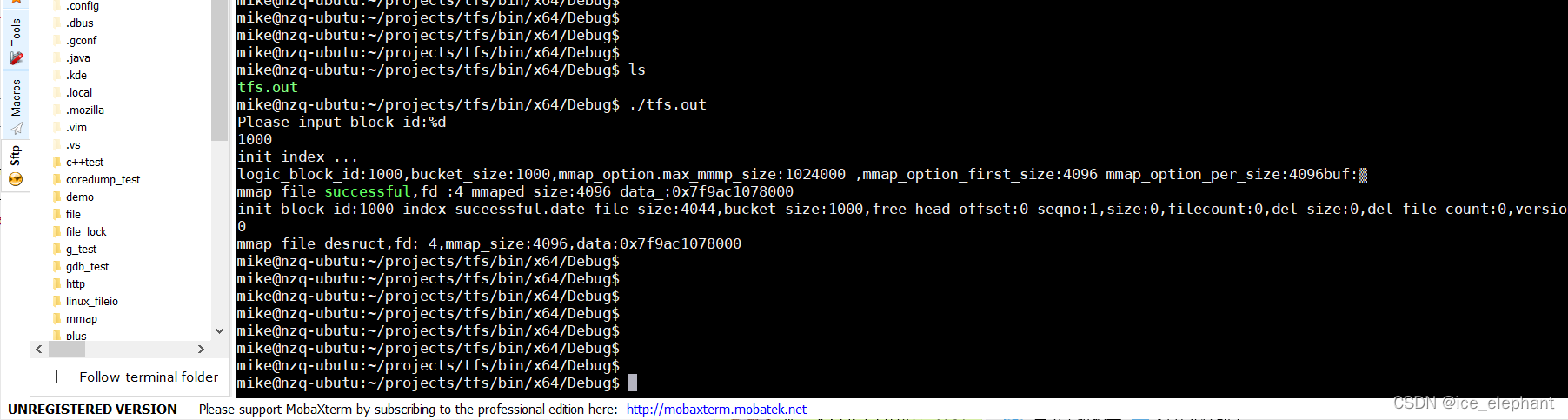

测试结果:
第四次单元测试
##main_index_init_test.cpp
#include "indexHandle.h"
#include "Common.h"
#include "file_op.h"
#include <string>
#include <sstream>
#include <iostream>
static int debug = 1;
using namespace std;
using namespace xiaozhu;
const static largefile::MMapOption map_option = { 1024 * 1000,4096,4096 };//内存映射参数
const static int32_t bucket_size = 1000;
const static int32_t main_blocksize = 1024 * 1024 * 64;
static int32_t block_id = 1;
int main(int argc, char** argv) {
std::string mainbock_path;
std::string index_path;
std::cout << "Please input block id:%d\n";
cin >> block_id;
if (block_id < 0) {
cerr << "Invalid blockid. exit" << endl;
exit(-1);
}
std::stringstream tmp_stream;
tmp_stream << "." << largefile::MAINBLOCK_DIR_PREFIX << block_id;
tmp_stream >> mainbock_path;
largefile::FileOperation* mainblock = new largefile::FileOperation(mainbock_path, O_CREAT | O_RDWR | O_LARGEFILE);
int ret = mainblock->ftruncate_file(main_blocksize);
if (ret != 0) {
fprintf(stderr, "create main_block failed. reason :%s\n", mainbock_path.c_str());
exit(-2);
}
//创建索引文件;
largefile::IndexHandle* index_handle = new largefile::IndexHandle(".", block_id);
if (debug) printf("init index ...\n");
//if(index_handle->)
ret = index_handle->create(block_id, bucket_size, map_option);
if (ret != largefile::TFS_SUCCESS) {
fprintf(stderr, "create index %d failed\n", block_id);
exit(-3);
}
//mainblock->flush_file();
//index_handle->
delete mainblock;
delete index_handle;
return 0;
}
添加 删除、写模块后的头文件 :index_handle.h
在这里插入代码片
写入块，int IndexHandle::write_segment_meta(const uint64_t key, Meltainfo& meta)
#ifndef HANDLE_INDEX_H
#define HANDLE_INDEX_H
#include "Common.h"
#include "mmap_file_op.h"
namespace xiaozhu {
namespace largefile {
struct IndexHeader {
public:
IndexHeader()
{
memset(this, 0, sizeof(IndexHeader));
}
BlockInfo block_info_;
int32_t bucket_size_;
int32_t data_offset_;//指向主块的 也代表数据大小
int32_t index_file_size_; //以空间换时间 index_header + all
int32_t free_head_offset_;
};
class IndexHandle {
public :
IndexHandle(const std::string& base_path, const uint32_t main_block_id);
~IndexHandle();
int create(const uint32_t logic_block_id,const int32_t bucket_size,const MMapOption map_option);//哈希桶的大小
int load(const uint32_t logic_block_id, const int32_t bucket_size, const MMapOption map_option);
//remove unlink
int remove(const uint32_t logic_block_id);
int flush();
void commit_block_offset_data(const int file_size) const{
reinterpret_cast<IndexHeader*>(file_op_->get_map_data())->data_offset_ += file_size;
}
int updata_block_info(const OperType oper_type,const uint32_t modify_size);
IndexHeader* index_header() {
return reinterpret_cast< IndexHeader* >(file_op_->get_map_data());
}
BlockInfo* block_info() {
return reinterpret_cast<BlockInfo*>(file_op_->get_map_data());
}
int32_t bucket_sizes()const{
return reinterpret_cast<IndexHeader*>(file_op_->get_map_data())->bucket_size_; //等于bucket_size();
}
int32_t get_block_data_offset()const{
return reinterpret_cast<IndexHeader*>(file_op_->get_map_data())->data_offset_;
}
int32_t free_head_offset() {
return reinterpret_cast<IndexHeader*>(file_op_->get_map_data())->free_head_offset_;
}
int32_t* bucket_slot() {
return reinterpret_cast<int32_t*>(reinterpret_cast<char*> (file_op_->get_map_data())+ sizeof(IndexHeader));
}
int write_segment_meta(const uint64_t key,Meltainfo &meta);
int read_sengment_meta(const uint64_t key, Meltainfo& meta);
int32_t delete_segment_meta(const uint64_t key);
int hash_find(const uint64_t key, int32_t& current_offset, int32_t& previous_offset);
int32_t hash_insert(const uint64_t key,int32_t previous,Meltainfo &meta);
private:
MMapFileOperation* file_op_;
bool is_load_;
bool hash_compare(int64_t left,int64_t right);
};
}
}
#endif
单元测试
#include "indexHandle.h"
#include "Common.h"
#include "file_op.h"
#include <string>
#include <sstream>
#include <iostream>
static int debug = 1;
using namespace std;
using namespace xiaozhu;
const static largefile::MMapOption map_option = { 1024 * 1000,4096,4096 };//内存映射参数
const static int32_t bucket_size = 1000;
const static int32_t main_blocksize = 1024 * 1024 * 64;
static int32_t block_id = 1;
int mains(int argc, char** argv) {
std::string mainbock_path;
std::string index_path;
std::cout << "Please input block id:%d\n";
cin >> block_id;
if (block_id < 0) {
cerr << "Invalid blockid. exit" << endl;
exit(-1);
}
int ret;
//创建索引文件;
//if(index_handle->)
largefile::IndexHandle* index_handle = new largefile::IndexHandle(".", block_id);
//if (debug) printf("create index...\n");
//ret = index_handle->create(block_id, bucket_size, map_option);
//if (ret != largefile::TFS_SUCCESS) {
// fprintf(stderr, "create index %d failed\n", block_id);
// exit(-3);
//}
if (debug) printf("load index ...\n");
//if(index_handle->)
ret = index_handle->load(block_id, bucket_size, map_option);
if (ret != largefile::TFS_SUCCESS) {
fprintf(stderr, "load index %d failed\n", block_id);
exit(-2);
}
//把文件写入主块文件
std::stringstream tmp_stream;
tmp_stream << "." << largefile::MAINBLOCK_DIR_PREFIX << block_id;
tmp_stream >> mainbock_path;
//cout << "mainblock_path:" << mainbock_path << endl;
largefile::FileOperation* mainblock = new largefile::FileOperation(mainbock_path, O_CREAT | O_RDWR | O_LARGEFILE);
mainblock->ftruncate_file(main_blocksize);
char buffer[4096];
memset(buffer, '3', sizeof(buffer));
buffer[4095] = '\0';
int32_t data_offset = index_handle->get_block_data_offset();
uint32_t file_no = index_handle->block_info()->seq_no_;
ret = mainblock->pwrite_file(buffer, sizeof(buffer), data_offset);
if (ret != largefile::TFS_SUCCESS) {
fprintf(stderr, "wrtite to main blcok faield. reason:%s\n", strerror(errno));
delete mainblock;
delete index_handle;
return ret;
}
//写入 metainfo
largefile::Meltainfo meta;
meta.set_filed(file_no);
meta.set_offset(data_offset);
meta.set_size(sizeof(buffer));
//meta.set_key(block_id);
ret = index_handle->write_segment_meta(meta.get_key(), meta);
//index_handle->index_header()->data_offset_;
if (ret == largefile::TFS_SUCCESS) {
index_handle->commit_block_offset_data(sizeof(buffer));
//跟新索引信息
index_handle->updata_block_info(largefile::C_OPER_INSERT, sizeof(buffer));
ret = index_handle->flush();
if (ret != largefile::TFS_SUCCESS) {
fprintf(stderr, "flush mainblock %d.file no :%u", block_id, file_no);
}
}
else {
fprintf(stderr, "write_segment_meta mainblock %d.file no :%u", block_id, file_no);
}
if (ret != largefile::TFS_SUCCESS)
{//写失败了
fprintf(stderr, "write to mainblock:%d fail.file no:%\n", block_id, file_no);
}
else {
printf("write successfully.file no:%u block id:%d\n", file_no, block_id);
}
//index_handle->flush();
mainblock->close_file();
delete mainblock;
delete index_handle;
return 0;
}
添加后的 indexhandle.cpp
#include "indexHandle.h"
#include <sstream>
namespace xiaozhu {
namespace largefile {
IndexHandle::IndexHandle(const std::string& base_path, const uint32_t main_block_id) {
//创建 file_op_
std::stringstream tmp_stream;
tmp_stream << base_path << INDEX_DIR_PREFIX << main_block_id;
std::string index_path;
tmp_stream >> index_path;
file_op_ = new MMapFileOperation(index_path, O_CREAT | O_RDWR | O_LARGEFILE);
is_load_ = false;
}
IndexHandle::~IndexHandle()
{
if (file_op_) {
delete file_op_;
file_op_ = nullptr;
}
}
int IndexHandle::create(const uint32_t logic_block_id, const int32_t bucket_size, const MMapOption map_option)
{
int ret;
if (DEBUG) {
printf("logic_block_id:%u,bucket_size:%d,mmap_option.max_mmmp_size:%d ,mmap_option_first_size:%d mmap_option_per_size:%d", logic_block_id, bucket_size, map_option.max_mmap_size_, map_option.per_mmap_size_
, map_option.per_mmap_size_);
}
if (is_load_) {
return xiaozhu::largefile::EXIT_INDEX_ALREADY_LOAD;
}
//printf("43\n");
int64_t file_size = file_op_->get_file_size();
//printf("46\n");
if (file_size < 0) {
return TFS_EEROR;
}
else if (file_size == 0) {
//索引头部
IndexHeader i_header;
i_header.block_info_.block_id_ = logic_block_id;
i_header.block_info_.seq_no_ = 1;
i_header.bucket_size_ = bucket_size; //桶子的个数
i_header.index_file_size_ = sizeof(IndexHeader) + bucket_size * sizeof(int32_t);
char* init_data = new char[i_header.index_file_size_];
memcpy(init_data, &i_header, sizeof(IndexHeader));
memset(init_data + sizeof(IndexHeader), 0, i_header.index_file_size_ - sizeof(IndexHeader));
ret = file_op_->pwrite_file(init_data, i_header.index_file_size_, 0);
delete [] init_data;
init_data = nullptr;
if (ret != largefile::TFS_SUCCESS) {
return ret;
}
ret = file_op_->flush_file();
if (ret != largefile::TFS_SUCCESS) {
return ret;
}
}
else {
return largefile::EXIT_META_UNEXPECT_FOUND_ERROR;
}
ret = file_op_->mmap_file(map_option);
printf("87\n");
printf("bucket_size():%u,index_headr bucket_size():%u\n",bucket_sizes(),index_header()->bucket_size_);
printf("91\n");
if (ret != largefile::TFS_SUCCESS) {
return ret;
}
is_load_ = true;
if (DEBUG) {
printf("init block_id:%d index suceessful.date file size:%d,bucket_size:%d,free head offset:%d seqno:%d,size:%d,filecount:%d,del_size:%d,del_file_count:%d,version:%d\n",
logic_block_id, index_header()->index_file_size_,
index_header()->bucket_size_, index_header()->free_head_offset_, block_info()->seq_no_, block_info()->size_,
block_info()->file_count_, block_info()->del_size_, block_info()->del_file_count_, block_info()->version_);
}
return ret;
}
int IndexHandle::load(const uint32_t logic_block_id, const int32_t bucket_size, const MMapOption map_option)
{
int ret = largefile::TFS_SUCCESS;
if (is_load_) {
printf("EXIT_INDEX_ALREADY_LOAD \n");
return EXIT_INDEX_ALREADY_LOAD;
}
int64_t file_size = file_op_->get_file_size();
if (file_size < 0)
{
return file_size;
}
else if (file_size == 0) {
printf("file_size equal zero\n");
return EXIT_INDEX_CORRUPT_EEROR;
}
MMapOption tmp_option = map_option;
// if this conditional how to solve it ?
if (tmp_option.first_mmap_size_ < file_op_->get_file_size() && file_op_->get_file_size() <= map_option.max_mmap_size_)
{
tmp_option.first_mmap_size_ = file_size;
}
ret = file_op_->mmap_file(tmp_option);
if (ret != TFS_SUCCESS) {
return ret;
}
//printf("bucket_size():%u,index_headr bucket_size():%u\n", bucket_sizes(), index_header()->bucket_size_);
if (0 == block_info()->block_id_ || 0 == (bucket_sizes())) {
fprintf(stderr, "index corrupt. blockid:%u,bucket_size:%d\n", block_info()->block_id_, index_header()->bucket_size_);
return EXIT_INDEX_CORRUPT_EEROR;
}
int index_file_size = sizeof(IndexHeader) + bucket_sizes() * sizeof(int32_t);
if (file_size < index_file_size) {
fprintf(stderr, "index size is smaller than file_size_\n");
return EXIT_INDEX_CORRUPT_EEROR;
}
if (logic_block_id != block_info()->block_id_) {
// if (logic_block_id != block_info()->block_id_) {
fprintf(stderr, "block id confilit logic_block_id:%u block_info()->block_id_:%d\n", logic_block_id, block_info()->block_id_);
// }
}
if (bucket_sizes() != bucket_size) {
fprintf(stderr, "bucket_size is not equel bucket_sizes()\n", bucket_sizes(), bucket_size);
}
is_load_ = true;
if (DEBUG) {
printf("init block_id:%d index suceessful.date file size:%d,bucket_size:%d,free head offset:%d seqno:%d,size:%d,filecount:%d,del_size:%d,del_file_count:%d,version:%d\n",
logic_block_id, index_header()->index_file_size_,
index_header()->bucket_size_, index_header()->free_head_offset_, block_info()->seq_no_, block_info()->size_,
block_info()->file_count_, block_info()->del_size_, block_info()->del_file_count_, block_info()->version_);
}
return TFS_SUCCESS;
}
int IndexHandle::remove(const uint32_t logic_block_id)
{
if (logic_block_id != block_info()->block_id_) {
fprintf(stderr, "logic_block_id:%u is not equel file savaed block_id_:%u",
logic_block_id, block_info()->block_id_);
}
//
int ret = file_op_->mumap_file();
if (ret != TFS_SUCCESS) {
return ret;
}
ret = file_op_->unlink_file();
return ret;
}
int IndexHandle::flush()
{
int ret = file_op_->flush_file();
if (ret != largefile::TFS_SUCCESS) {
fprintf(stderr, "index flush fail,ret :%d ,error desc:%s\n", ret, strerror(errno));
}
return ret;
}
int IndexHandle::updata_block_info(const OperType oper_type, const uint32_t modify_size)
{
if (block_info()->block_id_ == 0) {
return EXIT_BLOCK_ID_ZERO_ERROR;
}
else if (oper_type == OperType::C_OPER_INSERT) {
++block_info()->file_count_;
++block_info()->version_;
++block_info()->seq_no_;
block_info()->size_ += modify_size;
}
else if (oper_type == OperType::C_OPER_DELET) {
--block_info()->file_count_;
++block_info()->version_;
block_info()->seq_no_;
block_info()->size_ -= modify_size;
++block_info()->del_file_count_;
block_info()->del_size_ += modify_size;
}
if (DEBUG) {
printf("update blockinfo()\n");
printf("init block_id:%d index suceessful.data_offset_:%d,bucket_size:%d,free head offset:%d seqno:%d,size:%d,filecount:%d,del_size:%d,del_file_count:%d,version:%d oper_type:%d\n",
block_info()->block_id_, index_header()->data_offset_,
index_header()->bucket_size_, index_header()->free_head_offset_, block_info()->seq_no_, block_info()->size_,
block_info()->file_count_, block_info()->del_size_, block_info()->del_file_count_, block_info()->version_, oper_type);
}
return TFS_SUCCESS;
}
//怎么写 how to write friends ok yes me know
int IndexHandle::write_segment_meta(const uint64_t key, Meltainfo& meta)
{
int32_t current_offset = 0, previous_offset = 0;
int ret = hash_find(key, current_offset, previous_offset);
//key 存在就不插入了
if (ret == TFS_SUCCESS) {
fprintf(stderr, "TFS_SUCCESS\n");
return EXIT_META_UNEXPECT_FOUND_ERROR;
}
else if (ret != EXIT_META_INFO_IS_NOT_EXIT) {
fprintf(stderr, "EXIT_META_INFO_IS_NOT_EXIT\n");
return ret;
}
ret = hash_insert(key, previous_offset, meta);
return ret;
}
int IndexHandle::read_sengment_meta(const uint64_t key, Meltainfo& meta)
{
int32_t current_offset, previous_offset;
int ret = hash_find(key, current_offset, previous_offset);
if (ret!= TFS_SUCCESS) {
fprintf(stderr,"key is not exit\n");
return largefile::EXIT_META_INFO_IS_NOT_EXIT;
}else {
file_op_->pread_file(reinterpret_cast<char*>(&meta), sizeof(meta), current_offset);
return ret;
}
}
int32_t IndexHandle::delete_segment_meta(const uint64_t key)
{
int32_t current_offset, previous_offset = 0;
int ret = hash_find(key, current_offset, previous_offset);
if (ret != TFS_SUCCESS) {
return ret;
}
Meltainfo meta_info;
ret = file_op_->pread_file(reinterpret_cast<char*>(&meta_info), sizeof(meta_info), current_offset);
if (ret != TFS_SUCCESS) {
return ret;
}
int next_pos = meta_info.get_next_meta_info(); //拿到当前位置的下一个节点
if (previous_offset == 0) {
int32_t slot = static_cast<int32_t>(key) % bucket_sizes();
bucket_slot()[slot] = next_pos; //直接进行一波覆盖
}
else {
Meltainfo pre_meta_info;
ret = file_op_->pread_file(reinterpret_cast<char*>(&pre_meta_info), sizeof(pre_meta_info),previous_offset);
if (TFS_SUCCESS != ret) {
return ret;
}
pre_meta_info.set_next_meta_offset(next_pos);
ret = file_op_->pwrite_file(reinterpret_cast<char*>(&pre_meta_info), sizeof(Meltainfo), previous_offset);
if (TFS_SUCCESS != ret) {
return ret;
}
}
meta_info.set_next_meta_offset(free_head_offset());
ret = file_op_->pwrite_file(reinterpret_cast<char*>(&meta_info), sizeof(Meltainfo),current_offset);
index_header()->free_head_offset_ = current_offset;
updata_block_info(C_OPER_DELET, meta_info.get_size());
if (DEBUG) printf("delete_segment_meta-reuse metalnfo,current_offset:%d\n", current_offset);
return TFS_SUCCESS;
}
int IndexHandle::hash_find(const uint64_t key, int32_t& current_offset, int32_t& previous_offset)
{
current_offset = 0;
previous_offset = 0;
Meltainfo meta;
int ret = TFS_SUCCESS;
//查找
int32_t slot = key % bucket_sizes();
int32_t pos = (int32_t)bucket_slot()[slot]; //得到
//根据偏移量读取存储的 metainfo
for (; pos != 0;) {
ret = file_op_->pread_file(reinterpret_cast<char*>(&meta), sizeof(Meltainfo), pos);
if (ret != TFS_SUCCESS) {
return ret;
}
if (hash_compare(meta.get_key(), key)) {
current_offset = pos;
return TFS_SUCCESS;
}
previous_offset = pos;
pos = meta.get_next_meta_info();
}
return EXIT_META_INFO_IS_NOT_EXIT;
}
int32_t IndexHandle::hash_insert(const uint64_t key, int32_t previous_offset, Meltainfo& meta)
{
int32_t slot = static_cast<uint32_t> (key) % bucket_sizes();//const 类型强转
//printf("slot:%d\n", slot);
int ret;
int current_offset;
Meltainfo tmp_meta;
//确定 metainfo 存储在文件中的偏移量
if (free_head_offset() != 0) {
ret = file_op_->pread_file(reinterpret_cast<char*>(&tmp_meta), sizeof(Meltainfo), free_head_offset());
if (ret != TFS_SUCCESS) {
printf("free_head_offset failed\n");
return ret;
}
current_offset = index_header()->free_head_offset_;
if (DEBUG) printf("reuse metainfo,current_offset:%d \n", current_offset);
index_header()->free_head_offset_ = tmp_meta.get_next_meta_info();
}
else {
current_offset = index_header()->index_file_size_;
index_header()->index_file_size_ += sizeof(Meltainfo);
}
printf("------------------------hash_insert index_header()->index_file_size_:%d--------------------\n", index_header()->index_file_size_);
//第三步将 matainfo 写入索引文件
meta.set_next_meta_offset(0);
ret = file_op_->pwrite_file(reinterpret_cast<char*> (&meta), sizeof(Meltainfo), current_offset);
//拿到上一个mate
if (ret != TFS_SUCCESS) {
index_header()->index_file_size_ -= sizeof(Meltainfo);
return ret;
}
//将 map 节点插入到哈希链表中
if (0 != previous_offset) {
ret = file_op_->pread_file(reinterpret_cast<char*>(&tmp_meta), sizeof(Meltainfo), previous_offset);
if (ret != TFS_SUCCESS) {
index_header()->index_file_size_ -= sizeof(Meltainfo);
return ret;
}
meta.set_next_meta_offset(current_offset);
file_op_->pwrite_file(reinterpret_cast<char*>(&tmp_meta), sizeof(meta), previous_offset);
if (ret != TFS_SUCCESS) {
index_header()->index_file_size_ -= sizeof(Meltainfo);
return ret;
}
}
else {
printf(" index_headr()->index_file_size:%d\n", index_header()->index_file_size_);
printf(",bucket_slot():%d slot:%d\n",bucket_slot()[slot],slot);
bucket_slot()[slot] = current_offset;
}
return TFS_SUCCESS;
}
bool IndexHandle::hash_compare(int64_t left, int64_t right)
{
return left == right ? true : false;
}
}
}
测试读、可重复利用节点的删除 mainblockwrite.cpp
这个淘宝分布式文件系统核心存储引擎项目，从宏观层面理解:就是通过文件来管理文件。这么直接说有点抽象，刚开始我有疑问，为什么要用文件管理文件？操作系统直接来帮我们管理了不好吗？为什么还要自己写一个程序？这是我做这个项目之初的疑问。后来我了解到，因为淘宝的数据量非常的大，如果这些数据都存在磁盘中，cpu 直接访问磁盘的速度是非常慢的，大概是 cpu 访问内存的速度的万分之1 ，然后这么多数据并不能都放在内存中，因为内存的 大小是十分有限的价格昂贵.而造成访问磁盘速度这么慢的原因是，系统在访问文件的时候需要移动这个 “磁头” 这个涉及到一些底层的物理知识，磁头的移动是十分耗时的，但是磁头得帮我们定位到文件，迫不得寻找消耗时间，阿里的大牛们，设计的这个淘宝分布式文件系统，就是不让系统来帮我们找磁盘，我们自己写一个 index 文件专门帮我们来管理文件岂不美哉 ? 这样就可以避免系统帮我们找文件磁盘移动. 这个思想的本质是，以空间来换时间，用价格相对不太昂贵的硬盘的储存空间，来换取文件的访问效率。 淘宝的这种大文件的分布式文件系统在业界堪称是最牛的设计，它的设计十分精巧.
