这是课本里的,两个定理。由先序(根左右)、后序(左右根)可以确定根节点是哪个。由中序(左根右)可以确定左子树和右子树的范围。所以我们也找到了二叉树的左子树和右子树的先序(或后序)和中序排列。由归纳法,可得出这个构造二叉树链表的方法。
对于完全二叉树,相对于满二叉树,只有最后两行可以不排满,是非常接近于满二叉树的,其跟满二叉树一样,父母节点与子节点的层序排列序号有2倍的规律可循。所以可以由完全二叉树的顺序排列构造其链表排列,非完全二叉树,比较稀疏的二叉树要补充至完全二叉树形式,才可以使用顺序存储,比如后两行以上的行中的空节点,以存储字符‘#’代替表示。
本程序包含以下几个函数,程序执行思路是:由函数createBiTreeCommaExpre完成从逗号表达式建立二叉树;由函数displayBiTree输出二叉树的逗号表达式形式到屏幕,以检测建立二叉树的createBiTreeCommaExpre是否正确;由函数totalNumberOfNodes统计二叉树的总节点数。
由函数preOrderRecursion输出二叉树的先序遍历结果至数组,(这里以节点为字符为例,所以遍历结果存储到字符数组里);由函数inOrderRecursion输出二叉树的中序排列结果至数组;由函数postOrderRecursion输出二叉树的后序遍历结果至数组。由函数dispalyArray输出字符数组至屏幕,以检验各种遍历结果是否正确。
由函数buildBiTreePreIn根据二叉树的先序中序遍历结果重新构造新的另一个二叉树;由函数buildBiTreePostIn根据二叉树的后序中序遍历结果重新构造另一个新的二叉树;由函数buildBiTreeSequen根据二叉树的顺序存储结果构造其对应的二叉树;由函数compareBiTree比较这四个二叉树是否完全相等,以确认我们这三个构造函数是否写的正确。由主函数main调用以上所有函数。
完整代码如下,这是主函数main所在的源文件:
#include<iostream>
#include<stdio.h>
using namespace std;
#define MAXARRAY 20
#define STACKDEPTH 15
struct BiTreeNode {
char value;
BiTreeNode* leftChild;
BiTreeNode* rightChild;
};
extern void createBiTreeCommaExpre(BiTreeNode*& biTreeRoot, char* ptChar);
extern void displayBiTree(BiTreeNode*& biTreeRoot);
extern int totalNumberOfNodes(BiTreeNode*& biTreeRoot);
extern void dispalyArray(char array[]);
extern void preOrderRecursion(BiTreeNode*& biTreeRoot, char* &ptArrayPreExp);
extern void inOrderRecursion(BiTreeNode*& biTreeRoot, char* &ptArrayInExp);
extern void postOrderRecursion(BiTreeNode*& biTreeRoot, char* &ptArrayPostExp);
extern BiTreeNode * buildBiTreePreIn(char * ptPreExpre,char* ptInexpre,int length);
extern BiTreeNode * buildBiTreePostIn(char* ptPostExpre, char* ptInexpre, int length);
extern BiTreeNode * buildBiTreeSequen(char* ptSequenExpre,int location);
extern bool compareBiTree(BiTreeNode * &biTreeA, BiTreeNode* &biTreeB);
int main() {
char arrayCommaExpress[MAXARRAY] = "A(B(D(,G)),C(E,F))";
char* ptArrayComma = arrayCommaExpress; //c++里只能这样分开定义,要不会出错。
BiTreeNode* biTreeRoot = NULL;
createBiTreeCommaExpre(biTreeRoot,arrayCommaExpress);
cout << "the char array is :";
dispalyArray(arrayCommaExpress);
cout<< endl<< "binary tree is :";
displayBiTree(biTreeRoot);
int lengthBiTree = totalNumberOfNodes(biTreeRoot);
cout<<endl << "binary tree total nodes : " << lengthBiTree << endl;
char arrayPreExpre[MAXARRAY] = "";
char* ptArrayPreExp = arrayPreExpre;
preOrderRecursion(biTreeRoot,ptArrayPreExp);
cout <<endl<< "pre order expression : ";
dispalyArray(arrayPreExpre);
char arrayInExpre[MAXARRAY] = "";
char* ptArrayInExpre = arrayInExpre;
inOrderRecursion(biTreeRoot,ptArrayInExpre);
cout << endl << "in order expression : ";
dispalyArray(arrayInExpre);
char arrayPostExpre[MAXARRAY] = "";
char* ptArrayPostExpre = arrayPostExpre;
postOrderRecursion(biTreeRoot,ptArrayPostExpre);
cout << endl << "post order expression : ";
dispalyArray(arrayPostExpre);
char arraySequenExpre[MAXARRAY] = "9ABCD#EF#G";
char* ptArraySequenExpre = arraySequenExpre;
cout << endl << "sequential order expression(手工计算的) : ";
dispalyArray(arraySequenExpre);
cout << endl;
BiTreeNode* biTreePreIn = buildBiTreePreIn(arrayPreExpre,
arrayInExpre,lengthBiTree);
BiTreeNode* biTreePostIn = buildBiTreePostIn(arrayPostExpre,
arrayInExpre,lengthBiTree);
BiTreeNode* biTreeSequen = buildBiTreeSequen(arraySequenExpre,1);
cout << endl;
cout << "Succeed in building BiTree according to pre and in expression ? ";
cout << (compareBiTree(biTreeRoot, biTreePreIn) ? "yes" : "no" )<< endl;
displayBiTree(biTreePreIn);
cout << endl;
cout << endl;
cout << "Succeed in building BiTree according to post and in expression ? ";
cout << (compareBiTree(biTreeRoot, biTreePostIn) ? "yes" : "no") << endl;
displayBiTree(biTreePostIn);
cout << endl;
cout << endl;
cout << "Succeed in building BiTree according to sequential expression ? ";
cout << (compareBiTree(biTreeRoot, biTreeSequen) ? "yes" : "no") << endl;
displayBiTree(biTreeSequen);
cout << endl;
cout << endl <<"thank you for your practices ." << endl;
return 0;
}
这是各个函数所在的源文件(大量应用了递归,所以不算太长):
#include<iostream>
#include<stdio.h>
using namespace std;
#define STACKDEPTH 15
#define MAXARRAY 20
struct BiTreeNode {
char value;
BiTreeNode* leftChild;
BiTreeNode* rightChild;
};
void createBiTreeCommaExpre(BiTreeNode*& biTreeRoot, char* ptChar) {
struct {
BiTreeNode* ptsBiTree[STACKDEPTH];
int indexTop = -1;
}sequStack;
BiTreeNode* ptNew = NULL;
char s;
int leftRight;//1 is left 2 is right
while (*ptChar != '\0') {
s = *ptChar;
if ('A' <= s && s <= 'Z') {
ptNew = new BiTreeNode;
ptNew->value = s;
ptNew->leftChild = ptNew->rightChild = NULL;
if (biTreeRoot == NULL)
biTreeRoot = ptNew;
else if (leftRight == 1)
sequStack.ptsBiTree[sequStack.indexTop]->leftChild = ptNew;
else if (leftRight == 2)
sequStack.ptsBiTree[sequStack.indexTop]->rightChild = ptNew;
}
else if (s == '(') {
sequStack.indexTop++;
sequStack.ptsBiTree[sequStack.indexTop] = ptNew;
leftRight = 1;
}
else if (s == ',')
leftRight = 2;
else if (s == ')')
sequStack.indexTop--;
ptChar++;
}
}
void displayBiTree(BiTreeNode*& biTreeRoot) { // 本查找方法是先序遍历
if (biTreeRoot == NULL)
return;//if binary tree does not exsit,return
cout << biTreeRoot->value;
if (biTreeRoot->leftChild != NULL || biTreeRoot->rightChild != NULL) {
cout << '(';
displayBiTree(biTreeRoot->leftChild);
if (biTreeRoot->rightChild != NULL) {
cout << ',';
displayBiTree(biTreeRoot->rightChild);
}
cout << ')';
}
}
int totalNumberOfNodes(BiTreeNode*& biTreeRoot) {
if (biTreeRoot == NULL)
return 0;
return totalNumberOfNodes(biTreeRoot->leftChild) +
totalNumberOfNodes(biTreeRoot->rightChild) + 1;
}
void dispalyArray(char array[]) {
char* pt = array;
while (*pt != '\0') {
cout << *pt;
pt++;
}
}
void preOrderRecursion(BiTreeNode*& biTreeRoot, char* &ptArrayPreExp) {
if (biTreeRoot == NULL)
return;
*ptArrayPreExp = biTreeRoot->value;
ptArrayPreExp++;
preOrderRecursion(biTreeRoot->leftChild,ptArrayPreExp);
preOrderRecursion(biTreeRoot->rightChild,ptArrayPreExp);
}
void inOrderRecursion(BiTreeNode*& biTreeRoot, char* &ptArrayInExp) {
if (biTreeRoot == NULL)
return;
inOrderRecursion(biTreeRoot->leftChild,ptArrayInExp);
*ptArrayInExp = biTreeRoot->value;
ptArrayInExp++;
inOrderRecursion(biTreeRoot->rightChild,ptArrayInExp);
}
void postOrderRecursion(BiTreeNode*& biTreeRoot, char* &ptArrayPostExp) {
if (biTreeRoot == NULL)
return;
postOrderRecursion(biTreeRoot->leftChild,ptArrayPostExp);
postOrderRecursion(biTreeRoot->rightChild,ptArrayPostExp);
*ptArrayPostExp = biTreeRoot->value;
ptArrayPostExp++;
}
BiTreeNode* buildBiTreePreIn(char* ptPreExpre, char* ptInexpre, int length) {
if (length <= 0)
return NULL;
char root = *ptPreExpre;
BiTreeNode* biTreeRoot = new BiTreeNode;
biTreeRoot->value = root;
char* ptRoot = ptInexpre;
while (*ptRoot != root)
ptRoot++;
int lengthLeftChilds = ptRoot - ptInexpre;
int lengthRightChilds = length - 1 - lengthLeftChilds;
biTreeRoot->leftChild =
buildBiTreePreIn(ptPreExpre + 1,ptInexpre,lengthLeftChilds);
biTreeRoot->rightChild = buildBiTreePreIn(ptPreExpre + lengthLeftChilds + 1,
ptRoot + 1,lengthRightChilds);
return biTreeRoot;
}
BiTreeNode* buildBiTreePostIn(char* ptPostExpre, char* ptInexpre, int length) {
if (length <= 0)
return 0;
char root = *(ptPostExpre + length - 1);
BiTreeNode* biTreeRoot = new BiTreeNode;
biTreeRoot->value = root;
char* ptRoot = ptInexpre;
while (*ptRoot != root)
ptRoot++;
int lengthLeftChilds = ptRoot - ptInexpre;
int lengthRightChilds = length - 1 - lengthLeftChilds;
biTreeRoot->leftChild =
buildBiTreePostIn(ptPostExpre,ptInexpre,lengthLeftChilds);
biTreeRoot->rightChild = buildBiTreePostIn(
ptPostExpre + lengthLeftChilds,ptRoot + 1,lengthRightChilds);
return biTreeRoot;
}
BiTreeNode* buildBiTreeSequen(char* ptSequenExpre,int location) {
if (*(ptSequenExpre + location) == '\0' ||
*(ptSequenExpre + location) == '#')
return NULL;
BiTreeNode* biTreeRoot = new BiTreeNode;
biTreeRoot->value = *(ptSequenExpre + location);
biTreeRoot->leftChild = buildBiTreeSequen(ptSequenExpre,location * 2);
biTreeRoot->rightChild = buildBiTreeSequen(ptSequenExpre,location * 2 + 1);
return biTreeRoot;
}
bool compareBiTree(BiTreeNode* &biTreeA, BiTreeNode* &biTreeB) {
if (biTreeA == NULL && biTreeB == NULL)
return true;
if (biTreeA == NULL && biTreeB != NULL || biTreeA != NULL && biTreeB == NULL)
return false;
if (biTreeA->value != biTreeB->value)
return false;
return compareBiTree(biTreeA->leftChild, biTreeB->leftChild) &&
compareBiTree(biTreeA->rightChild,biTreeB->rightChild);
}

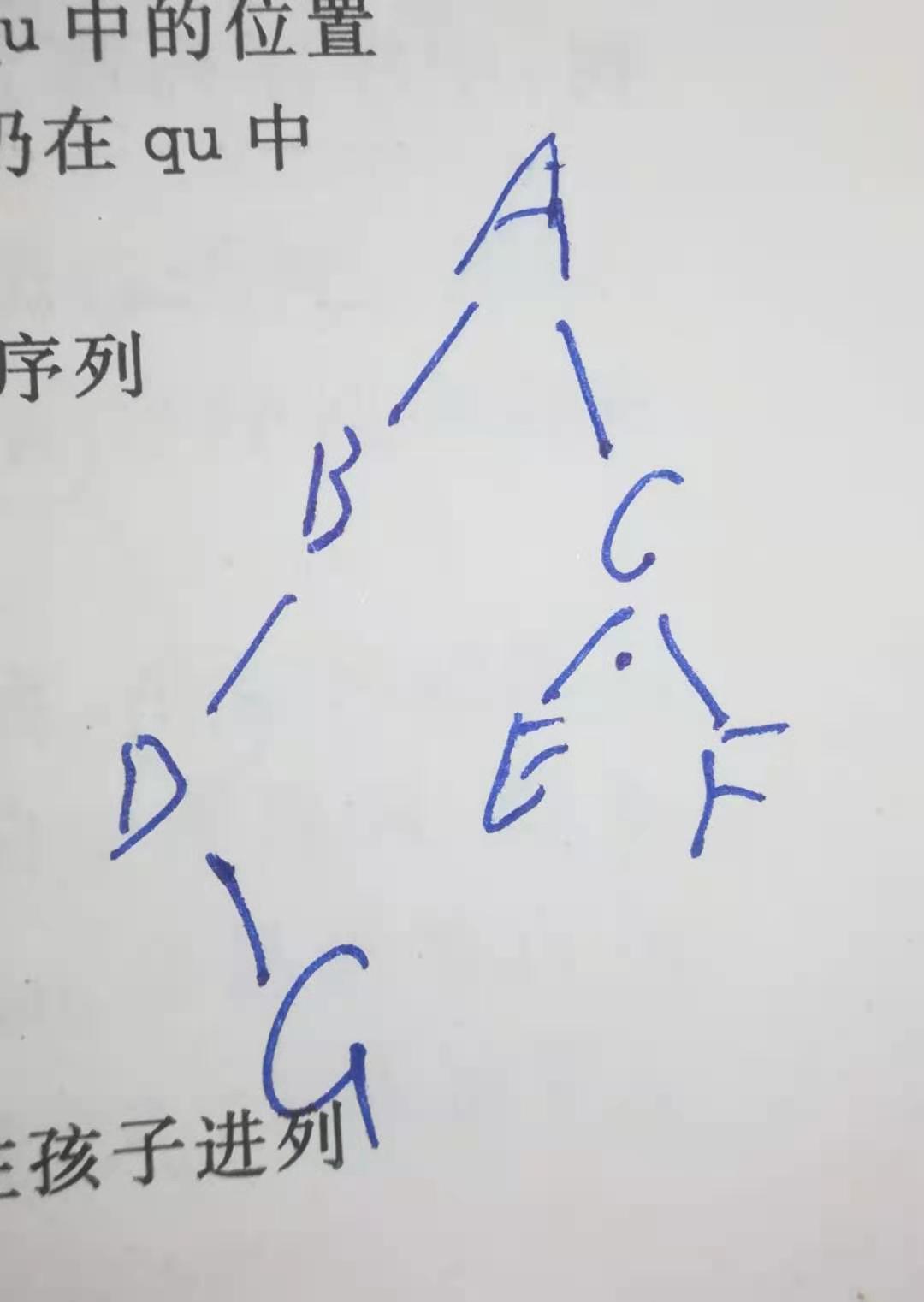

测试结果及对应的二叉树如下:
谢谢阅读
