一、环境
mac 10.12.2
cocos2dx-3.13.1
ffmpeg 3.0
二、新建项目和编译库
cocos2dx按照官网新建一个实例。
ffmpeg编译ios库http://blog.csdn.net/u013654125/article/details/73549132

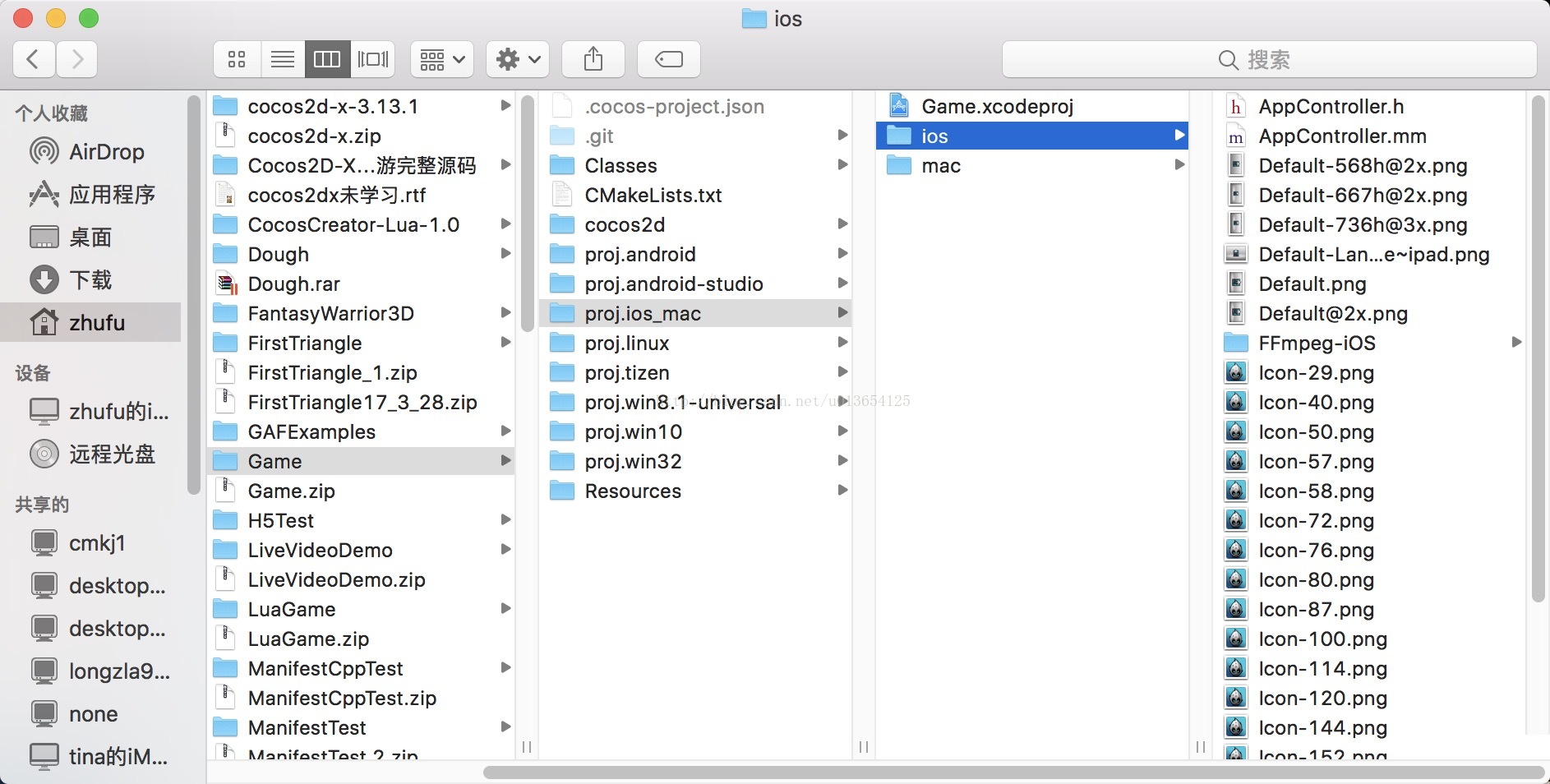

ffmpeg编译完后，会有得到一个FFmpeg-iOS文件夹，文件夹里有include和lib这两个文件夹。这两个文件夹里就是ffmpeg编译好的头文件和库文件。
三、项目配置

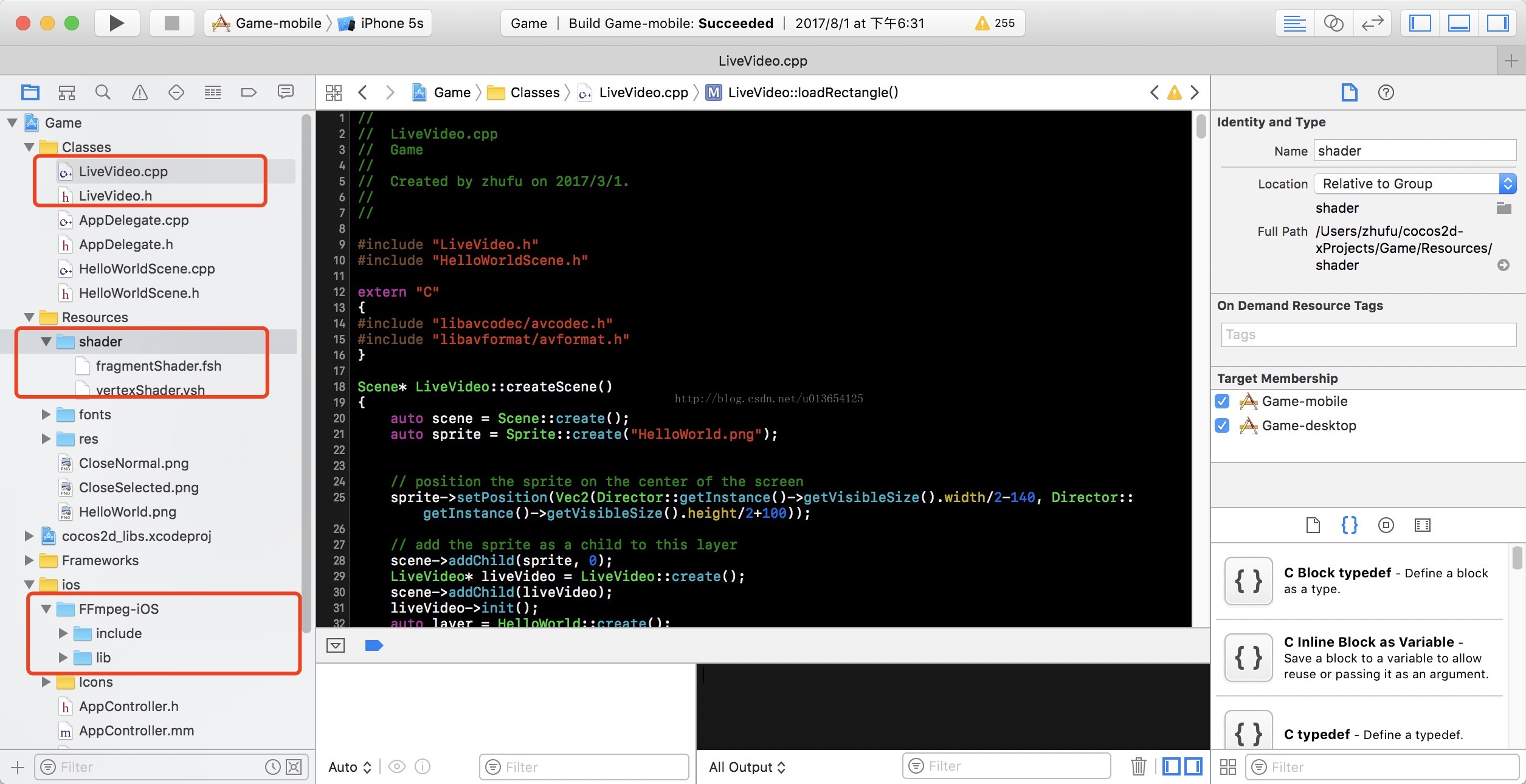

如上图:
这三个地方需要做一些修改。
第一个方框的配置：
LiveVideo.cpp
//
// LiveVideo.cpp
// Game
//
// Created by zhufu on 2017/3/1.
//
//
#include "LiveVideo.h"
#include "HelloWorldScene.h"
#ifndef INT64_C
#define INT64_C(c) (c ## LL)
#define UINT64_C(c) (c ## ULL)
#endif
extern "C"
{
#include "libavcodec/avcodec.h"
#include "libavformat/avformat.h"
#if (CC_TARGET_PLATFORM == CC_PLATFORM_ANDROID)
#include "libswscale/swscale.h"
#include "libswresample/swresample.h"
#include "libavutil/avutil.h"
#include "libavfilter/avfilter.h"
#endif
}
Scene* LiveVideo::createScene()
{
auto scene = Scene::create();
auto sprite = Sprite::create("HelloWorld.png");
// position the sprite on the center of the screen
sprite->setPosition(Vec2(Director::getInstance()->getVisibleSize().width/2-140, Director::getInstance()->getVisibleSize().height/2+100));
// add the sprite as a child to this layer
scene->addChild(sprite, 0);
LiveVideo* liveVideo = LiveVideo::create();
scene->addChild(liveVideo);
liveVideo->init();
auto layer = HelloWorld::create();
scene->addChild(layer);
return scene;
}
LiveVideo* LiveVideo::create()
{
LiveVideo* liveVideo = new(std::nothrow) LiveVideo();
if(liveVideo)
{
liveVideo->autorelease();
return liveVideo;
}
CC_SAFE_DELETE(liveVideo);
return nullptr;
}
bool LiveVideo::init()
{
initEvents();
initCommand();
//ffmpeg解码线程
play();
addPlayButton();
addPlayHKSButton();
addStopButton();
addRefreshButton();
glEnable(GL_BLEND);
glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);
loadShader();
loadTexture();
loadRectangle();
return true;
}
void LiveVideo::addPlayButton()
{
auto button = ui::Button::create("CloseNormal.png", "CloseSelected.png");
button->setTitleText("play");
button->setPosition(Vec2(170, 100));
button->addClickEventListener(CC_CALLBACK_0(LiveVideo::play, this));
button->setContentSize(Size(100, 100));
addChild(button);
}
void LiveVideo::addPlayHKSButton()
{
auto button = ui::Button::create("CloseNormal.png", "CloseSelected.png");
button->setTitleText("playHKS");
button->setPosition(Vec2(240, 100));
button->addClickEventListener(CC_CALLBACK_0(LiveVideo::playHKS, this));
button->setContentSize(Size(100, 100));
addChild(button);
}
void LiveVideo::addStopButton()
{
auto button = ui::Button::create("CloseNormal.png", "CloseSelected.png");
button->setTitleText("stop");
button->setPosition(Vec2(170, 50));
button->addClickEventListener(CC_CALLBACK_0(LiveVideo::stop, this));
button->setContentSize(Size(100, 100));
addChild(button);
}
void LiveVideo::addRefreshButton()
{
auto button = ui::Button::create("CloseNormal.png", "CloseSelected.png");
button->setTitleText("refresh");
button->setPosition(Vec2(240, 50));
button->addClickEventListener(CC_CALLBACK_0(LiveVideo::refresh, this));
button->setContentSize(Size(100, 100));
addChild(button);
}
void LiveVideo::initEvents()
{
EventListenerCustom* stopDecodeListener = EventListenerCustom::create("stopFFmpegDecode", CC_CALLBACK_0(LiveVideo::stop, this));
Director::getInstance()->getEventDispatcher()->addEventListenerWithFixedPriority(stopDecodeListener, 1);
EventListenerCustom* startDecodeListener = EventListenerCustom::create("startFFmpegDecode", CC_CALLBACK_0(LiveVideo::ffmpegDecode, this, currentLivePath));
Director::getInstance()->getEventDispatcher()->addEventListenerWithFixedPriority(startDecodeListener, 1);
}
void LiveVideo::play()
{
if(!isPlay())
{
const char* filePath = "rtmp://113.10.194.251/live/mtable1";
setPlay(true);
std::thread t(&LiveVideo::ffmpegDecode, this, filePath);
t.detach();
}
}
void LiveVideo::playHKS()
{
if(!isPlay())
{
const char* filePath ="rtmp://live.hkstv.hk.lxdns.com/live/hks";
setPlay(true);
std::thread t(&LiveVideo::ffmpegDecode, this, filePath);
t.detach();
}
}
void LiveVideo::stop()
{
setPlay(false);
}
void LiveVideo::refresh()
{
if(_playFlag)
{
clearBuf();
} else {
play();
}
}
void LiveVideo::setPlay(bool playFlag)
{
_playFlag = playFlag;
}
bool LiveVideo::isPlay()
{
return _playFlag;
}
long LiveVideo::getCurrentTime()
{
struct timeval now;
gettimeofday(&now, NULL);
return now.tv_sec*1000 + (int)(now.tv_usec/1000+0.5);
}
void LiveVideo::flipVertical(int width, int height, char* arr)
{
int index = 0, f_index, cycle=height>>1;
char buf;
for (int i = 0; i < cycle; i++)
{
for (int j = 0; j < width; j++)
{
//当前像素
index = i*width + j;
//需要交换的像素
f_index = (height - 1 - i)*width + j;
//缓存当前像素
buf = arr[index];
//交换像素
arr[index] = arr[f_index];
//交换回像素
arr[f_index] = buf;
}
}
}
int LiveVideo::ffmpegDecode(const char* filePath)
{
//开始解码
CCLOG("filePath %s", filePath);
// strcpy(currentLivePath, filePath);
av_register_all();
avformat_network_init();
AVFormatContext* pFormat = NULL;
AVCodecContext* video_dec_ctx = NULL;
AVCodec* video_dec = NULL;
AVPacket *pkt = NULL;
AVFrame *pFrame = NULL;
do {
if (avformat_open_input(&pFormat, filePath, NULL, NULL) < 0)
{
CCLOG("Couldn't open input stream.（无法打开输入流）\n");
break;
}
CCLOG("%lld", pFormat->probesize);
CCLOG("%lld", pFormat->max_analyze_duration);
pFormat->probesize = 100;
pFormat->max_analyze_duration = 0;
if (avformat_find_stream_info(pFormat, NULL) < 0)
{
CCLOG("Couldn't find stream information.（无法获取流信息）\n");
break;
}
int i, videoIndex=-1;
for(i = 0; i<pFormat->nb_streams; i++)
{
if(pFormat->streams[i]->codec->codec_type==AVMEDIA_TYPE_VIDEO)
{
videoIndex=i;
break;
}
}
if(videoIndex==-1)
{
printf("Didn't find a video stream.（没有找到视频流）\n");
break;
}
video_dec_ctx=pFormat->streams[videoIndex]->codec;
_frameRate = pFormat->streams[videoIndex]->r_frame_rate.num;
if(_frameRate == 0)
{
_frameRate = 1;
}
_system_start_time = getCurrentTime();
_start_time = pFormat->streams[videoIndex]->start_time;
_pixel_w = video_dec_ctx->width;
_pixel_h = video_dec_ctx->height;
int pixel_w2 = _pixel_w >> 1;
int pixel_h2 = _pixel_h >> 1;
video_dec=avcodec_find_decoder(video_dec_ctx->codec_id);
if(video_dec==NULL)
{
printf("Codec not found.（没有找到解码器）\n");
break;
}
if(avcodec_open2(video_dec_ctx, video_dec,NULL)<0)
{
printf("Could not open codec.（无法打开解码器）\n");
break;
}
pkt = av_packet_alloc();
av_init_packet(pkt);
pFrame = av_frame_alloc();
while (_playFlag)
{
if(av_read_frame(pFormat, pkt) < 0)
{
CCLOG("读取帧失败!!!!");
break;
}
if (pkt->stream_index == videoIndex)
{
int got_picture = 0,ret = 0;
ret = avcodec_decode_video2(video_dec_ctx, pFrame, &got_picture, pkt);
if (ret < 0)
{
printf("Decode Error.（解码错误）\n");
break;
}
if (got_picture)
{
char* buf = new char[video_dec_ctx->height * video_dec_ctx->width * 3 / 2];
int a = 0, i;
for (i = 0; i<_pixel_h; i++)
{
memcpy(buf + a, pFrame->data[0] + i * pFrame->linesize[0], _pixel_w);
a += _pixel_w;
}
flipVertical(_pixel_w, _pixel_h, buf);
for (i = 0; i<pixel_h2; i++)
{
memcpy(buf + a, pFrame->data[1] + i * pFrame->linesize[1], pixel_w2);
a += pixel_w2;
}
flipVertical(pixel_w2, pixel_h2, buf+_pixel_w*_pixel_h);
for (i = 0; i<pixel_h2; i++)
{
memcpy(buf + a, pFrame->data[2] + i * pFrame->linesize[2], pixel_w2);
a += pixel_w2;
}
flipVertical(pixel_w2, pixel_h2, buf+_pixel_w*_pixel_h+_pixel_w*_pixel_h/4);
FrameData data;
data.pts = pFrame->pkt_pts;
data.buf = buf;
_data.push_back(data);
buf = NULL;
CCLOG("pts %lld", pkt->pts);
CCLOG("pts %lld", pFrame->pts);
AVRational test;
test = av_get_time_base_q();
CCLOG("test %d, %d", test.num, test.den);
}
}
av_packet_unref(pkt);
}
} while (0);
_playFlag = false;
clearBuf();
if(pFrame)
{
av_frame_free(&pFrame);
av_free(pFrame);
delete pFrame;
pFrame = NULL;
}
if(pkt)
{
av_packet_free_side_data(pkt);
av_packet_unref(pkt);
av_packet_free(&pkt);
}
if(video_dec_ctx)
{
avcodec_close(video_dec_ctx);
video_dec_ctx = NULL;
}
if(pFormat)
{
avformat_close_input(&pFormat);
avformat_free_context(pFormat);
delete pFormat;
pFormat = NULL;
}
return 0;
}
void LiveVideo::clearBuf()
{
std::vector<FrameData>::iterator it;
for(it = _data.begin(); it != _data.end(); )
{
if(it->buf)
{
delete[] it->buf;
it->buf = NULL;
}
it = _data.erase(it);
}
}
void LiveVideo::loadShader()
{
_glProgram = new GLProgram();
_glProgram->initWithFilenames("shader/vertexShader.vsh", "shader/fragmentShader.fsh");
_glProgram->link();
}
void LiveVideo::loadTexture()
{
glGenTextures(1, &_textureY);
glBindTexture(GL_TEXTURE_2D, _textureY);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
glGenTextures(1, &_textureU);
glBindTexture(GL_TEXTURE_2D, _textureU);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
glGenTextures(1, &_textureV);
glBindTexture(GL_TEXTURE_2D, _textureV);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
}
void LiveVideo::loadRectangle()
{
//创建vao
glGenVertexArrays(1, &_gVAO);
glBindVertexArray(_gVAO);
//创建vbo
glGenBuffers(1, &_gVBO);
glBindBuffer(GL_ARRAY_BUFFER, _gVBO);
//创建顶点数组
GLfloat vertex[] = {
// X Y Z U V
-1.0f, 1.0f, 0.0f, 0.0f, 1.0f,
1.0f, 1.0f, 0.0f, 1.0f, 1.0f,
-1.0f, -1.0f, 0.0f, 0.0f, 0.0f,
1.0f, -1.0f, 0.0f, 1.0f, 0.0f,
};
glBufferData(GL_ARRAY_BUFFER, sizeof(vertex), vertex, GL_STATIC_DRAW);
//绑定数据到vertexIn
glEnableVertexAttribArray(_glProgram->getAttribLocation("vertexIn"));
glVertexAttribPointer(_glProgram->getAttribLocation("vertexIn"), 3, GL_FLOAT, GL_FALSE, 5 * sizeof(GLfloat), NULL);
//绑定数据到textureIn
glEnableVertexAttribArray(_glProgram->getAttribLocation("textureIn"));
glVertexAttribPointer(_glProgram->getAttribLocation("textureIn"), 2, GL_FLOAT, GL_TRUE, 5 * sizeof(GLfloat), (const GLvoid*)(3 * sizeof(GLfloat)));
//unbind the VAO
glBindVertexArray(0);
}
void LiveVideo::initCommand()
{
_command.init(_globalZOrder);
_command.func = CC_CALLBACK_0(LiveVideo::onDraw, this);
}
void LiveVideo::draw(Renderer *render, const Mat4 &transform, uint32_t flags)
{
onDraw();
}
void LiveVideo::onDraw()
{
now = getCurrentTime();
char* buf = getBuff();
if(buf ==NULL)
{
return;
}
// clear everything
glClearColor(0, 0, 0, 1); // black
glClear(GL_COLOR_BUFFER_BIT);
// bind the program (the shaders)
_glProgram->use();
/**
* 为了直播临时添加的bindLiveVideoTexture2DN
*/
GL::bindLiveVideoTexture2DN(0, _textureY);
glTexImage2D(GL_TEXTURE_2D,
0,
0x1903,
_pixel_w,
_pixel_h,
0,
0x1903,
GL_UNSIGNED_BYTE,
buf);
GLuint p = glGetUniformLocation(_glProgram->getProgram(), "tex_y");
glUniform1i(p, 0);
GL::bindLiveVideoTexture2DN(1, _textureU);
glTexImage2D(GL_TEXTURE_2D,
0,
0x1903,
_pixel_w/2,
_pixel_h/2,
0,
0x1903,
GL_UNSIGNED_BYTE,
buf + _pixel_w*_pixel_h);
GLuint p1 = glGetUniformLocation(_glProgram->getProgram(), "tex_u");
glUniform1i(p1, 1);
GL::bindLiveVideoTexture2DN(2, _textureV);
glTexImage2D(GL_TEXTURE_2D,
0,
0x1903,
_pixel_w/2,
_pixel_h/2,
0,
0x1903,
GL_UNSIGNED_BYTE,
buf + _pixel_w*_pixel_h + _pixel_w*_pixel_h/4);
GLuint p2 = glGetUniformLocation(_glProgram->getProgram(), "tex_v");
glUniform1i(p2, 2);
buf = NULL;
// glProgram->setUniform("tex", 0); //set to 0 because the texture is bound to GL_TEXTURE0
// bind the VAO (the triangle)
glBindVertexArray(_gVAO);
// draw the VAO
glDrawArrays(GL_TRIANGLE_STRIP, 0, 4);
// unbind the VAO, the program and the texture
glBindVertexArray(0);
glBindTexture(GL_TEXTURE_2D, 0);
glUseProgram(0);
}
char* LiveVideo::getBuff()
{
char* buf = NULL;
std::vector<FrameData>::iterator it;
std::vector<FrameData>::iterator temp;
for(it = _data.begin(); it != _data.end(); )
{
for(temp = _data.begin(); temp != _data.end();)
{
if(temp != it && temp->buf == it->buf)
{
CCLOG("~!!!有两个指针指向同一个地址");
temp = _data.erase(temp);
} else {
++temp;
}
}
if(getDifferTime(it) < 0 && _data.size() > 1)
{
if(it->buf)
{
delete[] it->buf;
it->buf = NULL;
}
it = _data.erase(it);
}
else
{
buf = it->buf;
++it;
break;
}
}
return buf;
}
long LiveVideo::getDifferTime(std::vector<FrameData>::iterator it)
{
int64_t differTime = (it->pts - _start_time) - (now - _system_start_time);
if(_data.size() > 40)
{
if(_data.size() <= 60)
{
if(_system_start_time > now - (_data.at(_data.size() - 25).pts - _start_time))
{
_system_start_time -= 20;
}
differTime = (it->pts - _start_time) - (now - _system_start_time + (_data.size()- 30)*20);
}
if(_data.size() > 60)
{
if(_system_start_time > now - (_data.at(_data.size() - 25).pts - _start_time))
{
_system_start_time -= 40;
}
differTime = (it->pts - _start_time) - (now - _system_start_time + (_data.size()- 30)*40);
}
}
if(_data.size() > 30 && _data.size() <= 40)
{
differTime = (it->pts - _start_time) - (now - _system_start_time + (_data.size()- 30)*2);
}
if(_data.size() <= 15)
{
if(_system_start_time < now - (_data.begin()->pts - _start_time))
{
_system_start_time += 10;
}
differTime = (it->pts - _start_time) - (now - _system_start_time + (_data.size() - 15)*40);
}
return differTime;
}
//
// LiveVideo.h
// Game
//
// Created by zhufu on 2017/3/1.
//
//
#ifndef LiveVideo_h
#define LiveVideo_h
#include <stdio.h>
#include "ui/cocosGUI.h"
USING_NS_CC;
#endif /* LiveVideo_h */
class LiveVideo : public Node
{
private:
struct FrameData {
int64_t pts;
char* buf;
};
public:
static Scene* createScene();
static LiveVideo* create();
virtual bool init() override;
void initEvents();
int ffmpegDecode(const char* filePath);
void flipVertical(int width, int height, char* arr);
virtual void draw(Renderer* renderer, const Mat4 &transform, uint32_t flags) override;
void loadShader();
void loadTexture();
void loadRectangle();
void onDraw();
void initCommand();
long getCurrentTime();
long getDifferTime(std::vector<FrameData>::iterator it);
char* getBuff();
void addPlayButton();
void addPlayHKSButton();
void addStopButton();
void addRefreshButton();
void play();
void playHKS();
void stop();
void refresh();
void setPlay(bool playFlag);
bool isPlay();
void clearBuf();
private:
CustomCommand _command;
GLProgram* _glProgram;
bool _playFlag = false;
GLuint _textureY;
GLuint _textureU;
GLuint _textureV;
GLuint _gVAO = 0;
GLuint _gVBO = 0;
int _pixel_w = 320, _pixel_h = 180;
std::vector<FrameData> _data;
int _frameRate;
int64_t _start_time;
long _system_start_time;
char* currentLivePath = new char[256];
long now;
};
第二个框的配置：
fragmentShader.fsh
varying vec2 textureOut;
uniform sampler2D tex_y;
uniform sampler2D tex_u;
uniform sampler2D tex_v;
void main(void)
{
vec3 yuv;
vec3 rgb;
yuv.x = texture2D(tex_y, textureOut).r;
yuv.y = texture2D(tex_u, textureOut).r - 0.5;
yuv.z = texture2D(tex_v, textureOut).r - 0.5;
rgb = mat3( 1, 1, 1,
0, -0.39465, 2.03211,
1.13983, -0.58060, 0) * yuv;
gl_FragColor = vec4(rgb, 1);
}
attribute vec3 vertexIn;
attribute vec2 textureIn;
varying vec2 textureOut;
void main(void)
{
gl_Position = vec4(vertexIn, 1);
textureOut = textureIn;
}

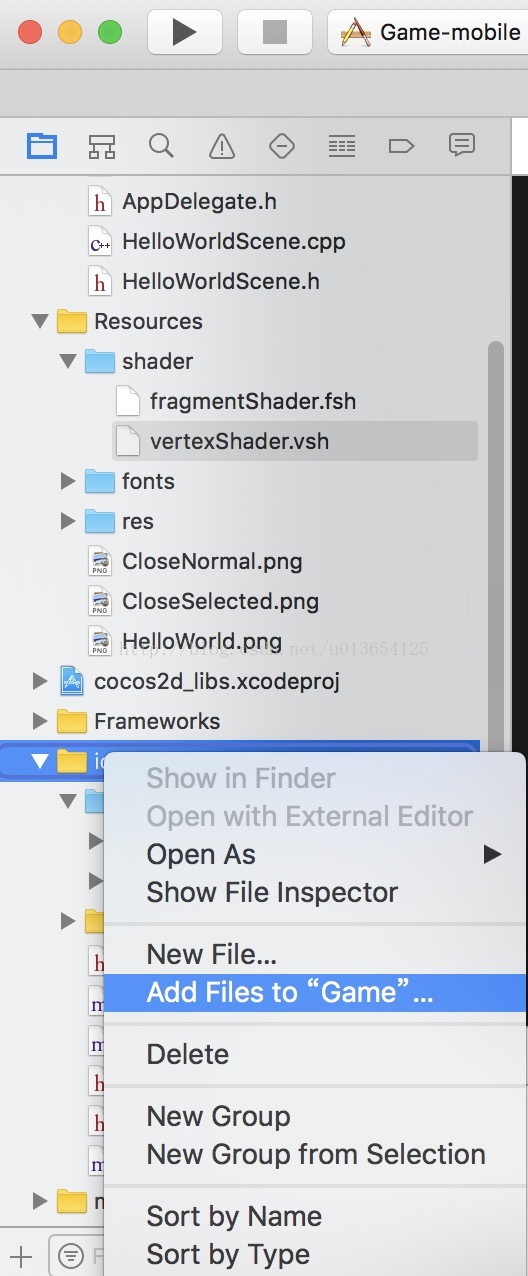

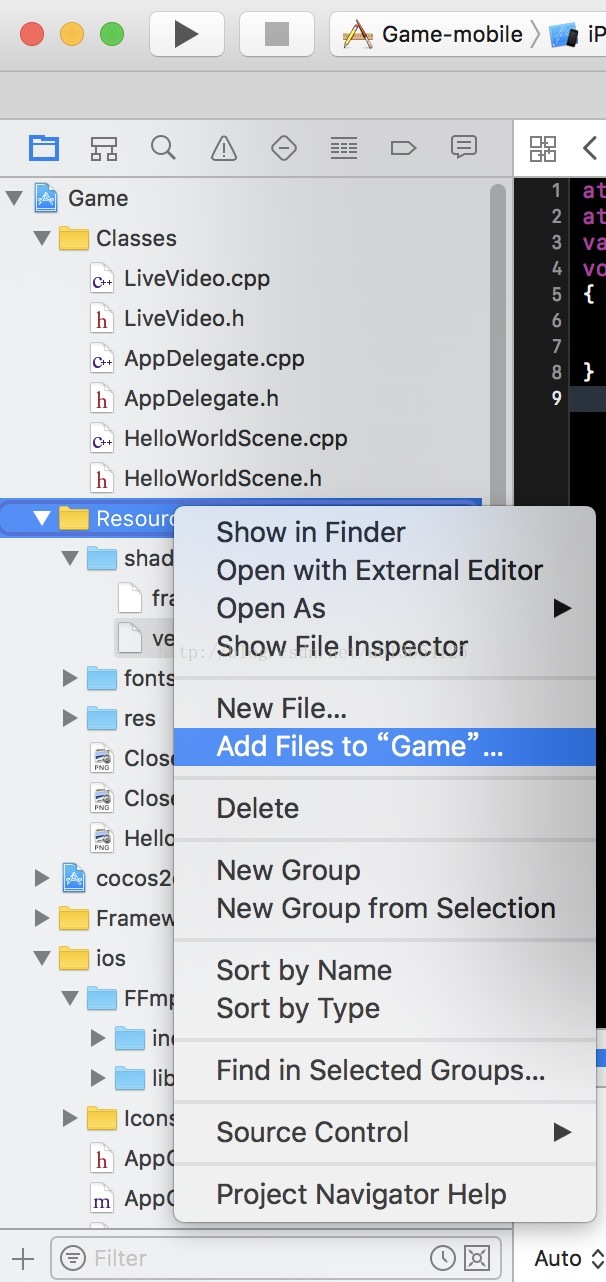

点击"Add Files to "Game"，出现如图：

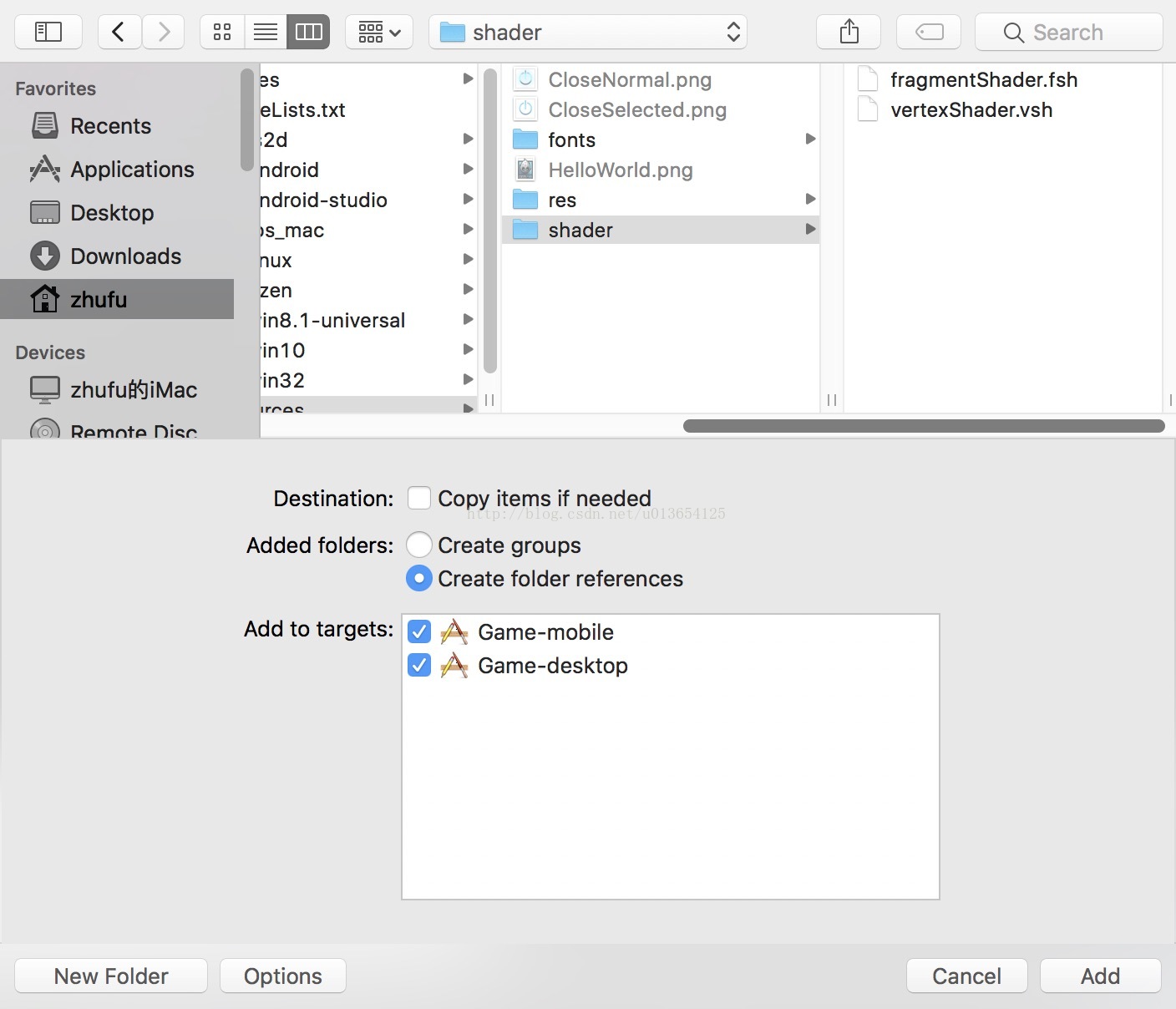

选择fshader文件夹，再点Add，完成第二个框的配置。
每三个框的配置：
把开始编译好的FFmpeg-iOS文件夹复制到如图路径：
再：

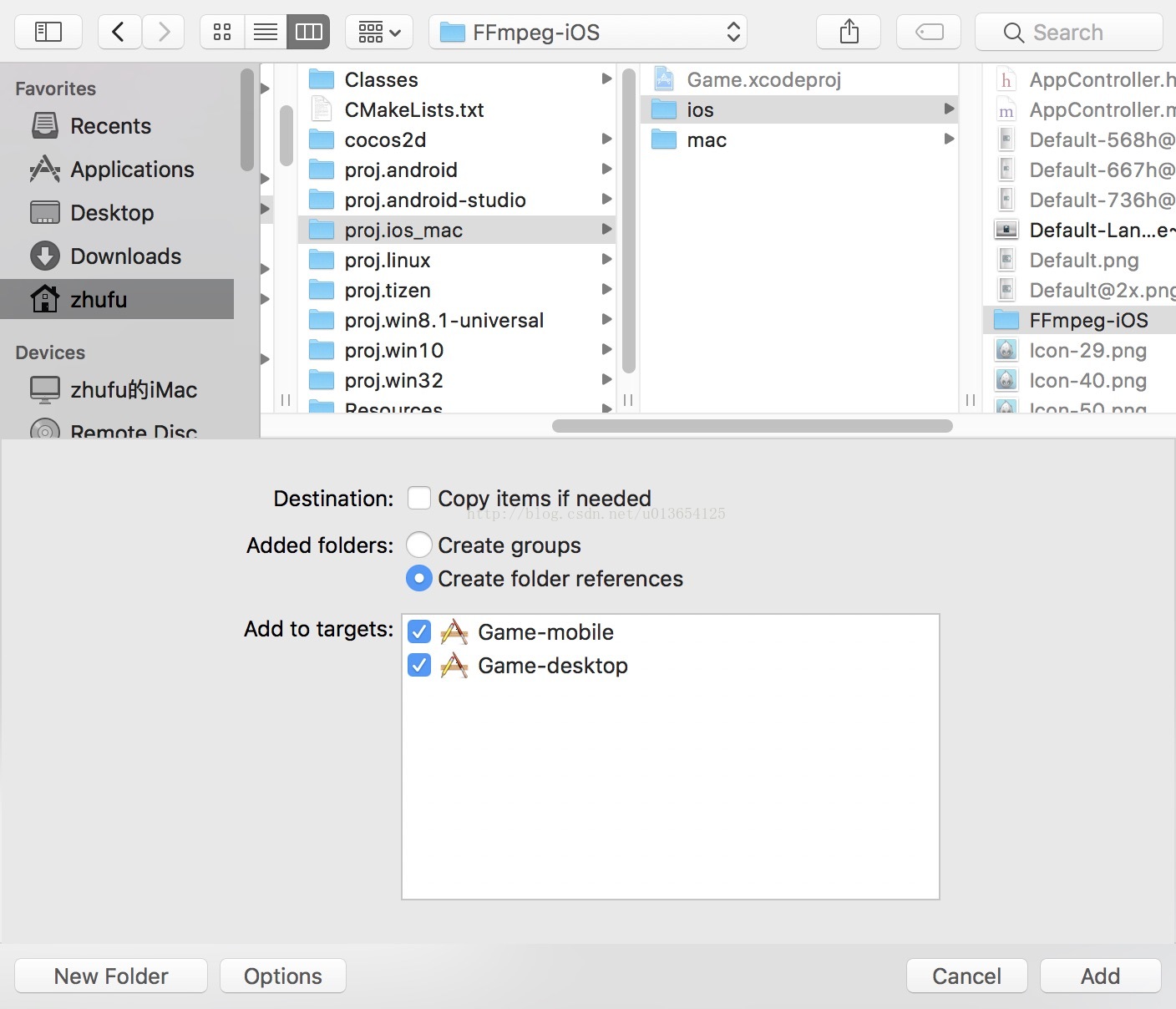

选择FFmpeg-iOS文件夹加入到项目中：
。。。。。
完成配置，运行。。。。。
最后，大家如果配置的时候出现问题可以留言或者直接下载项目https://github.com/zhu12345618/ffmpeg_ios_Test
