Task: 采用D435i采集深度图和RGB图像,进行点云重建和聚类。
1)解析Bag数据:
import os
import cv2
import numpy as np
import rosbag
from cv_bridge import CvBridge
import sensor_msgs.point_cloud2 as pc2
from sensor_msgs.msg import PointCloud2
import pcl
from pcl import pcl_visualization
import pyrealsense2 as rs
import numpy as np
from sklearn.cluster import KMeans
from sklearn.preprocessing import StandardScaler
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
from skimage.segmentation import chan_vese
import time
import copy
if __name__ == "__main__":
visual = pcl_visualization.CloudViewing()
pc = rs.pointcloud()
points = rs.points()
bag = rosbag.Bag(file_path, "r")
bag_data = bag.read_messages()
info = bag.get_type_and_topic_info()
print(info)
bridge = CvBridge()
depth = None; points_tp = None; cv_img10 = None
cap = cv2.VideoWriter(video_output, cv2.VideoWriter_fourcc(*'MP4V'), 20.0, (1280*2+3, 720))
nn = 0
for topic, msg, t in bag_data:
print(topic)
if topic == "/cam_1/aligned_depth_to_color/image_raw/compressed":
depth = bridge.compressed_imgmsg_to_cv2(msg)
show_img(depth, "Depth Image")
elif topic == "/cam_1/color/image_raw/compressed":
cv_img = bridge.compressed_imgmsg_to_cv2(msg)
show_img(cv_img, "Cam1")
elif topic == "/cam_2/aligned_depth_to_color/image_raw/compressed":
depth_10 = bridge.compressed_imgmsg_to_cv2(msg)
elif topic == "/cam_2/color/image_raw/compressed":
cv_img10 = bridge.compressed_imgmsg_to_cv2(msg)
show_img(cv_img10, "Cam2")
seg_color, add_image = visual_pcl(visual, depth_10, cv_img10)
save_seg_video(cap, cv_img10, add_image)
# if nn == 2499: # 保存某一帧的数据和结果
# seg, seg_color, add_image = visual_pcl(visual, depth_10, cv_img10)
# # cv2.imwrite("./save_data/test_rgb.png", cv_img10)
# # cv2.imwrite("./save_data/test_depth.png", depth_10)
# # xyz_sand = depth2xyz(depth_10, depth_camera_metrix)
# # xyz_sand = xyz_sand.reshape(-1, 3)
# # with open("./save_data/points.txt", "w") as f:
# # for i in range(len(xyz_sand)):
# # strings = str(xyz_sand[i][0]) + "," + str(xyz_sand[i][1]) + "," + str(xyz_sand[i][2]) +"\n"
# # f.write(strings)
elif topic == "/cam_3/color/image_raw/compressed":
cv_img = bridge.compressed_imgmsg_to_cv2(msg)
show_img(cv_img, "Cam3")
nn = nn + 1
print(nn)
cap.release()
print("end")
2)分割图像:
# 图像显示
def show_img(img, window_name):
if SHOW_IMAGE:
cv2.imshow(window_name, img)
cv2.waitKey(3)
# 寻找最大连通域
def find_max_region(mask_sel):
contours, hierarchy = cv2.findContours(mask_sel,cv2.RETR_TREE, cv2.CHAIN_APPROX_NONE)
#找到最大区域并填充
area = []
for j in range(len(contours)):
area.append(cv2.contourArea(contours[j]))
max_idx = np.argmax(area)
for k in range(len(contours)):
if k != max_idx:
cv2.fillPoly(mask_sel, [contours[k]], 0)
# elif k == max_idx:
# cv2.fillPoly(mask_sel, [contours[k]], 255)
return mask_sel
# 填充孔洞
def FillHole(img):
# 复制 im_in 图像
im_floodfill = img.copy()
# Mask 用于 floodFill,官方要求长宽+2
h, w = img.shape[:2]
mask = np.zeros((h+2, w+2), np.uint8)
# floodFill函数中的seedPoint必须是背景
isbreak = False
seedPoint = None
for i in range(im_floodfill.shape[0] - 2):
for j in range(im_floodfill.shape[1] - 2):
if(im_floodfill[i][j]==0):
seedPoint=(i,j)
isbreak = True
break
if(isbreak):
break
# 得到im_floodfill
try:
if seedPoint is not None:
cv2.floodFill(im_floodfill, mask, seedPoint, 255)
# 得到im_floodfill的逆im_floodfill_inv
im_floodfill_inv = cv2.bitwise_not(im_floodfill)
# 把im_in、im_floodfill_inv这两幅图像结合起来得到前景
im_out = img | im_floodfill_inv
return im_out
else:
return img
except:
return img
def segmentation_rgb(img):
origin_img = img
show_img(origin_img, "Origin R image")
img = cv2.GaussianBlur(img, (5, 5), 1)
h, w, c = img.shape
ret3, segr = cv2.threshold(img[:, :, 2], 0, 255, cv2.THRESH_OTSU)
show_img(segr, "Origin Seg R")
kernel = np.ones((5, 5), np.uint8)
segr = cv2.morphologyEx(segr, cv2.MORPH_OPEN, kernel, iterations=2)
show_img(segr, "Seg R Open Operation")
segr = cv2.dilate(segr, kernel, iterations=3)
show_img(segr, "Seg R Dilate Operation")
segr = FillHole(segr)
show_img(segr, "Seg R Fill Hole")
img[:, :, 2][segr > 0] = 0
# 再次分割
ret3, segrnew = cv2.threshold(img[:, :, 2], 0, 255, cv2.THRESH_OTSU)
segrnew[segr == 255] = 0
show_img(segrnew, "Re-seg R SEG")
show_img(img[:, :, 0], "B")
show_img(img[:, :, 2], "R")
show_img(img[:, :, 1], "G")
segr = find_max_region(segrnew)
mm = segr[190:, :]
tp = FillHole(mm)
segr[190:, :] = tp
show_img(segr, "Re R SEG - find max region and fill hole")
add_image = show_mask_on_image(origin_img, segr)
dp_car = copy.copy(depth)
dp_sand = copy.copy(depth)
dp_car[segr == 255] = 0
dp_sand[segr == 0] = 0
show_img(dp_car, "Depth - Car")
show_img(dp_sand, "Depth - Sand")
return segr, add_image
3)深度图计算点云图:
# 由深度图,计算点云图
def depth2xyz(depth_map,depth_cam_matrix,flatten=False,depth_scale=1000):
fx,fy = depth_cam_matrix[0,0],depth_cam_matrix[1,1]
cx,cy = depth_cam_matrix[0,2],depth_cam_matrix[1,2]
h,w=np.mgrid[0:depth_map.shape[0],0:depth_map.shape[1]]
z=depth_map/depth_scale
x=(w-cx)*z/fx
y=(h-cy)*z/fy
xyz=np.dstack((x,y,z)) if flatten==False else np.dstack((x,y,z)).reshape(-1,3)
return xyz
4)点云重建和可视化:
def visual_pcl(visual, depth, color):
t1 = time.time()
seg_color, add_image = segmentation_rgb(color)
print("Segmentation time: ", time.time() - t1, "s")
if GET_POINT:
seg_color[seg_color == 0] = 20
seg_color = cv2.cvtColor(seg_color, cv2.COLOR_GRAY2BGR)
depth_sand = depth
t2 = time.time()
xyz_sand = depth2xyz(depth_sand, depth_camera_metrix)
print("Depth to point cloud time: ", time.time() - t2, "s")
xyz_sand = xyz_sand.reshape(-1, 3)
seg_color = seg_color.reshape(-1,3)
color = color.reshape(-1,3)
# seg_color[seg_color > 0] = 255 # 聚类前结果,修改颜色值即可
# kmeans(xyz_sand, xyz_vehicle) # 采用kmeans方法进行聚类
cloud = pcl.PointCloud_PointXYZRGB()
temp = np.zeros((len(xyz_sand), 4), np.float32)
length = len(xyz_sand)
for i in range(length):
temp[i][0] = xyz_sand[i][0] * 1000.0
temp[i][1] = xyz_sand[i][1] * 1000.0
temp[i][2] = xyz_sand[i][2] * 1000.0
# temp[i][3] = 65536.0 * color[i][2] + 256.0*color[i][1] + color[i][0] # 用原图像的颜色信息渲染点云
temp[i][3] = 65536.0 * seg_color[i][2] + 256.0*seg_color[i][1] + seg_color[i][0]
cloud.from_array(temp)
visual.ShowColorCloud(cloud, b"color")
return seg_color, add_image

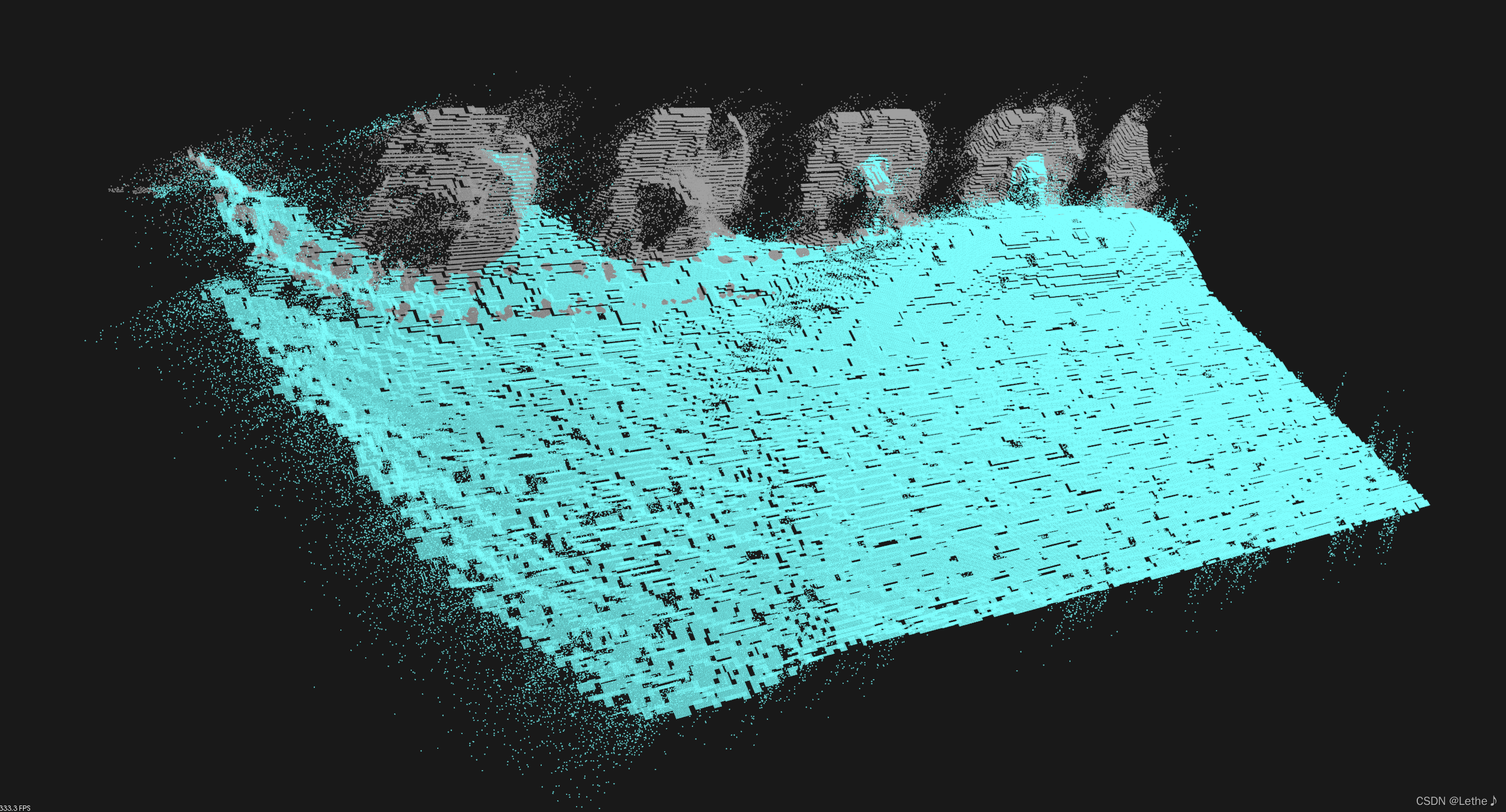

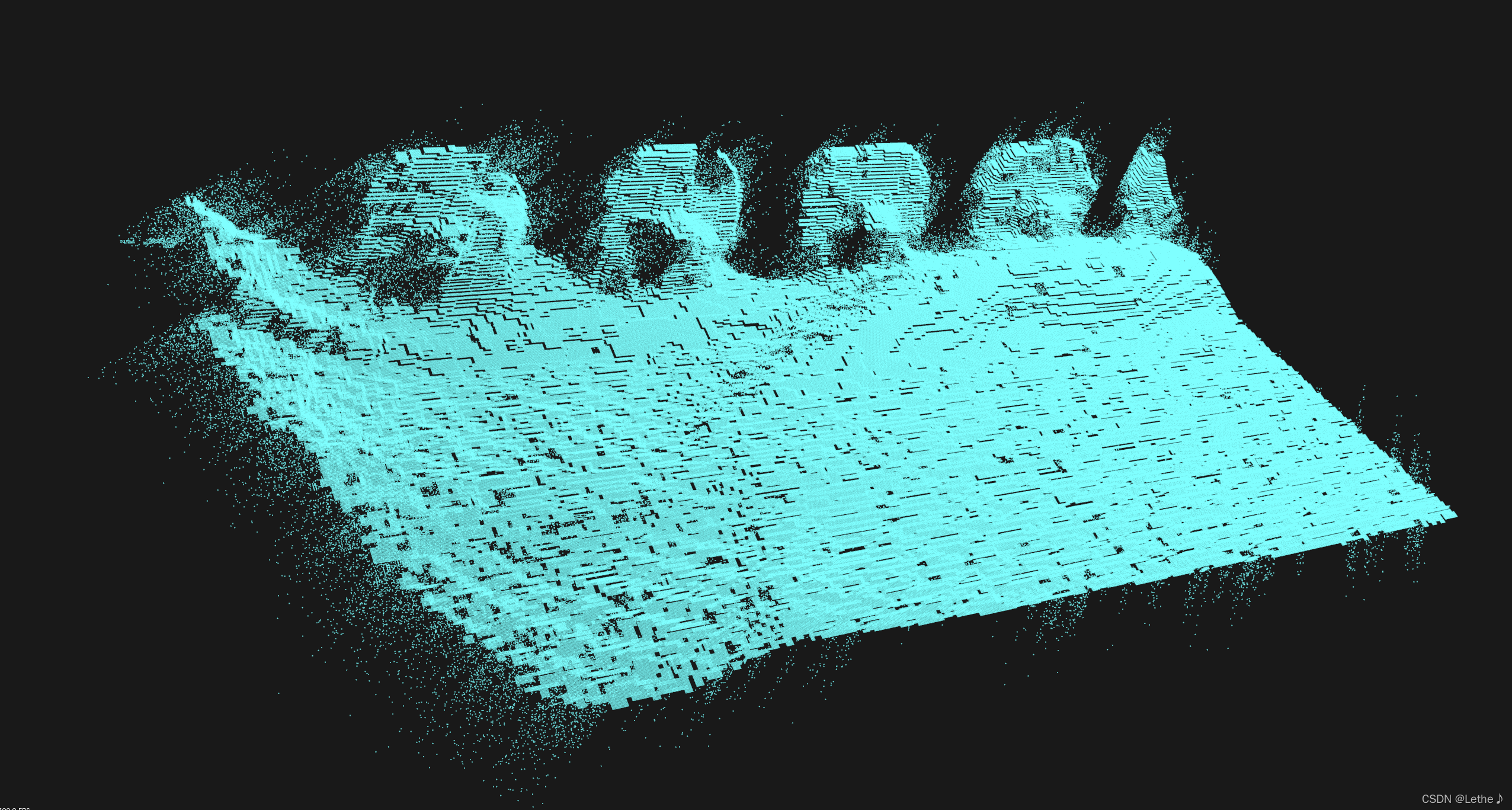

结果:
