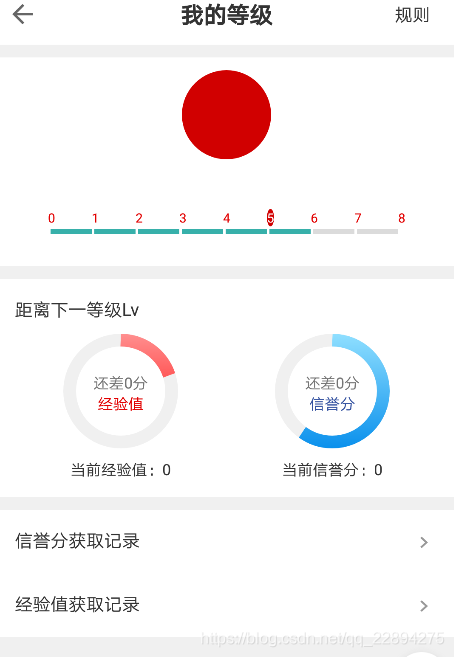

效果图：，直接从新项目里面摘出来的，给自己做个记录
所以就不多加说明，
1、自定义控件：网上摘录修改
public class CircleProgressBar extends View {
private static final int DEFAULT_MAX = 100;
private static final float MAX_DEGREE = 360.0f;
private static final float LINEAR_START_DEGREE = 90.0f;
private static final int LINE = 0;
private static final int SOLID = 1;
private static final int SOLID_LINE = 2;
private static final int LINEAR = 0;
private static final int RADIAL = 1;
private static final int SWEEP = 2;
private static final int DEFAULT_START_DEGREE = -90;
private static final int DEFAULT_LINE_COUNT = 45;
private static final float DEFAULT_LINE_WIDTH = 4.0f;
private static final float DEFAULT_PROGRESS_TEXT_SIZE = 11.0f;
private static final float DEFAULT_PROGRESS_STROKE_WIDTH = 1.0f;
private static final String COLOR_FFF2A670 = "#fff2a670";
private static final String COLOR_FFD3D3D5 = "#ffe3e3e5";
private final RectF mProgressRectF = new RectF();
private final Rect mProgressTextRect = new Rect();
private final Paint mProgressPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
private final Paint mProgressBackgroundPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
private final Paint mProgressTextPaint = new TextPaint(Paint.ANTI_ALIAS_FLAG);
private float mRadius;
private float mCenterX;
private float mCenterY;
private int mProgress;
private int mMax = DEFAULT_MAX;
//Only work well in the Line Style, represents the line count of the rings included
private int mLineCount;
//Only work well in the Line Style, Height of the line of the progress bar
private float mLineWidth;
//Stroke width of the progress of the progress bar
private float mProgressStrokeWidth;
//Text size of the progress of the progress bar
private float mProgressTextSize;
//Start color of the progress of the progress bar
private int mProgressStartColor;
//End color of the progress of the progress bar
private int mProgressEndColor;
//Color of the progress value of the progress bar
private int mProgressTextColor;
//Background color of the progress of the progress bar
private int mProgressBackgroundColor;
//the rotate degree of the canvas, default is -90.
private int mStartDegree;
// whether draw the background only outside the progress area or not
private boolean mDrawBackgroundOutsideProgress;
//Format the current progress value to the specified format
private ProgressFormatter mProgressFormatter = new DefaultProgressFormatter();
@Retention(RetentionPolicy.SOURCE)
@IntDef({LINE, SOLID, SOLID_LINE})
private @interface Style {
}
//The style of the progress color
@Style
private int mStyle;
@Retention(RetentionPolicy.SOURCE)
@IntDef({LINEAR, RADIAL, SWEEP})
private @interface ShaderMode {
}
//The Shader of mProgressPaint
@ShaderMode
private int mShader;
//The Stroke Cap of mProgressPaint and mProgressBackgroundPaint
private Paint.Cap mCap;
public CircleProgressBar(Context context) {
this(context, null);
}
public CircleProgressBar(Context context, AttributeSet attrs) {
super(context, attrs);
initFromAttributes(context, attrs);
initPaint();
}
/**
* Basic data initialization
*/
@SuppressWarnings("ResourceType")
private void initFromAttributes(Context context, AttributeSet attrs) {
TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.CircleProgressBar);
mLineCount = a.getInt(R.styleable.CircleProgressBar_line_count, DEFAULT_LINE_COUNT);
mStyle = a.getInt(R.styleable.CircleProgressBar_style, LINE);
mShader = a.getInt(R.styleable.CircleProgressBar_progress_shader, LINEAR);
mCap = a.hasValue(R.styleable.CircleProgressBar_progress_stroke_cap) ?
Paint.Cap.values()[a.getInt(R.styleable.CircleProgressBar_progress_stroke_cap, 0)] : Paint.Cap.BUTT;
mLineWidth = a.getDimensionPixelSize(R.styleable.CircleProgressBar_line_width, UnitUtils.dip2px(getContext(), DEFAULT_LINE_WIDTH));
mProgressTextSize = a.getDimensionPixelSize(R.styleable.CircleProgressBar_progress_textSize, UnitUtils.dip2px(getContext(), DEFAULT_PROGRESS_TEXT_SIZE));
mProgressStrokeWidth = a.getDimensionPixelSize(R.styleable.CircleProgressBar_progress_stroke_width, UnitUtils.dip2px(getContext(), DEFAULT_PROGRESS_STROKE_WIDTH));
mProgressStartColor = a.getColor(R.styleable.CircleProgressBar_progress_start_color, Color.parseColor(COLOR_FFF2A670));
mProgressEndColor = a.getColor(R.styleable.CircleProgressBar_progress_end_color, Color.parseColor(COLOR_FFF2A670));
mProgressTextColor = a.getColor(R.styleable.CircleProgressBar_progress_textColor, Color.parseColor(COLOR_FFF2A670));
mProgressBackgroundColor = a.getColor(R.styleable.CircleProgressBar_progress_background_color, Color.parseColor(COLOR_FFD3D3D5));
mStartDegree = a.getInt(R.styleable.CircleProgressBar_progress_start_degree, DEFAULT_START_DEGREE);
mDrawBackgroundOutsideProgress = a.getBoolean(R.styleable.CircleProgressBar_drawBackgroundOutsideProgress, false);
a.recycle();
}
/**
* Paint initialization
*/
private void initPaint() {
mProgressTextPaint.setTextAlign(Paint.Align.CENTER);
mProgressTextPaint.setTextSize(mProgressTextSize);
mProgressPaint.setStyle(mStyle == SOLID ? Paint.Style.FILL : Paint.Style.STROKE);
mProgressPaint.setStrokeWidth(mProgressStrokeWidth);
mProgressPaint.setColor(mProgressStartColor);
mProgressPaint.setStrokeCap(mCap);
mProgressBackgroundPaint.setStyle(mStyle == SOLID ? Paint.Style.FILL : Paint.Style.STROKE);
mProgressBackgroundPaint.setStrokeWidth(mProgressStrokeWidth);
mProgressBackgroundPaint.setColor(mProgressBackgroundColor);
mProgressBackgroundPaint.setStrokeCap(mCap);
}
/**
* The progress bar color gradient,
* need to be invoked in the {@link #onSizeChanged(int, int, int, int)}
*/
private void updateProgressShader() {
if (mProgressStartColor != mProgressEndColor) {
Shader shader = null;
switch (mShader) {
case LINEAR: {
shader = new LinearGradient(mProgressRectF.left, mProgressRectF.top,
mProgressRectF.left, mProgressRectF.bottom,
mProgressStartColor, mProgressEndColor, Shader.TileMode.CLAMP);
Matrix matrix = new Matrix();
matrix.setRotate(LINEAR_START_DEGREE, mCenterX, mCenterY);
shader.setLocalMatrix(matrix);
break;
}
case RADIAL: {
shader = new RadialGradient(mCenterX, mCenterY, mRadius,
mProgressStartColor, mProgressEndColor, Shader.TileMode.CLAMP);
break;
}
case SWEEP: {
//arc = radian * radius
float radian = (float) (mProgressStrokeWidth / Math.PI * 2.0f / mRadius);
float rotateDegrees = (float) (
-(mCap == Paint.Cap.BUTT && mStyle == SOLID_LINE ? 0 : Math.toDegrees(radian)));
shader = new SweepGradient(mCenterX, mCenterY, new int[]{mProgressStartColor, mProgressEndColor},
new float[]{0.0f, 1.0f});
Matrix matrix = new Matrix();
matrix.setRotate(rotateDegrees, mCenterX, mCenterY);
shader.setLocalMatrix(matrix);
break;
}
default:
break;
}
mProgressPaint.setShader(shader);
} else {
mProgressPaint.setShader(null);
mProgressPaint.setColor(mProgressStartColor);
}
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
canvas.save();
canvas.rotate(mStartDegree, mCenterX, mCenterY);
drawProgress(canvas);
canvas.restore();
drawProgressText(canvas);
}
private void drawProgressText(Canvas canvas) {
if (mProgressFormatter == null) {
return;
}
CharSequence progressText = mProgressFormatter.format(mProgress, mMax);
if (TextUtils.isEmpty(progressText)) {
return;
}
mProgressTextPaint.setTextSize(mProgressTextSize);
mProgressTextPaint.setColor(mProgressTextColor);
mProgressTextPaint.getTextBounds(String.valueOf(progressText), 0, progressText.length(), mProgressTextRect);
canvas.drawText(progressText, 0, progressText.length(), mCenterX, mCenterY + mProgressTextRect.height() / 2, mProgressTextPaint);
}
private void drawProgress(Canvas canvas) {
switch (mStyle) {
case SOLID:
drawSolidProgress(canvas);
break;
case SOLID_LINE:
drawSolidLineProgress(canvas);
break;
case LINE:
default:
drawLineProgress(canvas);
break;
}
}
/**
* In the center of the drawing area as a reference point , rotate the canvas
*/
private void drawLineProgress(Canvas canvas) {
float unitDegrees = (float) (2.0f * Math.PI / mLineCount);
float outerCircleRadius = mRadius;
float interCircleRadius = mRadius - mLineWidth;
int progressLineCount = (int) ((float) mProgress / (float) mMax * mLineCount);
for (int i = 0; i < mLineCount; i++) {
float rotateDegrees = i * -unitDegrees;
float startX = mCenterX + (float) Math.cos(rotateDegrees) * interCircleRadius;
float startY = mCenterY - (float) Math.sin(rotateDegrees) * interCircleRadius;
float stopX = mCenterX + (float) Math.cos(rotateDegrees) * outerCircleRadius;
float stopY = mCenterY - (float) Math.sin(rotateDegrees) * outerCircleRadius;
if (mDrawBackgroundOutsideProgress) {
if (i >= progressLineCount) {
canvas.drawLine(startX, startY, stopX, stopY, mProgressBackgroundPaint);
}
} else {
canvas.drawLine(startX, startY, stopX, stopY, mProgressBackgroundPaint);
}
if (i < progressLineCount) {
canvas.drawLine(startX, startY, stopX, stopY, mProgressPaint);
}
}
}
/**
* Just draw arc
*/
private void drawSolidProgress(Canvas canvas) {
if (mDrawBackgroundOutsideProgress) {
float startAngle = MAX_DEGREE * mProgress / mMax;
float sweepAngle = MAX_DEGREE - startAngle;
canvas.drawArc(mProgressRectF, startAngle, sweepAngle, true, mProgressBackgroundPaint);
} else {
canvas.drawArc(mProgressRectF, 0.0f, MAX_DEGREE, true, mProgressBackgroundPaint);
}
canvas.drawArc(mProgressRectF, 0.0f, MAX_DEGREE * mProgress / mMax, true, mProgressPaint);
}
/**
* Just draw arc
*/
private void drawSolidLineProgress(Canvas canvas) {
if (mDrawBackgroundOutsideProgress) {
float startAngle = MAX_DEGREE * mProgress / mMax;
float sweepAngle = MAX_DEGREE - startAngle;
canvas.drawArc(mProgressRectF, startAngle, sweepAngle, false, mProgressBackgroundPaint);
} else {
canvas.drawArc(mProgressRectF, 0.0f, MAX_DEGREE, false, mProgressBackgroundPaint);
}
canvas.drawArc(mProgressRectF, 0.0f, MAX_DEGREE * mProgress / mMax, false, mProgressPaint);
}
/**
* When the size of CircleProgressBar changed, need to re-adjust the drawing area
*/
@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
super.onSizeChanged(w, h, oldw, oldh);
mCenterX = w / 2;
mCenterY = h / 2;
mRadius = Math.min(mCenterX, mCenterY);
mProgressRectF.top = mCenterY - mRadius;
mProgressRectF.bottom = mCenterY + mRadius;
mProgressRectF.left = mCenterX - mRadius;
mProgressRectF.right = mCenterX + mRadius;
updateProgressShader();
//Prevent the progress from clipping
mProgressRectF.inset(mProgressStrokeWidth / 2, mProgressStrokeWidth / 2);
}
public void setProgressFormatter(ProgressFormatter progressFormatter) {
this.mProgressFormatter = progressFormatter;
invalidate();
}
public void setProgressStrokeWidth(float progressStrokeWidth) {
this.mProgressStrokeWidth = progressStrokeWidth;
mProgressRectF.inset(mProgressStrokeWidth / 2, mProgressStrokeWidth / 2);
invalidate();
}
public void setProgressTextSize(float progressTextSize) {
this.mProgressTextSize = progressTextSize;
invalidate();
}
public void setProgressStartColor(int progressStartColor) {
this.mProgressStartColor = progressStartColor;
updateProgressShader();
invalidate();
}
public void setProgressEndColor(int progressEndColor) {
this.mProgressEndColor = progressEndColor;
updateProgressShader();
invalidate();
}
public void setProgressTextColor(int progressTextColor) {
this.mProgressTextColor = progressTextColor;
invalidate();
}
public void setProgressBackgroundColor(int progressBackgroundColor) {
this.mProgressBackgroundColor = progressBackgroundColor;
mProgressBackgroundPaint.setColor(mProgressBackgroundColor);
invalidate();
}
public void setLineCount(int lineCount) {
this.mLineCount = lineCount;
invalidate();
}
public void setLineWidth(float lineWidth) {
this.mLineWidth = lineWidth;
invalidate();
}
public void setStyle(@Style int style) {
this.mStyle = style;
mProgressPaint.setStyle(mStyle == SOLID ? Paint.Style.FILL : Paint.Style.STROKE);
mProgressBackgroundPaint.setStyle(mStyle == SOLID ? Paint.Style.FILL : Paint.Style.STROKE);
invalidate();
}
public void setShader(@ShaderMode int shader) {
mShader = shader;
updateProgressShader();
invalidate();
}
public void setCap(Paint.Cap cap) {
mCap = cap;
mProgressPaint.setStrokeCap(cap);
mProgressBackgroundPaint.setStrokeCap(cap);
invalidate();
}
public void setProgress(int progress) {
this.mProgress = progress;
invalidate();
}
public void setMax(int max) {
this.mMax = max;
invalidate();
}
public int getProgress() {
return mProgress;
}
public int getMax() {
return mMax;
}
public int getStartDegree() {
return mStartDegree;
}
public void setStartDegree(int startDegree) {
this.mStartDegree = startDegree;
invalidate();
}
public boolean isDrawBackgroundOutsideProgress() {
return mDrawBackgroundOutsideProgress;
}
public void setDrawBackgroundOutsideProgress(boolean drawBackgroundOutsideProgress) {
this.mDrawBackgroundOutsideProgress = drawBackgroundOutsideProgress;
invalidate();
}
public interface ProgressFormatter {
CharSequence format(int progress, int max);
}
private static final class DefaultProgressFormatter implements ProgressFormatter {
private static final String DEFAULT_PATTERN = "%d%%";
@Override
public CharSequence format(int progress, int max) {
return String.format(DEFAULT_PATTERN, (int) ((float) progress / (float) max * 100));
}
}
private static final class SavedState extends BaseSavedState {
int progress;
SavedState(Parcelable superState) {
super(superState);
}
private SavedState(Parcel in) {
super(in);
progress = in.readInt();
}
@Override
public void writeToParcel(Parcel out, int flags) {
super.writeToParcel(out, flags);
out.writeInt(progress);
}
public static final Creator<SavedState> CREATOR
= new Creator<SavedState>() {
public SavedState createFromParcel(Parcel in) {
return new SavedState(in);
}
public SavedState[] newArray(int size) {
return new SavedState[size];
}
};
}
@Override
public Parcelable onSaveInstanceState() {
// Force our ancestor class to save its state
Parcelable superState = super.onSaveInstanceState();
SavedState ss = new SavedState(superState);
ss.progress = mProgress;
return ss;
}
@Override
public void onRestoreInstanceState(Parcelable state) {
SavedState ss = (SavedState) state;
super.onRestoreInstanceState(ss.getSuperState());
setProgress(ss.progress);
}
}
2、添加上属性
<declare-styleable name="CircleProgressBar">
<attr name="line_count" format="integer|reference"/>
<attr name="line_width" format="dimension|reference"/>
<attr name="progress_start_color" format="color|reference"/>
<attr name="progress_end_color" format="color|reference"/>
<attr name="progress_textColor" format="color|reference"/>
<attr name="progress_textSize" format="dimension|reference"/>
<attr name="progress_stroke_width" format="dimension|reference"/>
<attr name="progress_background_color" format="color|reference"/>
<attr name="progress_start_degree" format="integer|reference"/>
<attr name="drawBackgroundOutsideProgress" format="boolean|reference"/>
<attr name="style">
<enum name="line" value="0"/>
<enum name="solid" value="1"/>
<enum name="solid_line" value="2"/>
</attr>
<attr name="progress_shader">
<enum name="linear" value="0"/>
<enum name="radial" value="1"/>
<enum name="sweep" value="2"/>
</attr>
<attr name="progress_stroke_cap">
<enum name="butt" value="0"/>
<enum name="round" value="1"/>
<enum name="square" value="2"/>
</attr>
</declare-styleable>
布局：其余布局…………看自己情况了
<com.youmu.game.mvp.ui.view.circleprogressbar.CircleProgressBar
android:id="@+id/progress_experience"
app:style="solid_line"
android:layout_weight="1"
android:layout_marginTop="@dimen/base10dp"
app:progress_background_color="#F0F0F0"
app:progress_start_color="#FF8F8F"
app:progress_end_color="#FF0000"
app:progress_stroke_width="@dimen/base10dp"
app:progress_textSize="@dimen/text12sp"
app:progress_textColor="@color/color_FFFFFF"
app:layout_constraintHorizontal_chainStyle="spread"
android:layout_width="wrap_content"
android:layout_height="@dimen/base90dp" />
<com.youmu.game.mvp.ui.view.circleprogressbar.CircleProgressBar
android:id="@+id/progress_credit"
app:style="solid_line"
android:layout_marginTop="@dimen/base10dp"
app:progress_background_color="#F0F0F0"
app:progress_start_color="#8FDFFF"
app:progress_end_color="#0A90EC"
app:progress_stroke_width="@dimen/base10dp"
app:progress_textSize="@dimen/text12sp"
app:progress_textColor="@color/color_FFFFFF"
app:layout_constraintHorizontal_chainStyle="spread"
android:layout_width="wrap_content"
android:layout_height="@dimen/base90dp" />
使用：经验值为例
@BindView(R.id.progress_experience)
CircleProgressBar progress_experience;
ValueAnimator animatorexperience = ValueAnimator.ofInt(0, 20);
animatorexperience.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
int progress = (int) animation.getAnimatedValue();
progress_experience.setProgress(progress);
if (100 == progress) {
}
}
});
// animator.setRepeatCount(ValueAnimator.INFINITE);
animatorexperience.setDuration(5000);
animatorexperience.start();
