基于检测代码库detectron2的蒸馏应用

基于检测代码库detectron2和蒸馏代码库RepDistiller，完成将蒸馏方法应用在目标检测的代码库，完整代码已开源。

1. 参数添加

在config/defaults.py里面添加蒸馏参数的默认值，同时类似于定义了变量

#==================================蒸馏参数=====================================
_C.DISTILL = CN()
_C.DISTILL.DO =  False
_C.DISTILL.PATH_T = None
_C.DISTILL.CFG_T = None
_C.DISTILL.DISTILL =  'kd'
# choices =  ['kd', 'hint', 'attention', 'similarity','correlation', 'vid', 'crd', 'kdsvd', 'fsp',
#             'rkd', 'pkt', 'abound', 'factor', 'nst']
# weight balance for other losses
_C.DISTILL.B =  None

在实际使用的yaml文件中添加实际使用的蒸馏参数

#==================================蒸馏参数=====================================
DISTILL:
  ENABLE: True
  PATH_T: 'detectron2/teacher_models/FasterRCNN-R101-FPN-lr3x.pkl'
  CFG_T: 'configs/COCO-Detection/teacher_models/faster_rcnn_R_101_FPN_3x.yaml'
  DISTILL: 'hint'
  # choices =  ['hint', 'attention', 'similarity', 'nst', 'rkd', 'pkt']
  # trial id
  TRIAL: 1.0
  # weight balance for other losses
  B: 1.0

2. 导入教师模型

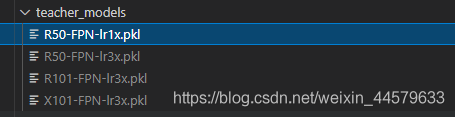

根据detectron2官方提供的下载地址下载教师模型，并放置在detectron2/teacher_models文件夹下：

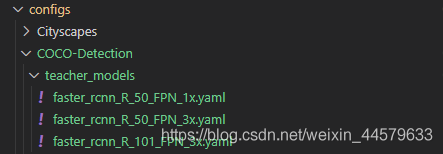

配置教师模型对应的参数，放置在configs/COCO-Detection/teacher_models文件夹下：

3. 计算蒸馏损失

在GeneralizedRCNN的foward函数中添加蒸馏损失，初始化和调用时添加蒸馏参数

# 调用蒸馏损失函数
from detectron2.distiller_helper.distill import Distill

class GeneralizedRCNN(nn.Module):
    @configurable
    def __init__(
        self,
        ...
        distill_cfg: dict = None # 添加蒸馏参数
    ):
        super().__init__()
        ...
        # ==================================蒸馏====================================
        # 添加蒸馏参数
        self.distill_cfg = distill_cfg

        # 构建教师模型
        if distill_cfg.ENABLE:
            self.distill_model = Distill(self.distill_cfg)

    @classmethod
    def from_config(cls, cfg):
        backbone = build_backbone(cfg)
        return {
            ...
            "distill_cfg": cfg.DISTILL # 添加蒸馏参数
        }

    def forward(self, batched_inputs: List[Dict[str, torch.Tensor]]):
        ...
        # distill_losses
        if self.distill_cfg.ENABLE:
            distill_losses = self.distill_model.compute_distill_loss(batched_inputs, features)
            losses.update(distill_losses)

        return losses

创建get_features函数，用来输出教师特征图

    def get_features(self, batched_inputs):
        '''
        return: dict
            keys: 'p2'-'p6'
            values: 分别对应FPN第n层的特征层
        '''
        images = self.preprocess_image(batched_inputs)
        features = self.backbone(images.tensor)
        return features

创建distill.py文件，用来构建教师模型和计算蒸馏损失，放置在detectron2/distiller_helper文件夹下。

from detectron2.config import get_cfg
from detectron2.modeling.meta_arch import build_model
from detectron2.distiller_zoo import HintLoss, Attention, Similarity, NSTLoss, RKDLoss, PKT
from detectron2.checkpoint import DetectionCheckpointer
import torch

class Distill():
    def __init__(self, distill_cfg):
        self.opt = distill_cfg
        self.model_t = self.build_teacher_model()

    def build_teacher_model(self):
        '''构建教师模型'''
        # 模型创建
        teacher_cfg = get_cfg()
        teacher_cfg.merge_from_file(self.opt.CFG_T)
        teacher_cfg['student_identity'] = False
        model_t = build_model(teacher_cfg)
        # 参数加载
        DetectionCheckpointer(model_t).resume_or_load(self.opt.PATH_T, resume=False)
        return model_t

    def compute_distill_loss(self, batched_inputs, logit_s):
        '''计算蒸馏损失'''

        # 获取教师特征图
        with torch.no_grad():
            logit_t = self.model_t.get_features(batched_inputs)

        # ==========================蒸馏损失函数==========================
        # kd 损失函数
        if self.opt.DISTILL == 'hint':
            criterion_kd = HintLoss()
        elif self.opt.DISTILL == 'attention':
            criterion_kd = Attention()
        elif self.opt.DISTILL == 'nst':
            criterion_kd = NSTLoss()
        elif self.opt.DISTILL == 'similarity':
            criterion_kd = Similarity()
        elif self.opt.DISTILL == 'rkd':
            criterion_kd = RKDLoss()
        elif self.opt.DISTILL == 'pkt':
            criterion_kd = PKT()
        elif self.opt.DISTILL == 'kdsvd':
            criterion_kd = KDSVD()
        else:
            raise NotImplementedError(self.opt.DISTILL)

        # 对五层FPN的损失取平均
        loss_kd = 0
        for t,s in zip(logit_t.values(), logit_s.values()):
            loss_kd += criterion_kd(s, t.detach())

        loss_kd = loss_kd/5 * self.opt.B

        distill_losses = {'loss_kd': loss_kd}

        return distill_losses

还有一些其它细节，就不赘述了，完整代码见我的Github
