基本思想：帮助好友部署一个人脸检测模型，也是自己业务需求，部分代码来自好友陈同学，自己改了改c++的代码可以部署rk3399pro上了，其它资料见附录吧，官方的代码并未将landmark的点打印出来，rknn将这个信息补上了～
链接: https://pan.baidu.com/s/1MSZG-XeIFmBfYJwUMThzDQ?pwd=1ujq 提取码: 1ujq
测试图片
一、测试mnn效果,其中mnn直接搬运了大佬参考附录一
cmakelists.txt
cmake_minimum_required(VERSION 3.16)
project(untitled10)
set(CMAKE_CXX_FLAGS "-std=c++11")
set(CMAKE_CXX_STANDARD 11)
include_directories(${CMAKE_SOURCE_DIR})
include_directories(${CMAKE_SOURCE_DIR}/include)
include_directories(${CMAKE_SOURCE_DIR}/include/MNN)
find_package(OpenCV REQUIRED)
#message(STATUS ${OpenCV_INCLUDE_DIRS})
#添加头文件
include_directories(${OpenCV_INCLUDE_DIRS})
#链接Opencv库
add_library(libmnn SHARED IMPORTED)
#set_target_properties(libncnn PROPERTIES IMPORTED_LOCATION ${CMAKE_SOURCE_DIR}/lib/libncnn.a)
set_target_properties(libmnn PROPERTIES IMPORTED_LOCATION ${CMAKE_SOURCE_DIR}/lib/libMNN.so)
add_executable(untitled10 main.cpp retinaface.cpp)
target_link_libraries(untitled10 ${OpenCV_LIBS} libmnn )main.cpp
#include <iostream>
#include "retinaface.h"
int main() {
RetinaFace *item=new RetinaFace();
item->Initial("../FaceDetector8.mnn");
cv::Mat img=cv::imread("../0.jpeg");
vector<FaceObject> faces;
item->DetectFace(img,faces);
for(auto &face:faces){
cv::rectangle(img, cv::Point(face.rect.x, face.rect.y),
cv::Point(face.rect.x + face.rect.width, face.rect.y + face.rect.height),
cv::Scalar(0, 255, 0), 2);
string score = to_string(face.prob);
cv::putText(img, score, cv::Point(face.rect.x, face.rect.y),cv::FONT_HERSHEY_DUPLEX, 0.6, (0, 255, 255));
}
cv::imshow("image",img);
cv::waitKey(0);
delete item;
return 0;
}retinaface.h
#include <MNN/ImageProcess.hpp>
#include <MNN/Interpreter.hpp>
#include <memory>
#include <iostream>
#include <vector>
#include <math.h>
#include "opencv2/opencv.hpp"
#include "opencv2/highgui.hpp"
using namespace std;
struct FaceObject {
cv::Rect_<float> rect;
float prob;
};
struct Anchor{
float cx;
float cy;
float s_kx;
float s_ky;
};
class RetinaFace {
public:
RetinaFace ();
int Initial(std::string model_path);
~RetinaFace();
int DetectFace(cv::Mat img,vector<FaceObject> &faces);
private:
MNN::Interpreter *net_ = nullptr;
MNN::Session *session_ = nullptr;
MNN::CV::ImageProcess::Config preProcessConfig_;
MNN::Tensor* input_;
MNN::Tensor* loc_;
MNN::Tensor* cls_;
vector<Anchor> Anchors_;
int width_;
int height_;
float mean_vals_[3];
float conf_;
int top_k_;
};retinaface.cpp
#include "retinaface.h"
#include <string.h>
#include <errno.h>
#include <string>
#include <vector>
#include <sys/time.h>
int32_t NowMicros() {
struct timeval tv;
gettimeofday(&tv,nullptr);
return static_cast<int32_t>(tv.tv_sec)*1000+tv.tv_usec/1000;
}
float intersection_area(const FaceObject& a, const FaceObject& b) {
cv::Rect_<float> inter = a.rect & b.rect;
return inter.area();
}
void generate_anchors(int height,int width,vector<Anchor> &Anchors) {
int steps[3] = {8,16,32};
int min_sizes[3][2] = {{16,32},{64,128},{256,512}};
int feature_maps[3][2] = {0};
for(int i=0;i<3;i++) {
feature_maps[i][0] = ceil(height*1.0/steps[i]);
feature_maps[i][1] = ceil(width*1.0/steps[i]);
}
Anchors.clear();
for(int i=0;i<3;i++) {
int *min_size = min_sizes[i];
for(int id_y=0;id_y<feature_maps[i][0];id_y++) {
for(int id_x=0;id_x<feature_maps[i][1];id_x++)
for(int k = 0;k<2;k++) {
float s_kx = min_size[k]*1.0/width;
float s_ky = min_size[k]*1.0/height;
float dense_cx = (id_x + 0.5)*steps[i]/width;
float dense_cy = (id_y + 0.5)*steps[i]/height;
Anchor a;
a.cx = dense_cx;
a.cy = dense_cy;
a.s_kx = s_kx;
a.s_ky = s_ky;
Anchors.push_back(a);
}
}
}
}
void decode(float *loc,vector<Anchor> &Anchors, float *out_loc, int width, int height) {
float variance[2] = {0.1,0.2};
for (int q=0; q<1; q++) {
for (int y=0; y<16800; y++) {
out_loc[y*4] = Anchors[y].cx + loc[0]*variance[0]*Anchors[y].s_kx;
out_loc[y*4+1] = Anchors[y].cy + loc[1]*variance[0]*Anchors[y].s_ky;
out_loc[y*4+2] = (Anchors[y].s_kx*exp(loc[2]*variance[1]))*width; //width
out_loc[y*4+3] = (Anchors[y].s_ky*exp(loc[3]*variance[1]))*height; //height
out_loc[y*4] = out_loc[y*4]*width - out_loc[y*4+2]/2; //x0
out_loc[y*4+1] = out_loc[y*4+1]*height - out_loc[y*4+3]/2; //y0
loc += 4;
}
}
}
void nms_sorted_bboxes(const std::vector<FaceObject>& faceobjects, std::vector<int>& picked, float nms_threshold) {
picked.clear();
const int n = faceobjects.size();
vector<float> areas(n);
for (int i = 0; i < n; i++) {
areas[i] = faceobjects[i].rect.area();
}
for (int i = 0; i < n; i++) {
const FaceObject& a = faceobjects[i];
int keep = 1;
for (int j = 0; j < (int)picked.size(); j++) {
const FaceObject& b = faceobjects[picked[j]];
// intersection over union
float inter_area = intersection_area(a, b);
float union_area = areas[i] + areas[picked[j]] - inter_area;
//float IoU = inter_area / union_area
if (inter_area / union_area > nms_threshold)
keep = 0;
}
if (keep)
picked.push_back(i);
}
}
bool FaceLargerScore(FaceObject a, FaceObject b) {
if ( a.prob > b.prob) {
return true;
} else {
return false;
}
}
RetinaFace::RetinaFace() {
width_ = 640;
height_ = 640;
mean_vals_[0] = 104.0f;
mean_vals_[1] = 117.0f;
mean_vals_[2] = 123.0f;
conf_ = 0.7;
top_k_ = 100;
generate_anchors(width_,height_,Anchors_);
}
RetinaFace::~RetinaFace() {
if(net_ != nullptr) {
net_->releaseModel();
net_->releaseSession(session_);
}
Anchors_.clear();
}
int RetinaFace::Initial(std::string model_path) {
std::string modelpath = model_path ;
net_ = MNN::Interpreter::createFromFile(modelpath.c_str());
MNN::ScheduleConfig netConfig;
netConfig.type = MNN_FORWARD_CPU;
netConfig.numThread = 4;
session_ = net_->createSession(netConfig);
input_ = net_->getSessionInput(session_, "input0");
net_->resizeTensor(input_, {1, 3, width_, height_});
net_->resizeSession(session_);
cls_ = net_->getSessionOutput(session_, "576");
loc_ = net_->getSessionOutput(session_, "output0");
::memcpy(preProcessConfig_.mean, mean_vals_, sizeof(mean_vals_));
preProcessConfig_.sourceFormat = MNN::CV::BGR;
preProcessConfig_.destFormat = MNN::CV::BGR;
return 0;
}
int RetinaFace::DetectFace(const cv::Mat img,vector<FaceObject> &faces) {
//先pad将图像填补为正方形,pre-process
cv::Mat pad_img;
int long_size = max(img.cols,img.rows);
if (long_size == img.cols) {
int top = (long_size - img.rows)/2;
int bottom = long_size - top - img.rows;
cv::copyMakeBorder(img,pad_img,top,bottom,0,0,cv::BORDER_CONSTANT,0);
} else {
int left = (long_size - img.cols)/2;
int right = long_size - left - img.cols;
cv::copyMakeBorder(img,pad_img,0,0,left,right,cv::BORDER_CONSTANT,0);
}
//pad为正方形后，再resize为模型的固定输入大小（640,640）
cv::Mat bgr;
cv::resize(pad_img,bgr,cv::Size(width_,height_));
net_->resizeTensor(input_, {1, 3, width_, height_});
net_->resizeSession(session_);
//mnn 输入
MNN::CV::ImageProcess *pretreat_ = MNN::CV::ImageProcess::create(preProcessConfig_);
pretreat_->convert(bgr.data, width_, height_, bgr.step[0], input_);
net_->runSession(session_);
MNN::Tensor clsHost(cls_, MNN::Tensor::CAFFE);
MNN::Tensor locHost(loc_, MNN::Tensor::CAFFE);
cls_->copyToHostTensor(&clsHost);
loc_->copyToHostTensor(&locHost);
std::vector<int> shape0 = clsHost.shape();
std::vector<int> shape1 = locHost.shape();
int c = shape0[0];
int length = shape0[1];
std::cout<<c<<" "<<length<<std::endl;
float *out_loc = new float[length*4];
auto cls_data = clsHost.host<float>();
auto loc_data = locHost.host<float>();
decode(loc_data, Anchors_, out_loc, width_, height_);
vector<FaceObject> tempfaces;
//将大于阈值的框存进temfaces，准备下一步的nms
for (int q=0; q<c; q++) {
for (int y=0; y<length;y++) {
if(cls_data[2*y+1] > conf_) {
FaceObject face;
face.prob = cls_data[2*y+1];
face.rect.x = out_loc[4*y];
face.rect.y = out_loc[4*y+1];
face.rect.width = out_loc[4*y+2];
face.rect.height = out_loc[4*y+3];
tempfaces.push_back(face);
}
}
}
//根据分数排序，保留top_k
std::sort(tempfaces.begin(), tempfaces.end(),FaceLargerScore);
if (tempfaces.size() > top_k_)
tempfaces.resize(top_k_);
//执行nms
std::vector<int> picked;
int start = NowMicros();
nms_sorted_bboxes(tempfaces, picked, 0.4);
int end = NowMicros();
std::cout<<"nms:"<<(end-start)<<"ms"<<std::endl;
//上面的操作是在640×640的图片上做的（先pad图片到正方形，再resize到640*640)
//因此下面的操作是将检测框，反映射回到原图像的尺寸
float scale = long_size*1.0/width_; //width_与height_相等
for (int i = 0; i < picked.size(); i++) {
FaceObject face = tempfaces[picked[i]];
//反映射回pad_img
int real_x = face.rect.x*scale;
int real_y = face.rect.y*scale;
int real_width = face.rect.width*scale;
int real_height = face.rect.height*scale;
//反映射回实际原图尺寸
real_x = real_x - (long_size - img.cols)/2;
real_y = real_y - (long_size - img.rows)/2;
//如果检测框超出了原始图像的边界，则将检测框拉回边界
real_x = (real_x > 0) ? real_x :0;
real_y = (real_y > 0) ? real_y :0;
real_width = ((real_x + real_width) < img.cols ) ? real_width : (img.cols - real_x);
real_height = ((real_y + real_height) < img.rows ) ? real_height : (img.rows - real_y);
face.rect.x = real_x;
face.rect.y = real_y;
face.rect.width = real_width;
face.rect.height = real_height;
faces.push_back(face);
}
return 0;

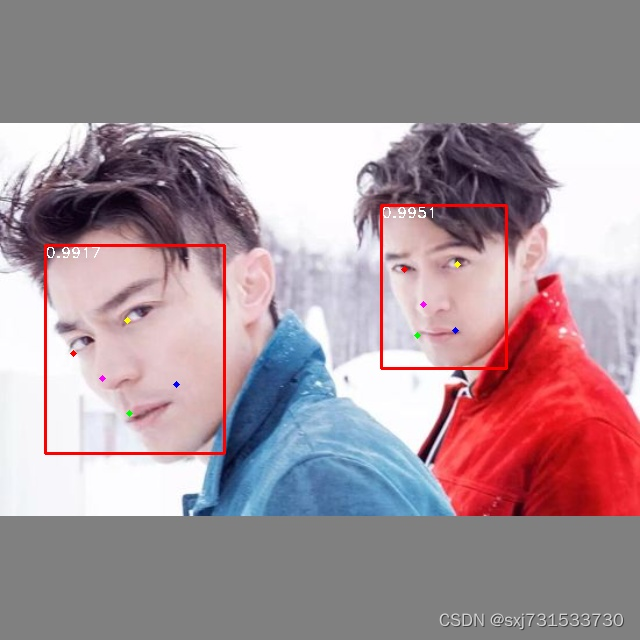

}二、测试rknn效果
py代码
from rknn.api import RKNN
import numpy as np
import cv2
import time
from math import ceil
from itertools import product as product
ONNX_MODEL = 'FaceDetector8.onnx'
RKNN_MODEL = 'retinaface.rknn'
img_path = '0.jpeg'
IMG_SIZE = 640
cfg_mnet = {
'min_sizes': [[16, 32], [64, 128], [256, 512]],
'steps': [8, 16, 32],
'variance': [0.1, 0.2],
}
# 得到anchor
class Anchors(object):
def __init__(self, cfg, image_size=None):
super(Anchors, self).__init__()
self.min_sizes = cfg['min_sizes']
self.steps = cfg['steps']
#---------------------------#
# 图片的尺寸
#---------------------------#
self.image_size = image_size
#---------------------------#
# 三个有效特征层高和宽
#---------------------------#
self.feature_maps = [[ceil(self.image_size[0]/step), ceil(self.image_size[1]/step)] for step in self.steps]
def get_anchors(self):
anchors = []
for k, f in enumerate(self.feature_maps):
min_sizes = self.min_sizes[k]
#-----------------------------------------#
# 对特征层的高和宽进行循环迭代
#-----------------------------------------#
for i, j in product(range(f[0]), range(f[1])):
for min_size in min_sizes:
s_kx = min_size / self.image_size[1]
s_ky = min_size / self.image_size[0]
dense_cx = [x * self.steps[k] / self.image_size[1] for x in [j + 0.5]]
dense_cy = [y * self.steps[k] / self.image_size[0] for y in [i + 0.5]]
for cy, cx in product(dense_cy, dense_cx):
anchors += [cx, cy, s_kx, s_ky]
output_np=np.array(anchors).reshape(-1,4)
return output_np
# 填充灰条，实现resize
def letterbox_image (image, size):
ih, iw, _ = np.shape(image)
w, h = size
scale = min(w/iw, h/ih)
nw = int(iw*scale)
nh = int(ih*scale)
image = cv2.resize(image, (nw, nh))
new_image = np.ones([size[1], size[0], 3]) * 128
new_image[(h-nh)//2:nh+(h-nh)//2, (w-nw)//2:nw+(w-nw)//2] = image
return new_image
# 人脸框坐标解码
def decode(loc, priors, variances):
boxes = np.concatenate((priors[:, :2] + loc[:, :2] * variances[0] * priors[:, 2:],
priors[:, 2:] * np.exp(loc[:, 2:] * variances[1])), 1)
boxes[:, :2] -= boxes[:, 2:] / 2
boxes[:, 2:] += boxes[:, :2]
return boxes
# 人脸关键点解码
def decode_landm(pre, priors, variances):
landms = np.concatenate((priors[:, :2] + pre[:, :2] * variances[0] * priors[:, 2:],
priors[:, :2] + pre[:, 2:4] * variances[0] * priors[:, 2:],
priors[:, :2] + pre[:, 4:6] * variances[0] * priors[:, 2:],
priors[:, :2] + pre[:, 6:8] * variances[0] * priors[:, 2:],
priors[:, :2] + pre[:, 8:10] * variances[0] * priors[:, 2:],
), 1)
return landms
def pynms(dets, thresh): #非极大抑制
x1 = dets[:, 0]
y1 = dets[:, 1]
x2 = dets[:, 2]
y2 = dets[:, 3]
areas = (y2 - y1) * (x2 - x1)
scores = dets[:, 4]
keep = []
index = scores.argsort()[::-1] #置信度从大到小排序（下标）
while index.size > 0:
i = index[0]
keep.append(i)
x11 = np.maximum(x1[i], x1[index[1:]]) # 计算相交面积
y11 = np.maximum(y1[i], y1[index[1:]])
x22 = np.minimum(x2[i], x2[index[1:]])
y22 = np.minimum(y2[i], y2[index[1:]])
w = np.maximum(0, x22 - x11) # 当两个框不想交时x22 - x11或y22 - y11 为负数，
# 两框不相交时把相交面积置0
h = np.maximum(0, y22 - y11) #
overlaps = w * h
ious = overlaps / (areas[i] + areas[index[1:]] - overlaps)#计算IOU
idx = np.where(ious <= thresh)[0] #IOU小于thresh的框保留下来
index = index[idx + 1]
return keep
def filter_box(org_box,conf_thres,iou_thres): #过滤掉无用的框
conf = org_box[..., 4] > conf_thres #删除置信度小于conf_thres的BOX
# print(conf)
box = org_box[conf == True]
output = []
curr_cls_box = np.array(box)
curr_cls_box[:,:4]=curr_cls_box[:,:4]*640
curr_cls_box[:,5:]=curr_cls_box[:,5:]*640
curr_out_box = pynms(curr_cls_box,iou_thres) #经过非极大抑制后输出的BOX下标
for k in curr_out_box:
output.append(curr_cls_box[k]) #利用下标取出非极大抑制后的BOX
output = np.array(output)
return output
# 输入图片处理
def procss_img(img_path):
img=cv2.imread(img_path)
img=cv2.cvtColor(img,cv2.COLOR_BGR2RGB)
img=letterbox_image(img,(IMG_SIZE,IMG_SIZE))
or_img=np.array(img,np.uint8)
or_img=cv2.cvtColor(or_img,cv2.COLOR_RGB2BGR)
img=img.astype(dtype=np.float32)
img-=np.array((104,117,123),np.float32)
# img = img.transpose(2, 0, 1)
img=np.expand_dims(img,axis=0)
return img,or_img #img为模型输入，or_img用于画人脸框
# 画人脸框和5个关键点
def draw_img(boxes_conf_landms,old_image):
for b in boxes_conf_landms:
text = "{:.4f}".format(b[4])
b = list(map(int, b))
# b[0]-b[3]为人脸框的坐标，b[4]为得分
cv2.rectangle(old_image, (b[0], b[1]), (b[2], b[3]), (0, 0, 255), 2)
cx = b[0]
cy = b[1] + 12
cv2.putText(old_image, text, (cx, cy),cv2.FONT_HERSHEY_DUPLEX, 0.5, (255, 255, 255))
# b[5]-b[14]为人脸关键点的坐标
cv2.circle(old_image, (b[5], b[6]), 1, (0, 0, 255), 4)
cv2.circle(old_image, (b[7], b[8]), 1, (0, 255, 255), 4)
cv2.circle(old_image, (b[9], b[10]), 1, (255, 0, 255), 4)
cv2.circle(old_image, (b[11], b[12]), 1, (0, 255, 0), 4)
cv2.circle(old_image, (b[13], b[14]), 1, (255, 0, 0), 4)
return old_image
if __name__ == '__main__':
# # Create RKNN object
rknn = RKNN(verbose=True)
# Load rknn model
print('--> Loading model')
# pre-process config
print('--> config model')
rknn.config(mean_values=[[104, 117, 123]],
target_platform='rk3399pro')
print('done')
print('--> Loading model')
ret = rknn.load_onnx(model=ONNX_MODEL)
if ret != 0:
print('Load model failed!')
exit(ret)
print('done')
# Build model
print('--> Building model')
t1 = time.time()
ret = rknn.build(do_quantization=True, dataset='dataset.txt') # ,pre_compile=True buzuo lianghua gaicheng False zheyang jieguo xiangtong he pythondaima
t2 = time.time() - t1
print("cost time = ", t2)
if ret != 0:
print('Build retainface failed!')
exit(ret)
print('done')
# Export rknn model
print('--> Export RKNN model')
ret = rknn.export_rknn(RKNN_MODEL)
img, or_img = procss_img(img_path)
# Init runtime environment
print('--> Init runtime environment')
ret = rknn.init_runtime()
print("151561515")
if ret != 0:
print('Init runtime environment failed!')
exit(ret)
print('done')
# Inference
print('--> Running model')
outputs = rknn.inference(inputs=[img])
#输出数据转为numpy数据格式
output_1 = np.array(outputs[0]).squeeze()
output_2 = np.array(outputs[1]).squeeze()
output_3 = np.array(outputs[2]).squeeze()
#生成anchor ， 人脸框关键点解码
anchors = Anchors(cfg_mnet, image_size=(640, 640)).get_anchors()
print(anchors)
boxes = decode(output_1, anchors, cfg_mnet['variance'])
print(boxes)
landms = decode_landm(output_3, anchors, cfg_mnet['variance'])
print(landms)
conf = output_2[:, 1:2]
#非极大抑制，得到最终输出
boxs_conf = np.concatenate((boxes, conf, landms), -1)
boxs_conf = filter_box(boxs_conf, 0.5, 0.45)
#画出人类框和5个人脸关键并保存图片
if boxs_conf is not None:
draw_img(boxs_conf, or_img)
print(img)
cv2.imwrite("dog1.jpg",or_img)
# cv2.imshow('re', or_img)
# cv2.waitKey(0)
rknn.release()测试结果
c++代码
cmakelists.txt
cmake_minimum_required(VERSION 3.16)
project(retainface_rknn)
set(CMAKE_CXX_FLAGS "-std=c++11")
set(CMAKE_CXX_STANDARD 11)
include_directories(${CMAKE_SOURCE_DIR})
include_directories(${CMAKE_SOURCE_DIR}/include)
find_package(OpenCV REQUIRED)
#message(STATUS ${OpenCV_INCLUDE_DIRS})
#添加头文件
include_directories(${OpenCV_INCLUDE_DIRS})
#链接Opencv库
add_library(librknn_api SHARED IMPORTED)
set_target_properties(librknn_api PROPERTIES IMPORTED_LOCATION ${CMAKE_SOURCE_DIR}/lib/librknn_api.so)
add_executable(retainface_rknn main.cpp)
target_link_libraries(retainface_rknn ${OpenCV_LIBS} librknn_api )main.cpp
#include <stdio.h>
#include <stdint.h>
#include <stdlib.h>
#include <queue>
#include "rknn_api.h"
#include "opencv2/core/core.hpp"
#include "opencv2/imgproc/imgproc.hpp"
#include "opencv2/highgui/highgui.hpp"
#include <chrono>
using namespace cv;
using namespace std;
struct FaceObject {
cv::Rect_<float> rect;
cv::Point landmark[5];
float prob;
};
struct Anchor{
float cx;
float cy;
float s_kx;
float s_ky;
};
void printRKNNTensor(rknn_tensor_attr *attr) {
printf("index=%d name=%s n_dims=%d dims=[%d %d %d %d] n_elems=%d size=%d "
"fmt=%d type=%d qnt_type=%d fl=%d zp=%d scale=%f\n",
attr->index, attr->name, attr->n_dims, attr->dims[3], attr->dims[2],
attr->dims[1], attr->dims[0], attr->n_elems, attr->size, 0, attr->type,
attr->qnt_type, attr->fl, attr->zp, attr->scale);
}
void decode(float *loc,float *land_mark,vector<Anchor> &Anchors, float *out_loc, float *out_landmark,int width, int height) {
float variance[2] = {0.1,0.2};
for (int q=0; q<1; q++) {
for (int y=0; y<16800; y++) {
out_loc[y*4] = Anchors[y].cx + loc[0]*variance[0]*Anchors[y].s_kx;
out_loc[y*4+1] = Anchors[y].cy + loc[1]*variance[0]*Anchors[y].s_ky;
out_loc[y*4+2] = (Anchors[y].s_kx*exp(loc[2]*variance[1]))*width; //width
out_loc[y*4+3] = (Anchors[y].s_ky*exp(loc[3]*variance[1]))*height; //height
out_loc[y*4] = out_loc[y*4]*width - out_loc[y*4+2]/2; //x0
out_loc[y*4+1] = out_loc[y*4+1]*height - out_loc[y*4+3]/2; //y0
loc += 4;
out_landmark[y*10] = Anchors[y].cx + land_mark[0]*variance[0]*Anchors[y].s_kx;
out_landmark[y*10+1] = Anchors[y].cy + land_mark[1]*variance[0]*Anchors[y].s_ky;
out_landmark[y*10+2] = Anchors[y].cx + land_mark[2]*variance[0]*Anchors[y].s_kx;
out_landmark[y*10+3] = Anchors[y].cy + land_mark[3]*variance[0]*Anchors[y].s_ky;
out_landmark[y*10+4] = Anchors[y].cx + land_mark[4]*variance[0]*Anchors[y].s_kx;
out_landmark[y*10+5] = Anchors[y].cy + land_mark[5]*variance[0]*Anchors[y].s_ky;
out_landmark[y*10+6] = Anchors[y].cx + land_mark[6]*variance[0]*Anchors[y].s_kx;
out_landmark[y*10+7] = Anchors[y].cy + land_mark[7]*variance[0]*Anchors[y].s_ky;
out_landmark[y*10+8] = Anchors[y].cx + land_mark[8]*variance[0]*Anchors[y].s_kx;
out_landmark[y*10+9] = Anchors[y].cy + land_mark[9]*variance[0]*Anchors[y].s_ky;
land_mark+=10;
}
}
}
bool FaceLargerScore(FaceObject a, FaceObject b) {
if ( a.prob > b.prob) {
return true;
} else {
return false;
}
}
float intersection_area(const FaceObject& a, const FaceObject& b) {
cv::Rect_<float> inter = a.rect & b.rect;
return inter.area();
}
void nms_sorted_bboxes(const std::vector<FaceObject>& faceobjects, std::vector<int>& picked, float nms_threshold) {
picked.clear();
const int n = faceobjects.size();
vector<float> areas(n);
for (int i = 0; i < n; i++) {
areas[i] = faceobjects[i].rect.area();
}
for (int i = 0; i < n; i++) {
const FaceObject& a = faceobjects[i];
int keep = 1;
for (int j = 0; j < (int)picked.size(); j++) {
const FaceObject& b = faceobjects[picked[j]];
// intersection over union
float inter_area = intersection_area(a, b);
float union_area = areas[i] + areas[picked[j]] - inter_area;
//float IoU = inter_area / union_area
if (inter_area / union_area > nms_threshold)
keep = 0;
}
if (keep)
picked.push_back(i);
}
}
int post_process_u8(float *input0,float *input1,float *input2,cv::Mat img,int w,int h,std::vector<Anchor> Anchors_,int long_size,std::vector<FaceObject> &faces){
float *loc_data=input0;
float *cls_data=input1;
float *land_mark=input2;
int length=16800;
int c=1;
float conf_=0.7;
int top_k_=100;
float *out_loc = new float[length*4];
float *out_landmark = new float[length*10];
decode(loc_data, land_mark,Anchors_, out_loc,out_landmark, w, h);
vector<FaceObject> tempfaces;
//将大于阈值的框存进temfaces，准备下一步的nms
for (int q=0; q<c; q++) {
for (int y=0; y<length;y++) {
if(cls_data[2*y+1] > conf_) {
FaceObject face;
face.prob = cls_data[2*y+1];
face.rect.x = out_loc[4*y];
face.rect.y = out_loc[4*y+1];
face.rect.width = out_loc[4*y+2];
face.rect.height = out_loc[4*y+3];
face.landmark[0].x=out_landmark[10*y]*w;
face.landmark[0].y=out_landmark[10*y+1]*h;
face.landmark[1].x=out_landmark[10*y+2]*w;
face.landmark[1].y=out_landmark[10*y+3]*h;
face.landmark[2].x=out_landmark[10*y+4]*w;
face.landmark[2].y=out_landmark[10*y+5]*h;
face.landmark[3].x=out_landmark[10*y+6]*w;
face.landmark[3].y=out_landmark[10*y+7]*h;
face.landmark[4].x=out_landmark[10*y+8]*w;
face.landmark[4].y=out_landmark[10*y+9]*h;
tempfaces.push_back(face);
}
}
}
//根据分数排序，保留top_k
std::sort(tempfaces.begin(), tempfaces.end(),FaceLargerScore);
if (tempfaces.size() > top_k_)
tempfaces.resize(top_k_);
//执行nms
std::vector<int> picked;
nms_sorted_bboxes(tempfaces, picked, 0.4);
//上面的操作是在640×640的图片上做的（先pad图片到正方形，再resize到640*640)
//因此下面的操作是将检测框，反映射回到原图像的尺寸
float scale = long_size*1.0/w; //width_与height_相等
for (int i = 0; i < picked.size(); i++) {
FaceObject face = tempfaces[picked[i]];
//反映射回pad_img
int real_x = face.rect.x*scale;
int real_y = face.rect.y*scale;
int real_width = face.rect.width*scale;
int real_height = face.rect.height*scale;
//反映射回实际原图尺寸
real_x = real_x - (long_size - img.cols)/2;
real_y = real_y - (long_size - img.rows)/2;
//如果检测框超出了原始图像的边界，则将检测框拉回边界
real_x = (real_x > 0) ? real_x :0;
real_y = (real_y > 0) ? real_y :0;
real_width = ((real_x + real_width) < img.cols ) ? real_width : (img.cols - real_x);
real_height = ((real_y + real_height) < img.rows ) ? real_height : (img.rows - real_y);
face.rect.x = real_x;
face.rect.y = real_y;
face.rect.width = real_width;
face.rect.height = real_height;
faces.push_back(face);
}
delete []out_loc;
delete []out_landmark;
return 0;
}
void generate_anchors(int height,int width,vector<Anchor> &Anchors) {
int steps[3] = {8,16,32};
int min_sizes[3][2] = {{16,32},{64,128},{256,512}};
int feature_maps[3][2] = {0};
for(int i=0;i<3;i++) {
feature_maps[i][0] = ceil(height*1.0/steps[i]);
feature_maps[i][1] = ceil(width*1.0/steps[i]);
}
Anchors.clear();
for(int i=0;i<3;i++) {
int *min_size = min_sizes[i];
for(int id_y=0;id_y<feature_maps[i][0];id_y++) {
for(int id_x=0;id_x<feature_maps[i][1];id_x++)
for(int k = 0;k<2;k++) {
float s_kx = min_size[k]*1.0/width;
float s_ky = min_size[k]*1.0/height;
float dense_cx = (id_x + 0.5)*steps[i]/width;
float dense_cy = (id_y + 0.5)*steps[i]/height;
Anchor a;
a.cx = dense_cx;
a.cy = dense_cy;
a.s_kx = s_kx;
a.s_ky = s_ky;
Anchors.push_back(a);
}
}
}
}
int main(int argc, char **argv) {
const char *img_path = "../0.jpeg";
const char *model_path = "../FaceDetector8.rknn";
const char *post_process_type = "fp";//fp
const int target_width = 640;
const int target_height = 640;
vector<Anchor> Anchors_;
vector<FaceObject> faces;
generate_anchors(target_width,target_height,Anchors_);
// Load image
cv::Mat bgr = cv::imread(img_path);
if (!bgr.data) {
printf("cv::imread %s fail!\n", img_path);
return -1;
}
//BGR->RGB
//cv::cvtColor(rgb, bgr, cv::COLOR_BGR2RGB);
cv::Mat pad_img;
int long_size = max(bgr.cols,bgr.rows);
if (long_size == bgr.cols) {
int top = (long_size - bgr.rows)/2;
int bottom = long_size - top - bgr.rows;
cv::copyMakeBorder(bgr,pad_img,top,bottom,0,0,cv::BORDER_CONSTANT,0);
} else {
int left = (long_size - bgr.cols)/2;
int right = long_size - left - bgr.cols;
cv::copyMakeBorder(bgr,pad_img,0,0,left,right,cv::BORDER_CONSTANT,0);
}
//pad为正方形后，再resize为模型的固定输入大小（640,640）
cv::Mat img_resize;
cv::resize(pad_img,img_resize,cv::Size(target_width,target_height));
// Load model
FILE *fp = fopen(model_path, "rb");
if (fp == NULL) {
printf("fopen %s fail!\n", model_path);
return -1;
}
fseek(fp, 0, SEEK_END);
int model_len = ftell(fp);
void *model = malloc(model_len);
fseek(fp, 0, SEEK_SET);
if (model_len != fread(model, 1, model_len, fp)) {
printf("fread %s fail!\n", model_path);
free(model);
return -1;
}
rknn_context ctx = 0;
int ret = rknn_init(&ctx, model, model_len, 0);
if (ret < 0) {
printf("rknn_init fail! ret=%d\n", ret);
return -1;
}
/* Query sdk version */
rknn_sdk_version version;
ret = rknn_query(ctx, RKNN_QUERY_SDK_VERSION, &version,
sizeof(rknn_sdk_version));
if (ret < 0) {
printf("rknn_init error ret=%d\n", ret);
return -1;
}
printf("sdk version: %s driver version: %s\n", version.api_version,
version.drv_version);
/* Get input,output attr */
rknn_input_output_num io_num;
ret = rknn_query(ctx, RKNN_QUERY_IN_OUT_NUM, &io_num, sizeof(io_num));
if (ret < 0) {
printf("rknn_init error ret=%d\n", ret);
return -1;
}
printf("model input num: %d, output num: %d\n", io_num.n_input,
io_num.n_output);
rknn_tensor_attr input_attrs[io_num.n_input];
memset(input_attrs, 0, sizeof(input_attrs));
for (int i = 0; i < io_num.n_input; i++) {
input_attrs[i].index = i;
ret = rknn_query(ctx, RKNN_QUERY_INPUT_ATTR, &(input_attrs[i]),
sizeof(rknn_tensor_attr));
if (ret < 0) {
printf("rknn_init error ret=%d\n", ret);
return -1;
}
printRKNNTensor(&(input_attrs[i]));
}
rknn_tensor_attr output_attrs[io_num.n_output];
memset(output_attrs, 0, sizeof(output_attrs));
for (int i = 0; i < io_num.n_output; i++) {
output_attrs[i].index = i;
ret = rknn_query(ctx, RKNN_QUERY_OUTPUT_ATTR, &(output_attrs[i]),
sizeof(rknn_tensor_attr));
printRKNNTensor(&(output_attrs[i]));
}
int input_channel = 3;
int input_width = 0;
int input_height = 0;
if (input_attrs[0].fmt == RKNN_TENSOR_NCHW) {
printf("model is NCHW input fmt\n");
input_width = input_attrs[0].dims[0];
input_height = input_attrs[0].dims[1];
printf("input_width=%d input_height=%d\n", input_width, input_height);
} else {
printf("model is NHWC input fmt\n");
input_width = input_attrs[0].dims[1];
input_height = input_attrs[0].dims[2];
printf("input_width=%d input_height=%d\n", input_width, input_height);
}
printf("model input height=%d, width=%d, channel=%d\n", input_height, input_width,
input_channel);
/* Init input tensor */
rknn_input inputs[1];
memset(inputs, 0, sizeof(inputs));
inputs[0].index = 0;
inputs[0].buf = img_resize.data;
inputs[0].type = RKNN_TENSOR_UINT8;
inputs[0].size = input_width * input_height * input_channel;
inputs[0].fmt = RKNN_TENSOR_NHWC;
inputs[0].pass_through = 0;
/* Init output tensor */
rknn_output outputs[io_num.n_output];
memset(outputs, 0, sizeof(outputs));
for (int i = 0; i < io_num.n_output; i++) {
outputs[i].want_float = 1;
}
printf("img.cols: %d, img.rows: %d\n", img_resize.cols, img_resize.rows);
auto t1=std::chrono::steady_clock::now();
rknn_inputs_set(ctx, io_num.n_input, inputs);
ret = rknn_run(ctx, NULL);
if (ret < 0) {
printf("ctx error ret=%d\n", ret);
return -1;
}
ret = rknn_outputs_get(ctx, io_num.n_output, outputs, NULL);
if (ret < 0) {
printf("outputs error ret=%d\n", ret);
return -1;
}
/* Post process */
std::vector<float> out_scales;
std::vector<uint8_t> out_zps;
for (int i = 0; i < io_num.n_output; ++i) {
out_scales.push_back(output_attrs[i].scale);
out_zps.push_back(output_attrs[i].zp);
}
if (strcmp(post_process_type, "fp") == 0) {
post_process_u8((float *) outputs[0].buf,(float *) outputs[1].buf,(float*) outputs[2].buf,img_resize,
target_height, target_width,Anchors_, long_size,faces);
}
//毫秒级
auto t2=std::chrono::steady_clock::now();
double dr_ms=std::chrono::duration<double,std::milli>(t2-t1).count();
printf("%lf ms\n",dr_ms);
for(auto &face:faces){
cv::rectangle(img_resize, cv::Point(face.rect.x, face.rect.y),
cv::Point(face.rect.x + face.rect.width, face.rect.y + face.rect.height),
cv::Scalar(0, 255, 0), 2);
string score = to_string(face.prob);
cv::putText(img_resize, score, cv::Point(face.rect.x, face.rect.y),cv::FONT_HERSHEY_DUPLEX, 0.6, (0, 255, 255));
cv::circle(img_resize, face.landmark[0], 2, cv::Scalar(0, 0, 255), -1);
cv::circle(img_resize, face.landmark[1], 2, cv::Scalar(0, 0, 255), -1);
cv::circle(img_resize, face.landmark[2], 2, cv::Scalar(0, 0, 255), -1);
cv::circle(img_resize, face.landmark[3], 2, cv::Scalar(0, 0, 255), -1);
cv::circle(img_resize, face.landmark[4], 2, cv::Scalar(0, 0, 255), -1);
}
cv::imwrite("../image.jpg",img_resize);
cv::waitKey(0);
ret = rknn_outputs_release(ctx, io_num.n_output, outputs);
if (ret < 0) {
printf("rknn_query fail! ret=%d\n", ret);
goto Error;
}
Error:
if (ctx > 0)
rknn_destroy(ctx);
if (model)
free(model);
if (fp)
fclose(fp);
return 0;
}运行数据
/tmp/tmp.q0kaCsDGvt/cmake-build-debug/untitled10
D RKNNAPI: ==============================================
D RKNNAPI: RKNN VERSION:
D RKNNAPI: API: 1.6.1 (00c4d8b build: 2021-03-15 16:31:37)
D RKNNAPI: DRV: 1.7.1 (0cfd4a1 build: 2021-12-10 09:43:11)
D RKNNAPI: ==============================================
sdk version: 1.6.1 (00c4d8b build: 2021-03-15 16:31:37) driver version: 1.7.1 (0cfd4a1 build: 2021-12-10 09:43:11)
model input num: 1, output num: 3
index=0 name=input0_129 n_dims=4 dims=[1 3 640 640] n_elems=1228800 size=1228800 fmt=0 type=3 qnt_type=2 fl=0 zp=0 scale=1.000000
index=0 name=Concat_Concat_130/out0_0 n_dims=3 dims=[0 1 16800 4] n_elems=67200 size=67200 fmt=0 type=3 qnt_type=2 fl=0 zp=130 scale=0.040004
index=1 name=Softmax_Softmax_171/out0_1 n_dims=3 dims=[0 1 16800 2] n_elems=33600 size=67200 fmt=0 type=1 qnt_type=0 fl=0 zp=0 scale=1.000000
index=2 name=Concat_Concat_170/out0_2 n_dims=3 dims=[0 1 16800 10] n_elems=168000 size=168000 fmt=0 type=3 qnt_type=2 fl=0 zp=122 scale=0.086914
model is NCHW input fmt
input_width=640 input_height=640
model input height=640, width=640, channel=3
img.cols: 640, img.rows: 640
79.234952 ms
Process finished with exit code 0测试结果
参考：
GitHub - OpenFirework/Retinaface_CPP: Retinaface人脸检测网络 MNN、NCNN嵌入式，Linux端推理源码，包含一个卡通人脸检测的模型，脚本一键构建可执行程序
